MG995 High Speed Servo Motor(180 Degree)
People Also Buy
MG995 High Speed Servo Motor(180 Degree)

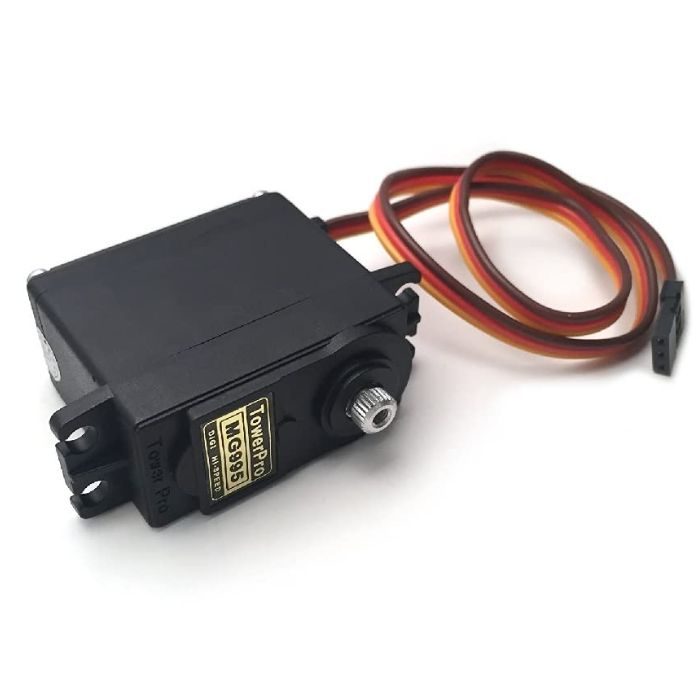

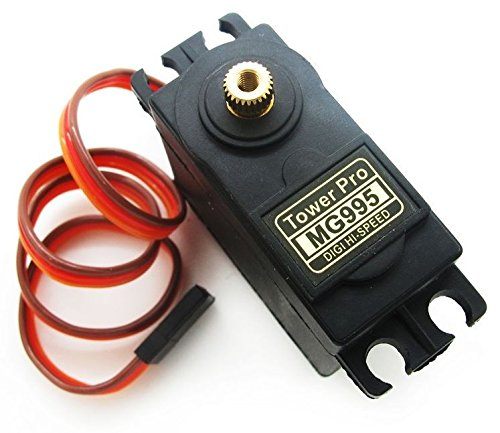

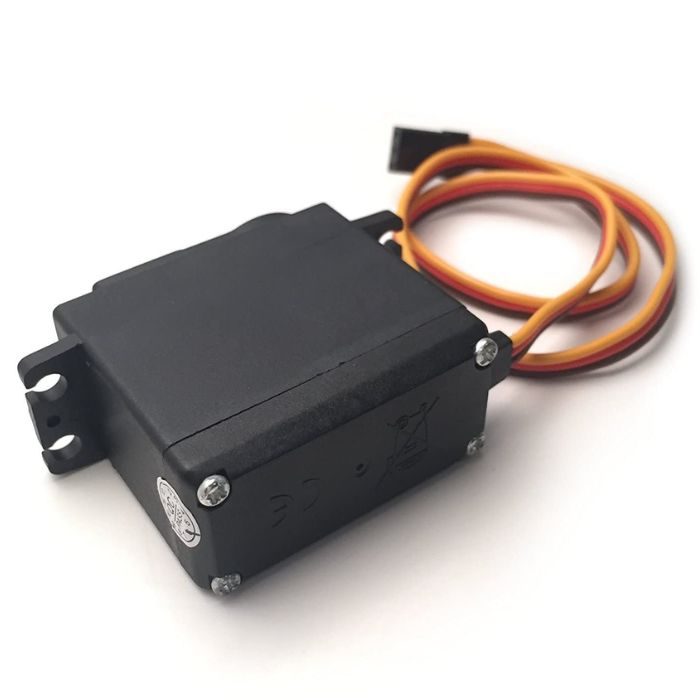

The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it a 180° servo motor. It is a Digital Servo Motor that receives and processes PWM signals faster and better. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.
It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. These TowerPro MG995 Metal Gear Servo Motors are high-speed servo motors with a mighty torque of 10 kg/cm.
They are packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats, RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.
Features:
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Applications:
- RC robot
- Airplane control
- Robot arm
- Remote Control toys
Package Includes:
- 1 x MG995 High-Speed Servo Motor
Specifications:
| Operation Voltage | 4.8 - 7.2Volts |
| Operating Angle | 120degree |
| Stall Torque (4.8V) | 10kg/cm |
| Stall Torque (6.0V) | 12kg/cm |
| Operating Speed (4.8V no load) | 20sec / 60 deg |
| Operating Speed (6.0V no load) | 16sec / 60 deg |
| Dimension(mm) | 40.7 × 19.7 × 42.9 |
| Weight | 55g |
Frequently Asked Questions
1. Can the MG995 high-speed servo motor only go 180 degrees?
- Yes, this servo motor can only rotate up to 180 degrees. A full 180-degree range would be a pulse from 500 to 2500. The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it a 180° servo motor.
2. How do you rotate a servo 180 degrees?
- To rotate the servo, use the write() function with the angle of rotation as the argument. The angle is in degrees, from 0 degrees to 180 degrees. The angle affects the servo motor's pulse width, which determines the amount of rotation.
3. What is the maximum degree of rotation of the MG995 high-speed servo motor?
- A servo motor is a DC motor that has been combined with a gear train, a shaft encoder, and some control logic to make it more user-friendly. It rotates only 180 degrees (90 degrees in either direction)
4. What is MG995 high-speed servo motor?
- The TowerPro MG995 High-Speed Digital Servo Motor is small and light. It can rotate 180 degrees (90 degrees in either direction) and works in the same way as a standard servo but on a smaller scale. You can use any servo code, hardware, or library to control these servos.
5. Where can the MG995 high-speed servo motor be used?
- The MG995 high-speed servo motor is packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats, RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.
