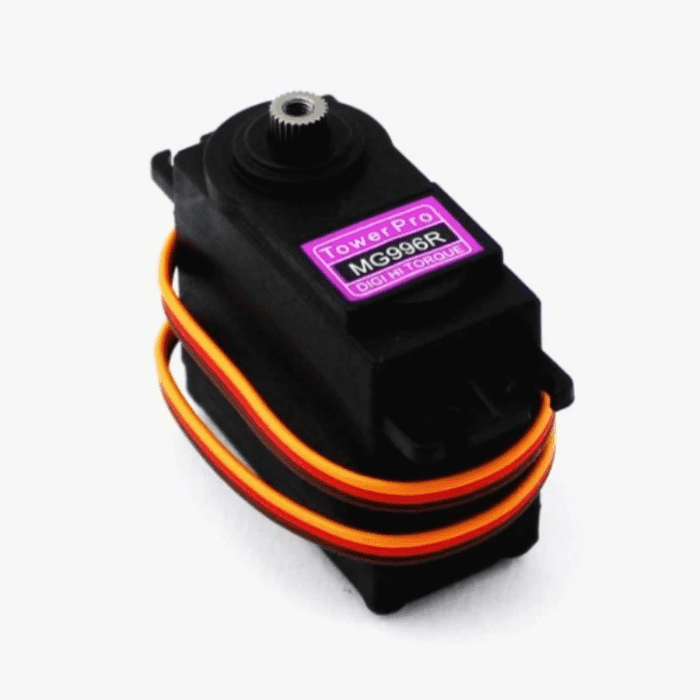

MG996R Servo Motor - 180 Degree

MG996R Servo Motor - 180 Degree-Robocraze
MG996R Servo Motor - 180 Degree-Robocraze
MG996R Servo Motor - 180 Degree-Robocraze
MG996R Servo Motor - 180 Degree-Robocraze
  • MG996R Servo Motor - 180 Degree-Robocraze
  • MG996R Servo Motor - 180 Degree-Robocraze
  • MG996R Servo Motor - 180 Degree-Robocraze
  • MG996R Servo Motor - 180 Degree-Robocraze

MG996R Servo Motor - 180 Degree

Best Price Guaranteed

Best Price Guaranteed
Regular price
Rs. 259
Sale price
Rs. 259
Regular price
Rs. 313
You save Rs. 54
17% off
You save Rs. 54
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This is MG996R Servo Motor - 180 Degree

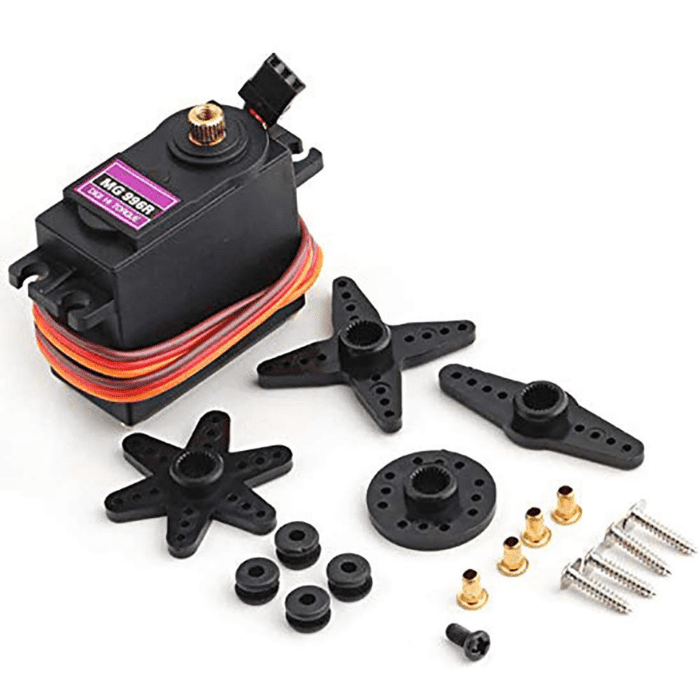

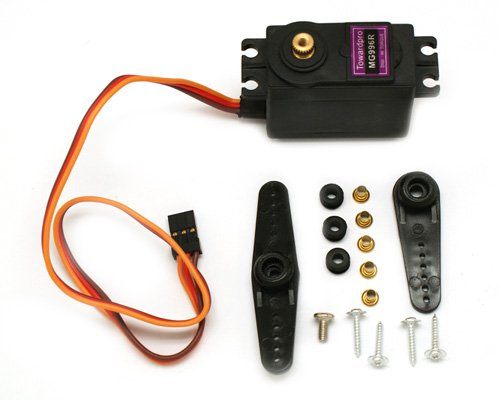

  • This comes with a 3-pin power, control cable and mounting hardware.
  • This motor has stall Torque of 9.4 kgf·cm at 4.8V  and 11 kgf·cm at 6V.
  • The operating Speed of this motor 0.17 s/60 (4.8V), 0.14 s/60 (6V)
  • The operating Voltage of this motor is 4.8V to 7.2V.
  • This has double ball bearing design
  • This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project

MG996R Servo Motor

This high-torque MG996R digital servo features gears resulting in extra high 10kg stalling torque in a tiny package. The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock-proofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwidth and centering. The unit comes complete with 30cm wire and a 3 pin type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, bluebird, blue arrow, corona, berg, spectrum, and Hitec. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.

This high-torque standard servo motor can rotate approximately 180 degrees (60 in each direction). You can use any servo code, hardware, or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with a feedback gear box, especially since it will fit in small places. The MG996R servo also comes with a selection of arms and hardware to get you set up nice and fast.

Wire Configuration :

  • RED    –   Positive
  • Brown – Negative
  • Orange – Signal (PWM)

Package Includes:

  • 1 x MG996R Servo Motor

Specifications:

Operating voltage 4.8 V - 7.2 V
Running Current 500 mA – 900 mA (6V)
Operating Angle  180degree
Direction  CCW
Operating speed 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
Weight 55 g

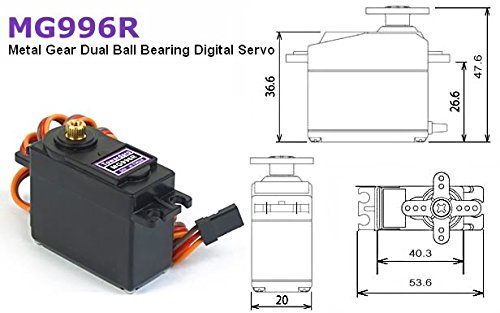

Dimension 40.7 x 19.7 x 42.9 mm

1. What is the maximum angle up to which a servo motor can rotate?

  • A servo motor is a direct current motor that has been integrated with a gear train, a shaft encoder, and some control logic to make it easier to use. It has a limited range of rotation, usually 180°.

2. Can servo motor rotate in both directions?

  • A servo motor can typically only turn 90° in either direction for a total movement of 180°. The neutral position of the motor is defined as the point at which the servo has the same amount of potential rotation in both the clockwise and counter-clockwise directions.

3. Can you control speed of servo?

  • You can control the servo's speed by rotating it in small steps rather than giving it the final demand angle, as shown below. You can change the speed of the for-loops by changing the delay value.
