GY-302 BH1750 Light Intensity Module
GY-302 BH1750 Light Intensity Module
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- No ambient light distinction
- High precision determination accurate to 1 Lux for different lights
- ROHM original package BH1750FVI chip
- Operating Voltage: 3-5VDC
- Built-in 16bit A/D converter
- I2C interface

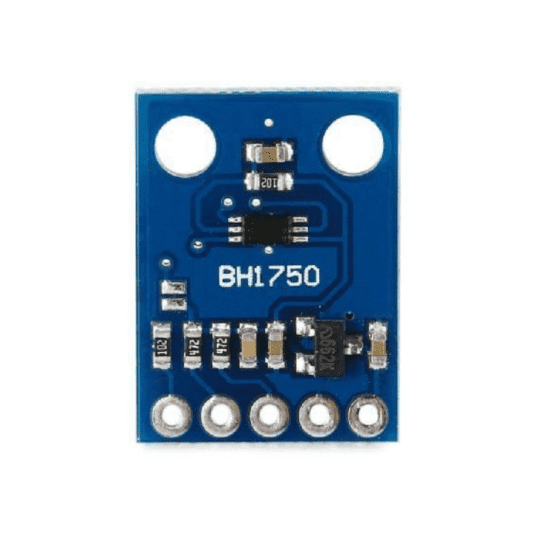

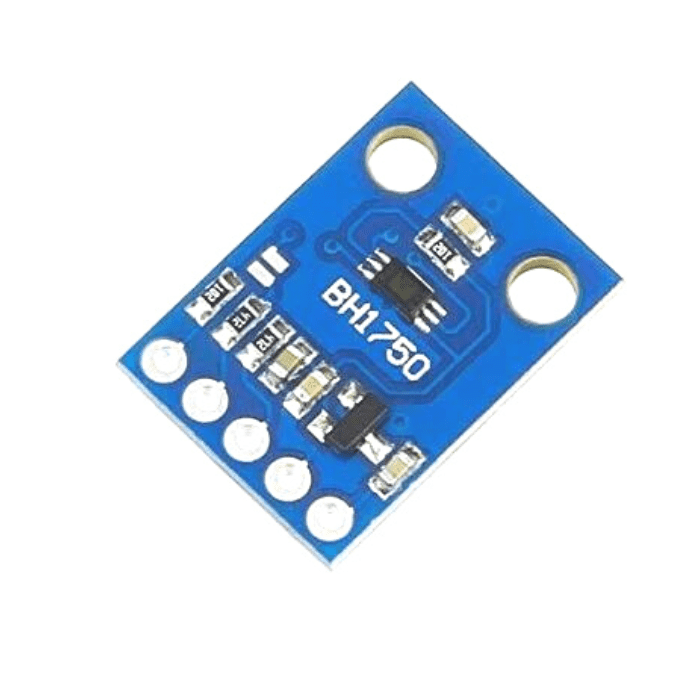

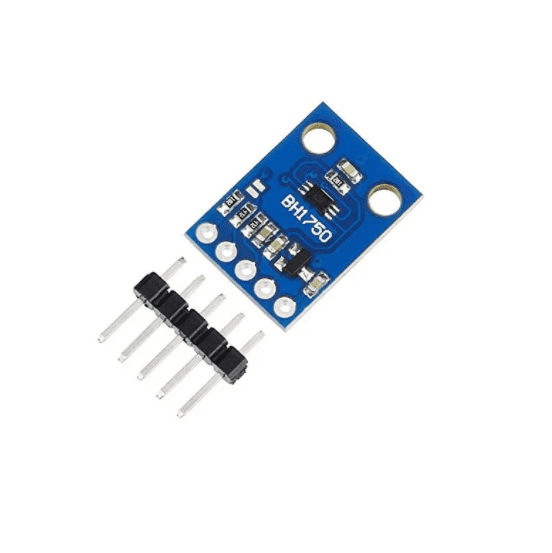

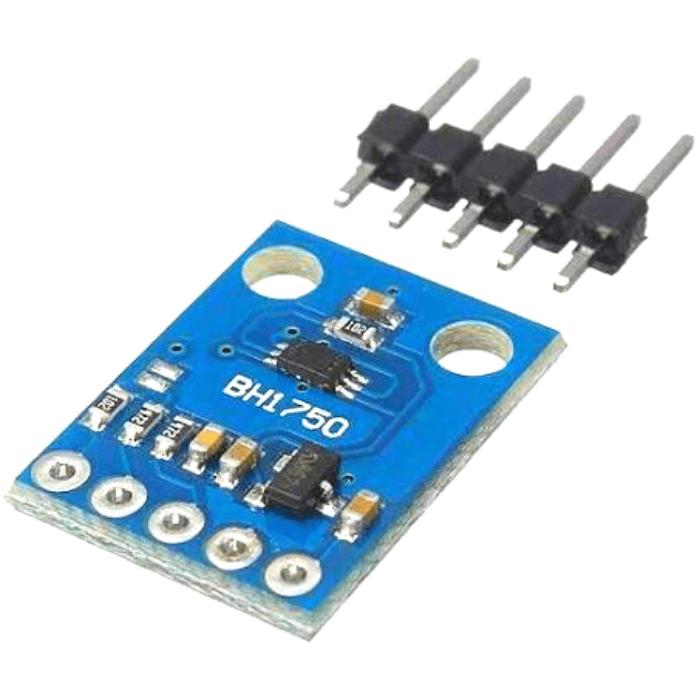

GY-302 BH1750 Light Intensity Module
The GY-302 BH1750 Light Intensity Module is a Light Intensity Detection Module based on the BH1750 chip. BH1750FVI is a digital Ambient Light Sensor IC for the I2C bus interface. This light sensor IC is the most suitable to receive the ambient light data for adjusting the LCD and Keypad backlight power of the Mobile phone. It is possible to detect a wide range at High resolution.
Read our blog explaining How ldr sensors Works.
GY-302 BH1750 Light Intensity Module Pinout:
Applications:
- Can be used in DIY Projects to measure light intensity
- Can be used in Digital camera
- Can be used in Portable game machine
- Can be used in LCD display
Package Includes:
1 x GY-302 BH1750 Light Intensity Module
Specifications:
| Type |
GY-302 |
| Operating Voltage (VDC) |
3 ~ 5 |
| Analog to Digital Converter |
Build-in 16-bit |
| Interface |
I2C |
| Date Range |
0~65535 |
| Dimensions(LxWxH) |
18 x 13 x 3 mm |
| Weight | 0.10gm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1.What is a GY-302 BH1750 Light Intensity Module?
- The GY-302 BH1750 Light Intensity Module is a device that measures the intensity of ambient light. It employs a BH1750 sensor, a digital light sensor capable of detecting light intensities ranging from 1 to 65,535 lux. The module is intended to be linked to a microcontroller or other host device via an I2C interface, allowing communication between the module and the host device using the I2C protocol.
2.How does the GY-302 BH1750 Light Intensity Module work?
- The GY-302 BH1750 Light Intensity Module measures ambient light intensity using a BH1750 sensor. The sensor transforms the amount of light into a digital value that the microcontroller can read. The module can transform the measured value into a digital value because it features an internal 16-bit AD converter.
3.What are the common applications of GY-302 BH1750 Light Intensity Module?
- The GY-302 BH1750 Light Intensity Module is extensively used in lighting control systems, street lighting, security systems, and other applications that require detecting ambient light intensity. It can also be utilised in applications requiring light intensity measurement, such as automatic light control, colour recognition and tracking, and others.
