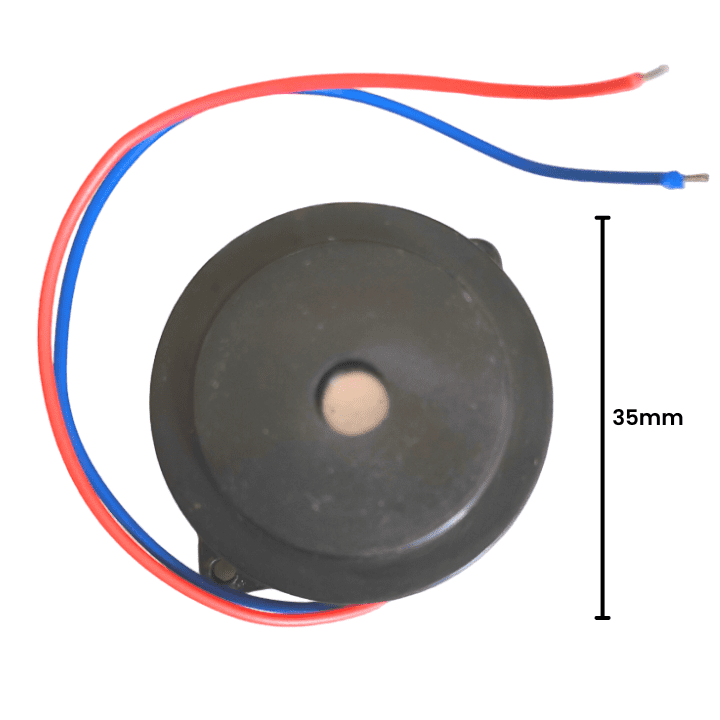

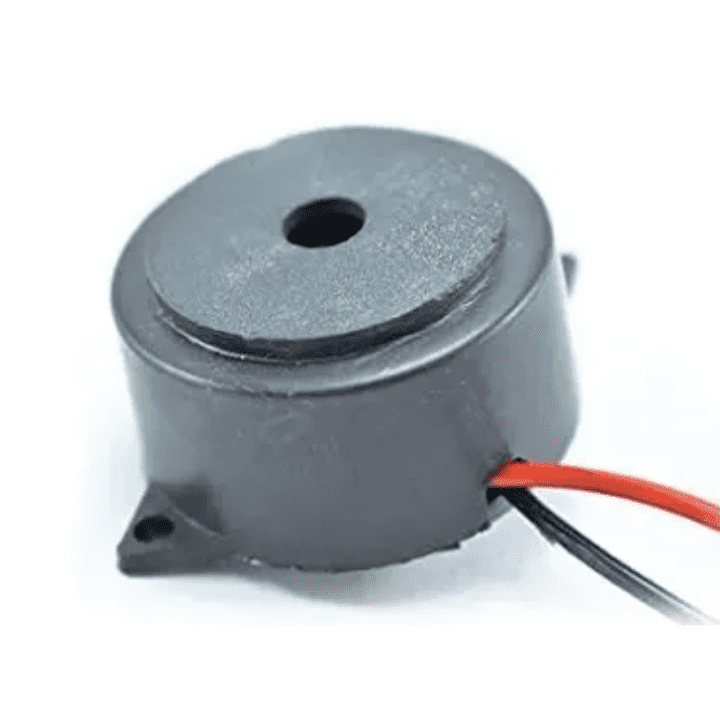

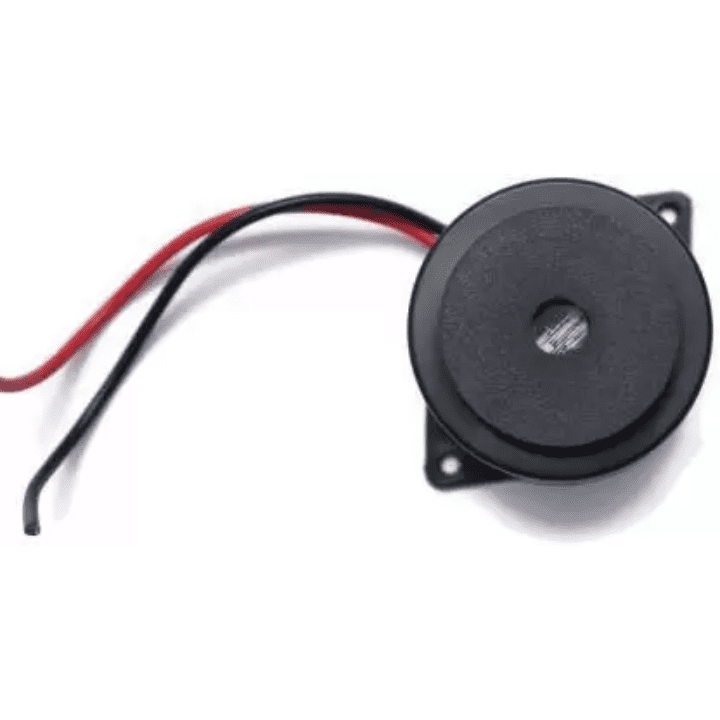

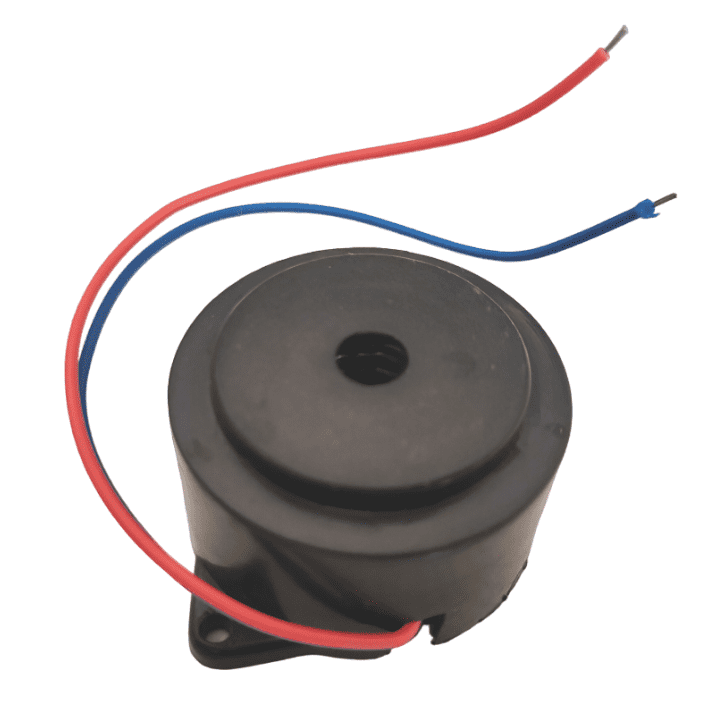

MB35L2 - 35mm Loud Intermittent 1.5V to 15V DC
Couldn't load pickup availability
A buzzer is a small yet efficient component to add sound features to our project/system. It is a very small and compact 2-pin structure hence can be easily used on breadboards, Perf Board and even on PCBs which makes this a widely used component in most electronic applications. There are two types of buzzers that are commonly available. The one shown here is a simple buzzer which when powered will make a Continuous Beep. Sound due to the internal oscillating circuit present inside it. But, the one shown here is most widely used because it can be customized with the help of other circuits to fit easily in our application.
| Minimum sound level | 85db |
| Oscillation frequency | 4KHz ± 500Hz |
| Current consumption | Maximum 20mA |
| Operating voltage | 1.5 to 15 VDC |
| Tone | Interrupted 1 to 4/sec |
| Mounting | Flange Type |
| Wire/Lead length | 120mm 2 wire |
| Height | 24.5mm |
| Diameter | 35mm |
| Pitch | 47.5mm |
| Operating temperature range | 20 to 50 °C |
