M5GO IoT Starter Kit V2.6

M5GO IoT Starter Kit V2.6

The M5GO IoT Starter Kit is a cost-effective IoT starter development kit. The kit contains Core Controller M5GO + 6 expansion units with different functions (sensors/actuators/splitters) + . The core controller M5GO adopts Espressif ESP32 chip, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of 240MHz. With 16M FLASH memory for larger program size. Besides its power, the MCU also supports Wi-Fi & Bluetooth dual-mode, which can be used to build smart wearable devices, smart homes, and other applications.

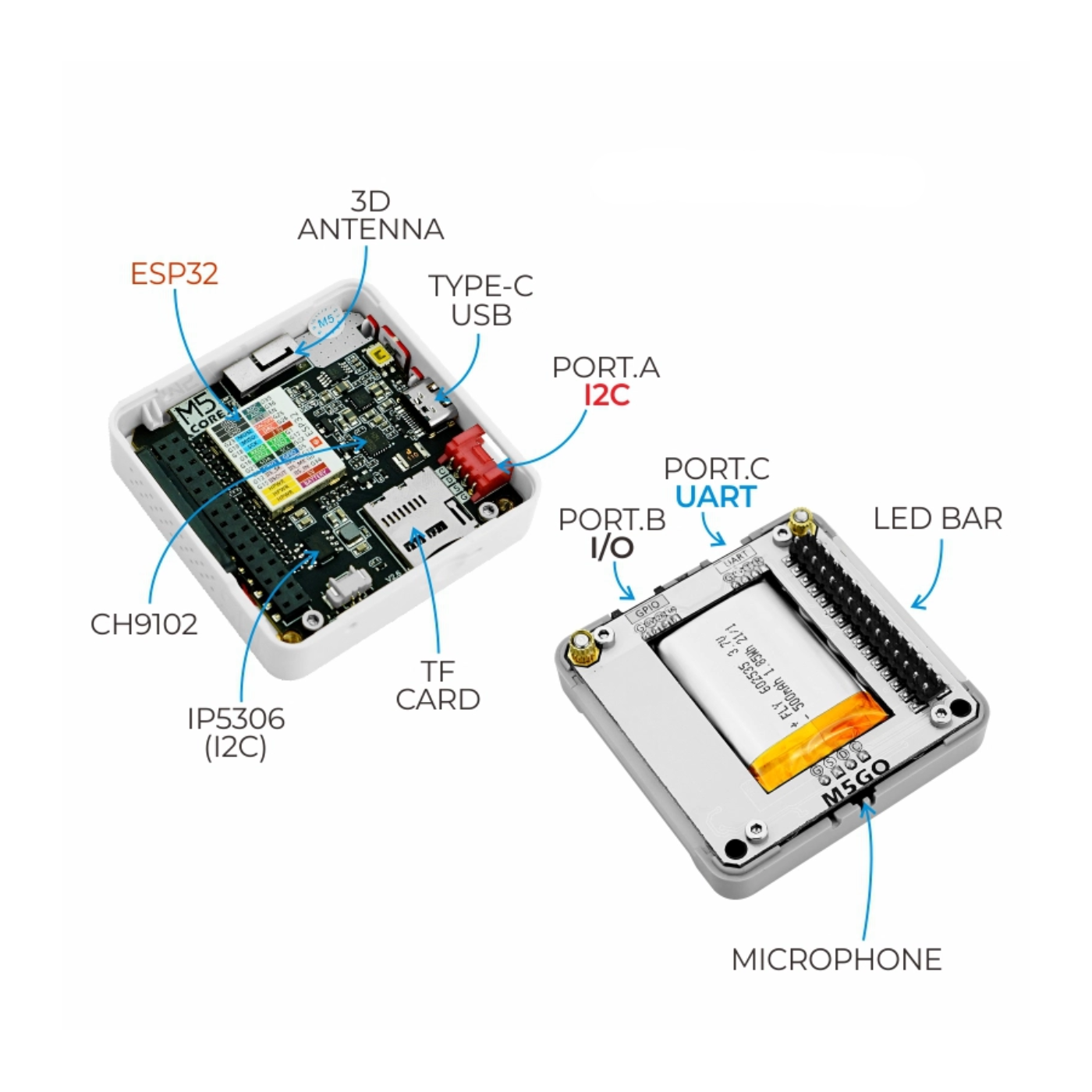

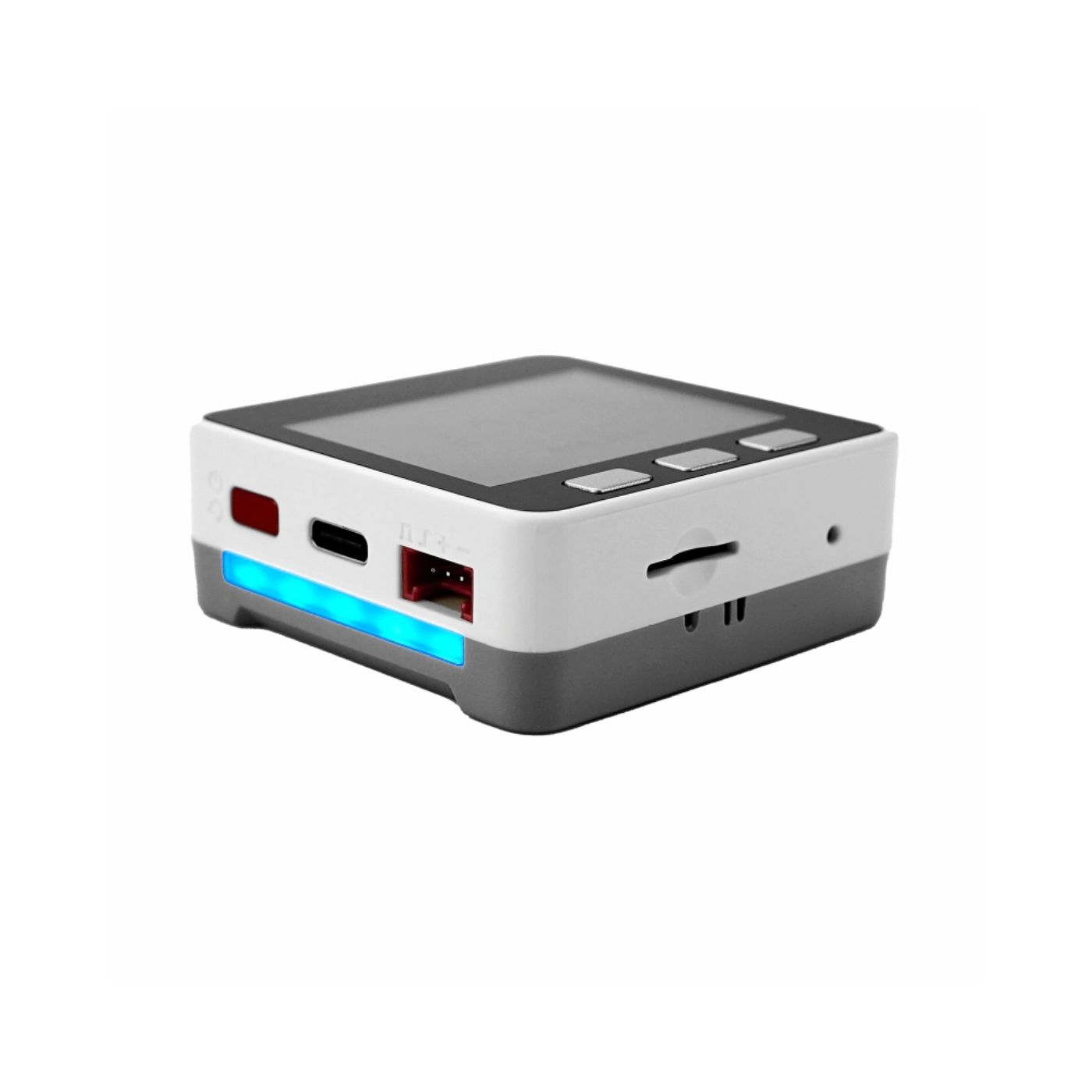

M5GO IoT controller

Low code development:

• Supports UIFlow graphical programming platform, scripting-free, cloud push
• Fully compatible with Arduino, ESP32-IDF, and other mainstream development platforms
• FreeRTOS support, with dual-core and multitasking mechanisms, can perform the tasks efficiently, Program optimization.

High Integration:

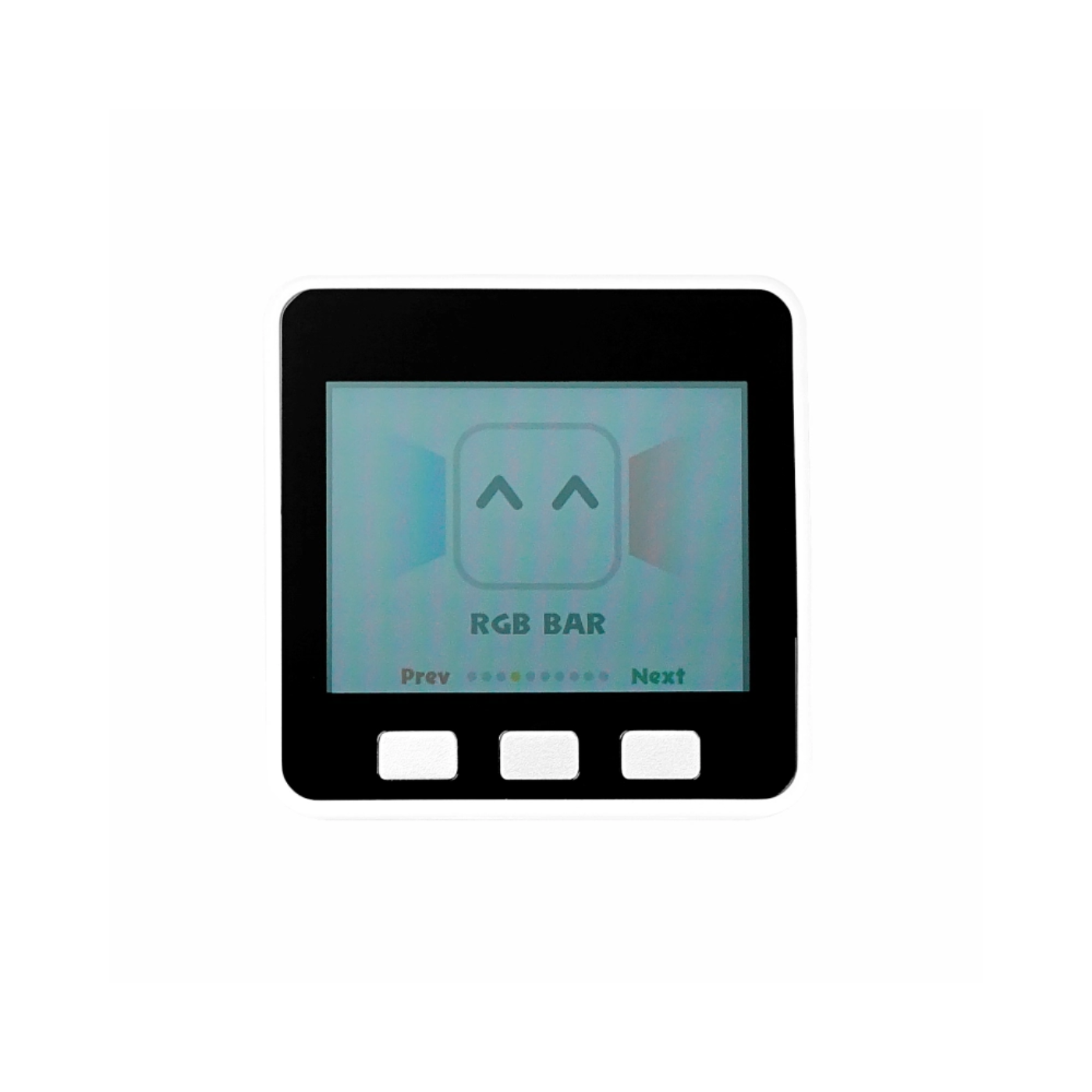

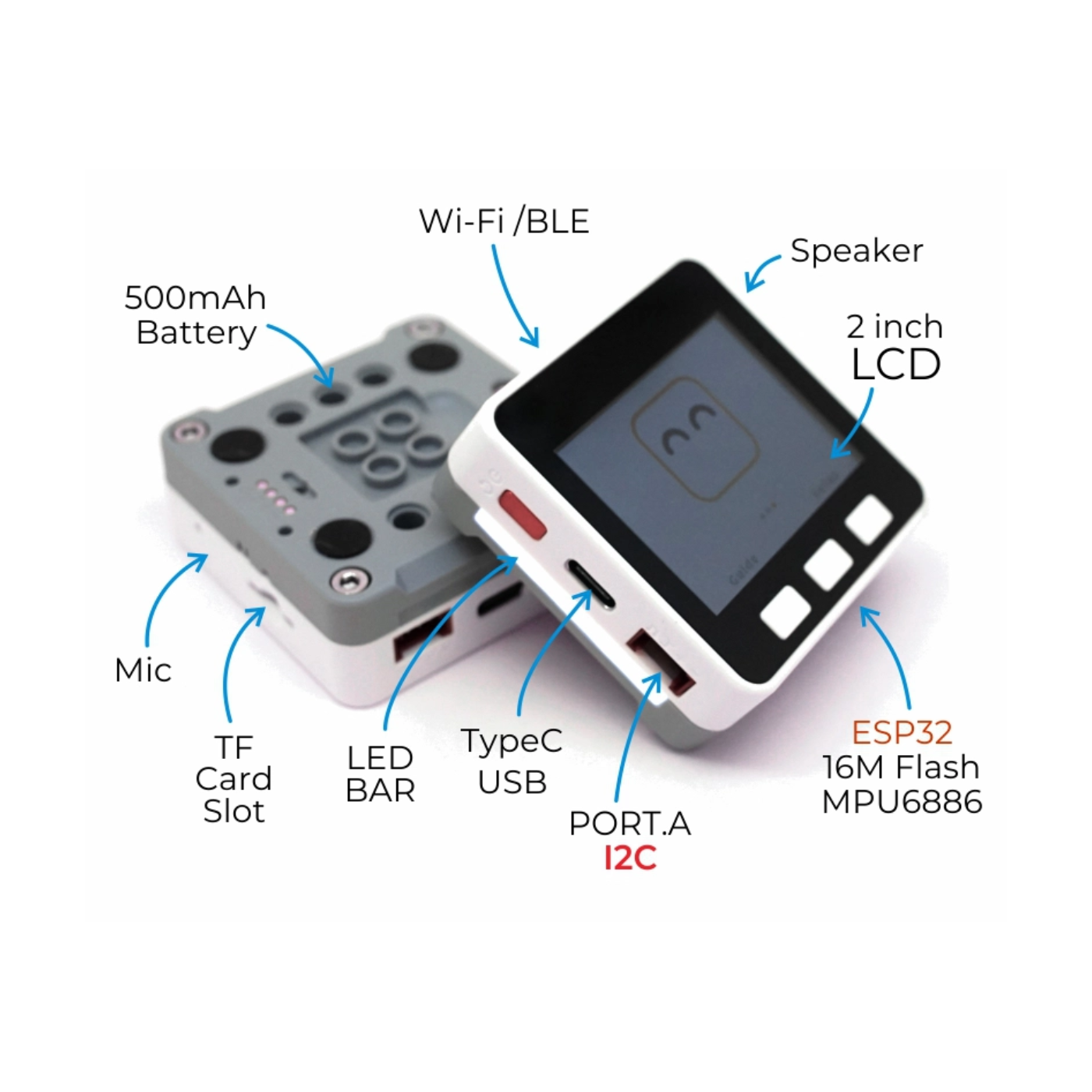

• 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3
• Built-in Li-ion power supply, integrated power management chip, supports TypeC interface and POGO PIN interface power supply
• Finely tuned RF circuitry for stable and reliable wireless communication

Strong expandability:

• GROVE expansion ports x3 (I2C, GPIO, UART)
• Easy access to M5Stack hardware and software system, stackable module design, plug-and-play sensor expansion

6x expansion units

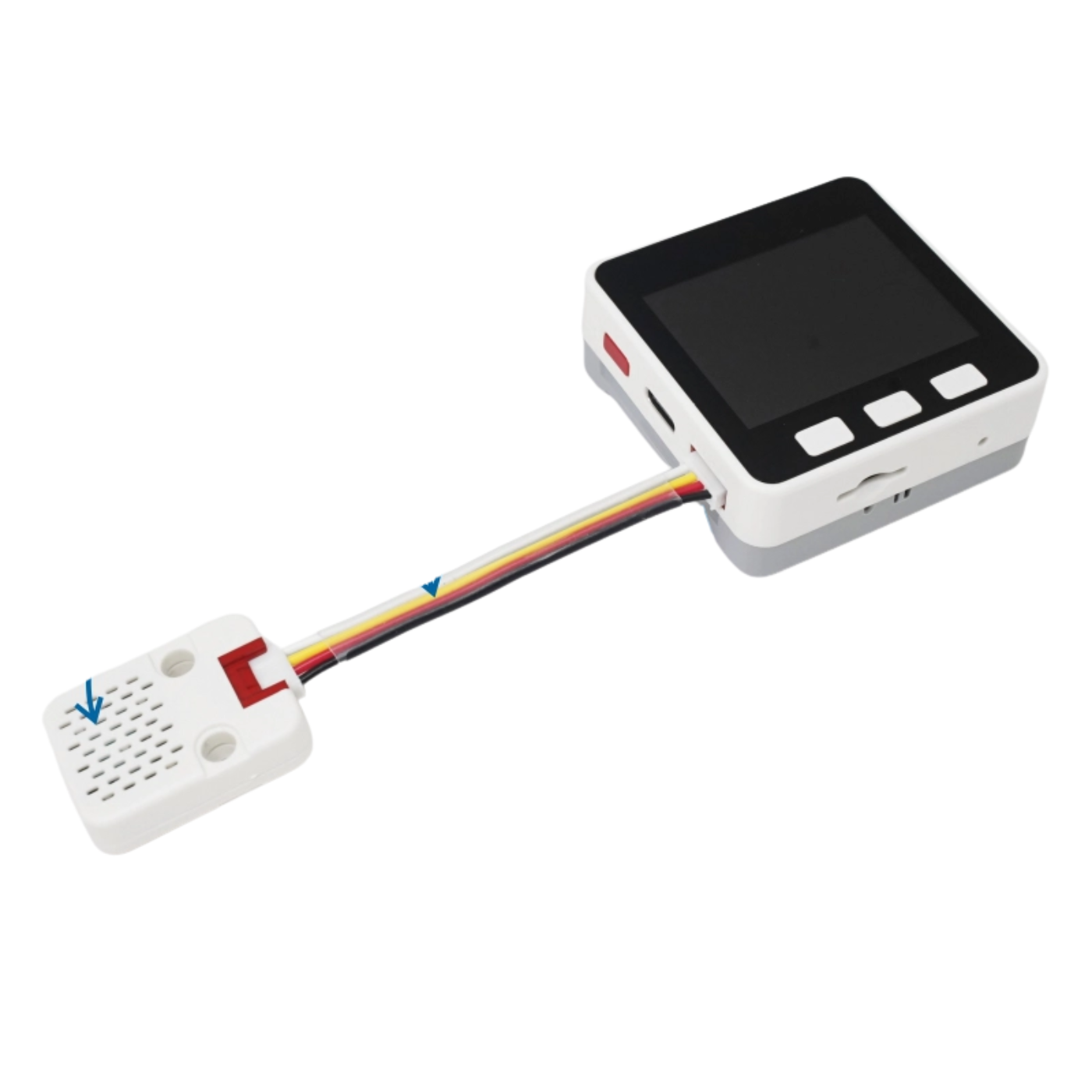

• ENV UNIT III: Temperature, humidity, and atmospheric pressure sensors, with an I2C communication interface for rapid acquisition of environmental information.
• PIR UNIT: Body sensor, passive pyroelectric for human body sensing, digital signal output status.
• ANGLE UNIT: Knob potentiometer, analog signal input for music/lighting adjustment
• IR UNIT: Integrated infrared transmitter, receiver. Free coding, infrared transceiver.
• RGB UNIT: 3x Programmable RGB LED, support programming to control any color display
• HUB UNIT: I2C device splitter, expand single I2C bus to 3 channels, can access different I2C address devices

Switch on/off operation:

Power on: Click the left red button
Power off: Quick double click the left red button
USB power: By default, It can not be shut down when USB power is on.

Applications:

• STEM Education
• IoT Controller
• Smart Home
• Smart Weather Station

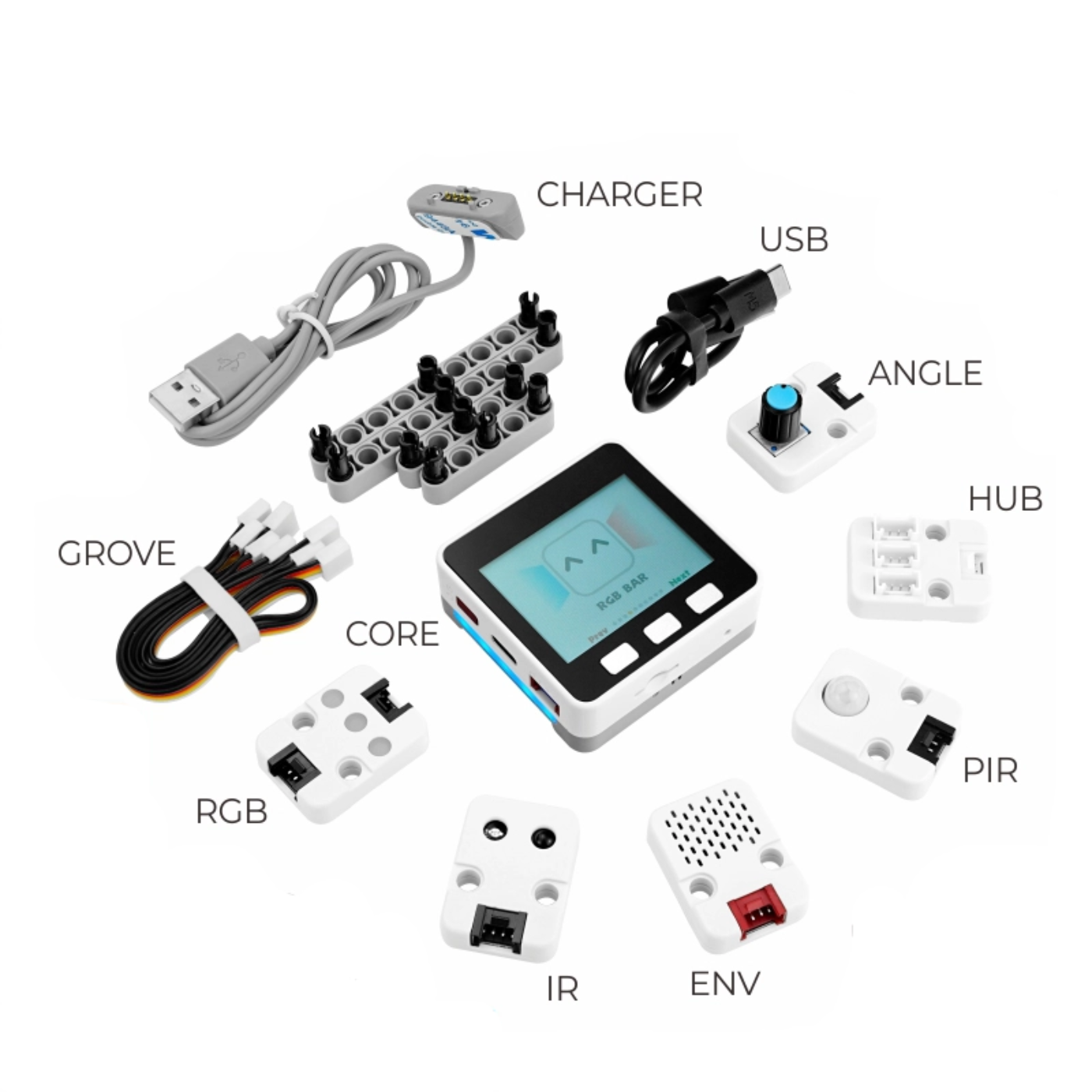

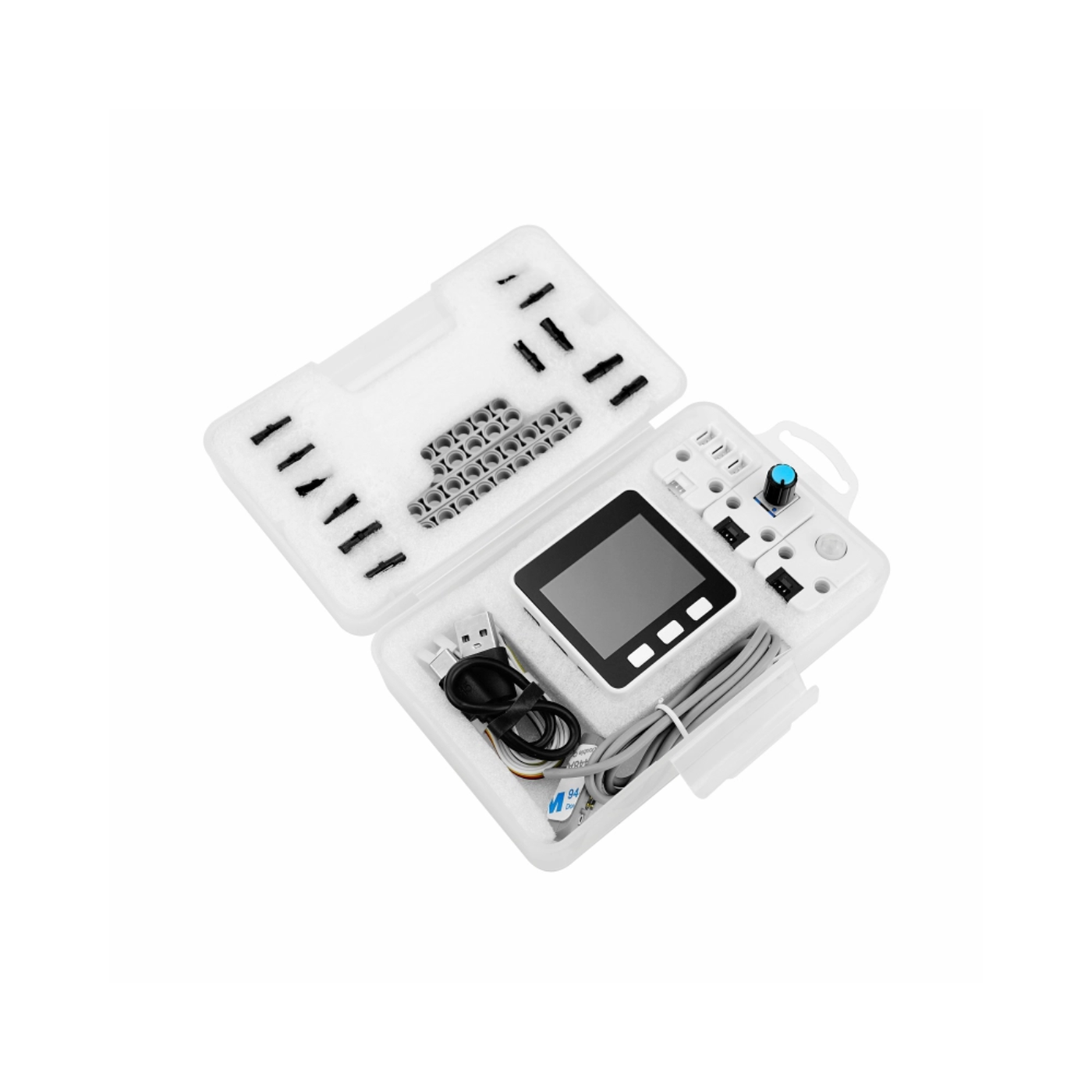

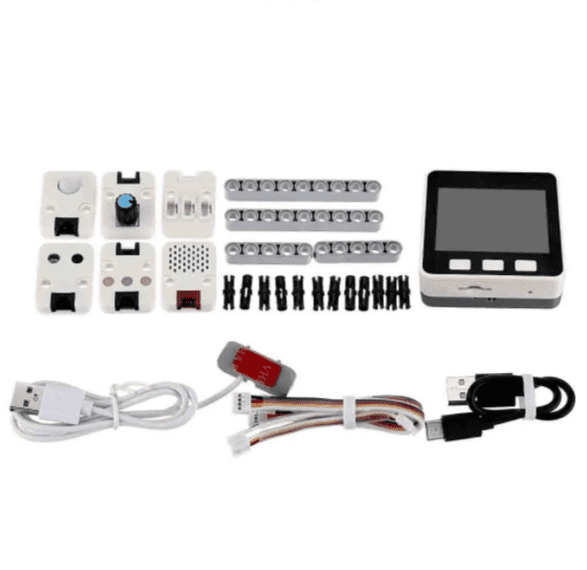

Package Includes:

1x M5GO
6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)

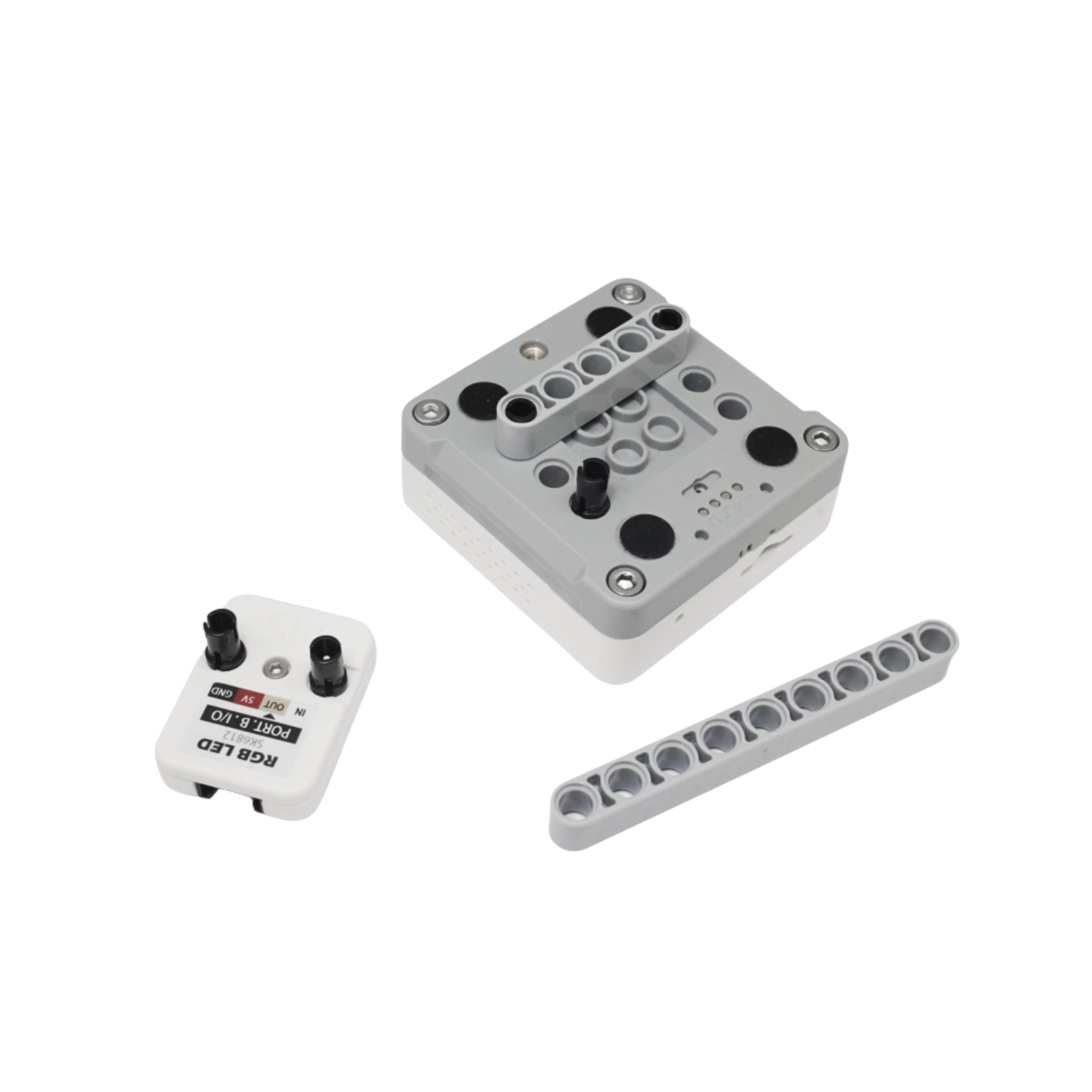

4x LEGO Blocks
12x LEGO Connections
4x GROVE cable
1x Type-C USB (20cm)
1x Quick Start Guide

Specifications:
