- Linear Bearings are of High Accuracy. For optimum performance use LM12UU with Hardened and Ground Shaft 12 mm
- The LM12UU Linear Motion Bearing gives you very precise, safe and reliable linear motion system machines.
- Bearings may require lubrication and break in period.
- This LM12UU 12 MM Linear Motion Bearing can provide low friction motion along a single axis, hence find a wide range of applications in 3D Printers, DIY and robotics prototyping.
- This linear ball bearing has closed type ball bushing has an 12mm bore is suitable for use in a mounted slide unit to carry components.
- These Bearings has various standardized parts which are interchangeable, so need no worry about replacement of any worn parts.
LM12UU 12mm Linear Motion Bearing for 3D Printer
LM12UU 12mm Linear Motion Bearings are perfect for linear motion on your 3D Printer, CNC, or other applications. It provides a precise, safe, and reliable linear motion system.
This is Linear Motion Bearing closed type ball bushing that has a 12mm bore and 21mm outer diameter and is suitable for use in a mounted slide unit to carry components. These Bearings have various standardized parts which are interchangeable, so you need no worry about the replacement of any worn parts.
LM12UU Linear Motion Bearing is High Precision and Rigidity linear motion bearings are produced from a solid steel outer cylinder. Also, the linear motion bearing incorporates an industrial strength resin retainer. LM 12 UU Linear Motion Bearing is Ease of Assembly The standard type of linear motion bearing can be loaded from any direction.
This Linear Motion Bearing is a linear motion bearing that consists of an outer cylinder, ball retainer, balls, and two end rings. The ball retainer which holds the balls in the recirculating trucks is stored inside the outer cylinder by end rings. Those parts are assembled to optimize their required functions.
Applications:
- 3D Printer
- CNC Machines
- DIY Mechanical Projects
- Industrial Equipments
Also check the LM13UU 13mm Linear Motion Bearing for 3D Printer available on Robocraze. The bearing is designed for precise, safe, and reliable linear motion in various applications such as 3D printers, DIY projects, and robotics prototyping.
Package Includes:
- 1 x LM12UU 12mm Linear Motion Bearing for 3D Printer

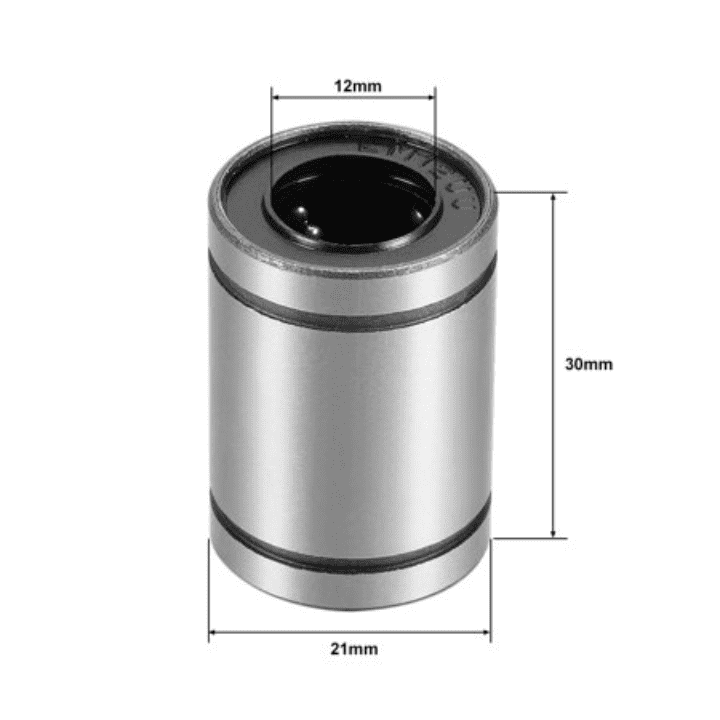

Specifications:
|
Type |
LM12UU |
| Inside Diameter/Bore (mm) | 12 |
| Outer Diameter (mm) | 21 |
| Length (mm) | 30 |
| Weight (gm) | 150 |
