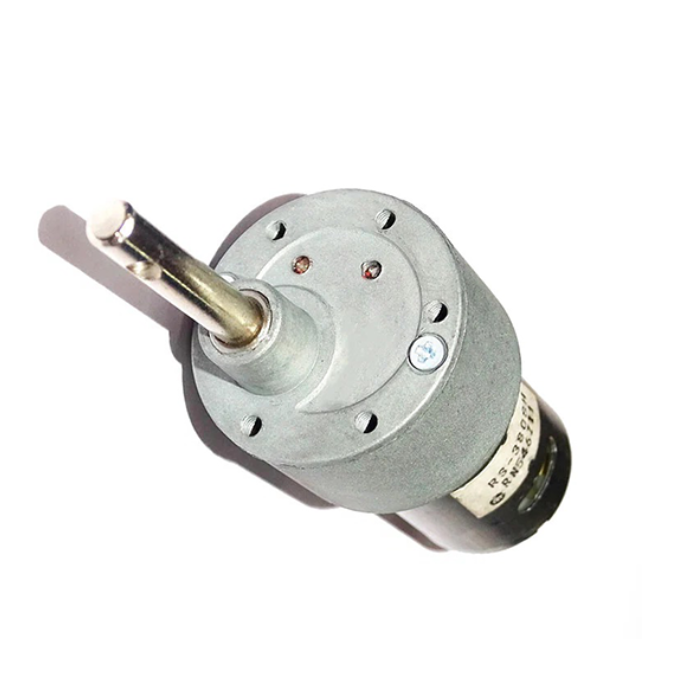

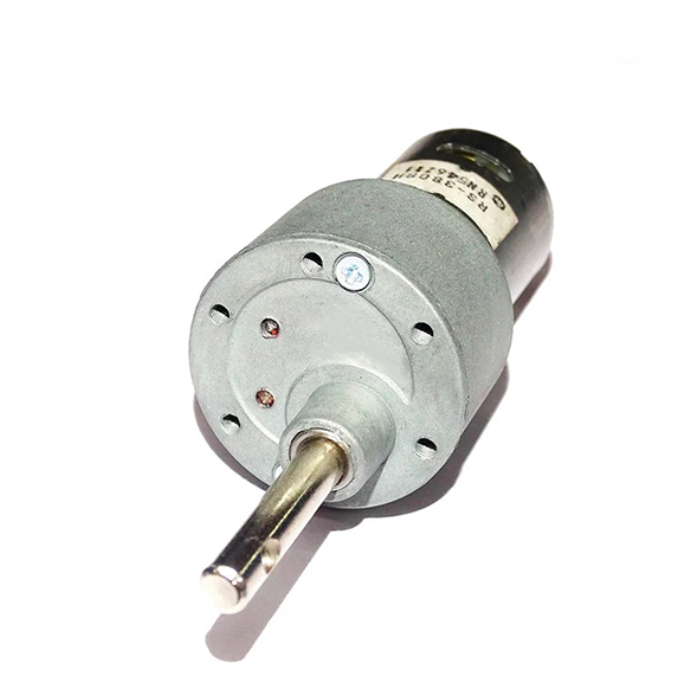

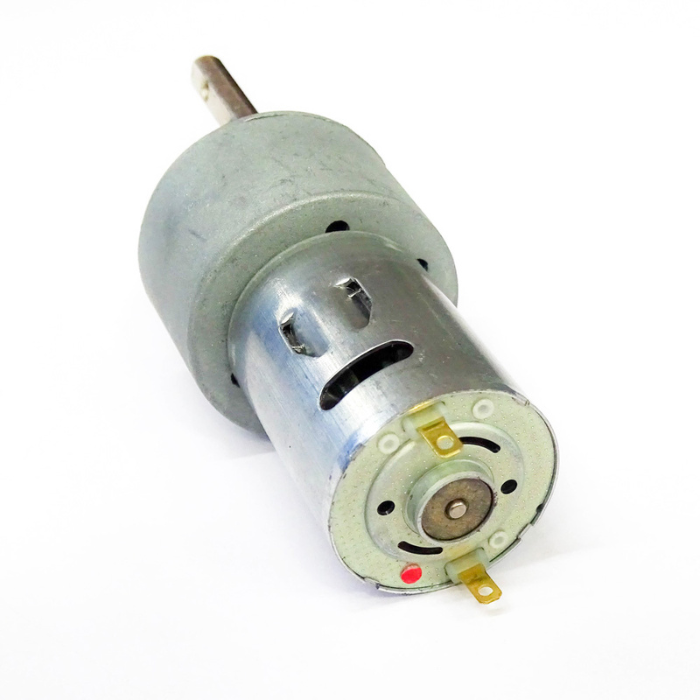

Johnson 10 RPM 12V DC Geared Motor (Grade B)
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Johnson 10 RPM 12V DC Geared Motor (Grade B) is a reliable and budget-friendly 12v dc gear motor ideal for various DIY and robotic applications.
With its robust metal gearbox and side shaft configuration, this 10 rpm johnson motor strikes a perfect balance between torque and size. Delivering a torque of 11.7 kg-cm at 12V, it provides ample power for medium-load applications.
Its shaft includes a metal bushing for enhanced durability and a center hole for secure coupling. Though classified as Grade B, this motor is widely appreciated for its solid performance at a lower price point compared to its Grade A counterparts.
Whether you're building mobile robots, actuators, or automation systems, this geared motor ensures smooth operation between 6V and 18V DC.
Note: This motor will have a ±20% error in the RPM
| Specification | Details |
|---|---|
| Item Type | Johnson Geared Motor |
| Rated Torque | 11.7 kg-cm |
| Stall Torque | 46 kg-cm |
| Operating Voltage | 6 ~ 18 VDC |
| Nominal Voltage | 12 V |
| Rated Speed | 10 RPM |
| Base Motor Rated RPM | 18000 RPM |
| No-Load Current | 300 mA |
| Load Current (Max) | 900 mA |
| Material | Metal |
| Shaft Diameter | 6 mm |
| Shaft Length | 25 mm |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 27 mm |
| Motor Length | 68 mm |
