The iMAX B6 is an extremely versatile and powerful balance charger which supports various types of batteries such as LiPo, LiFe, Li-Ion, NiMH, NiCd and Pb. It is capable of charging as well as discharging these batteries. It also contains an onboard LCD to select various settings and monitoring the charging and discharging operations.
Input voltage: 11 – 18 Volts DC
Max. charge power: 50W
Max. discharge power: 5W
Charge current range: 0.1-5.0A
Discharge current range: 0.1-1.0A
Suports up to 6s batteries

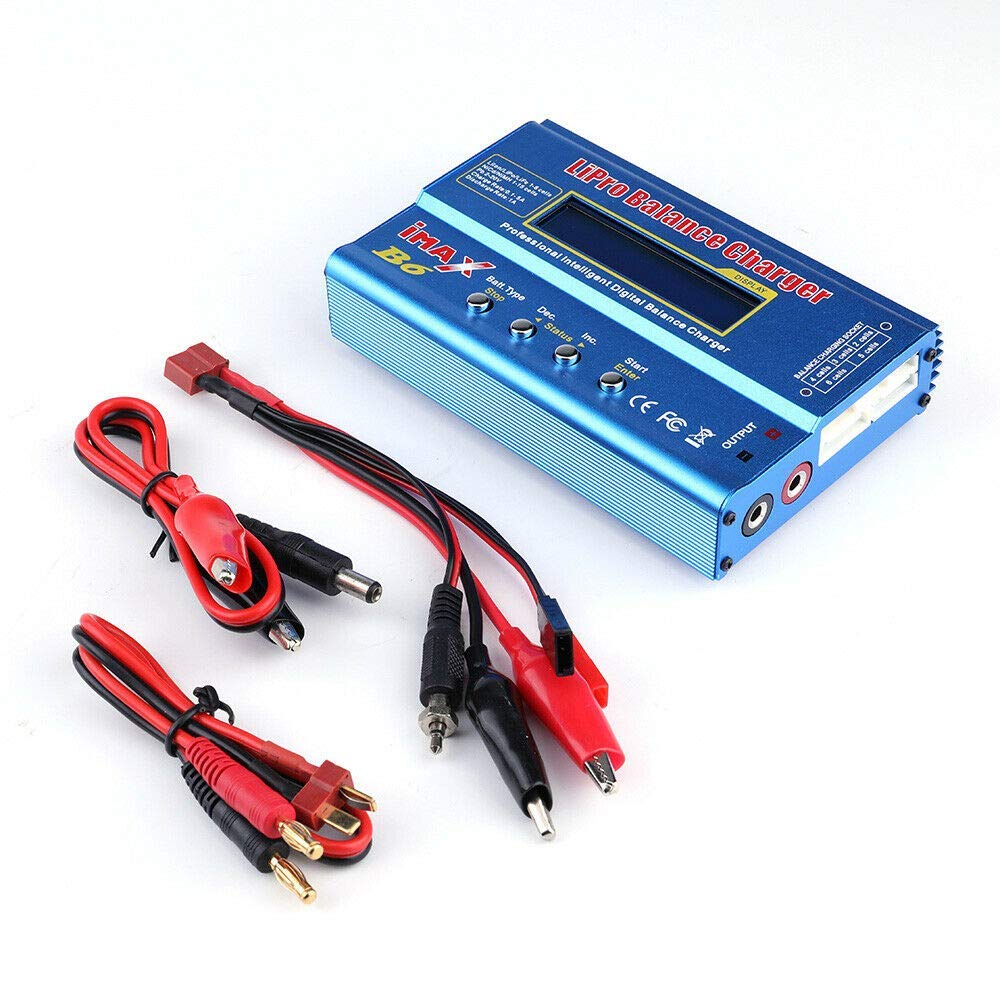

iMax B6 Digital LiPo Battery Charger
The IMAX B6 is a new and intelligent multifunction charger which can charge and discharge a wide variety of batteries such as LiPo, LiFe, Li-Ion, NiMH, NiCd and Pb. The onboard LCD display helps in selecting the correct mode and settings to charge your battery as well as gives charging and discharging information for monitoring purposes.
Note that adapter or a power supply cable is not included in the package.
Package Includes
- 1 x iMax B6 Digital LiPo Battery Charger
- 1 x T plug with banana connector charging cable.
- 1 x DC cable with Alligator Clip charging connector.
- 1 x T plug with Alligator Clip connector charging cable.
- 1 x T plug with Futaba connector charging cable.
- 1 x T plug with XT60 connector charging cable.
Specifications
|
Brand |
iMax |
|
Model |
B6 Battery Charger |
|
Input Voltage |
11-18v DC |
|
Circuit power |
Max Charge: 50W / Max Discharge: 5W |
|
Charge Current Range |
0.1-5.0A |
|
Discharge current range |
0.1-1.0A |
|
Dimensions |
133x87x33mm |
|
Weight |
100 grams |
ADDITIONAL RESOURCES
User manual: https://robocraze.com/pub/media/documents/IMAX_B6_user_manual.pdf
How to charge your LiPo battery using the IMAX B6 charger: https://youtu.be/nV90KWLptVo
Blog on charging LiPo batteries: https://robocraze.com/blog/post/tutorial-li-po-battery-imax-b6-multifunction-charger
