- This is HG7881 H-Bridge 4CH DC - 2CH Stepper Motor Driver Board
- Motor drive module comes with its own four HG7881 chip.
- This is Perfect for driving DIY smart car robot motor.
- This can drive 4 DC motors, or two 4-wire 2-phase stepping motor.
- Module supply voltage: 2.5-12V Suitable for the motor range: motor operating voltage 2.5V-12V
- 0.8A maximum operating current Size: 49mm x 36mm Color: Blue
HG7881 H-Bridge 4CH DC - 2CH Stepper Motor Driver Board

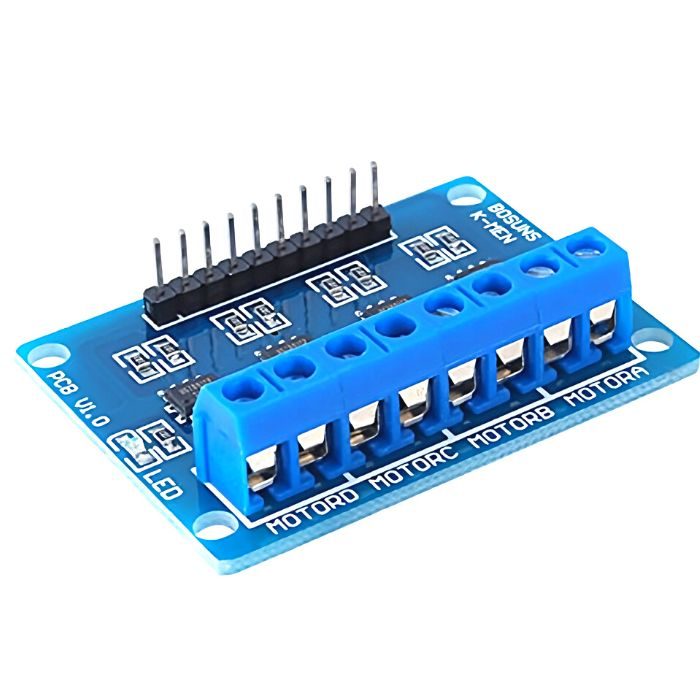

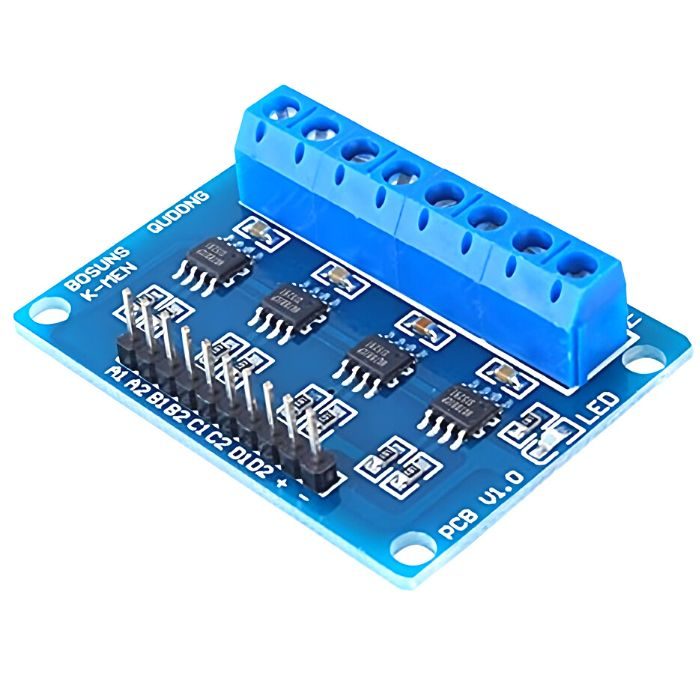

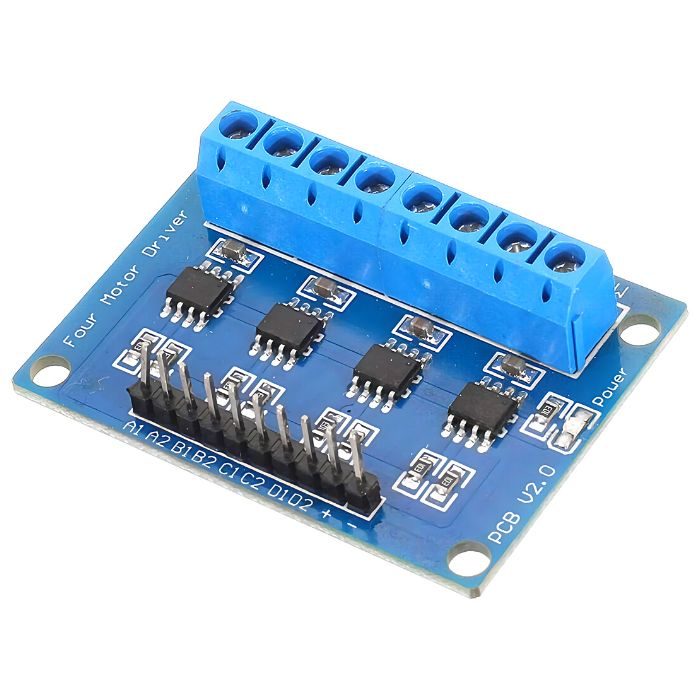

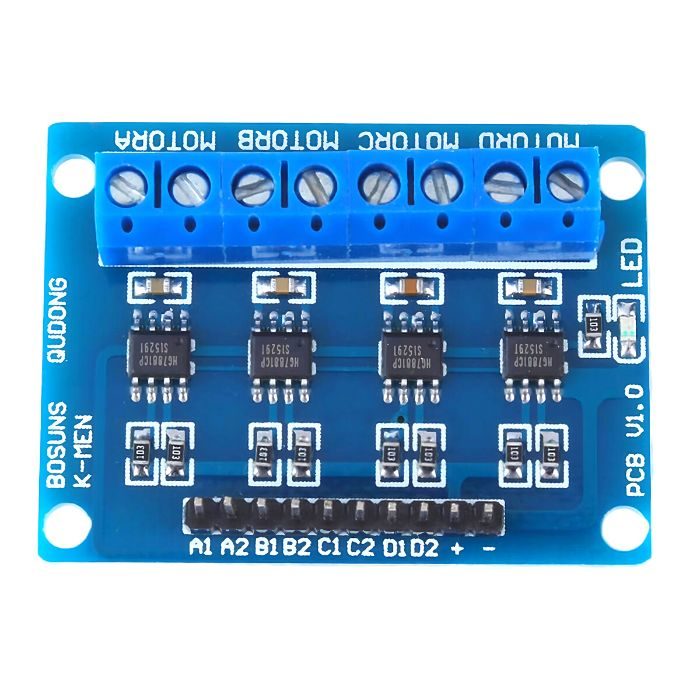

This is the HG7881 H-Bridge Stepper Motor Driver Board, which can drive 4 dc motors, or two 4-wire 2-phase stepper motors. This motor drive module comes with its own four hg7881 chips.
The module is appropriate for controlling small robots. It has a convenient set of header pins for connecting with a microcontroller and a set of screw terminals for connecting with motors. The motor's speed can be easily controlled using a PWM (pulse width modulation) signal and digital output.
If you want to control the stepper motor with Stepper Motor Driver Board, for that you will need a few essential components like
Features:
- This can drive two stepper motors or 4 DC motors independently
- Small in size
- Wide range of voltage supply
- Compatible with both standard 3.3V and 5V microcontrollers
- Mounting holes to mount easily
Package Includes:
- 1 x HG7881 H-Bridge 4CH DC - 2CH Stepper Motor Driver Board
Specifications:
| Model | HG7881 |
| Supply voltage | 2.5 to 12V |
| Maximum Output current | 800mA |
| Channels | 4 |
| Length | 48mm |
| Width | 37mm |
| Height | 10mm |
