GY-LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module - Buy Online in India
GY-LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module
- Rs 159/-
- Rs 159/-
-
Rs 244/-
- 35%
Save Rs 85/-
RC REWARDS
Earn
1
RC Coin
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFSS0507
Couldn't load pickup availability
GY-LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module
GY-LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module
GY-LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module

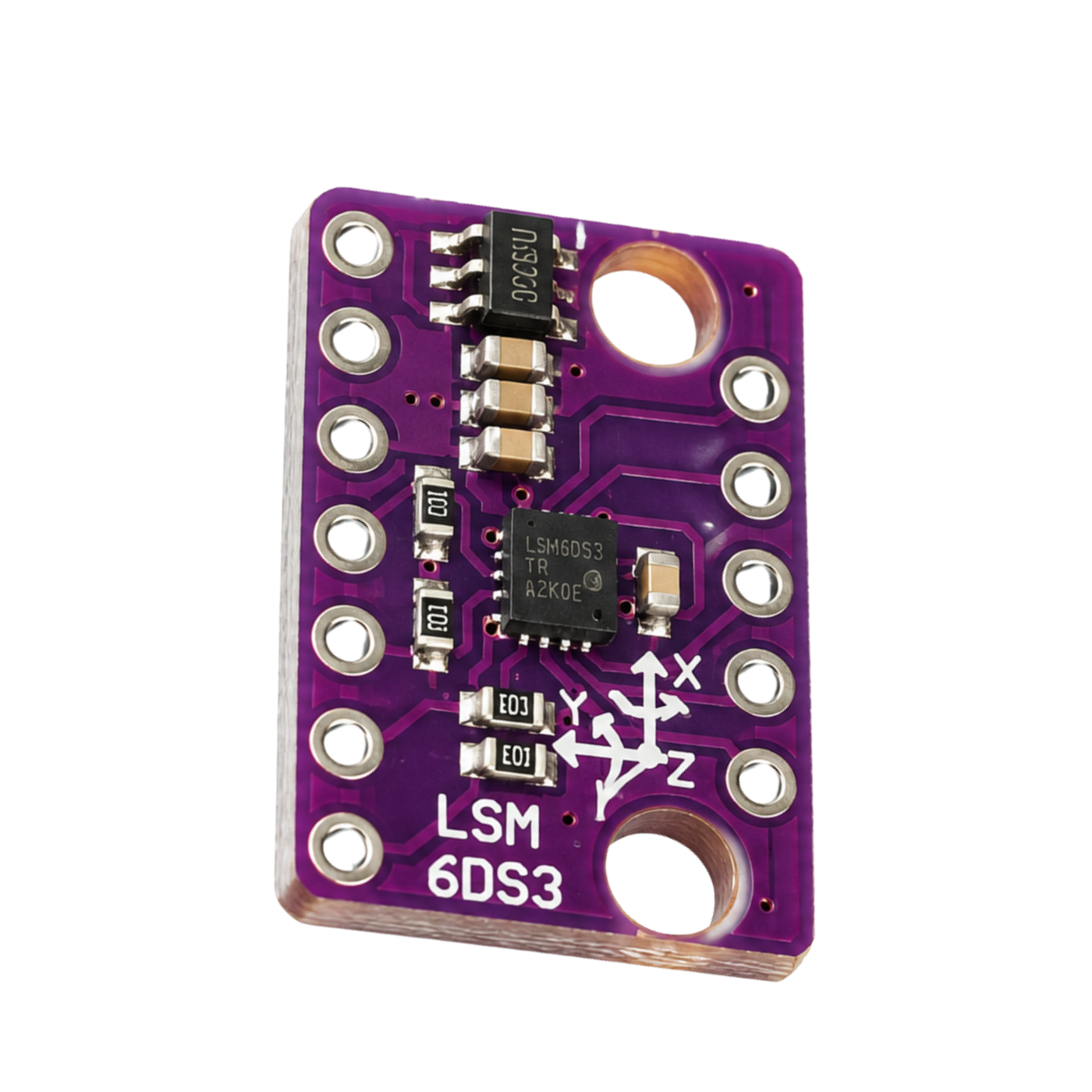

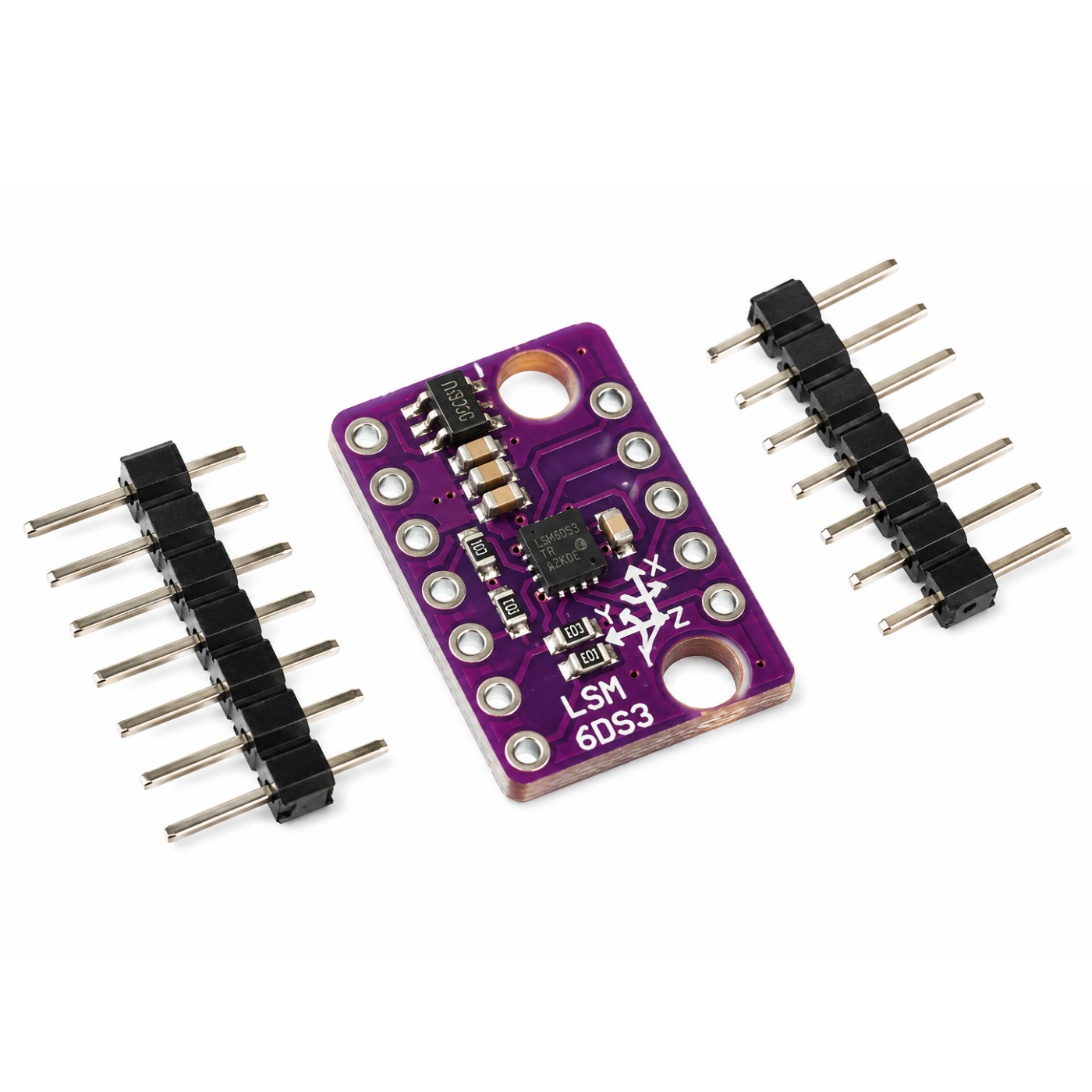

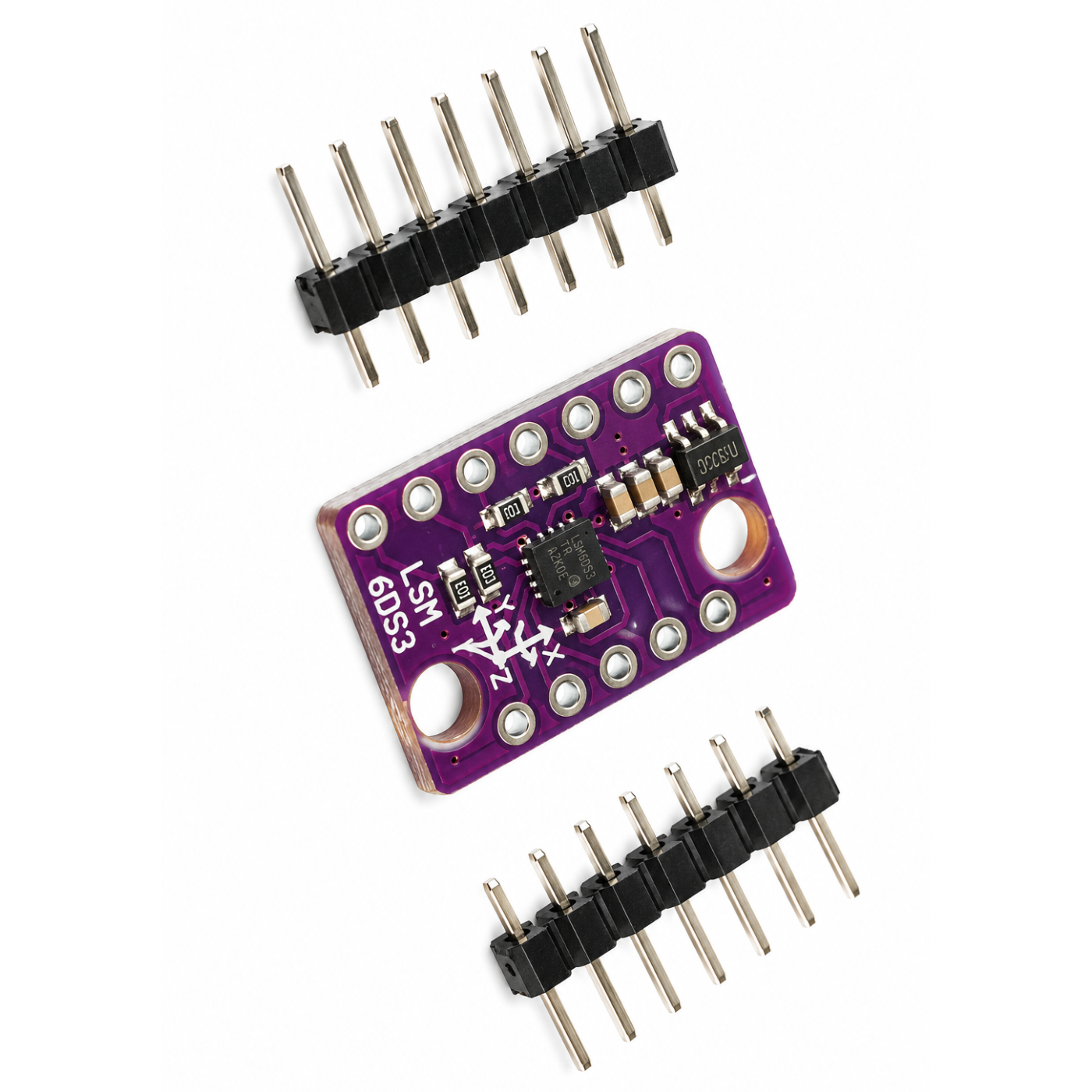

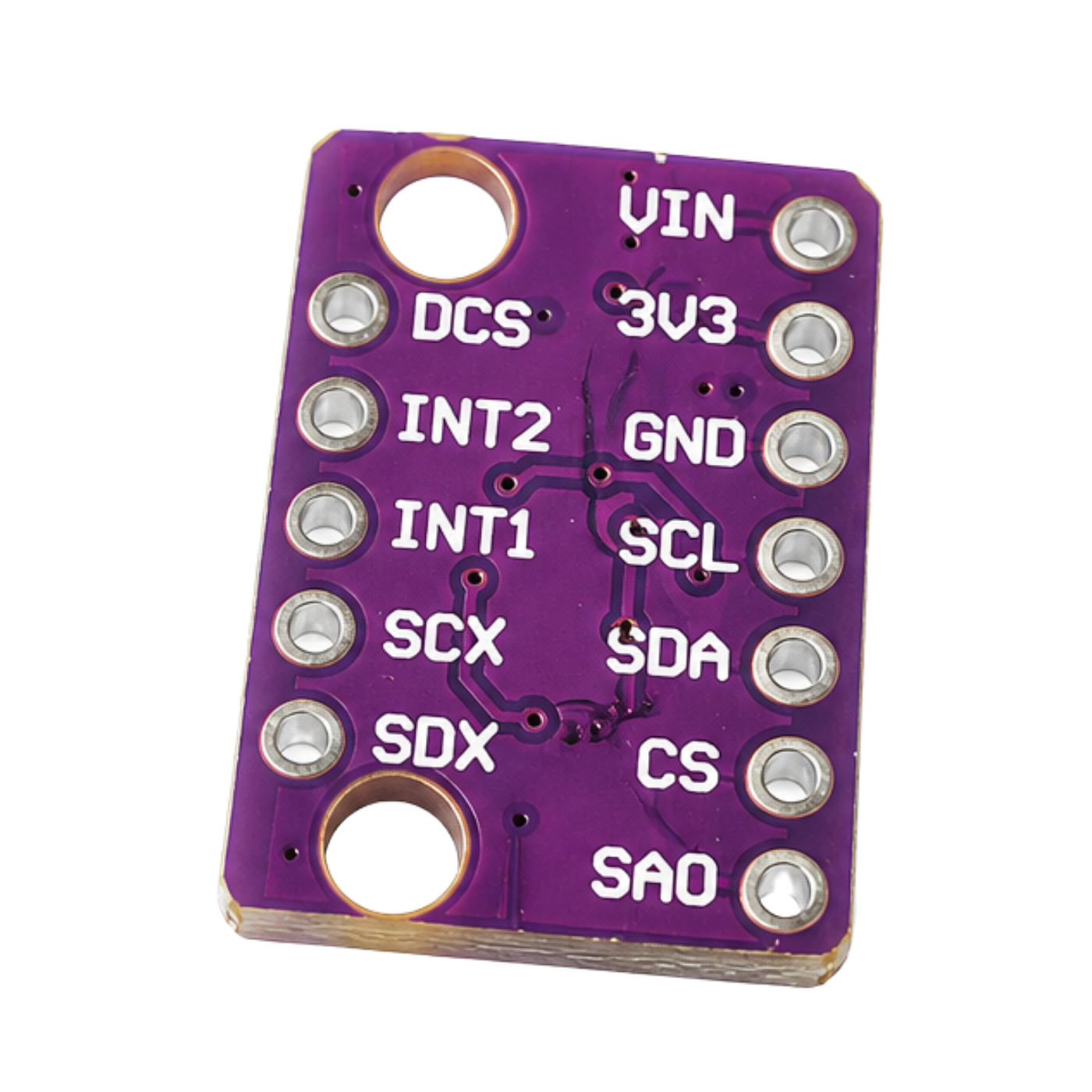

The GY-LSM6DS3 LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module is a compact motion-sensing module designed for measuring acceleration, angular movement, and temperature in electronic and embedded projects. It combines a 3-axis accelerometer and 3-axis gyroscope with a digital temperature sensor, making it useful for motion detection, orientation tracking, stabilization, and environmental monitoring.
The module supports both SPI and I2C/IIC communication interfaces, allowing easy connection with Arduino boards, ESP32, Raspberry Pi, and other compatible microcontrollers. An integrated 8KB FIFO buffer helps temporarily store sensor data, reducing the processing load on the host controller. With 5V compatibility, this LSM6DS3 sensor module is suitable for robotics, drones, wearable devices, IoT applications, motion tracking, and other DIY electronics projects.
Features:
- Measures linear acceleration along the X, Y, and Z axes for motion and tilt detection.
- Detects angular velocity and rotational movement across three axes.Provides temperature readings for additional environmental monitoring.
- Supports both communication protocols for flexible integration with microcontrollers.
- Temporarily stores sensor data to improve data handling and reduce processor workload.
- Enables convenient connection with common development boards and microcontrollers.
- Easy to integrate into robotics, drones, IoT devices, and DIY electronics projects.
- Suitable for motion tracking, orientation detection, stabilization, robotics, and embedded systems.
Package Includes:
- 1 x GY-LSM6DS3 Accelerometer, Gyroscope & Digital Temperature Sensor Module
Specifications:
| Specification | Details |
|---|---|
| Sensor | LSM6DS3 |
| Sensor Type | Accelerometer, Gyroscope & Digital Temperature Sensor |
| Accelerometer | 3-Axis |
| Gyroscope | 3-Axis |
| Temperature Sensor | Digital |
| Communication Interface | I2C / IIC, SPI |
| FIFO Buffer | 8KB |
| Voltage | 5V Compatible |
| Module | GY-LSM6DS3 |
