ELECROW ZigStar UZG-01 Universal Zigbee 3.x Gateway with PoE
Couldn't load pickup availability

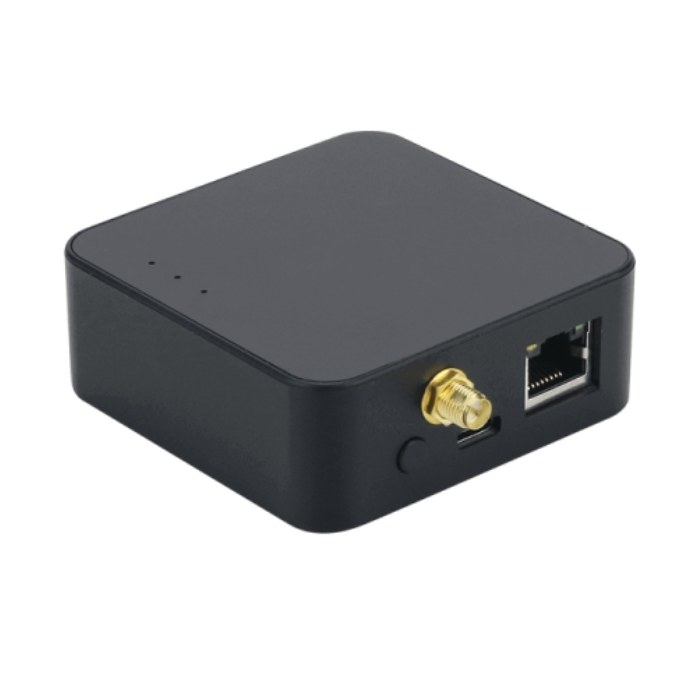

Introducing the UZG-01 LAN/PoE WiFi USB ZigBee 3.x Coordinator, a revamped version of the highly popular ZigStar LAN Gateway. The key upgrade is its onboard PoE (Power over Ethernet) support, along with the new CC2652P7 chip, capable of managing up to 300 ZigBee devices. It also comes in an aesthetically designed enclosure.
Powered by the robust CC2652P TI chip, which boasts a +20dB range, this device functions as a ZigBee Coordinator/Router in a variety of smart home setups, including Zigbee2MQTT, Home Assistant (ZHA), ioBroker, and more. It arrives pre-flashed with the latest Z-Stack 3.x firmware and features three LED indicators for easy status monitoring.
| Specification | Details |
|---|---|
| Power Options | PoE or USB-C, both working simultaneously with optoelectronic isolation |
| Chipset | CC2652P7 TI Chip (+20dB), supports up to 300 ZigBee devices |
| Operating Modes | LAN/WiFi or USB Coordinator/Router modes |

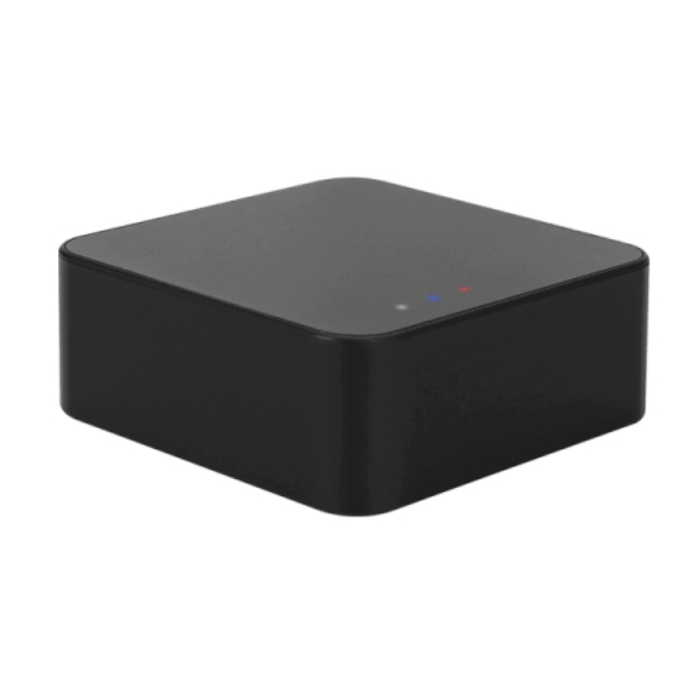

| Status Indicators | Three LED indicators for device status |
| Communication | USB, LAN, or WiFi with Zigbee2MQTT (Z2M) and ZHA |

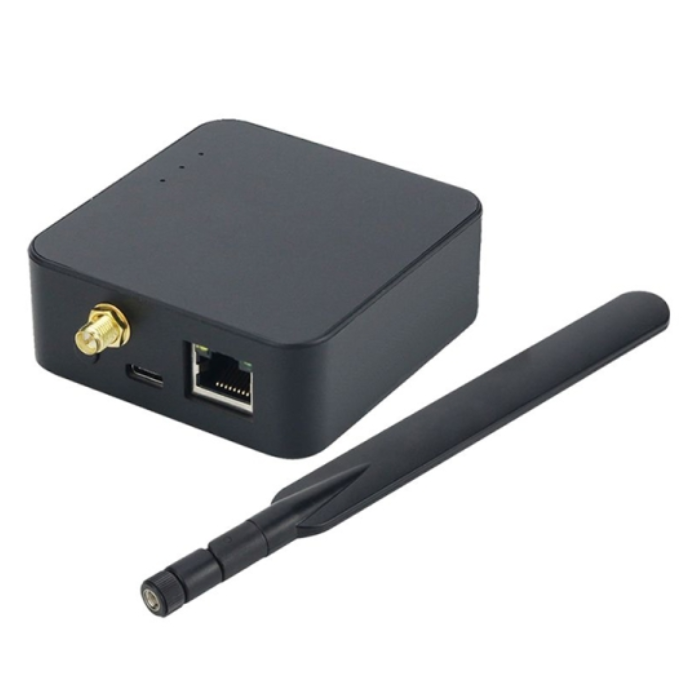

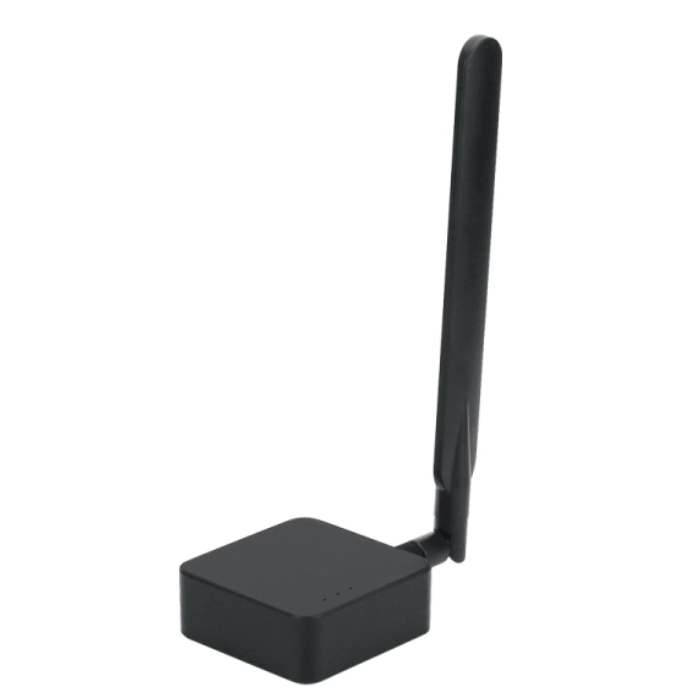

| External Antenna | SMA port for external antenna |
| Programming | Easy setup with ZigStar Multi Tool; no external programmer required |
| Design | Compact and stylish, fits into any space |
| Firmware Updates | ZigBee and ESP firmware updates with a few clicks |
| Quality Control | Each device individually tested before shipment |
| Dimensions (LxWxH) | 8 x 7.2 x 3 cm |
| Weight | 99 gms |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
