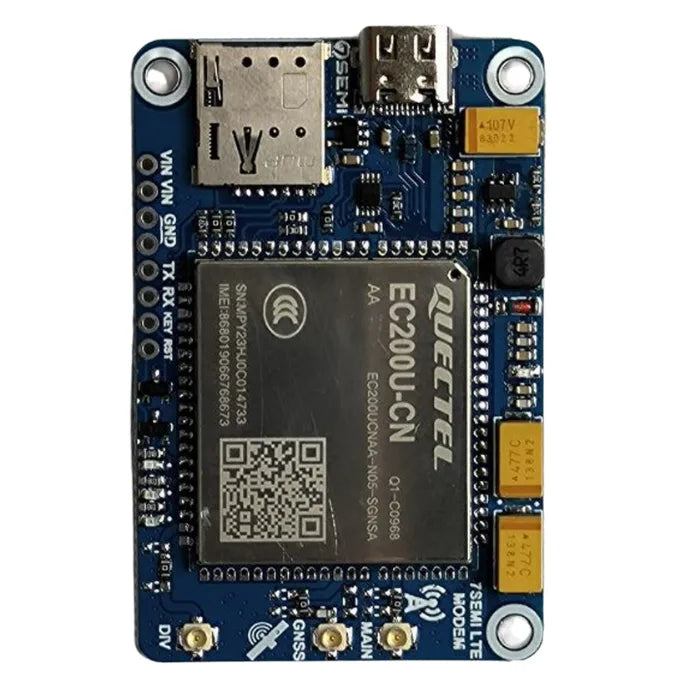

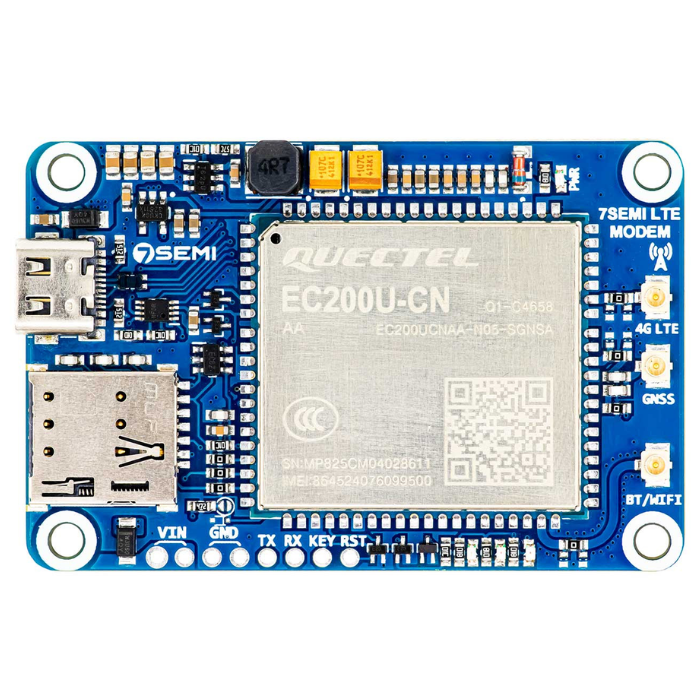

For IoT, M2M, and industrial applications, 7Semi's EC200U 4G LTE GNSS Industrial Modem is a small and powerful device. The Quectel EC200U-CN Cat 1 LTE module powers this 4G LTE modem, which ensures precise real-time positioning by supporting a variety of international GNSS systems such as GPS, GLONASS, BeiDou, Galileo, and QZSS.
This industrial modem is perfect for embedded and remote systems because it supports two interfaces, USB-C and UART, and provides flexible power options via 5V USB or 5–26V external input.
Even in difficult situations, dependable wireless data transfer is ensured by its integrated nano SIM support and multi-band connectivity (LTE-FDD, LTE-TDD, and GSM).

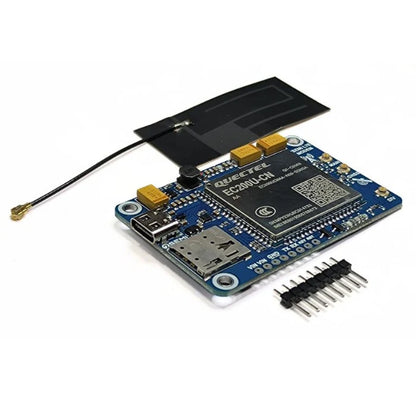

This Cat 1 LTE GNSS modem, which has a high-gain FPC antenna (700–2700 MHz), provides reliable tracking and communication through strong signal performance.
Because of its small size and adhesive mounting, it can be integrated into smart meters, asset tracking devices, transportation systems, IoT devices, and industrial automation setups.
1 x 7Semi EC200U 4G LTE GNSS Industrial Modem with USB C
| Category | Specification |
|---|---|
| Power Supply | 5V via USB-C or 5–26V via External Supply |
| Frequency Bands | LTE-FDD: B1 / B3 / B5 / B8 LTE-TDD: B34 / B38 / B39 / B40 / B41 GSM: 900 MHz / 1800 MHz |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Antenna Frequency Range | 700–2700 MHz |
| Antenna Gain | 8 dBi (internal) |
| VSWR | ? 1.8 |
| Input Impedance | 50 Ohm |
| Dimensions (LxWxH) | 6 x 4 x 5 cm |
| Weight | 24 gm |
| Antenna Material | Radiator FPC |
| Antenna Size | 52 x 24 mm |
| Cable Type | 1.13 Coaxial Cable |
| Connector | IPEX (u.FL equivalent) |
| Polarization | Vertical |
| Power Handling | 30W |
| Mounting | 3M Adhesive Sticker |
AT Commands to turn on GNSS and Get Co-ordinates (For AT commands use the Qnavigator tool)
AT+QGPS=1 //Turn on GNSS engine
AT+QGPSCFG="nmeasrc",1
AT+QGPSGNMEA="GGA" //Obtain GNSS Coordinates
To decode co-ordinates you can use following website - https://coordinates-converter.com/en/decimal/51.000000,10.000000?karte=OpenStreetMap&zoom=8
