DIY Mini Cat Tracking Robot

Build your DIY Mini Cat Tracking Robot. This mini Cat face-shaped robot setup comes with a line follower map as all required Assembly guide to build the robot. This robot runs on a 3V DC  supply which can be taken from two AA batteries.  The user manual inside the box will guide you through all stepwise procedures as well as all essential parameters to assemble the bot, all you need is basic soldering knowledge and soldering and fitting tools.

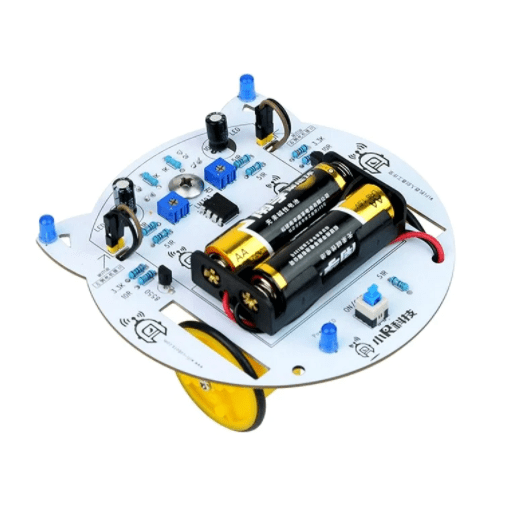

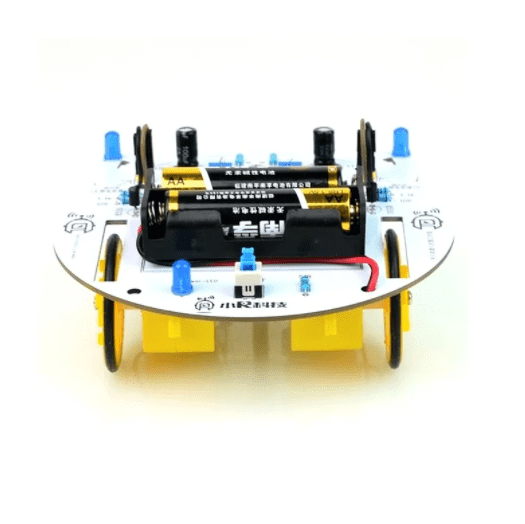

This smart tracking car kit is designed with a fashionable CAT face PCB board. It will help you to understand the basic principles and technical components of automatic control. It is hoped that you can learn basic component knowledge, circuit knowledge, and soldering skill by using this robot.

Note: The kit doesn't come with a battery

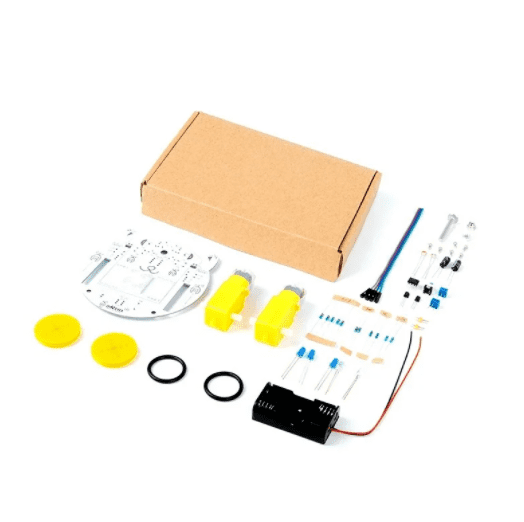

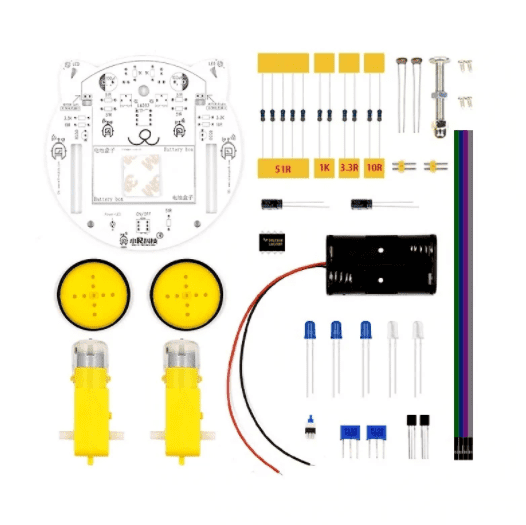

Package Includes:

• 1 x PCB Board (Cat Shape)
• 2 x TT Motor
• 2 x Rubber Wheel
• 1 x Battery Box
• 1 x Switch
• 1 x LM393
• 2 x Transparent Diode
• 2 x 8550 Audion
• 2 x Potentiometer
• 2 x 100uf Capacitance
• 2 x 2IN
• 2 x 3.3K Resistance
• 2 x 10R Resistance
• 1 x 1K Resistance
• 2 x Screw
• 2 x Wheel Rubble Ring
• 3 x Blue Diode
• 2 x Photoresistance
• 4 x Electrical Wires
• 15 x Universal Screw Kit
• 5 x 1R Resistance
• 1 x User Manual

Specifications:
