DHT11 Humidity and Temperature Sensor Module (Pack of 25)

Rs. 1,639
Rs. 2,475
Rs. 1,639
Save Rs. 836
(-34%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: DTIFCB1421
  • This is DHT11 Humidity and Temperature Sensor Module (pack of 25)
  • The Operating Voltage of the DHT-11 Humidity And Temperature Sensor Module is 3.3VDC to 5.5VDC
  • The DHT-11 Humidity And Temperature Sensor Module is a basic, ultra low-cost digital temperature and humidity sensor
  • DHT11 sensor is good for 20-90% humidity readings.
  • The module can detect the surrounding environment of the humidity and temperature
  • The Module is highly reliability, excellent long-term stability and Low power consumption.
  • The DHT11 Module has fixed bolt hole and easy installation

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Robocraze Academy Limited Time Offer
DHT11 Humidity and Temperature Sensor Module (Pack of 25)
DHT11 Humidity and Temperature Sensor Module (Pack of 25)
Rs. 2,475 Rs. 1,639

DHT11 Humidity and Temperature Sensor Module (Pack of 25)

Rs. 2,475 Rs. 1,639

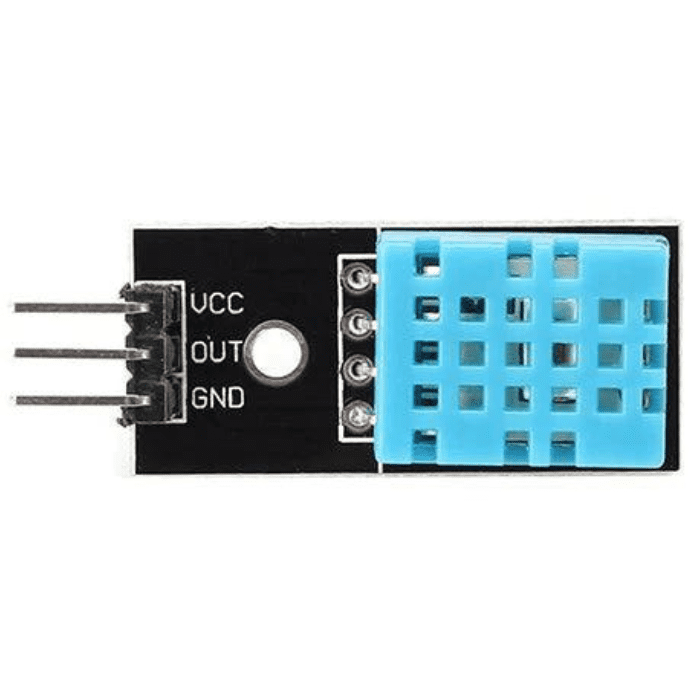

DHT11 Humidity and Temperature Sensor Module

The DHT11 Humidity and Temperature Sensor Module is capable of sensing both temperatures as well as humidity. This makes it ideal for projects as well as automation. The board is also equipped with a high-performance 8-Bit microcontroller connected to the DHT11 sensor module.

The output of the DHT11 Temperature Sensor Module is in the form of a digital signal on a single data pin. The sensing update frequency is to be measured every 2sec (0.5Hz). The DHT11 Sensor Module can be interfaced with any microcontroller like Arduino, Raspberry Pi, etc.

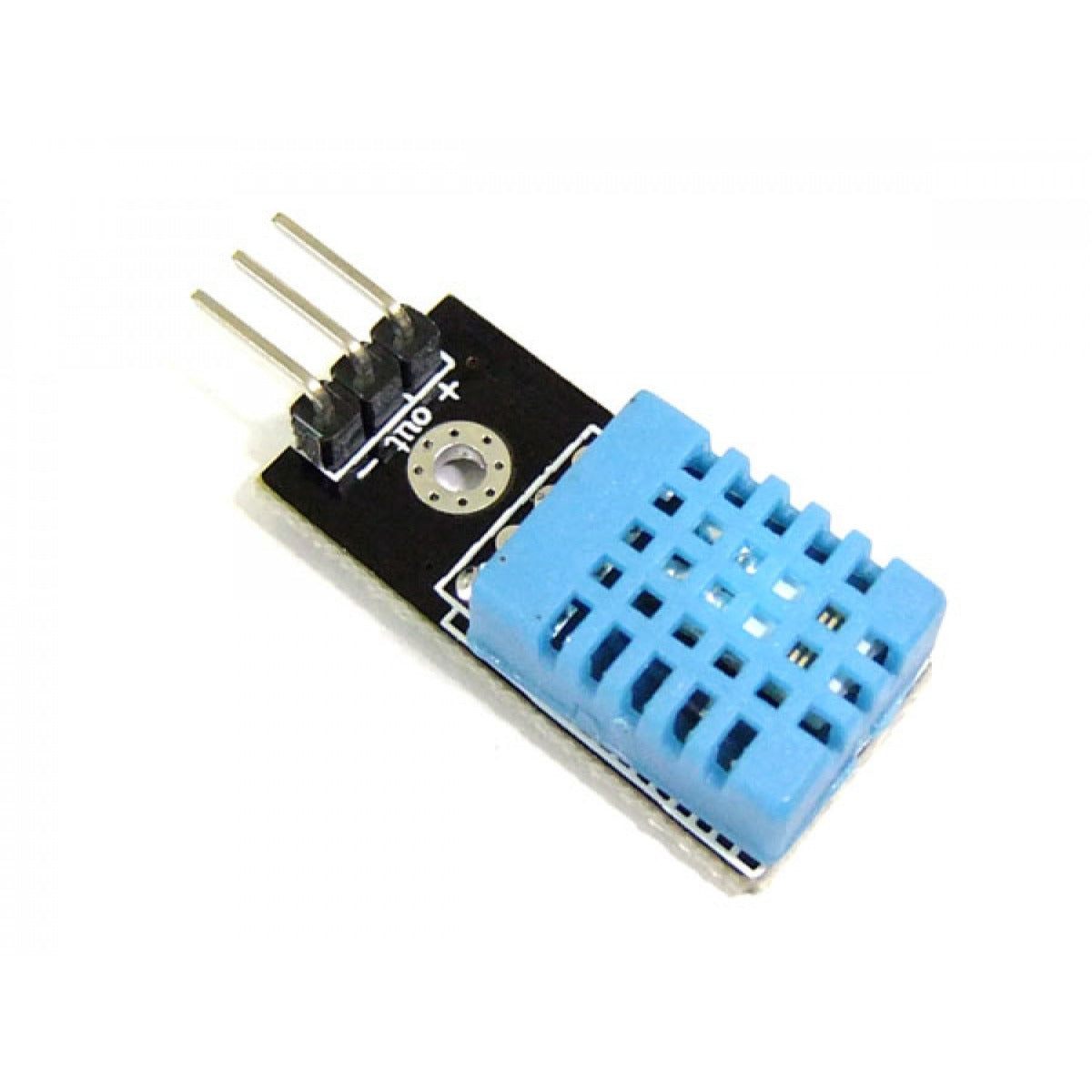

This Sensor module integrates the DHT11 sensor and other required components on a small PCB. The DHT11 sensor includes a resistive-type humidity measurement component, an NTC temperature measurement component, and a high-performance 8-bit microcontroller inside, and it provides calibrated digital signal output.

The Module has high reliability and excellent long-term stability, thanks to the exclusive digital signal acquisition technique and temperature & humidity sensing technology.

DHT11 sensor module pins

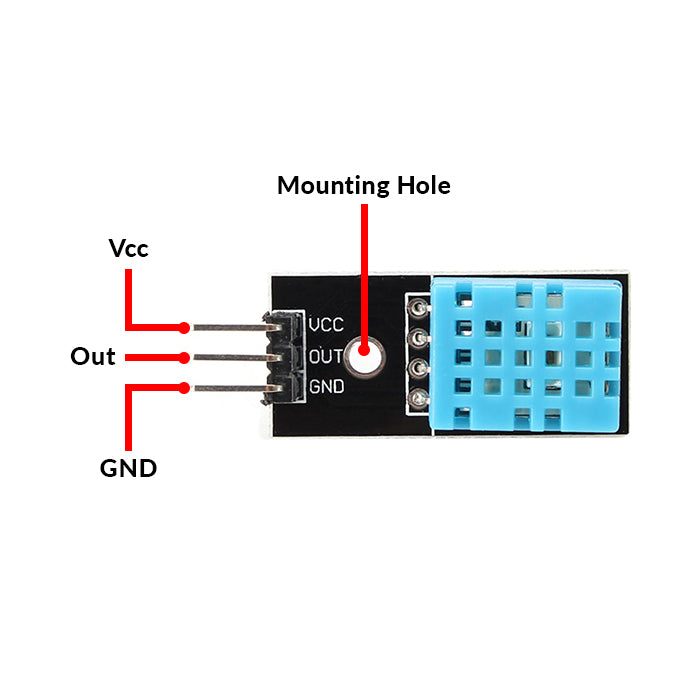

Pinouts Diagram Of DHT11 Humidity and Temperature Sensor Module



DHT11 sensor module pin description

1 Vcc  Power +Ve (3.3VDC to 5.5VDC Max wrt. GND)
2 Out/Data Outputs both Temperature and Humidity through serial Data
3 Ground Power Ground or Power –Ve

Applications:

  • Measure temperature and humidity
  • Local Weather station
  • Automatic climate control
  • Environment monitoring
  • Home Automation

    Package Includes:

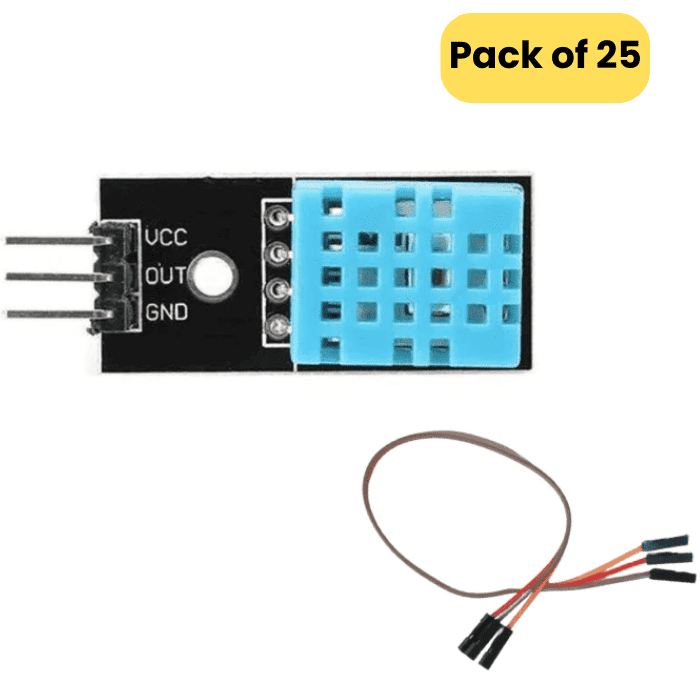

    • 25 x DHT11 Humidity and Temperature Sensor Module

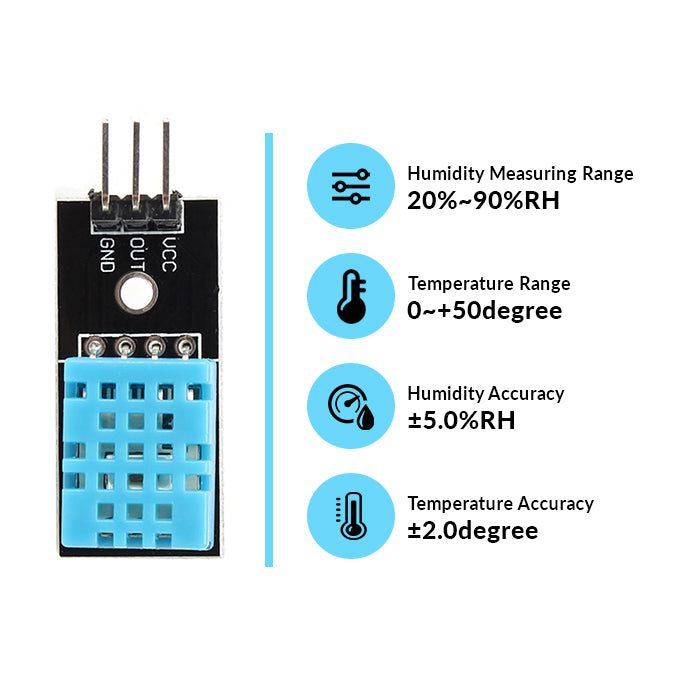

    Specifications:

    Operating Voltage 3.3VDC to 5.5VDC
    Temperature measuring range 0~+50degree
    Humidity measurement accuracy ±5.0%RH
    Humidity measuring range 20%~90%RH
    Temperature measurement accuracy ±2.0degree

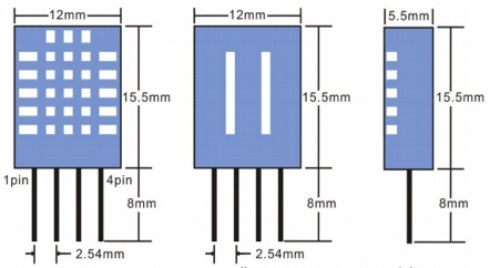

     Dimensions 3 x 3 x 1cms
    Weight 5 grams

    1. What is DHT11?

    • The DHT11 is a commonly used Temperature and humidity sensor that comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data.

    2. What is difference between DHT11 Sensor and Module?

    • The DHT11 sensor can either be purchased as a sensor or as a module. Either way, the performance of the sensor is same. The sensor will come as a 4-pin package out of which only three pins will be used whereas the module will come with three pins as shown above.
      The only difference between the sensor and module is that the module will have a filtering capacitor and pull-up resistor inbuilt, and for the sensor, you have to use them externally if required.

    3. What is the working principle of DHT11 Sensor?

    • DHT11 sensor consists of a capacitive humidity sensing element and a thermistor for sensing temperature.  The humidity sensing capacitor has two electrodes with a moisture holding substrate as a dielectric between them. Change in the capacitance value occurs with the change in humidity levels. The IC measure, process this changed resistance values and change them into digital form.
      For measuring temperature this sensor uses a Negative Temperature coefficient thermistor, which causes a decrease in its resistance value with increase in temperature. To get larger resistance value even for the smallest change in temperature, this sensor is usually made up of semiconductor ceramics or polymers.
      The temperature range of DHT11 is from 0 to 50 degree Celsius with a 2-degree accuracy. Humidity range of this sensor is from 20 to 80% with 5% accuracy. The sampling rate of this sensor is 1Hz .i.e. it gives one reading for every second.  DHT11 is small in size with operating voltage from 3 to 5 volts. The maximum current used while measuring is 2.5mA.
      DHT11 sensor has four pins- VCC, GND, Data Pin and a not connected pin. A pull-up resistor of 5k to 10k ohms is provided for communication between sensor and micro-controller
