- This is the TS01 Non-Contact IR Sensor, measure temperature without touching!
- Checks a very Wide Range Temperature Sensor (-70 to 380C) accurately.
- Tough and protected with an IP65 Temperature Sensor rating against dust and water.
- Gives a standard Infrared Temperature Sensor 4-20mA industrial signal output.
- Made with a strong metal body for use in tough industrial spots.
- Already set up at the factory, so it's ready to give good readings.

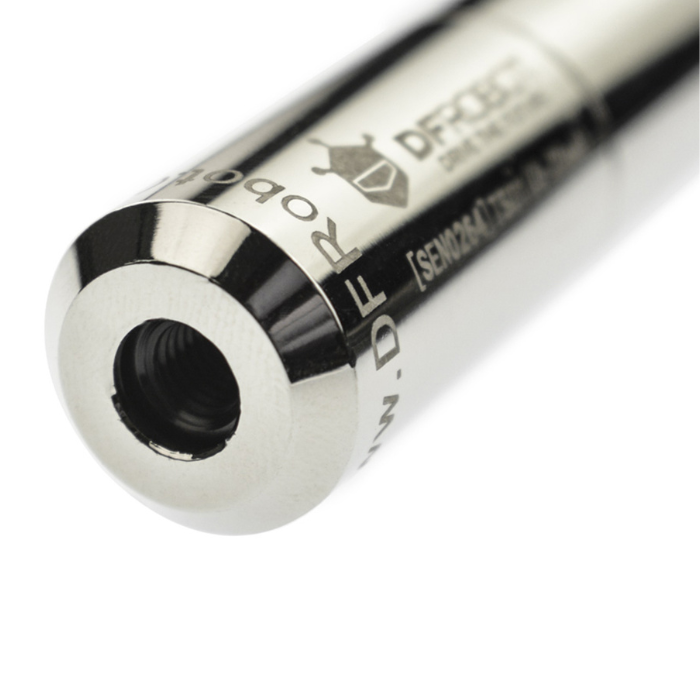

- Has a narrow 5-degree viewing angle for focused temperature checks.
DFRobot -70℃-380℃ TS01 Infrared Temperature Sensor Module Non-Contact Analog

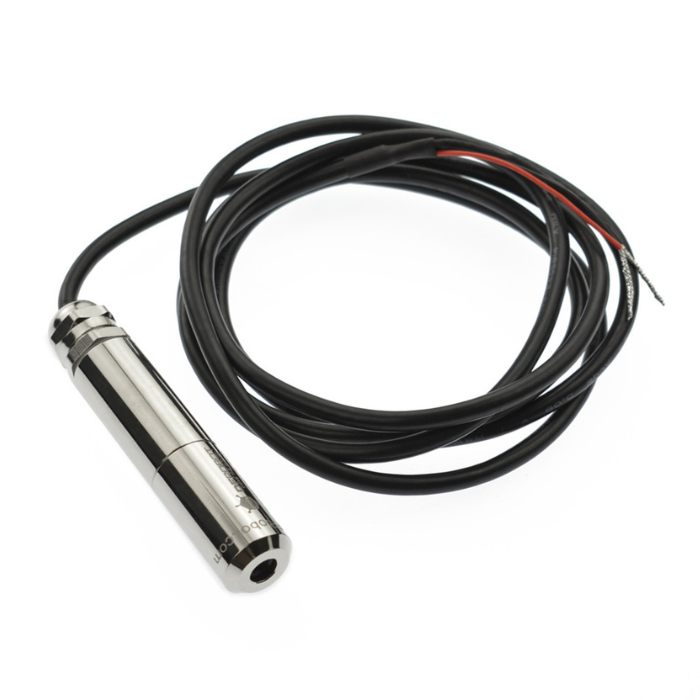

The TS01 Non-Contact IR Sensor is a really smart tool for checking the temperature of things from a distance, without any physical contact. It can measure a very broad range of temperatures, from super cold -70°C all the way up to a very hot 380°C.
This is very useful for checking machines that are moving, things that are hard to reach, or surfaces that you just shouldn't touch. It uses infrared technology to sense the heat given off by an object and is built to be very reliable.
Because it's an IP65 Temperature Sensor, it's well protected from dust and water splashes, making it great for factories, workshops, or even some outdoor uses. This Infrared Temperature Sensor 4-20mA sends out a standard 4-20mA current signal, which is what many industrial machines and PLCs use.
This makes it easy to connect to existing systems. For students and hobbyists, you can use a simple converter module to read the signal with boards like Arduino.

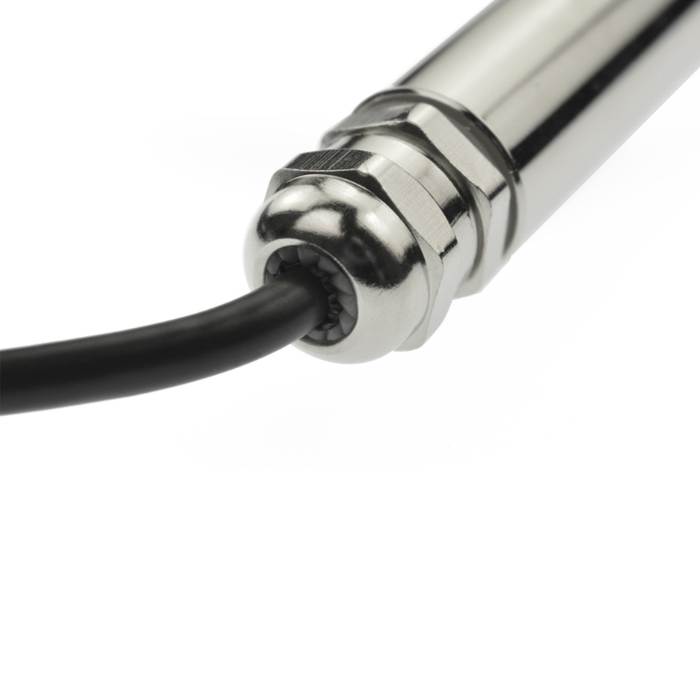

The Wide Range Temperature Sensor (-70 to 380C) has a strong metal body and special wiring to avoid outside electrical noise, ensuring you get stable and accurate temperature readings.
Features
- Measures Temperature: From -70 degrees Celsius up to 380 degrees Celsius.
- How it Works: Non-contact, uses Infrared (IR) light.
- Output Signal: Standard 4 to 20 milliAmp (mA) current.
- Protection Level: IP65 (dust-tight and protected from water jets).
- Power Needed: 7.5 Volts to 36 Volts DC.
- Field of View (FOV): Narrow 5 degrees for precise targeting.

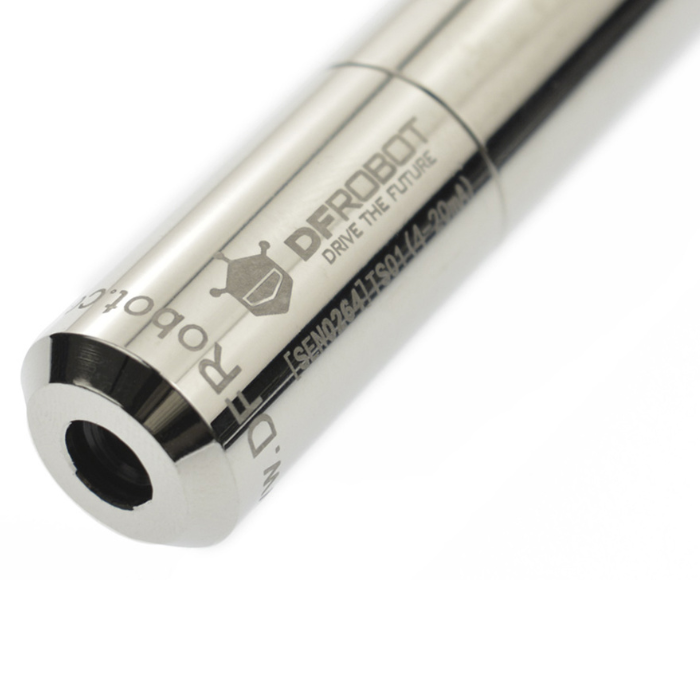

- Body Material: Strong all-metal casing for durability.
Package Includes

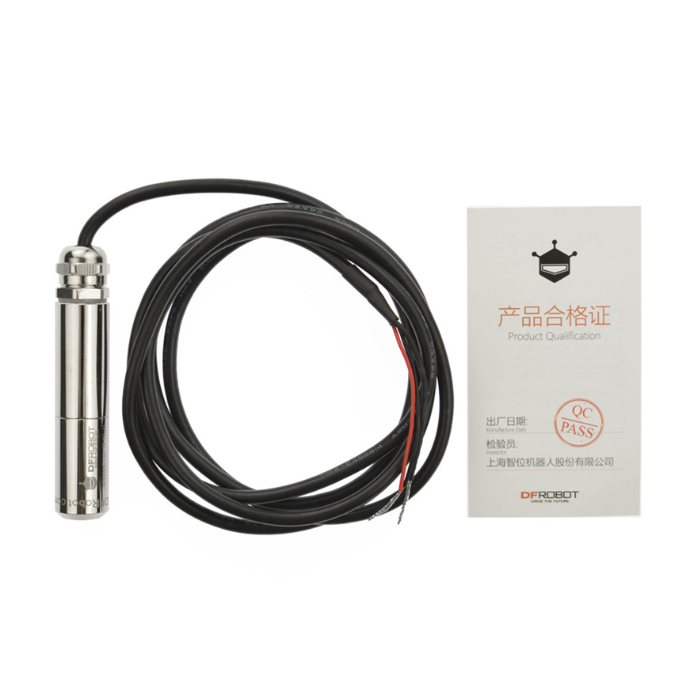

1 x DFRobot -70℃-380℃ TS01 Infrared Temperature Sensor Module
Specifications
| Supply Voltage | 7.5~36V DC |
| Operating Current | 20mA |
| Signal Output | 4~20mA |
| Operating Temperature | -40℃~85℃ |
| Measuring Temperature | -70℃~380℃ |
| Accuracy | ±0.5℃~±4℃ |
| Field of View (FOV) | 5° |
| Defense Grade | IP65 |
| Probe Diameter | 15.4 mm / 0.61” |
| Probe Length | 78 mm / 3.07” |
| Cable Length | 1.5m / 59.06” |
| Interface Type | Stripped tin-plating wire |
