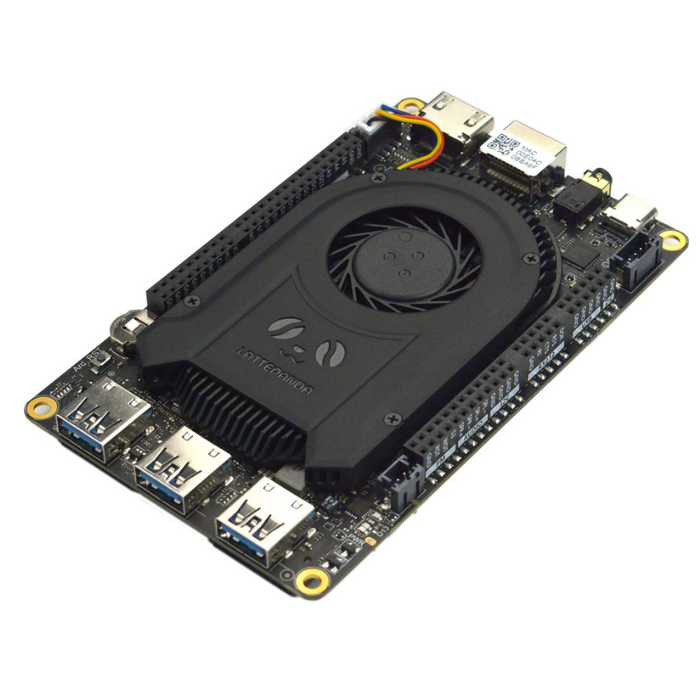

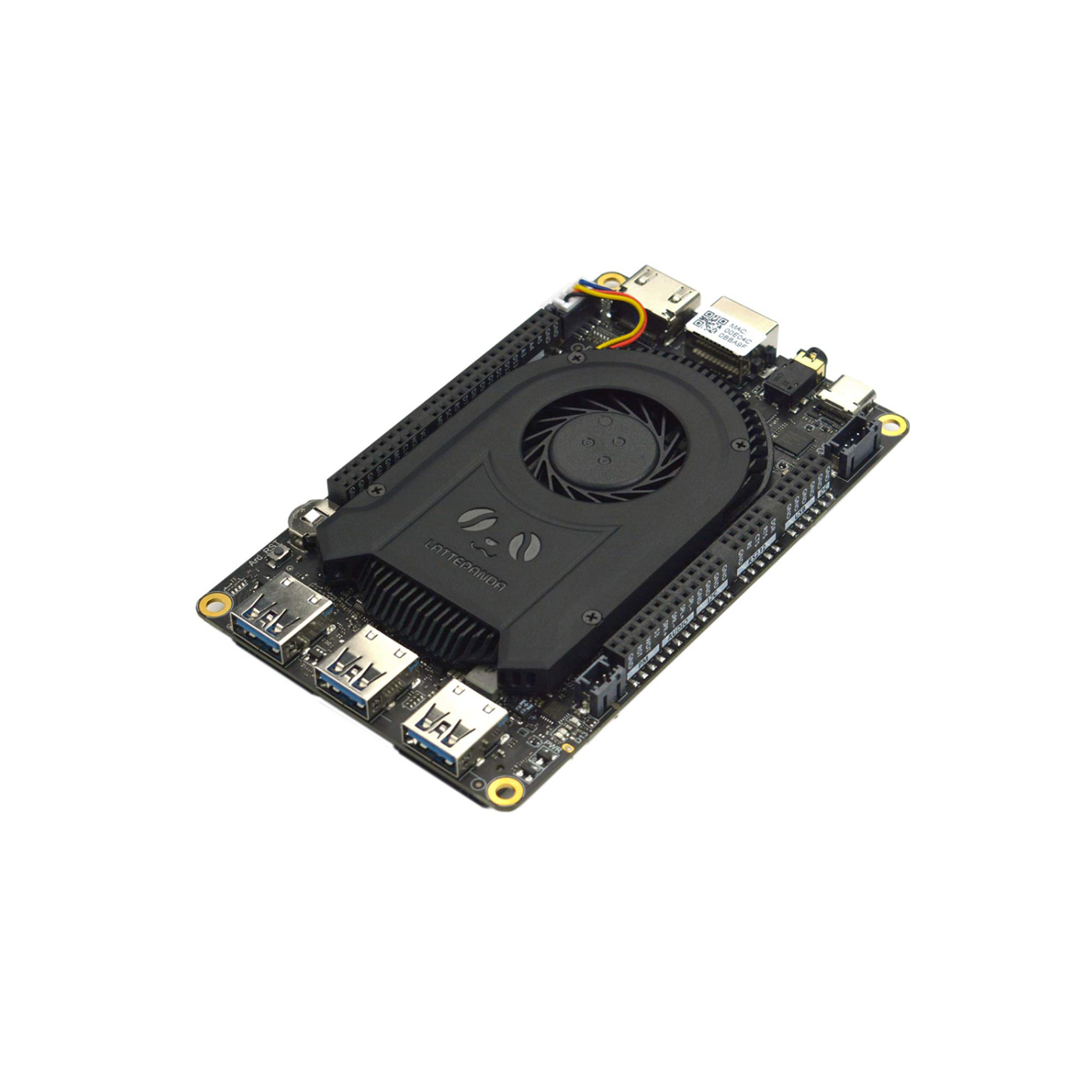

DFRobot LattePanda 3 Delta 864 Windows/Linux Single Board Computer 8GB/64GB eMMC with Activation Code(Windows 10 IoT Enterprise)
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The LattePanda 3 Delta 864 is a powerful little computer, small enough to fit in your palm but strong enough for serious work and cool projects. This lattepanda 3 delta model truly redefines what a compact computing device can do. Think of it as a full computer, but tiny!
It's built around the impressive Intel N5105 SBC (Single Board Computer) chip, which is much faster than older models, making everything from browsing to coding and even some gaming feel quick and smooth.
Whether you're a student building a robot, a hobbyist creating a smart home device, or a shop owner needing a compact system for display or automation, this lattepanda board is surprisingly capable.

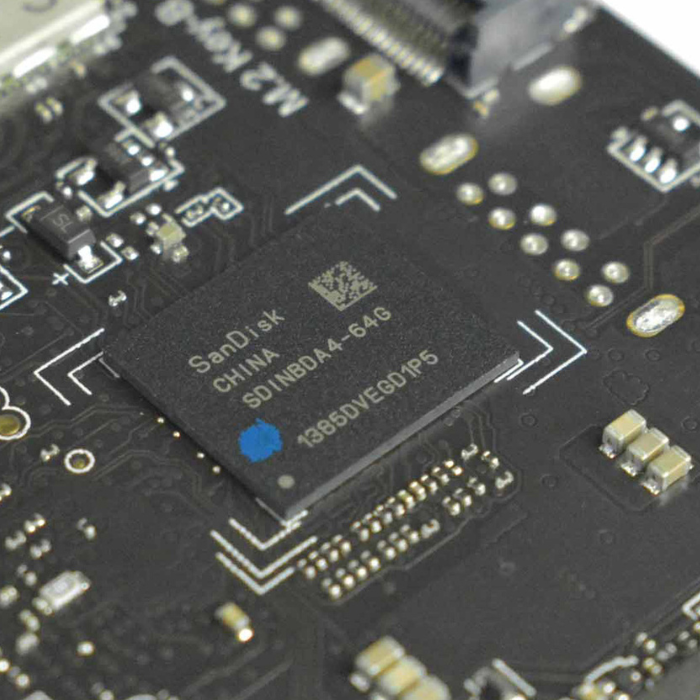

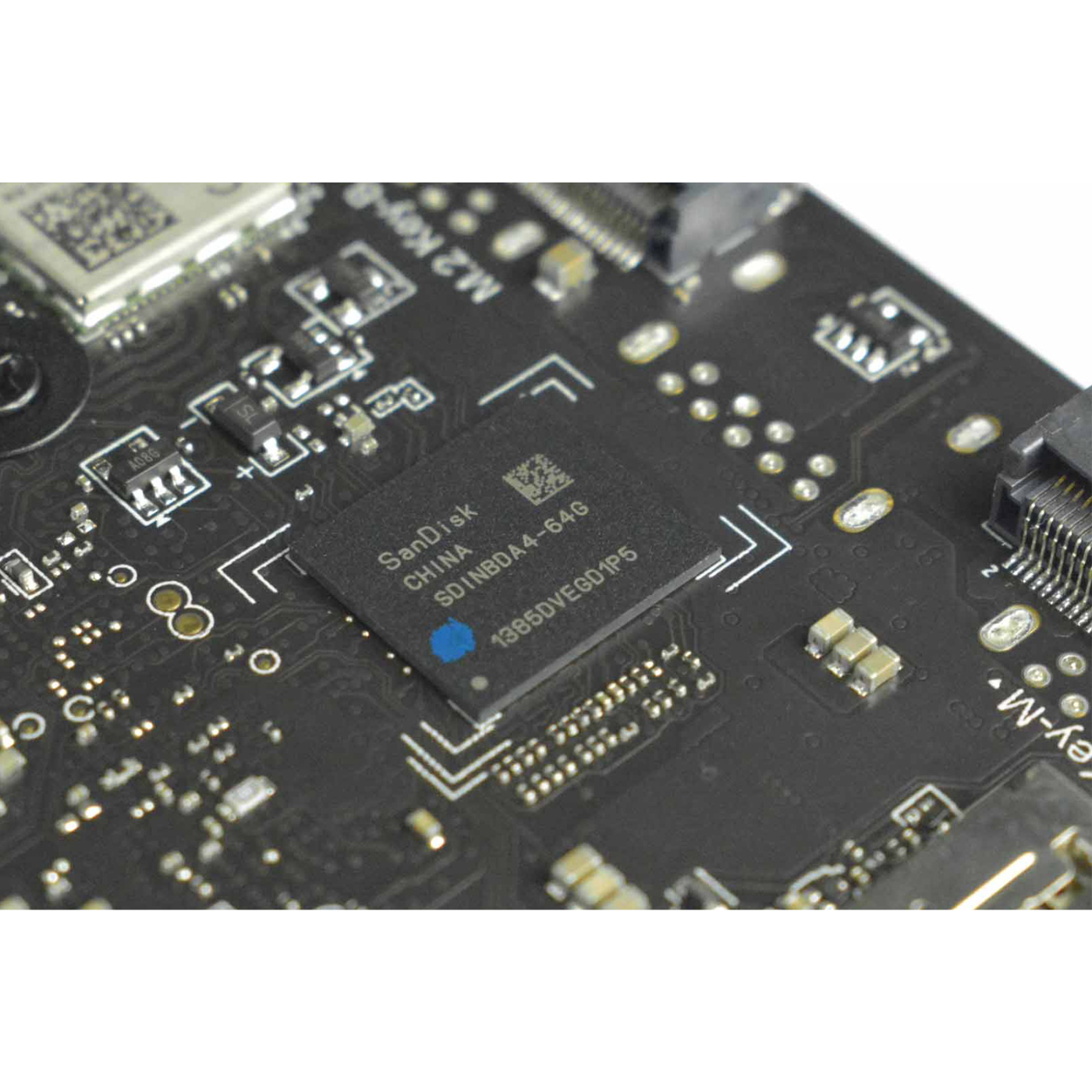

You can choose to run Windows (it even comes with Windows 10 ready, and supports Windows 11) or your favorite Linux version on this versatile Windows Linux SBC. With 8GB of fast LPDDR4 RAM, you can open many apps at once without slowdowns, and the 64GB eMMC storage gives you a good amount of space for your software and projects.
Plus, it has the latest Wi-Fi 6 for fast wireless internet, a very speedy 2.5G Ethernet port for wired connections, and can even show amazing 4K video on two screens at the same time using HDMI and USB-C. It’s a fantastic Pocket Single Board Computer, and the lattepanda 3 delta 864 pocket sized single board computer stands out for its performance-packed design.
The ultra-slim and pocket size of the LattePanda 3 Delta Windows 10 single board computer allows for integration into space-constrained devices, delivering powerful computation without occupying much space.
This industrial single-board computer is equipped with a multitude of interfaces, such as USB, HDMI, RS232, GPIO, Ethernet, eDP, and more. These versatile interfaces cater to a diverse range of industry demands.

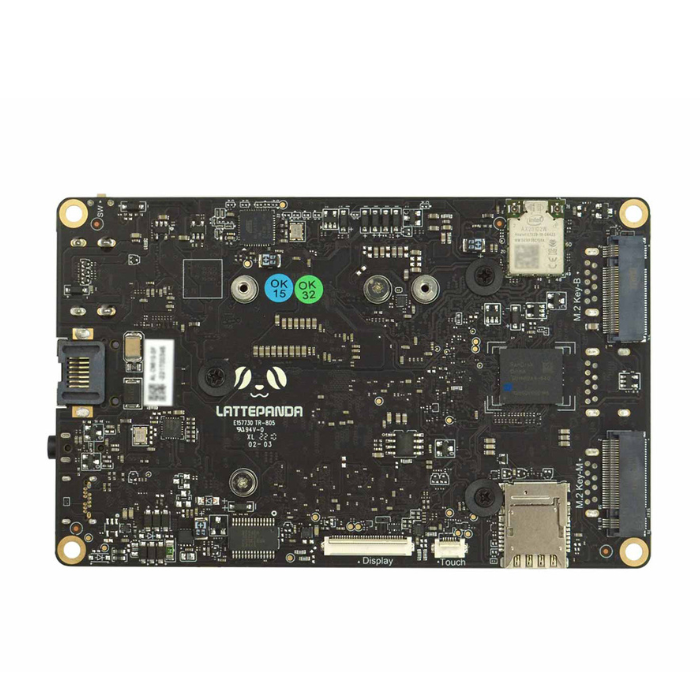

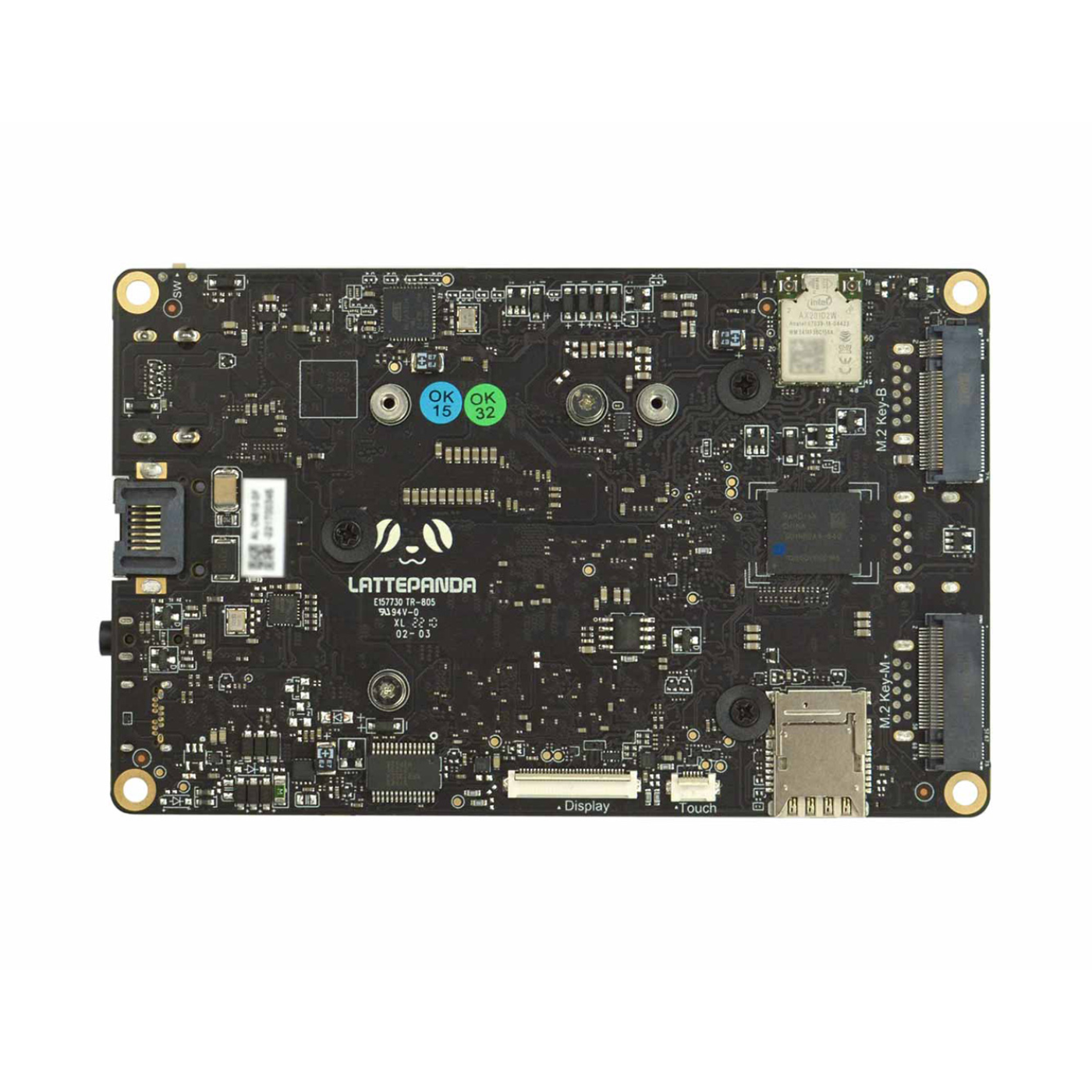

In addition, LattePanda 3 Delta x86 SBC features M.2 B Key and M.2 M Key slots, allowing for the expansion of M.2 NVMe or SATA SSDs as well as 4G/5G communication modules.
The lattepanda series is known for combining the flexibility of a traditional PC with the compact size of a single-board computer. The lattepanda 3 delta continues this legacy by offering powerful performance, versatile OS support, and built-in Arduino compatibility. Whether you're working on IoT, robotics, automation, or edge computing, a lattepanda board provides a reliable and efficient platform in a compact form factor.
| Specifications | |
|---|---|
| Item Type | 3 Delta 864 |
| RAM Capacity | 8GB |
| Operating Temperature (°C) | 0°C~75°C |
| Core | 2.0~2.9GHz Quad-Core, Four-Thread |
| Graphics | Intel® UHD Graphics (Frequency 450 – 800MHz) |
| Memory | LPDDR4 8GB 2933MHz |
| Storage | 64GB eMMC V5.1 |
| Expansion Slots | 1x M.2 M Key, PCIe 3.0 2x, Supports NVMe SSD; 1x M.2 B Key, PCIe 3.0 1x, USB 2.0, USB 3.0, SATA, SIM, Supports SATA, 4G & 5G module |
| Connectivity | 1x Wi-Fi 6 @ 2.4GHz & 5 GHz (160MHz), 1x Bluetooth 5.2, 1x Intel Gigabit Ethernet |
| USB Port | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type A, 1x USB Type C (Supports PD, DP, USB 2.0), 1x USB 2.0 Pin Header |
| Display | 1x HDMI 2.0b (Up to 4096×2160 @ 60Hz HDR), 1x DP 1.4 (Up to 4096×2160 @ 60Hz HDR), 1x eDP (Extendable Touch Displays up to 1920×1080) |
| TPM | Built-in TPM (2.0) |
| Coprocessor | Arduino Leonardo ATMEGA32U4 |
| Audio | Microphone + Headphone Combo Connector |

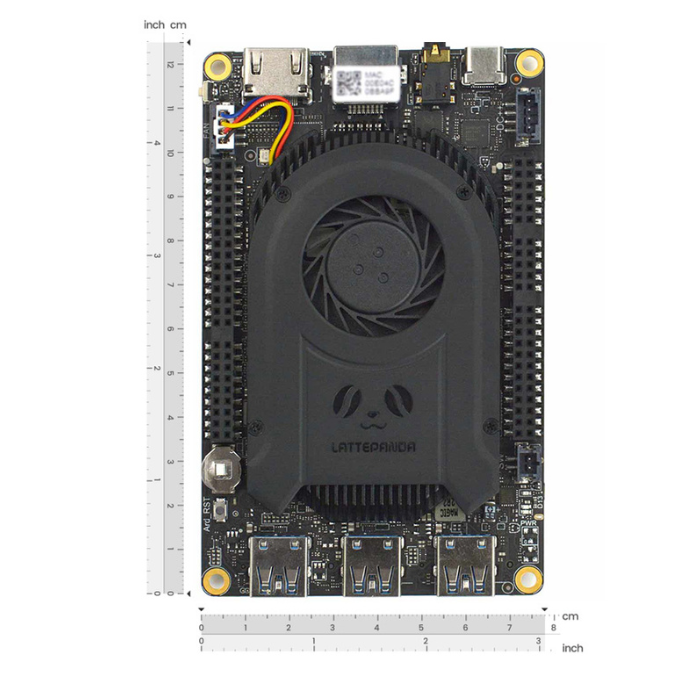

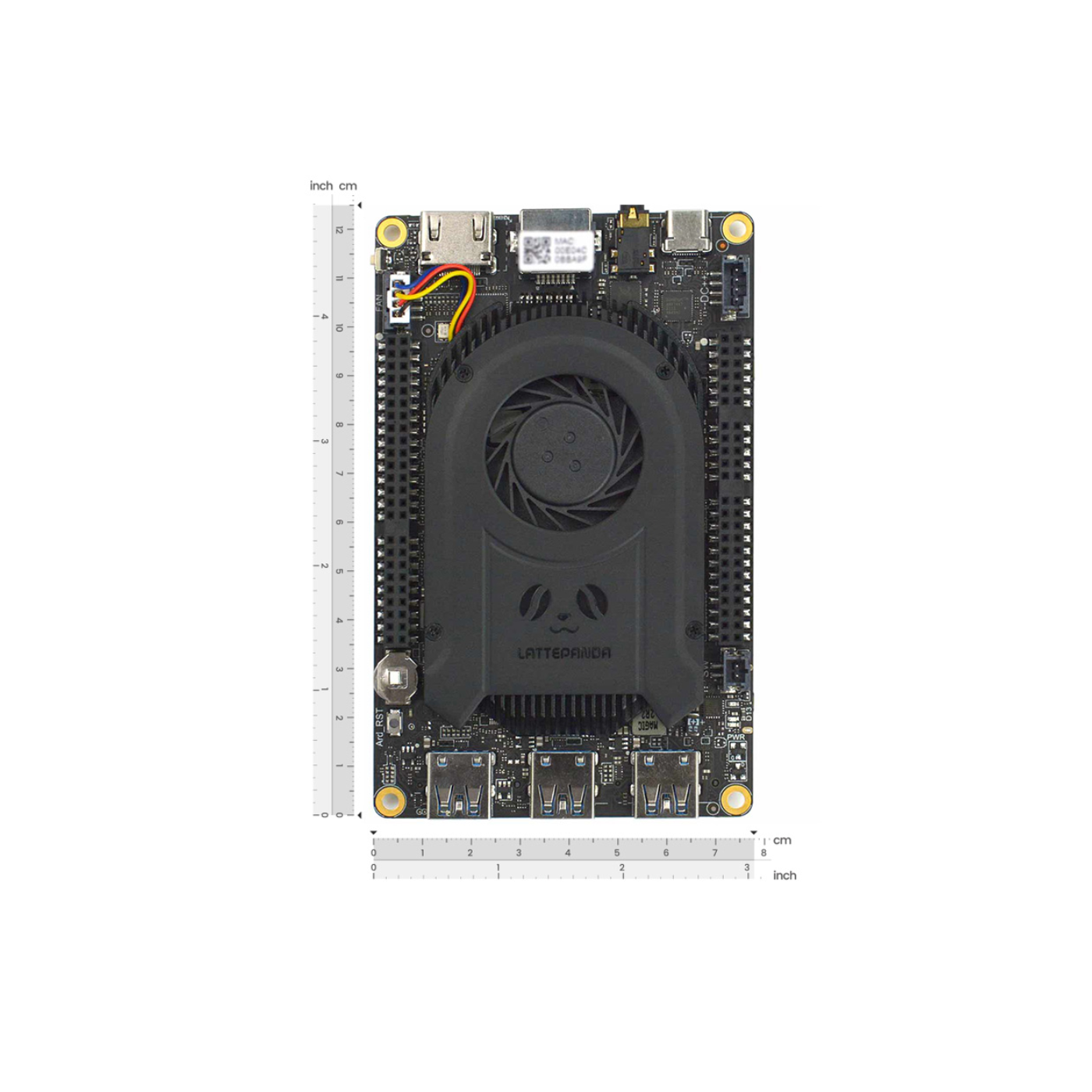

| Overall Dimension | 125 x 78 x 16mm |
The LattePanda 3 Delta 864 is a versatile single-board computer used for prototyping, IoT applications, edge computing, robotics, and digital automation. With its powerful Intel processor and built-in Arduino, it's ideal for running complex projects, controlling sensors, and developing interactive hardware. Its compatibility with Windows and Linux makes it popular among developers and hobbyists seeking a compact yet powerful computing solution.
Yes, the LattePanda 3 Delta 864 supports both Windows and Linux operating systems. Its x86 architecture and powerful hardware enable you to run Windows 10 or various Linux distributions smoothly. This dual-OS capability makes it suitable for software development, robotics projects, and automation tasks, offering flexibility and compatibility with a wide range of environments.
The LattePanda 3 Delta 864 is significantly more powerful than most Raspberry Pi models. It features an Intel quad-core processor and 8GB RAM, offering higher processing speed and multitasking capability. This makes the LattePanda ideal for demanding applications like AI, edge computing, and automation, where performance and memory requirements exceed Raspberry Pi’s capabilities.
Absolutely. LattePanda 3 Delta 864 is designed for AI, edge computing, and automation projects. Its high-performance CPU, ample RAM, integrated Arduino, and compatibility with major operating systems make it a robust platform for machine learning, real-time data processing, robotics controls, and smart automation. Developers and engineers benefit from its extensive connectivity and versatile features.
The LattePanda 3 Delta 864 offers a wide range of ports and connectivity options including HDMI, USB 3.0, USB Type-C, Ethernet, WiFi, Bluetooth, GPIO, and microSD slot. It also features integrated Arduino for hardware interfacing. These connections make it suitable for various projects needing multiple peripherals, networking, and sensor integration for both IoT and robotics applications.
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
