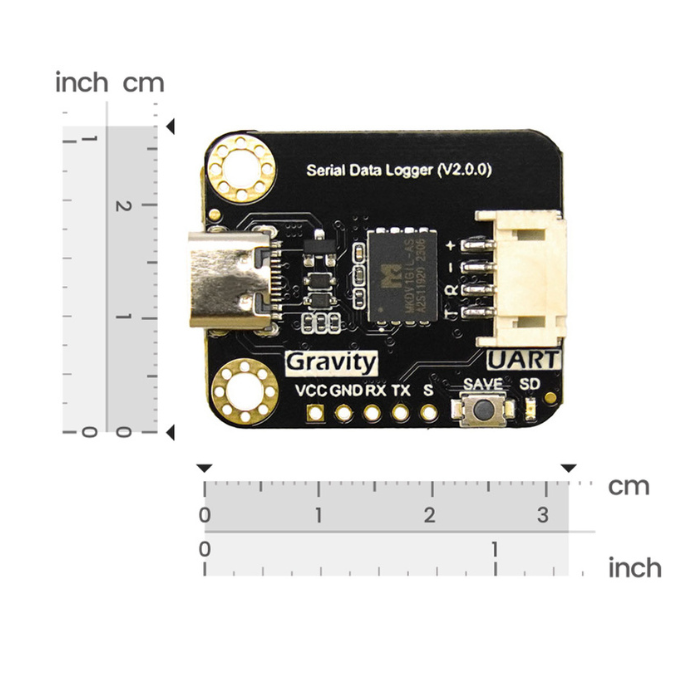

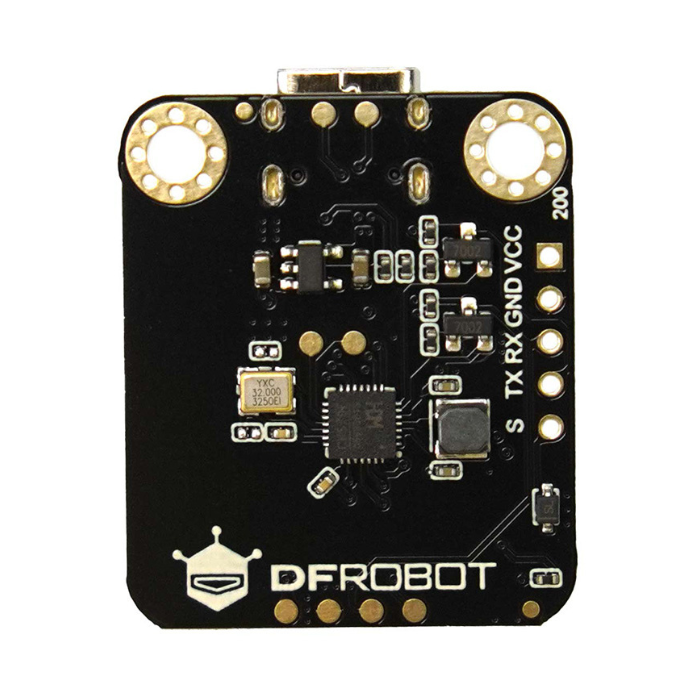

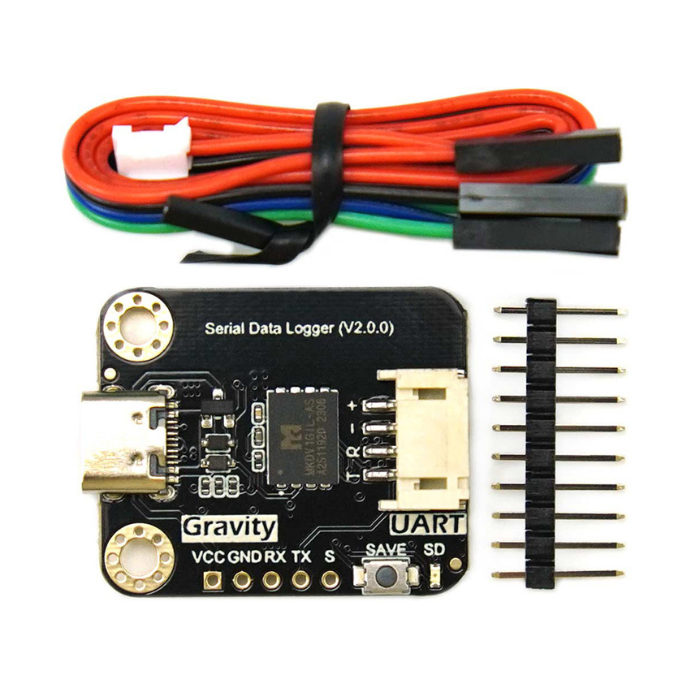

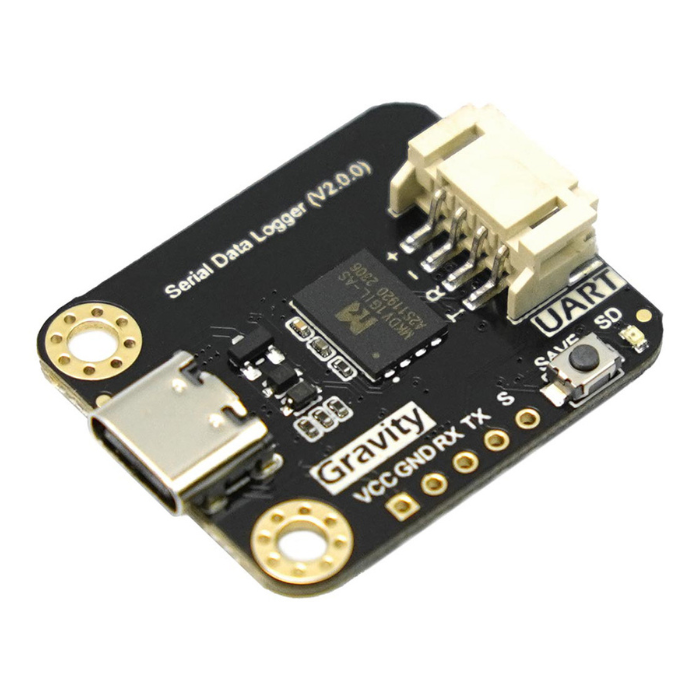

DFRobot Gravity V2.0 Serial Data Logger for Arduino
The DFRobot Gravity V2.0 Serial Data Logger for Arduino offers a simple and efficient solution for storing data in Arduino-based projects. Unlike traditional MicroSD card modules, this logger comes with 128MB of onboard flash memory, eliminating the need for external TF cards.
This feature makes data storage more convenient, as you no longer need to worry about swapping or managing additional memory cards. Equipped with USB functionality, the module allows you to directly connect it to a PC for easy file retrieval without the need for a card reader.
The onboard LED indicator gives a visual representation of the data writing status, making it easy to monitor the logger’s operation. Additionally, the SAVE button allows you to store data into separate files, providing a more organized and manageable approach to data logging.
This DFRobot Arduino makes the Gravity V2.0 Serial Data Logger an ideal tool for projects requiring reliable and efficient data storage.
The Upgraded V2.0 Version Compared to V1.0 Version:
- Supports storage in TXT and CSV file formats for better file management.
- Significantly improves startup time and runtime stability for smoother performance.
- Supports scheduled creation of files for more flexible and organized data storage.
- Added USB port to make reading files more convenient, eliminating the need for a card reader.
DFRobot Gravity V2.0 Serial Data Logger With Arduino Circuit Diagram
Features
- USB function for easy file access, no card reader required

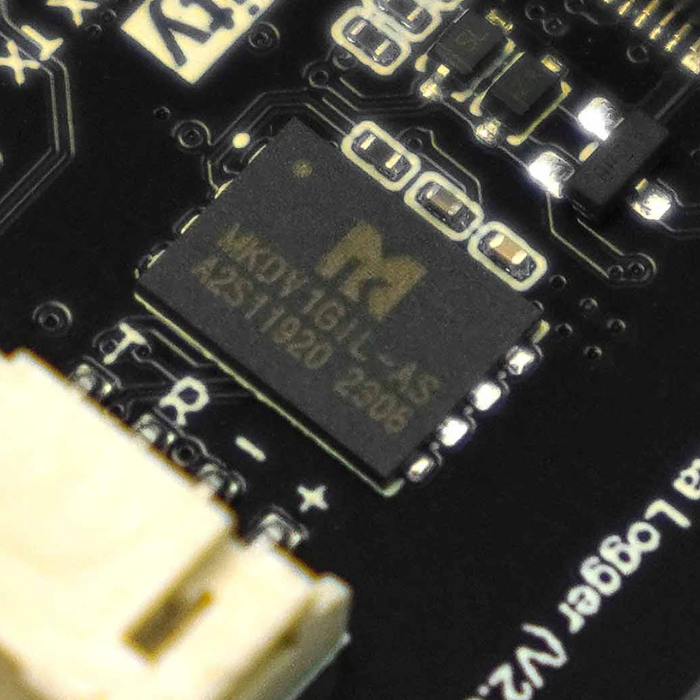

- Onboard 128MB Flash memory, eliminating the need for a TF card
- Supports multiple baud rates, ensuring good compatibility with various devices
- LED indicator to visually display data writing status
- Supports storage in TXT and CSV file formats for better file organization
- Supports scheduled creation of files for more flexible and efficient data storage
Applications
- Offline data collection
- Capture product log grab
- Robots and drones debug
