DFRobot DC to DC USB Fast Charging Module 6~32V to 5V/3A
DFRobot DC to DC USB Fast Charging Module 6~32V to 5V/3A
Low stock: 2 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

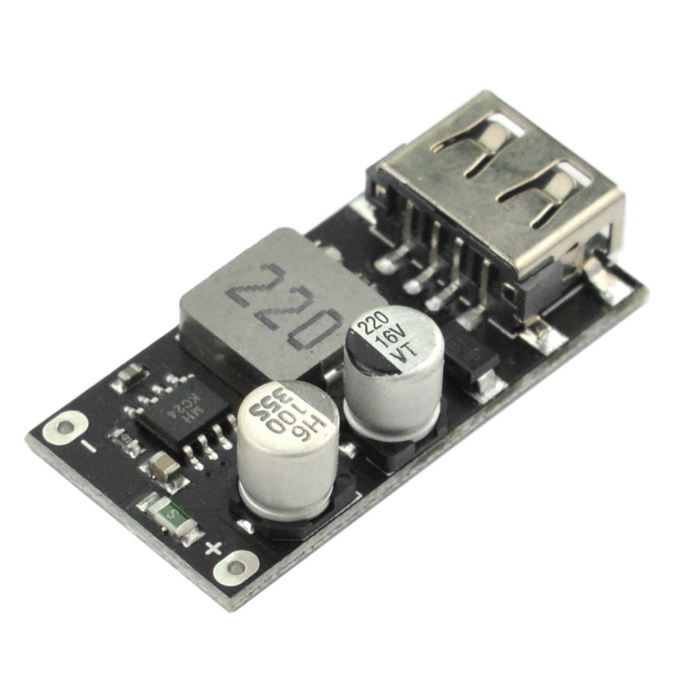

DFRobot DC to DC USB Fast Charging Module 6~32V to 5V/3A
The DFRobot DC to DC USB Fast Charging Module is a high-efficiency DC to DC converter that transforms 6–32V input into a stable 5V/3A USB output.
Designed as a versatile USB fast charging module, it integrates smart charge recognition, making it compatible with over 99% of smartphones and USB-powered devices. This intelligent feature enables the module to deliver peak charging current, dramatically reducing charge time.
With consistent voltage output, this 5V 3A power module is ideal for mobile fast charging projects, DIY power supplies, car charging retrofits, and solar charging systems.
Diagram
Features
- Small in size, easy to integrate into compact projects
- Supports multiple fast-charging protocols for wide device compatibility
- Provides stable USB output for reliable performance
- Can function as both a charging module and a power supply unit
Package Includes
1 x DFRobot DC to DC USB Fast Charging Module 6~32V to 5V/3A
Specifications
| Input Voltage Range | 6V–32V |
| Output Voltage | 3–12V auto-adjust (default 5V; input must be ≥2V higher than output) |
| Output Current | 0–3A |
| Chip Protection | Input overvoltage, under-voltage, input/output overcurrent, short circuit, over-temperature protection |

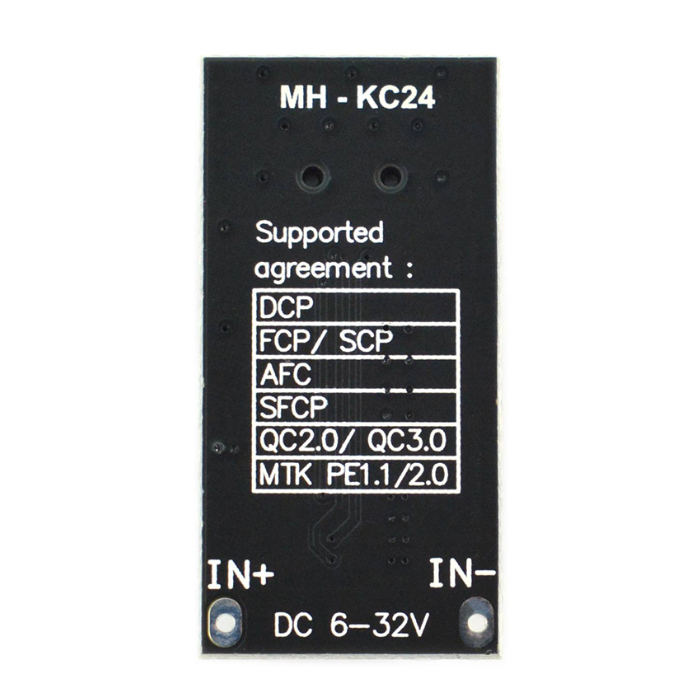

| Supported Fast Charging Protocols | DCP, BC1.2, Apple, Samsung Huawei FCP/SCP Spreadtrum SFCP Qualcomm QC2.0 & QC3.0 MTK PE1.1 / PE2.0 |
