- Waterproof ultrasonic distance sensor with IP67 rating for outdoor and wet environments
- Wide detection range from 3cm to 450cm with high accuracy
- Simple UART communication interface for easy connection to microcontrollers
- Low power consumption of only 10mA during operation
- Compact design with integrated waterproof cable for quick installation
- Blind zone of only 3cm for close-range detection capabilities
- Works in temperatures from -15°C to 60°C for versatile applications

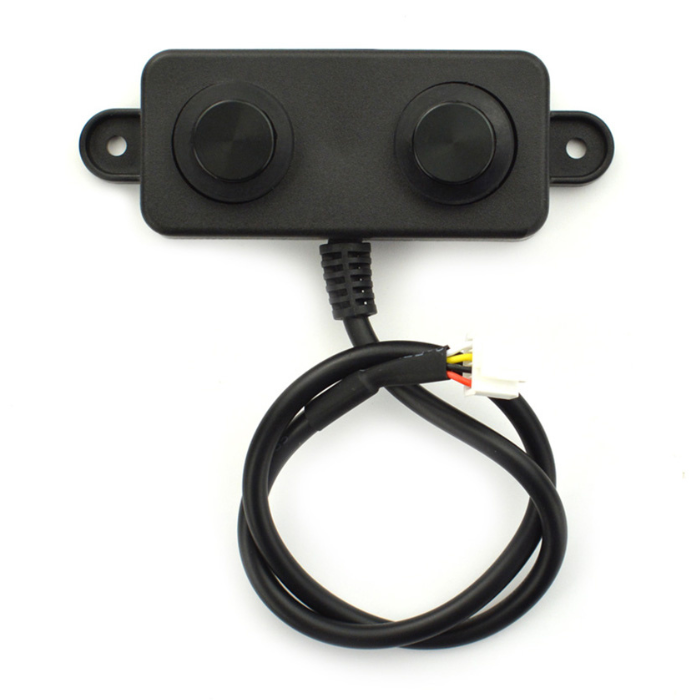

DFRobot A02YYUW Waterproof Ultrasonic Distance Sensor - 3-450cm Detecting Range
The A02YYUW Waterproof Ultrasonic Distance Sensor is a reliable solution for distance measurement in challenging environments where water and dust protection is essential. With its IP67 waterproof rating, this sensor can be safely used outdoors, in industrial settings, or any application exposed to moisture and dust.
The sensor offers an impressive detection range from 3cm to 450cm with a resolution of 1mm, making it suitable for various distance measurement projects from short-range obstacle detection to long-range monitoring.
The integrated UART communication interface allows for simple connection to Arduino, Raspberry Pi, or other microcontroller platforms without complex wiring or additional components.
This ultrasonic sensor features a compact design with a pre-attached 1-meter waterproof cable, allowing for easy installation in tight spaces or remote locations. The sensor operates on a wide voltage range from 3.3V to 5.5V DC and consumes only 10mA during operation, making it ideal for battery-powered projects.
With a blind zone of just 3cm, the A02YYUW can detect objects at very close range, which is particularly useful in robotics and automation applications.
The sensor's temperature compensation feature ensures consistent performance across varying environmental conditions, while its narrow 15° beam angle provides focused detection for accurate measurements.
Whether you're building a water level monitor, parking assistant, or industrial automation system, this waterproof ultrasonic sensor delivers reliable performance in demanding conditions.
Beam Directionalities Diagram
Features
- Detection range: 3cm to 450cm with 1mm resolution
- Communication: UART interface (9600 baud rate)
- Waterproof rating: IP67 for complete dust protection and water immersion
- Operating voltage: 3.3V to 5.5V DC
- Current consumption: 10mA during operation, 3.5mA in standby
- Operating temperature: -15°C to 60°C
- Beam angle: 15° for focused detection
Connection Diagram with Arduino
Connection Diagram with Raspberry Pi
Dimensions

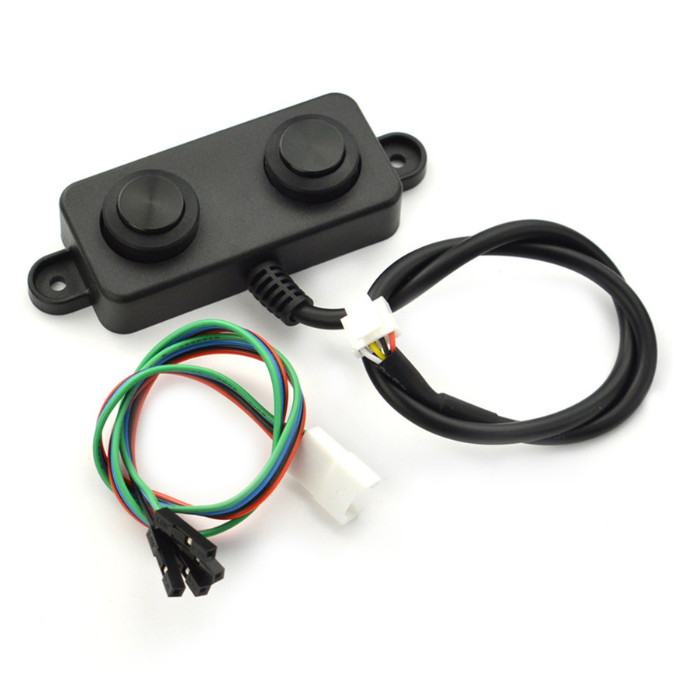

Package Includes
- 1 x A02YYUW Waterproof Ultrasonic Sensor
- 1 x PH2.0-4P Connector
Specifications
| Accuracy | ±1cm |
| Operating Voltage | 3.3~5V |
| Average Current | <8mA |
| Blind Zone Distance | 3cm |
| Detecting Range (Flat object) | 3–450cm |
| Output | UART |
| Response Time | 100ms |
| Operating Temperature | -15~60℃ |
| Storage Temperature | -25~80℃ |
| Reference Angle | 60º |
| Waterproof Grade | IP67 |
