- Dual Channel 3A Motor Driver for DC or stepper motors
- Input voltage range: 4V to 16V (4V-16V Motor Driver Board)
- Controls 2 brushed DC motors or 1 bipolar/unipolar stepper motor
- Onboard test buttons and motor output LEDs for quick diagnostics

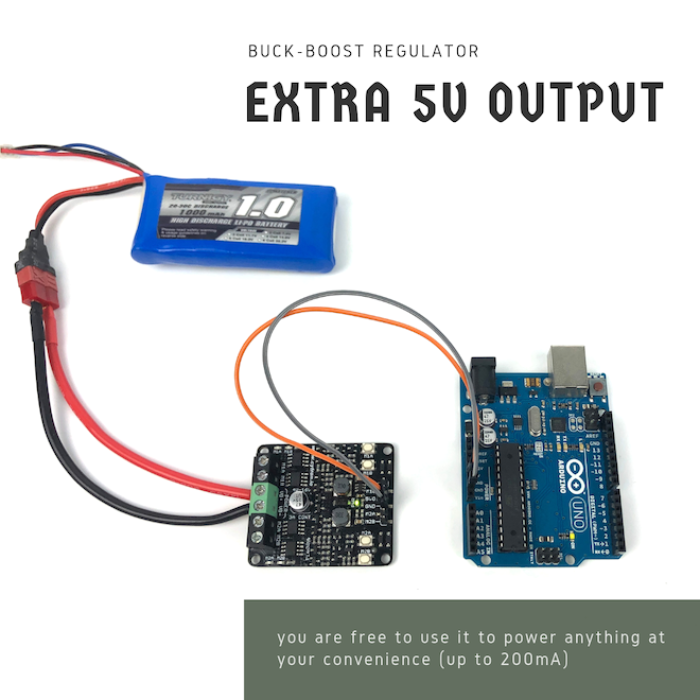

- Built-in 5V buck-boost regulator to power host controller
- Wide input logic voltage: 1.8V to 12V (compatible with Arduino, Raspberry Pi)
- Reverse polarity protection to safeguard against wrong battery connections
- Ideal 3A Motor Driver for Arduino and robotics projects
Cytron 3Amp 4V-16V Dual Channel DC Motor Driver

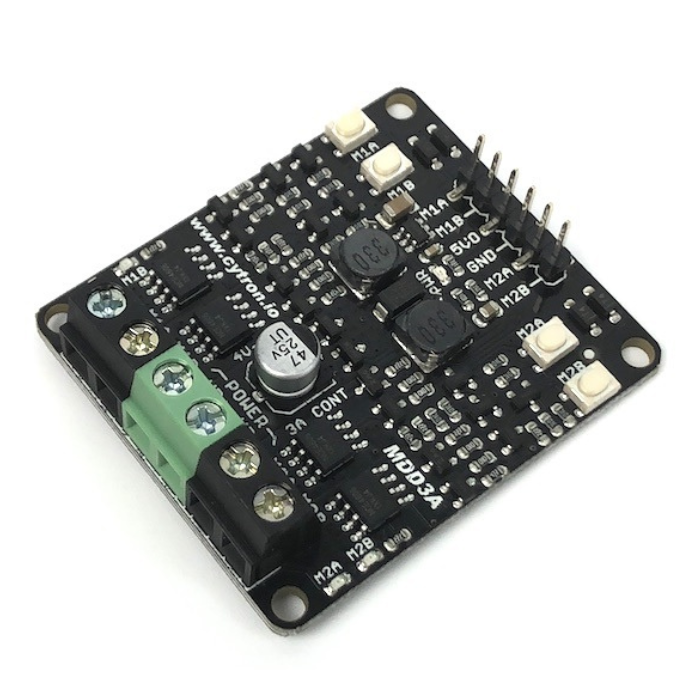

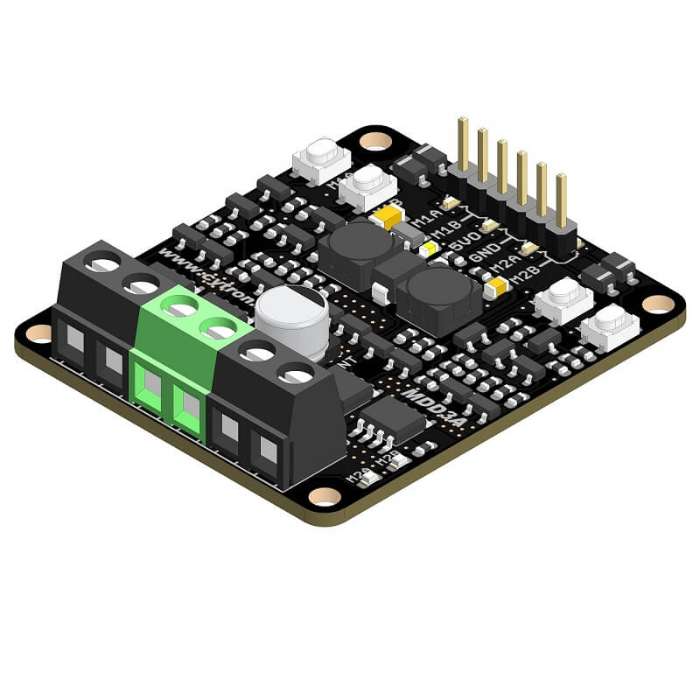

The Cytron 3Amp 4V-16V Dual Channel DC Motor Driver (MDD3A) is the perfect solution for hobbyists and engineers looking to drive brushed DC motors or stepper motors in mobile robots and automation projects.
This 3A Dual Channel Motor Driver supports continuous current up to 3A per channel without the need for an external heatsink, thanks to its discrete MOSFET H-Bridge design. Whether you’re building with Arduino, Raspberry Pi, or PLCs, this 3A DC Motor Driver Module is fully compatible with a wide input logic range of 1.8V to 12V.
Designed for versatility, the 4V-16V Motor Driver Board can control two DC motors or a single bipolar/unipolar stepper motor, with a built-in buck-boost regulator providing a stable 5V output to power your controller.
The onboard test buttons and motor output LEDs allow for quick functional tests, streamlining the development process. With reverse polarity protection built-in, the MDD3A safeguards your electronics from accidental reverse connections—a common mishap even among seasoned makers.
If you're looking for a reliable and robust 3A Motor Driver for Arduino or other microcontroller platforms, the Cytron MDD3A is an excellent choice.
Features:

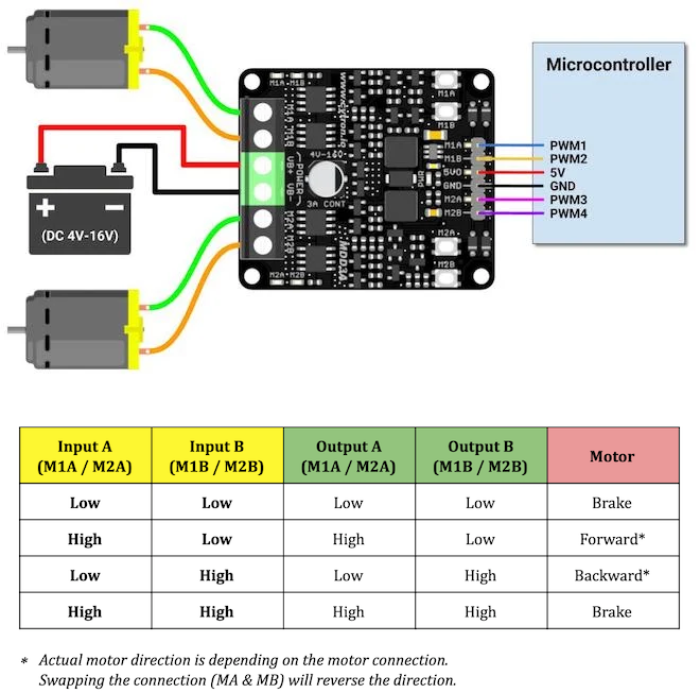

- Bidirectional control of two brushed DC motors.
- Control a single unipolar/bipolar stepper motor.
- Operating voltage: DC. 4V to 16V
- Maximum Motor current: 3A continuous, 5A peak. Buck-boost regulator produces
- 5V output (200mA max).
- Buttons allow for quick testing.
- LEDs indicate the motor output state.
- Inputs support 1.8V, 3.3V, 5V, and 12V logic (Arduino, Raspberry Pi, PLC, etc.).
- PWM frequency up to 20 kHz (output frequency equals input frequency).
- Reverse polarity protection.
Package Includes:
- 1 x Cytron 3Amp 4V-16V Dual Channel DC Motor Driver
Specifications:
| Specification | Details |
|---|---|
| Item Type | Motor Driver |
| Model Series | MDD Series |
| Model No. | MDD3A |
| Input Supply Voltage | 4V to 16V |
| Voltage Rating | 4 to 16 V |
| Max Continuous Current | 3 A per channel |
| Peak Current | 5 A (< 5 seconds) |
| Current Rating | 3 A |
| PWM Frequency | 20 KHz |
| Output Power | 5V, 200mA |
