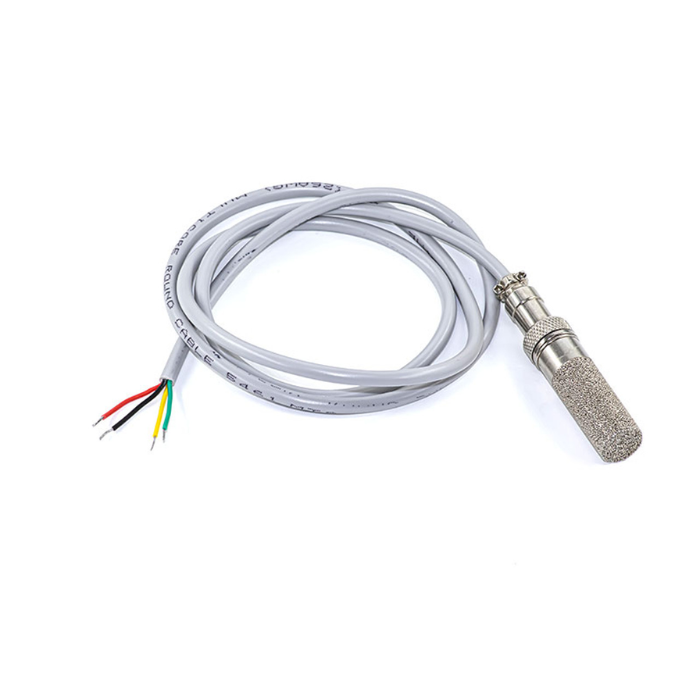

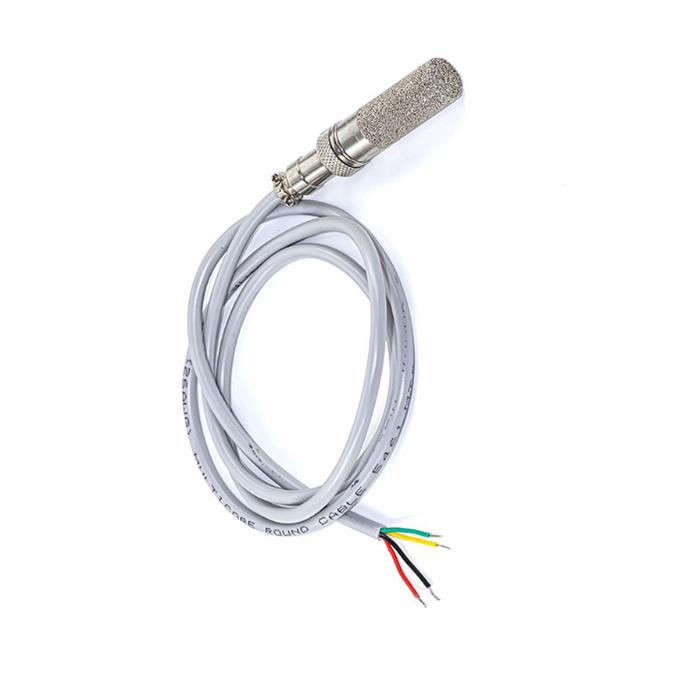

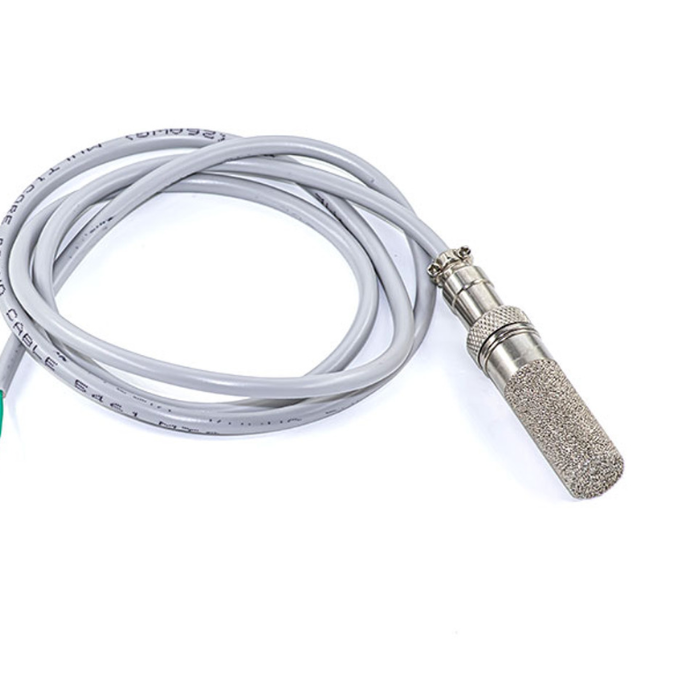

BME680 Humidity, Pressure, Temperature and Gas Sensor Probe MRS Type -7Semi

BME680 Humidity, Pressure, Temperature and Gas Sensor Probe MRS Type -7Semi

The BME680 Humidity, Pressure, Temperature and Gas Sensor Probe MRS Type - 7Semi is a robust, high-performance environmental monitoring solution built for demanding applications.

Encased in a corrosion-resistant metal housing with a breathable membrane, it incorporates Bosch Sensortec’s BME680 digital 4-in-1 sensor to deliver highly accurate measurements of temperature, humidity, atmospheric pressure, and volatile organic compounds (VOCs).

Designed for durability, the sensor excels in challenging environments with high dust, chemical exposure, or extreme temperatures. Its 1-meter cable and I2C interface ensure seamless integration with a wide range of systems operating on 1.7V to 3.6V.

Whether deployed in HVAC systems, smart agriculture, industrial automation, or medical setups, the 7Semi BME680 provides stable, long-term data with minimal maintenance, making it a reliable choice for precision environmental sensing.

Features:

• All-In-One Environmental Sensor: Temperature, humidity, barometric pressure, and gas levels (VOCs) are all accurately measured in one small instrument.

• Durable stainless steel metal casing: The breathable and corrosion-resistant metal shell provides long-lasting protection against harsh circumstances such as dust, humidity, high pressure, and explosive settings.

• Advanced Gas Detection: Detects a wide spectrum of volatile organic chemicals, which is useful for monitoring indoor air quality and assessing human health.

• Wide Operating Range: Pressure: 300-1100 hPa, Humidity: 0-100%, Temperature: -40°C to +85°C, making it appropriate for both indoor and outdoor use.

• I2C Digital Interface: Fully calibrated digital output enables simple integration with microcontrollers and embedded systems.

• Robust construction for harsh environments: Ideal for usage in vacuum chambers, pipelines, weather stations, soil monitoring systems, humidifiers, and explosive zones.

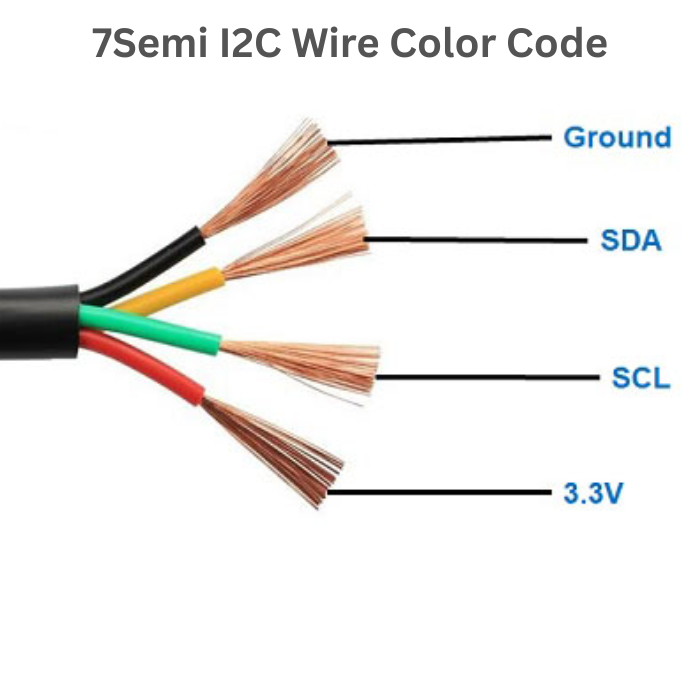

• The Mini Round Shell Connector with One-Meter Cable: Features a plug-and-play design and a 4-wire connection, making it ideal for deployment in tight spaces.

• High filtration efficiency: The stainless steel porous housing with specific pore diameters (5 to 120 microns) provides excellent dust interception and gas permeability.

• Low power consumption: Suitable for battery-powered and portable applications that demand energy efficiency.

• Exceptional stability and longevity: Long-term operational stability is supported by Bosch's established sensor technology.

Package Includes:

• 1 x BME680 Humidity, Pressure, Temperature and Gas Sensor Probe MRS Type

Specifications:
