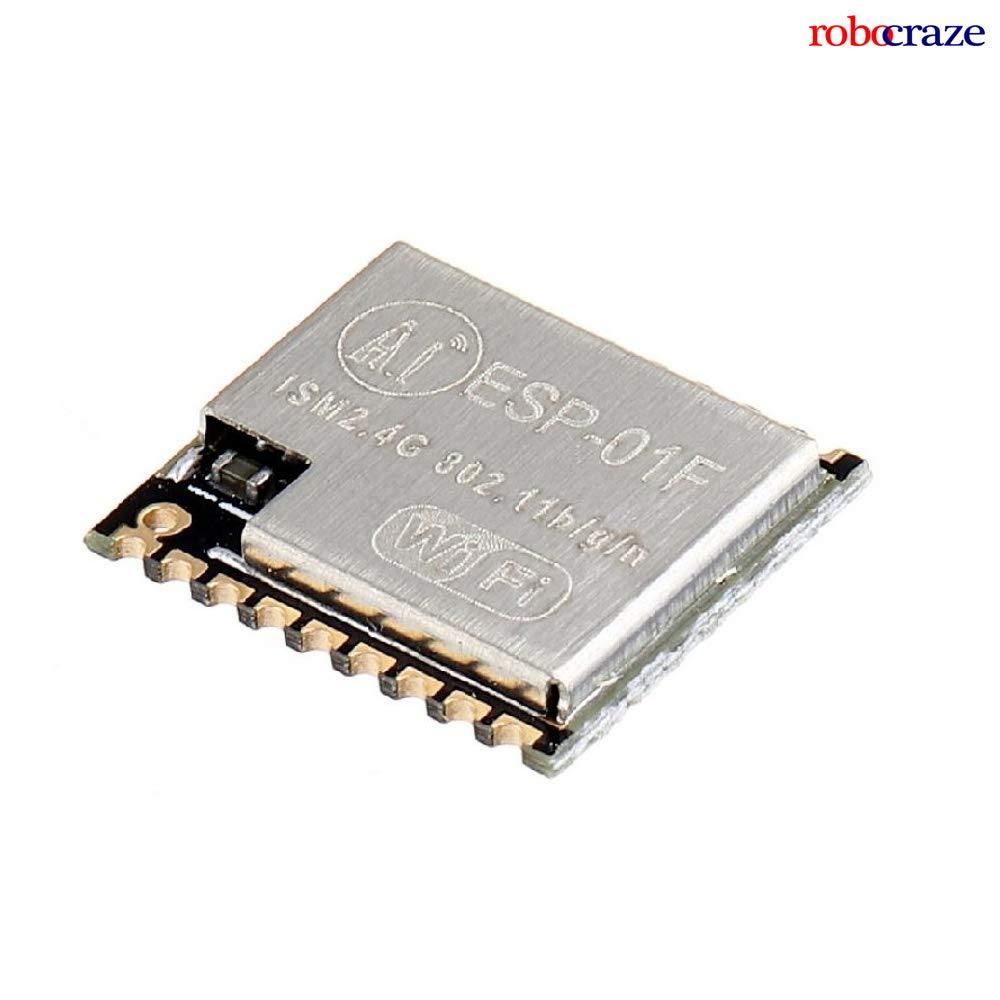

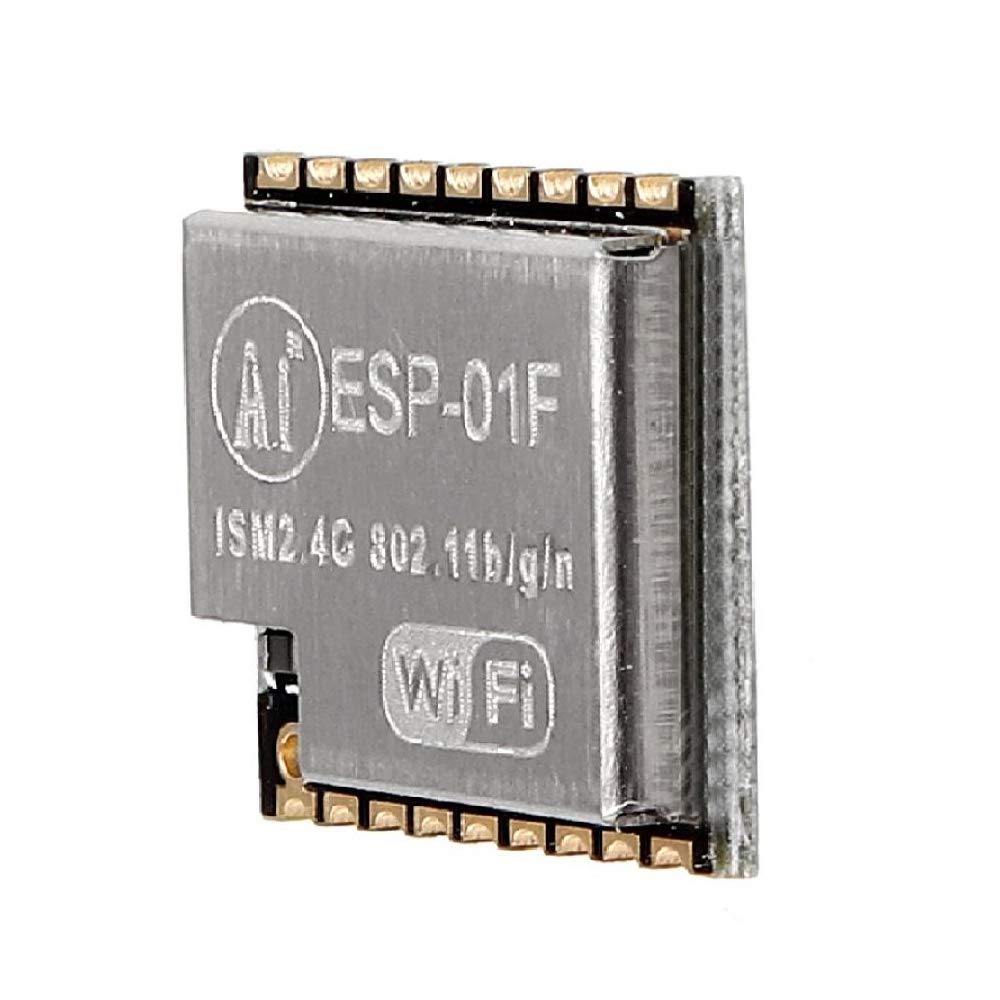

Ai Thinker ESP-01F ESP8285 Serial WiFi Module

Ai Thinker ESP-01F ESP8285 Serial WiFi Module

Regular price Rs. 178
Regular price Rs. 270 Sale price Rs. 178
Sale Sold out 34% off Best Price Guaranteed
You save Rs. 92 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • The ESP-01F Ai Thinker is a WiFi module based on ESP8285, with built-in 8Mbit Flash, it's an ultra-small (nail size) and fairly high cost-effective WiFi module.
  • This module can easily integrate with any MicroController Board
  • ESP-01F supports other developments like Lua/Micropython/ to achieve flexible and fast prototyping and to make it easy to integrate the module into IoT applications.
  • 802.11b/g/n Wi-Fi SOC. Integrated Tensilica L106 ultra-low-power 32-bit micro MCU, run at 80 MHz and 160 MHz frequency, supports RTOS. Built-in 1-ch 10 bit high precision ADC. Supports UART/GPIO/ADC/PWM/I2C.
  • This Wifi Module Supports UART local firmware upgrade and/or remote firmware upgrade (FOTA). AT commands for getting started fast. Supports secondary development, integrated Windows / Linux environment.

Ai Thinker ESP-01F ESP8285 Serial WiFi Module

Ai Thinker ESP-01F ESP8285 Serial WiFi Module has a highly competitive package size and ultra-low technology. ESP-01F can be widely used in a variety of networking, for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless location sensing devices, wireless positioning system signals, and other networking applications.

The core processor ESP8285 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit Lite mode, clocked at Supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi MAC/BB/RF/PA/LNA.

The ESP-01F WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers.

The ESP8285 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems.

Package Includes:

  • 1 x Ai Thinker ESP-01F ESP8285 Serial WiFi Module

Specifications

Module Model ESP-01F
SPI Flash Chip built-in 1MBflash
Antenna Type PCB
Input Supply Range (VDC) 3.0 ~ 3.6
Dimensions  1 x 1 x 1cms
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is ESP 01 WiFi module?

  • The ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can provide access to your WiFi network to any microcontroller. The ESP8266 may host applications or offload entire Wi-Fi networking tasks from another application processor.
