• The 7Semi OPT4048 Tristimulus Color Sensor Module provides high-precision CIE 1931 XYZ color measurement together with correlated color temperature and ambient lux output.

• Four optical sensing channels with engineered filters deliver accurate color detection while providing strong infrared rejection across varying lighting conditions.

• A high-speed I²C interface supporting up to 2.6MHz enables simple integration with ESP32, Arduino, STM32, and other embedded platforms.

• Automatic light range selection, configurable conversion times, and up to 26-bit output resolution provide flexible measurement performance.

• Low active and standby current consumption makes the module suitable for energy-efficient embedded and portable applications.

• Suitable for display calibration, smart manufacturing, environmental monitoring, robotics, and educational color sensing projects.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

7Semi OPT4048 Tristimulus Color Sensor Module I2C

~~Rs 629/-~~ Rs 466/-

Quantity:

7Semi OPT4048 Tristimulus Color Sensor Module I2C

~~Rs 629/-~~ Rs 466/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

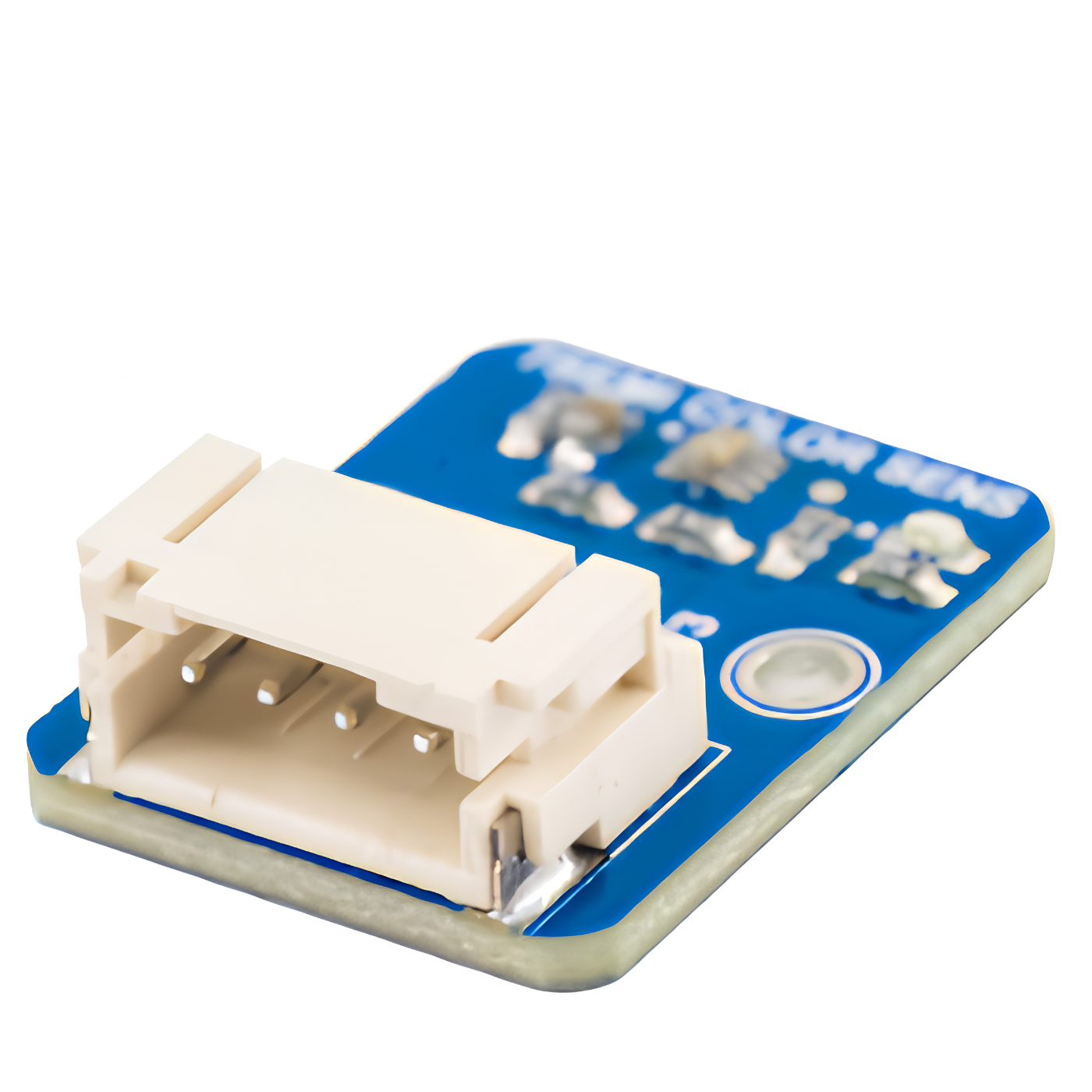

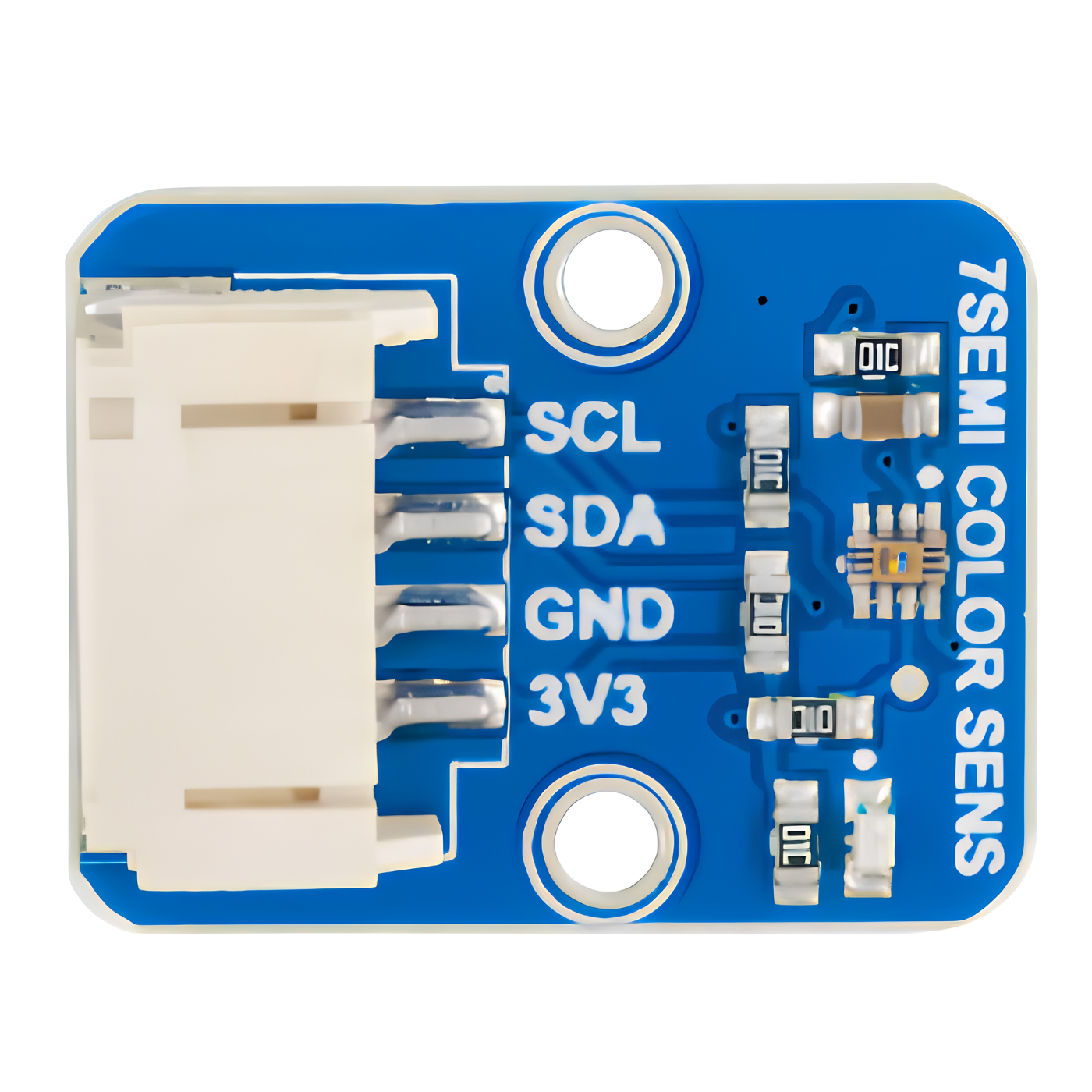

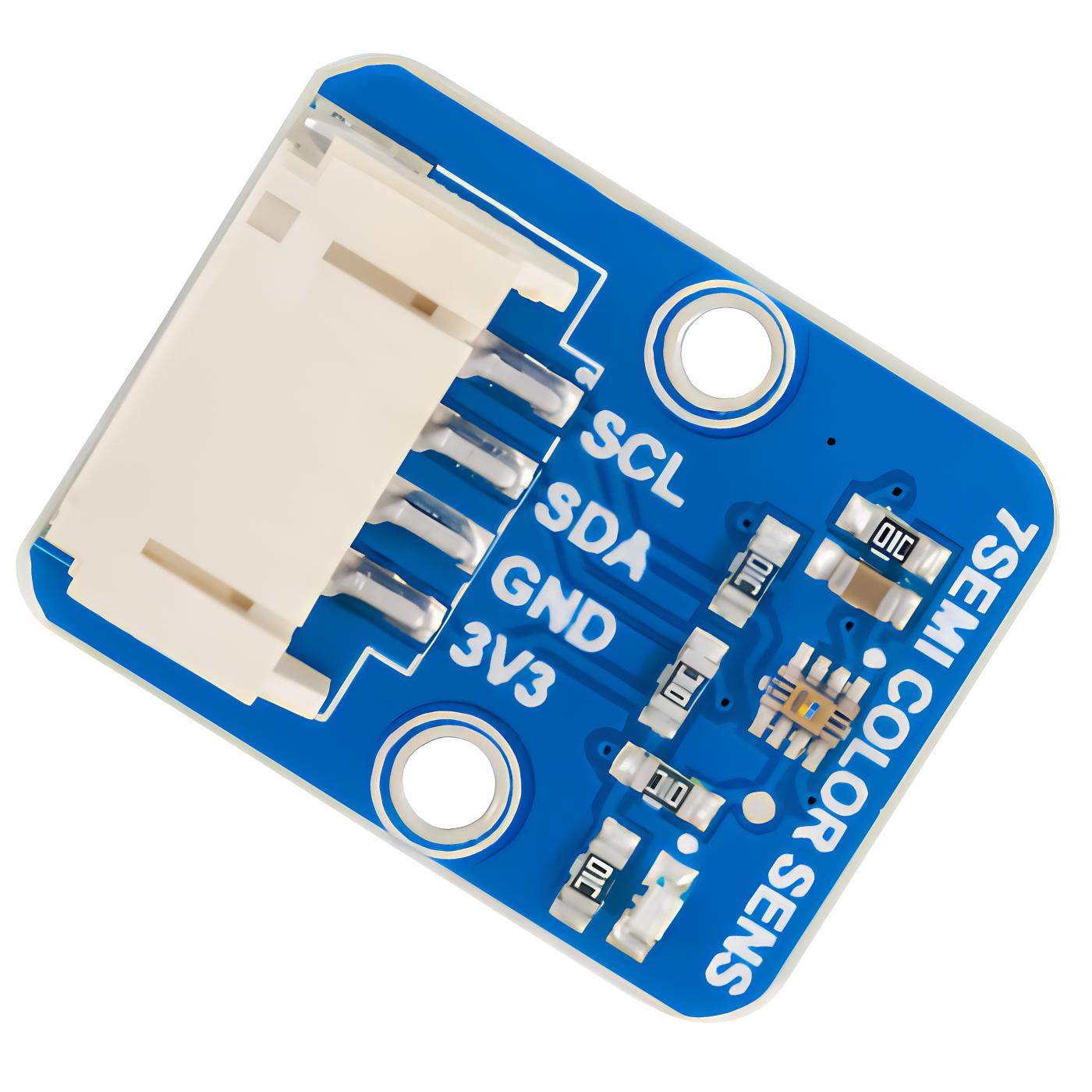

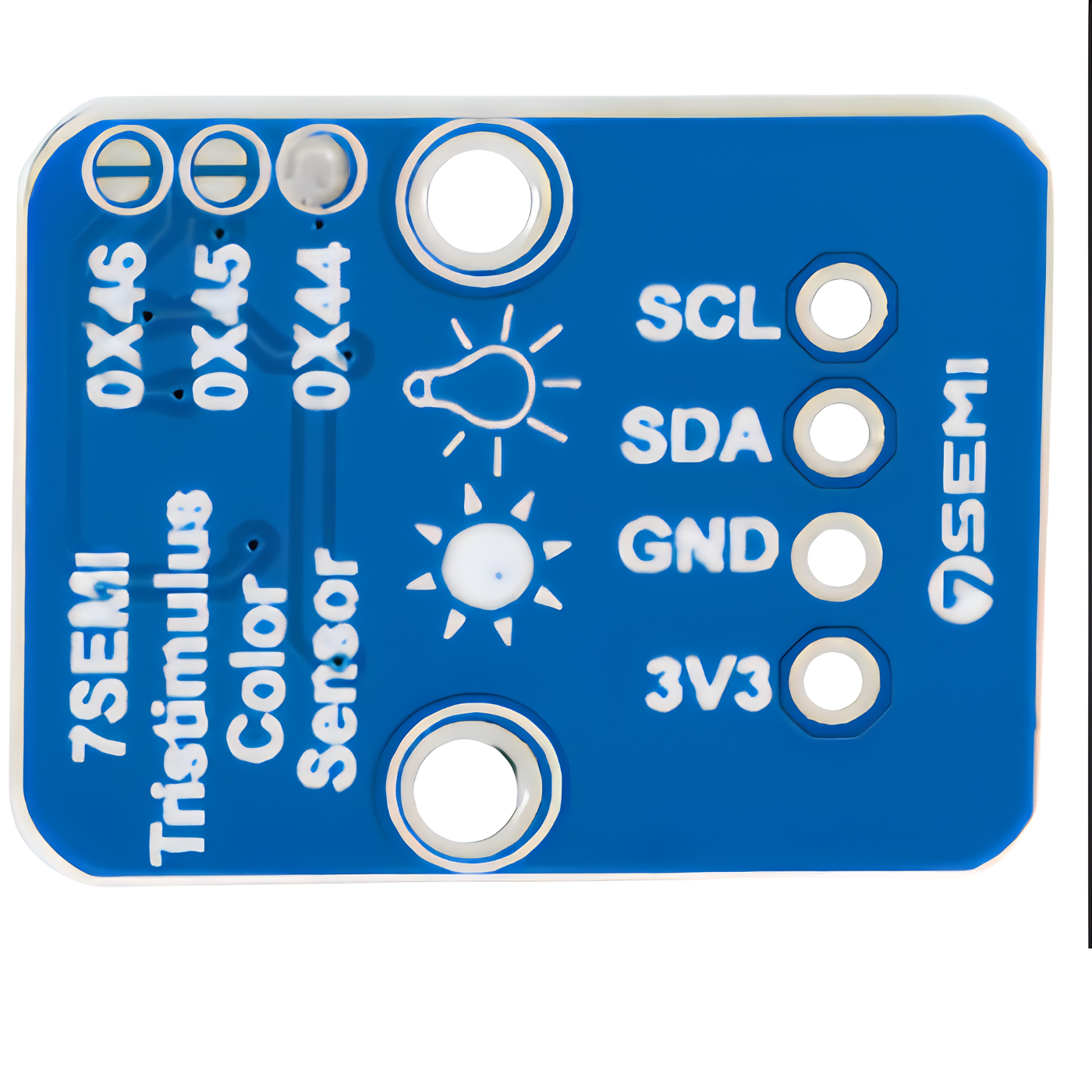

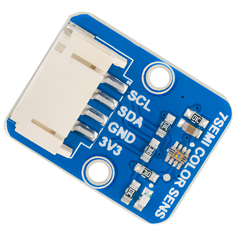

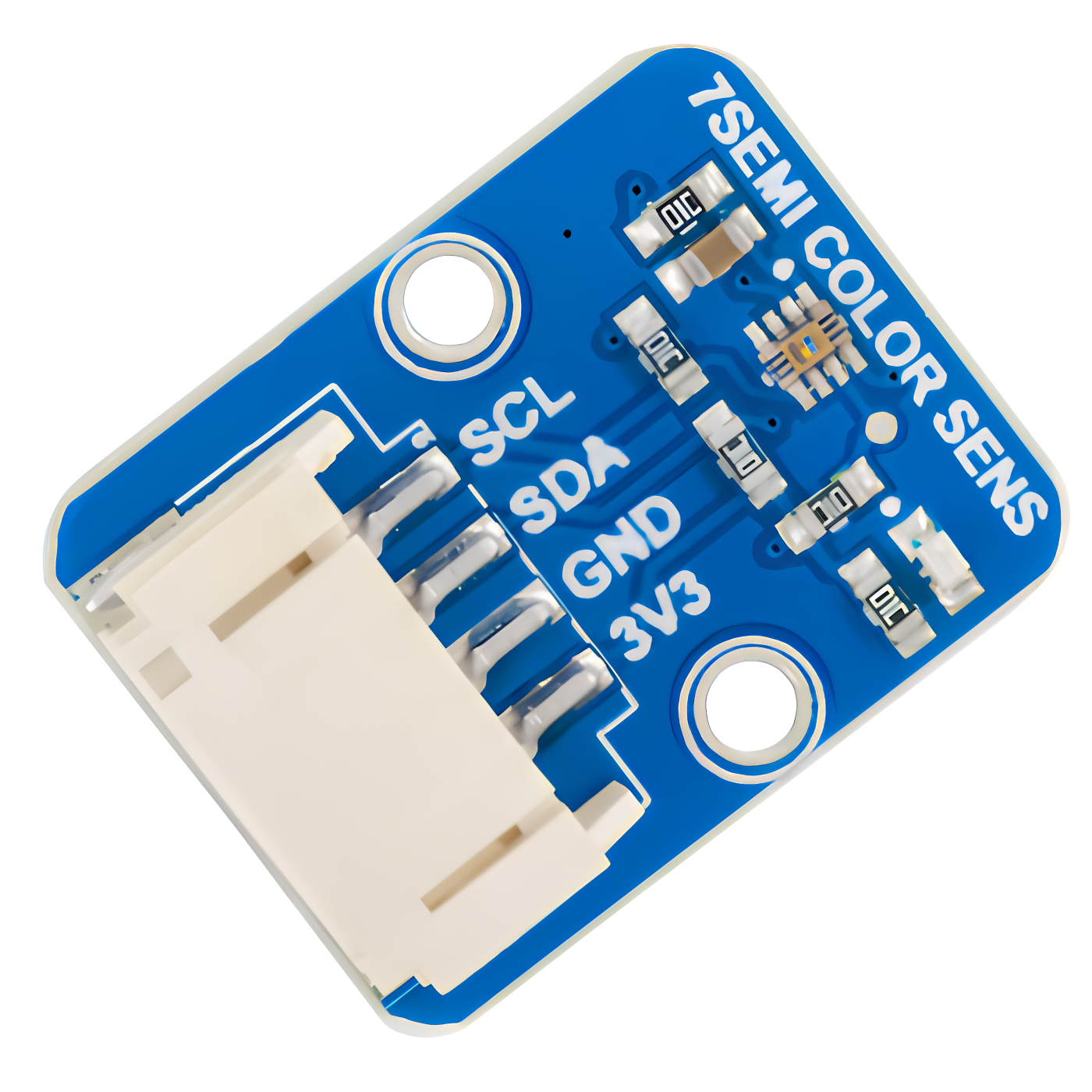

7Semi OPT4048 Tristimulus Color Sensor Module I2C

This high-precision tristimulus color sensor module from 7Semi incorporates the OPT4048 from Texas Instruments to deliver professional-level ambient color sensing. The sensor provides calibrated CIE 1931 XYZ tristimulus values, correlated color temperature ( CCT), and ambient illuminance in lux, featuring robust infrared rejection.

Built for display calibration, ambient light detection, and color-sensitive automation systems, this breakout board features a 3.3V I²C interface and works with microcontrollers such as ESP32, Arduino, and STM32. The 4-channel detection offers industry-leading 2.15 mlux resolution and a dynamic range of up to 144 klux, making it perfect for precise color measurement across diverse lighting conditions.

Features:

High-Precision Color Measurement: Aligns with CIE 1931 tristimulus spectra for precise color detection.
Four optical channels: the XYZ tristimulus channels plus a broad-band clear channel.
High-Speed I2C Interface: Enables data transfer speeds up to 2.6 MHz.
Dynamic Range: 2.15 to 144 klux, with automatic adjustment.
12 Adjustable Conversion Times: Each channel can be set between 600 microseconds and 800 milliseconds.
Power Consumption: Active mode draws 24 µA, Standby mode draws 2 µA.
Interrupt Capability: Features an external pin to trigger measurements via hardware.

Specifications

Package Includes:

1x7Semi OPT4048 Tristimulus Color Sensor Module I2C

Specifications:

Parameter	Value
Brand	7Semi
Product Type	Tristimulus Color Sensor Module
Sensor	TI OPT4048
Sensing Channels	4 (X, Y, Z, W)
Spectral Match	CIE 1931 Tristimulus + Clear Channel
Light Range	2.15 mlux – 144,000 lux (Auto-scale)
Conversion Time	600µs – 800ms per Channel
Output Resolution	Up to 26 Bits (Linear + Logarithmic)
Interface	I²C (Up to 2.6MHz)
Operating Voltage	3.3V
Current Consumption	24µA Active, 2µA Standby
Board Dimensions	Approx. 20.00mm × 15.52mm
Board Weight	2g
Package Contents	1 × OPT4048 Sensor Module

Additional Resources

OPT4048 Datasheet
