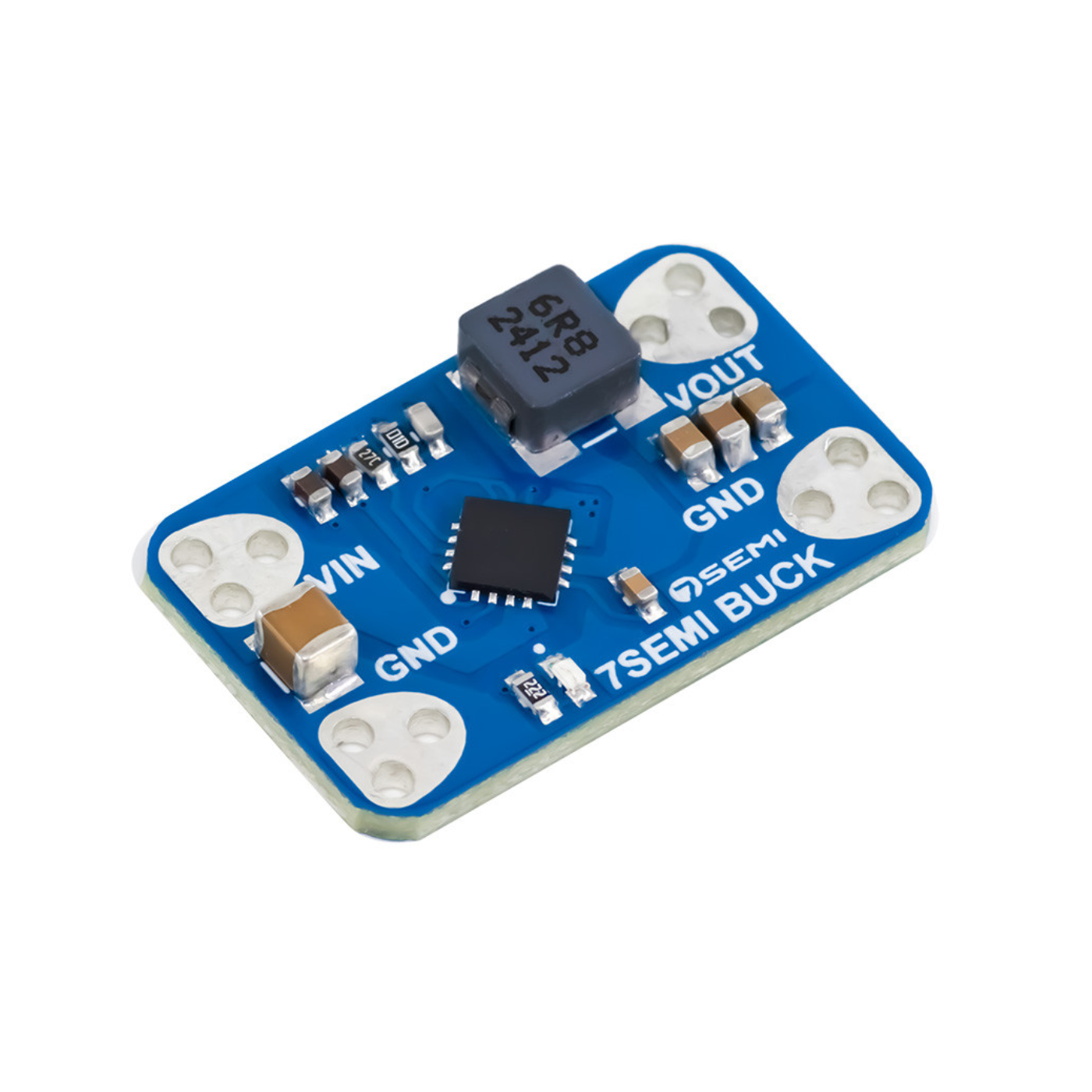

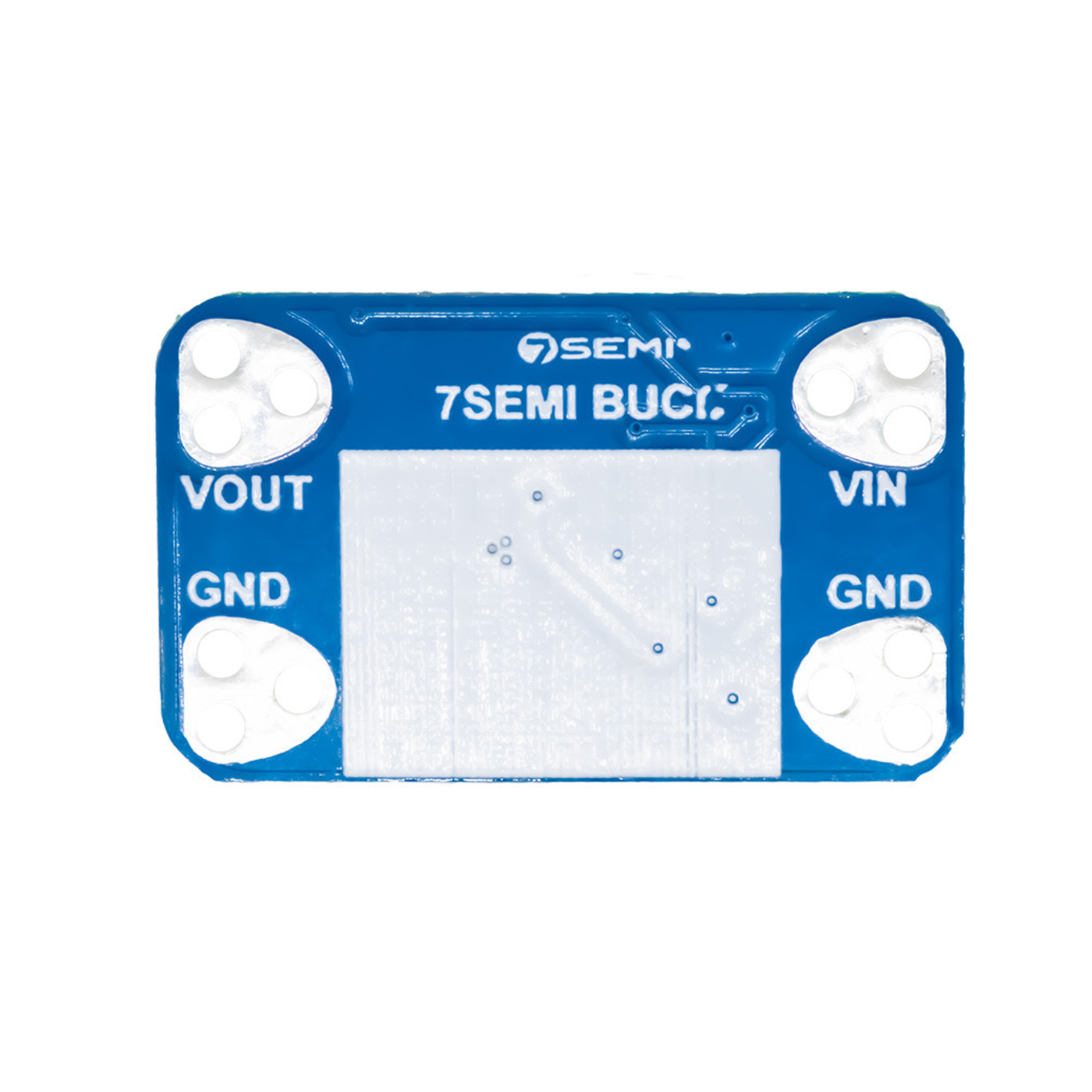

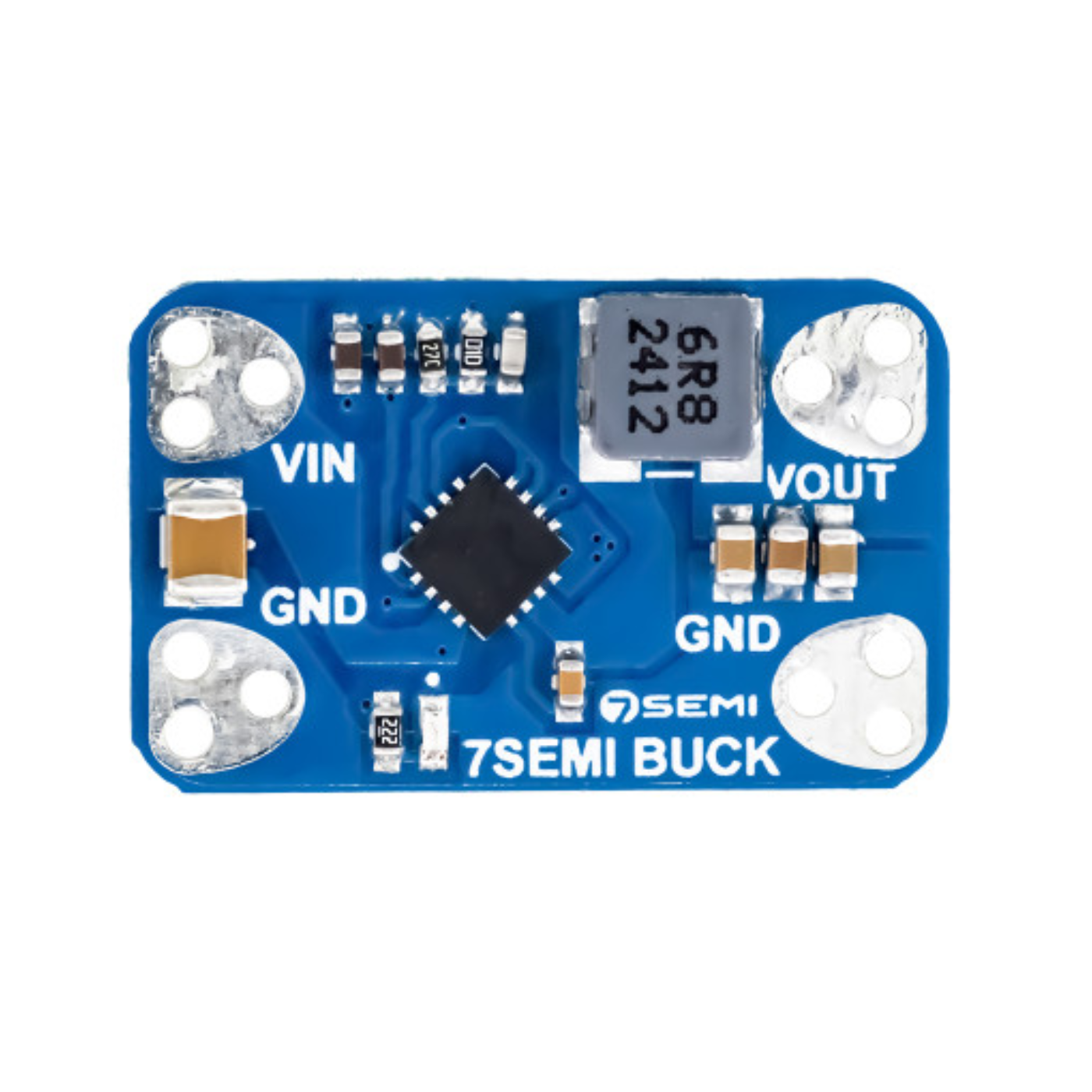

7Semi DC-DC Buck Converter 14V-60V Input to 5V 3A Output- AP66300
Couldn't load pickup availability
The 7Semi DC-DC Buck Converter 14V–60V Input to 5V 3A Output – AP66300 (BO-10189) is a compact power module designed to convert high DC input voltages into a stable 5V output with up to 3A current. Its wide input range makes it suitable for applications that use automotive, industrial, or high-voltage power sources.
Built on an efficient synchronous buck design, this converter delivers reliable power with low heat generation and minimal energy loss. It is well suited for powering microcontrollers, sensors, communication modules, and other embedded electronics. Whether you’re working on industrial systems, automation projects, or advanced DIY builds, this buck converter provides a dependable and efficient power solution.
| Input Voltage | 14V – 60V DC |
|---|---|
| Output Voltage | 5V (Fixed) |
| Maximum Output Current | 3A (Continuous) |
| Conversion Efficiency | Up to 92% (Typical) |
| Switching Frequency | 350 kHz |
| Board Dimensions | Approx. 25 × 18 mm |
| Board Weight | 2 g |
