74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC
Couldn't load pickup availability

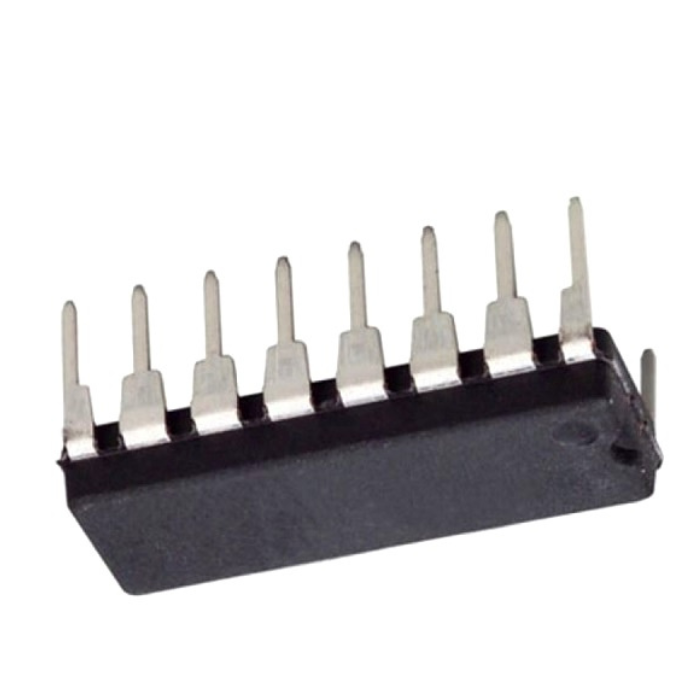

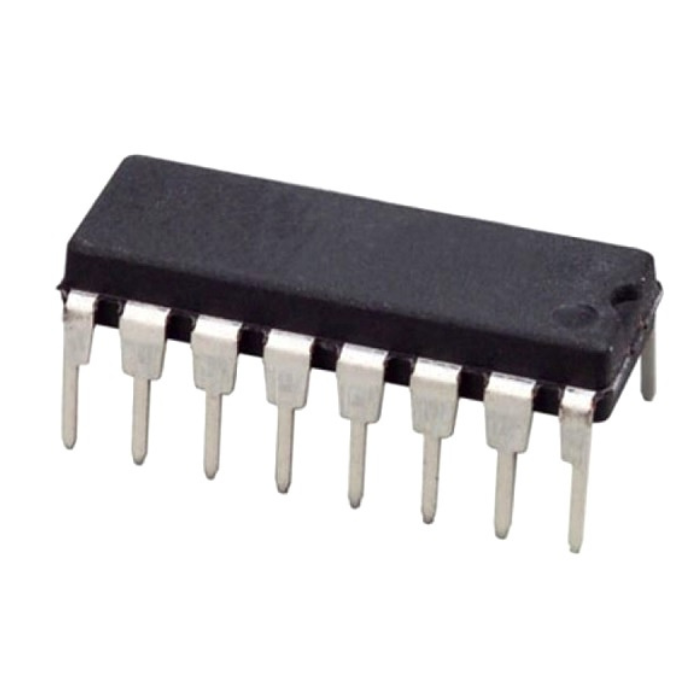

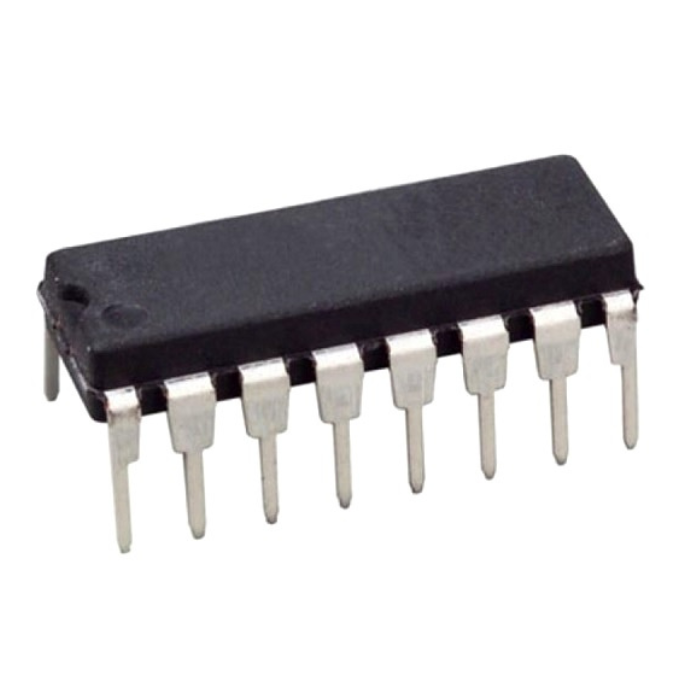

The 74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC, also referred to as the 74109 IC, features two independent flip-flops designed for positive-edge clock triggering.
Each flip-flop includes asynchronous preset and clear inputs that can override all other signals, ensuring reliable reset or set operations.
This JK flip-flop IC allows flexibility in design—it can function as a toggle flip-flop by grounding the K input and tying J high, or as a D-type flip-flop by connecting both J and K inputs.
The 74109 IC is ideal for timing, data storage, and sequential logic applications, supporting a temperature range of 0°C to 70°C. With a variety of packaging options, including plastic and ceramic DIPs, this IC is a trusted choice for TTL-based digital systems.
| Specification | Details |
|---|---|
| IC Type | Flip Flop |
| Part No. | 74LS109 |
| Input Voltage (V) | 4.75 to 5.25 |
| No. of Bits | 2 |
