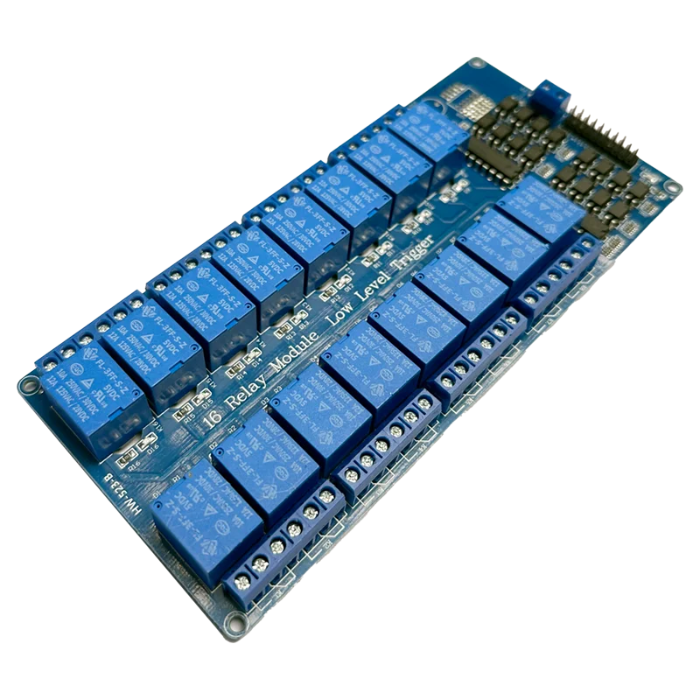

5V 16 Channel Relay Module
5V 16 Channel Relay Module
Regular price
Rs. 513
Regular price
Rs. 720
Sale price
Rs. 513
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Versatile Control: This 16 Channel 5V Relay Module lets you control up to 16 devices simultaneously.
- Optocoupler Protection: Equipped with optocoupler protection, it ensures reliable and interference-free operation.
- Universal Compatibility: Compatible with Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic, and more.
- Industrial Quality: Integrated with industrial-grade optocouplers for robust performance and anti-jamming ability.
- Easy to Use: Standard interface and indication LEDs for relay output status make it user-friendly.
- Multiple Applications: Ideal for microcontroller development, home appliance control, and PLC extended output.
- Reliable Performance: Made with quality components, this module provides efficient and dependable performance.
5V 16 Channel Relay Module
This is a 16-channel 5V relay module that can be used as a microcontroller development board module and also as appliance control, and PLC extended output. The relay module is equipped integrated with the best industrial quality optocouplers. This makes them strong and provides an anti-jamming ability and the best stable performance.
This is a 5V 16-Channel Relay interface board and each one of the individual relays needs a 15-20mA Driver Current. The 16 channel relay module features an indication LED for Relay output status and the standard interface that can be controlled directly by many of widely used microcontrollers like Arduino etc.
The 5V electromechanical relay module with an AC contact capacity of 250V which also include light coupling protection(optocoupler) for isolation of control circuitry. The plate load power module doesn’t need an external power supply. this 16 channel relay module supports all SCM drives.
Also, read our blog on the Working of the Relay Module detailing how does relay module works, its construction, relay contact types, and types of relays.
Applications:
- Can be used as a microcontroller development board,
- Can be used as a home appliance control
- Can also be used as a PLC expansion output
Package Includes:
- 1 x 5V 16 Channel Relay Module
Specifications:
| Operating Voltage | 5V |
| Number of Channels | 16 |
| Compatibility | Boards compatible with Arduino |
| Colour | Blue |
| Dimensions | 180 x 90 x 20mm (L x W x H) |
| Weight | 100 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
8 Channel 5V Relay Board
Regular price
Rs. 244
Regular price
Rs. 399
Sale price
Rs. 244
Unit price
per
Incl. GST (No Hidden Charges)
Sale
16 Channel 12V Relay Module Board
Regular price
Rs. 527
Regular price
Rs. 720
Sale price
Rs. 527
Unit price
per
Incl. GST (No Hidden Charges)
Sale

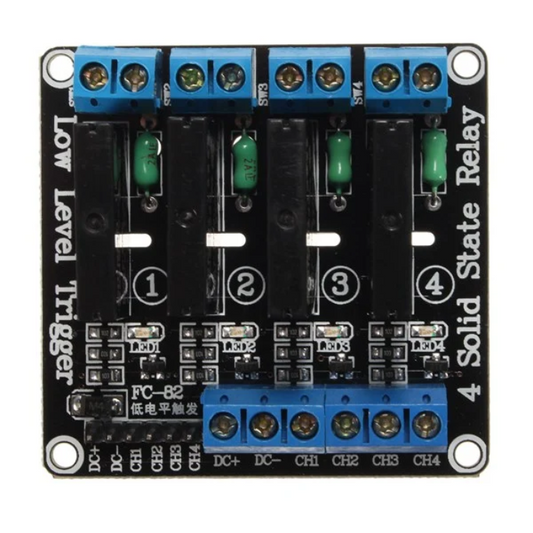

4 Channel Solid State Relay
