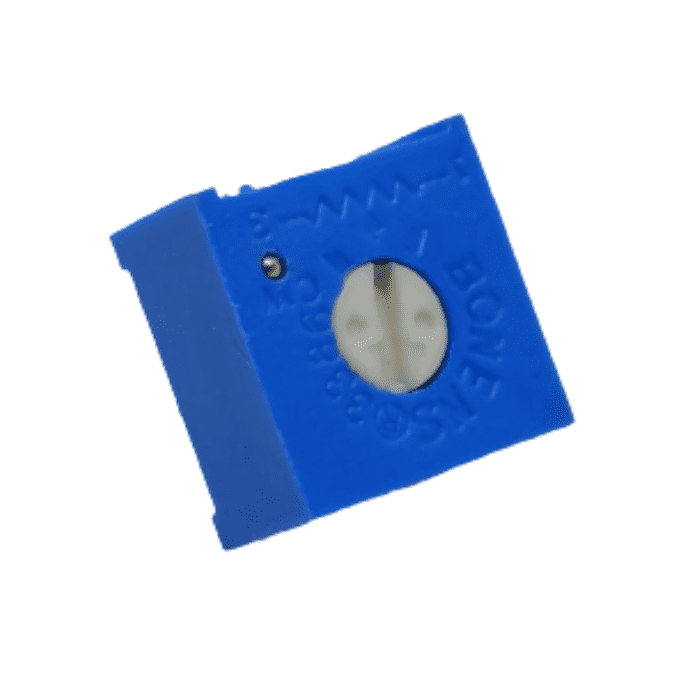

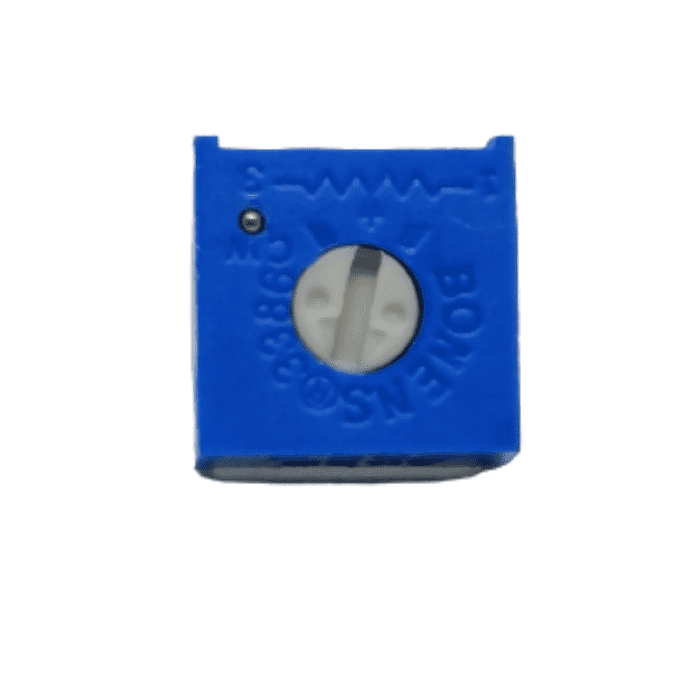

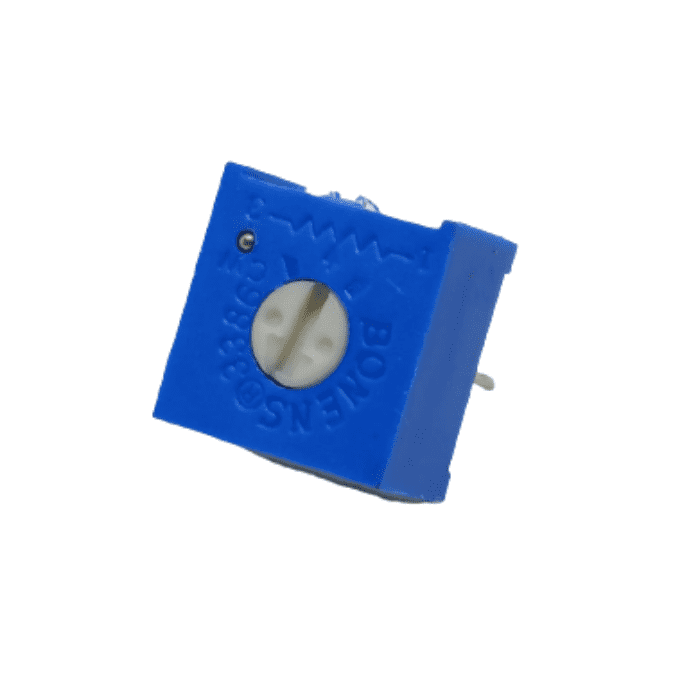

5K 3386P Trimpot(Pack of 5)
5K 3386P Trimpot(Pack of 5)
Regular price
Rs. 41
Regular price
Rs. 58
Sale price
Rs. 41
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The Maximum Resistance is 5K Ohm.
- These Trimpots can be used to Adjust, Tune, and Calibrate Circuits.
- The Variable resistors are used for variating voltage as per the need in a circuit.
- The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.
5K 3386P Trimpot Trimmer Potentiometer (Pack of 5)
5K 3386P Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit.
The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.
Applications
- Can be used to adjust the voltage drop in the circuit
- Measurement and Test of electronic circuits
- Can be used to control the intensity of led lights in DIY projects
Also check 1K 3386P Trimpot(Pack of 5). Trimmer potentiometers are used to adjust voltage in circuits. They are small and can be mounted on PCBs. The 1K 3386P has a resistance of 1k ohms.
Package Includes:

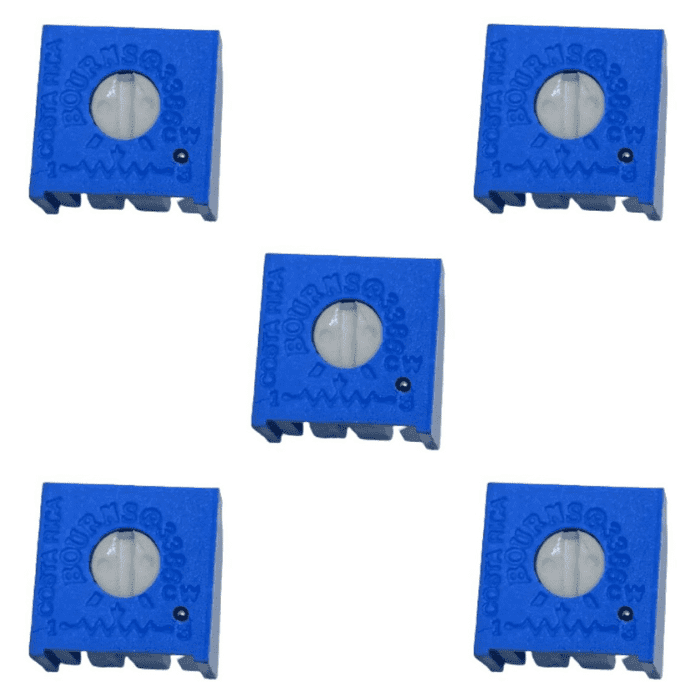

- 5 x 5K 3386P Trimpot Trimmer Potentiometer
Specification:
|
Type |
Trimmer Resistors - Through Hole |
|
Series: |
3386P |
|
Mounting Style: |
PCB Mount |
|
Resistance: |
5K Ohms |
