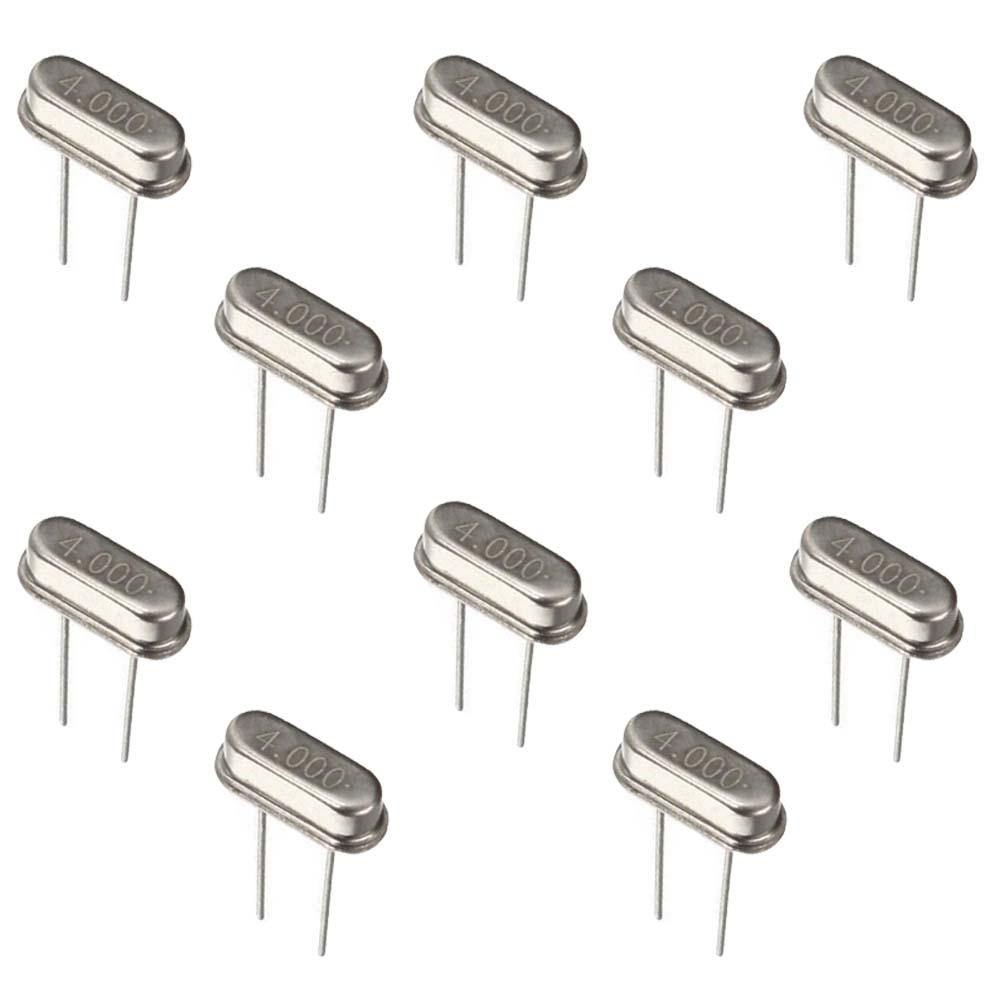

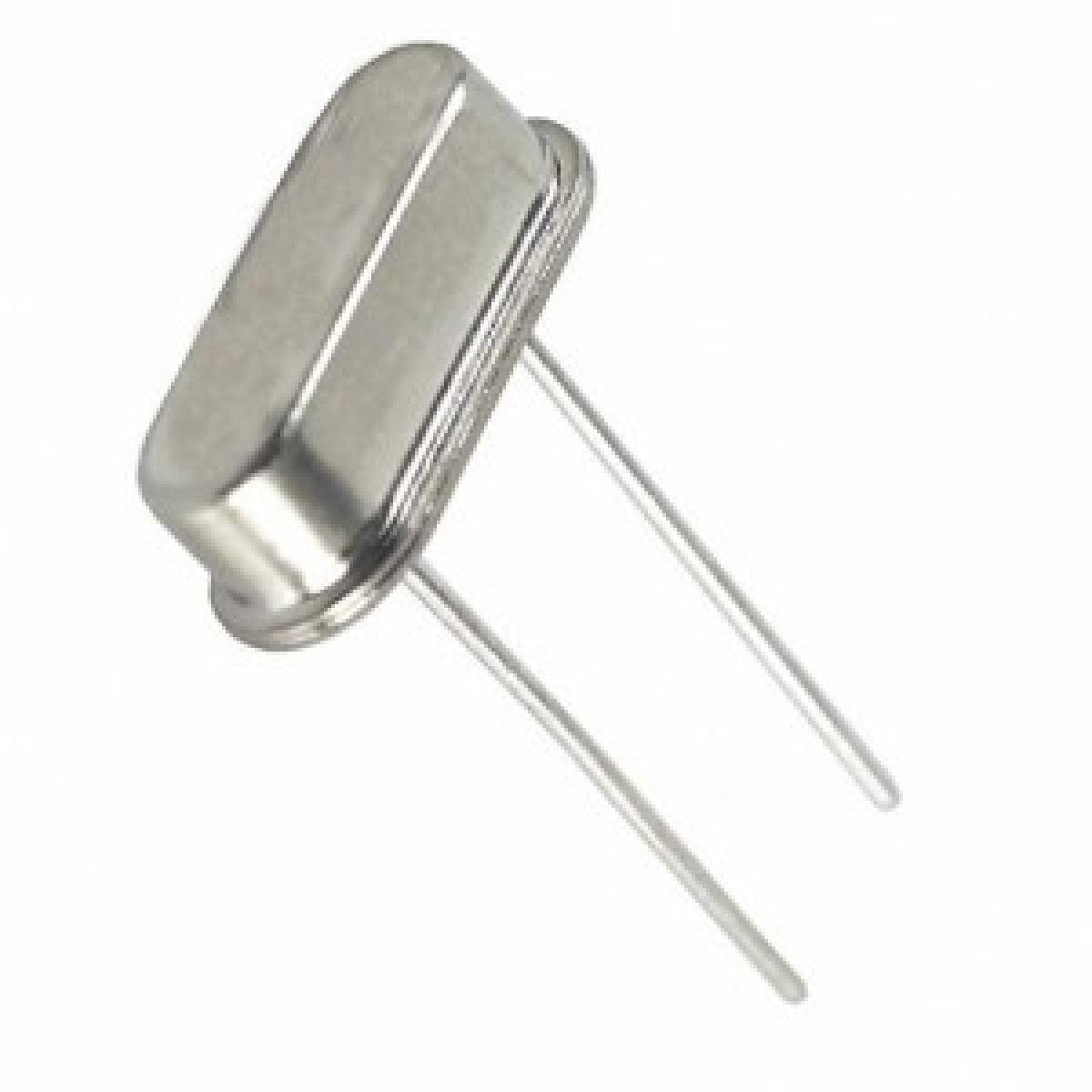

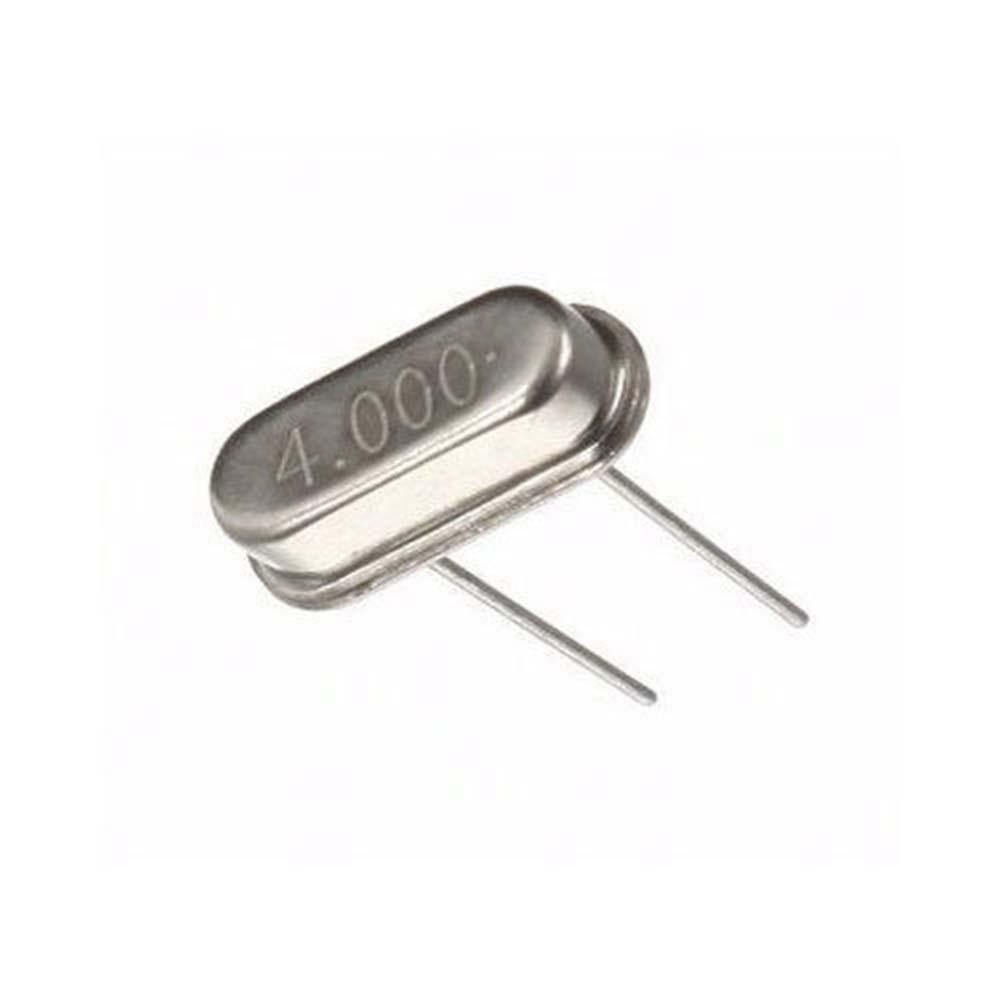

4MHz Crystal Oscillator - (Pack of 10)
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The 4MHz crystal oscillator circuit sustains oscillation by taking a voltage signal from the quartz resonator, amplifying it, and feeding it back to the resonator. It provides clock pulses of 8 MHz frequency. The popularity of the crystals is due to the low cost.
One of the most important traits of the crystal oscillator is that it exhibits very low phase noise. In the crystal oscillator, the crystal mostly vibrates in one axis, therefore only one phase is dominant. This property of low phase noise makes them particularly useful in telecommunications where stable signals are needed, and in scientific equipment where very precise time references are needed. The result is that a quartz crystal behaves like a circuit composed of an inductor, capacitor and resistor, with a precise resonant frequency.
| Frequency Range | 4MHz |
| Tolerance(%) | 30 |
| Operating Temperature Range | -10°C to +60°C |
| Dimensions | 10 x 4.4 x 3.3(mm) |
| Weight | 5 grams |
