400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator - Buy Online in India

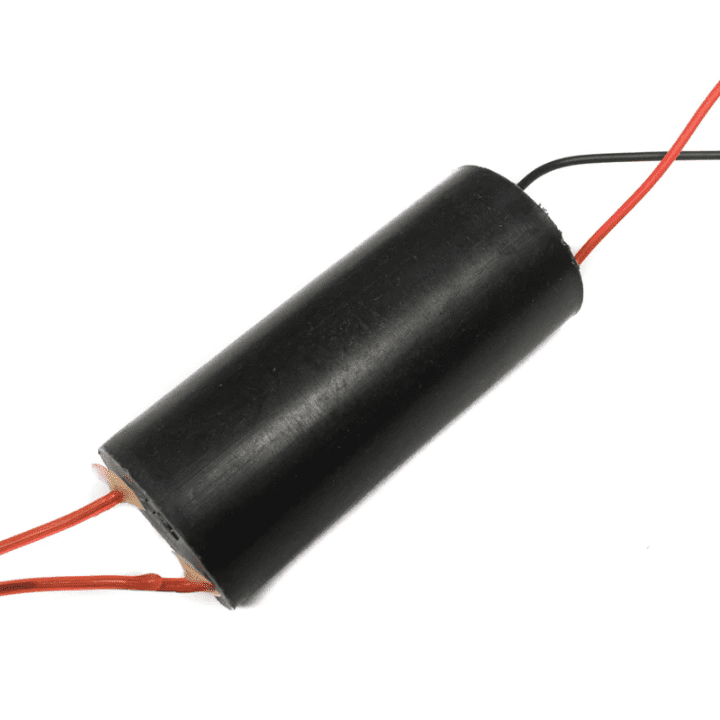

400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator

Rs 106/-
- 47%
Rs 106/-
Rs 199/-
Save Rs 93/-
🪙
RC REWARDS Earn 1 RC Coin on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 11 left in stock

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFPS0173
  • The module can output high voltage pulse current, small size and high efficiency
  • This module is the finished module of transformer for small scientific production
  • The input voltage is DC 3V to 6V and will output 400kV high voltage
  • It can be used for negative-ion generator, electronic instrument, and science experiment
  • The peripheral circuit is simple, simply connect the switch and battery, and the discharge intensity is great

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
400kV High Voltage Pulse Generator – High-voltage pulse generator for science use. -Power Converter -Robocraze
400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator
Rs 199/- Rs 106/-
400kV High Voltage Pulse Generator – High-voltage pulse generator for science use. -Power Converter -Robocraze
400kV High Voltage Pulse Generator – High-voltage pulse generator for science use. -Power Converter -Robocraze

400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator

Rs 199/- Rs 106/-
Description

400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator

This 400kV high voltage generator is a compact DC step-up module designed to convert a low-voltage 3–6V DC input into a high-voltage pulse output for electronics experiments, demonstrations and specialized DIY projects. Its small form factor makes it convenient for projects where space is limited, while the simple input arrangement allows it to be integrated into suitable experimental circuits.

The module is useful for learning and demonstrating high-voltage generation, electrical discharge and step-up conversion principles. It can also be explored in science projects involving high-voltage pulse generation and related electronic experiments.

The module requires a suitable DC power source capable of supplying the required input current. Because the output is at a very high voltage, it should only be handled by users who understand high-voltage safety practices and appropriate insulation and clearances. The manufacturer specifies a limited discharge/operating duration, so continuous operation should be avoided.

For makers, students, educators and electronics enthusiasts, this high voltage generator provides a compact way to study high-voltage pulse generation from a low-voltage DC supply.

This is a high-voltage step-up power supply module or boost converter that is often used in electronics demonstrations and experiments. Where a 3-6V input from a standard Li-ion battery can create a voltage of up to 400KV. The Tesla coil principle is used in this high-voltage module.

Wiring Instructions:

  • Input: Red(+) and Black(-)

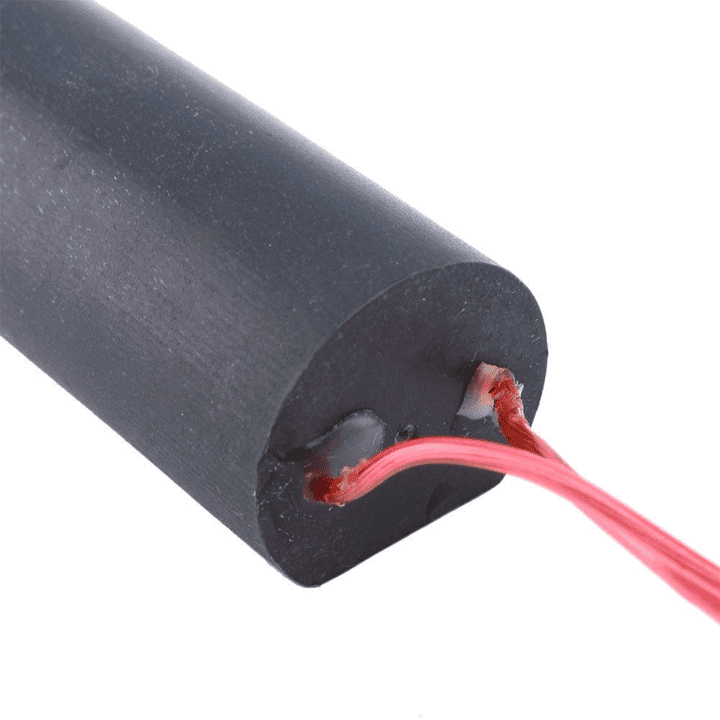

  • Output: Same Colour wires on Opposite side.

Note:

  1. Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity.
  2. The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.
  3. The module has high power and inner heat is not easily dissipated, so it can not work continuously for long time (<10 seconds each time)
Specifications

Package includes:

  • 1 x 400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator

Specifications:

Input VoltageDC 3V-6V
Input Current2A-5A
Output VoltageDC 400kV
Output Current0.5A
Discharge Time10s
Input line Colour CodeRed +, Black -
Size56.5x24mm
FAQ

1. What is a 400kV high voltage generator?

A 400kV high voltage generator is a compact step-up module designed to convert a low-voltage DC input into a high-voltage pulse output. This module accepts a 3–6V DC input and is intended for controlled electronics experiments, science demonstrations and high-voltage generation projects.

2. What input voltage does this high voltage generator require?

The module is designed for a 3–6V DC input and has a specified input current requirement of approximately 2A–5A. Use a suitable power source capable of supplying the required current and stay within the specified input voltage range.

3. How do you connect the 3–6V high voltage generator?

The low-voltage input uses colour-coded wires: red for positive (+) and black for negative (−). The high-voltage output is located on the opposite side of the module. Always disconnect power before changing wiring and maintain appropriate insulation and clearance around the high-voltage output.

4. Can this high voltage generator run continuously?

No. The manufacturer specifies a discharge/operating duration of approximately 10 seconds. Continuous operation should be avoided because the module can generate internal heat during use. Allow the module to cool between operating periods as appropriate.

5. What can I use a high voltage generator module for?

This module can be used for controlled science demonstrations, electronics experiments, high-voltage generation studies, electrical-discharge experiments and suitable DIY projects. It is particularly useful for learning about voltage step-up conversion and high-voltage pulse generation.

6. Does this high voltage generator require Arduino or programming?

No. The module does not require Arduino, Raspberry Pi or programming for basic operation. It is a standalone step-up/pulse-generation module that is powered from a suitable 3–6V DC source.
