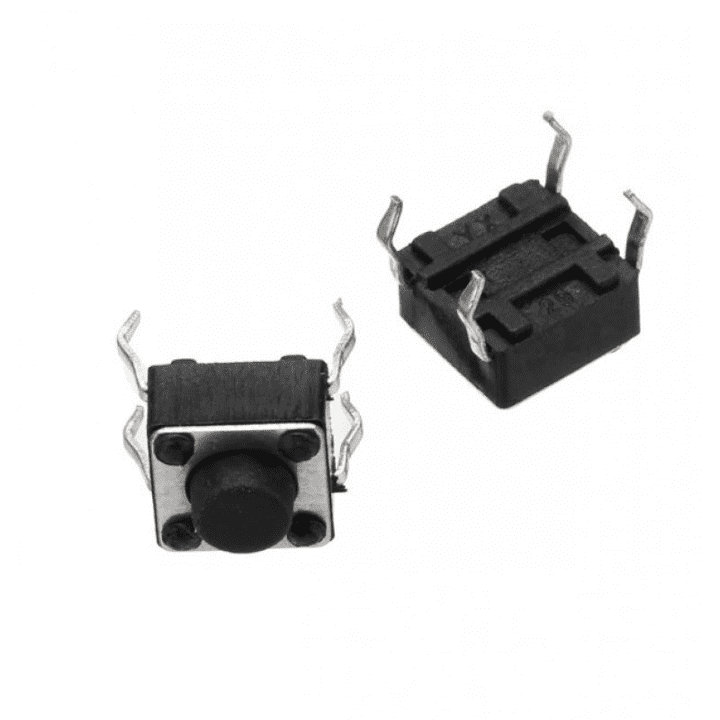

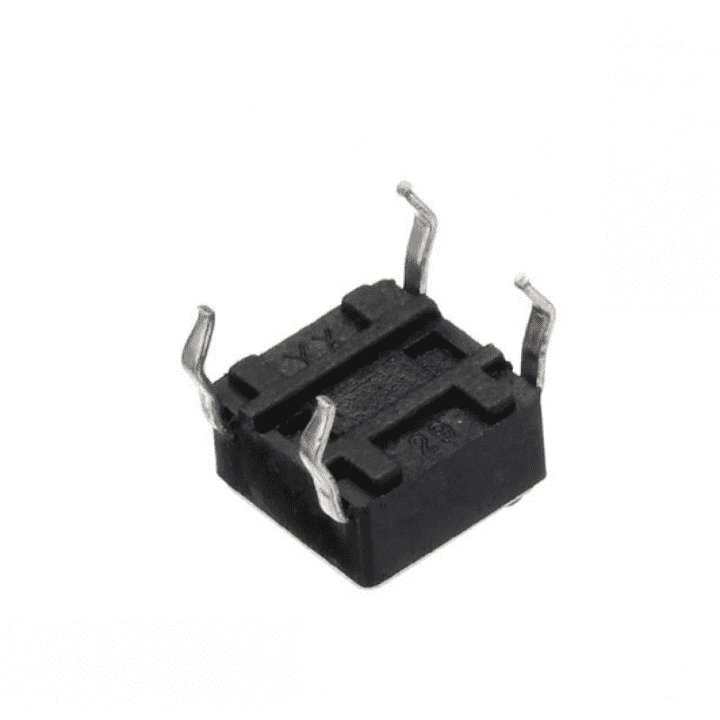

4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x5mm

4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x5mm

Regular price Rs. 18
Regular price Rs. 29 Sale price Rs. 18
Sale Sold out 38% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 9 Hours and 17 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Through-hole design.
  • High operating force (1.5N or 2.5N) suited to automotive equipment requirements
  • Middle stroke (1.05mm)
  • Used in the fields of electronic products, household appliances and more.
  • This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
  • Compact and lightweight, easy to carry and dismantling.
  • Good electrical conductivity.

4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x5mm

6x6x5mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Package Includes:

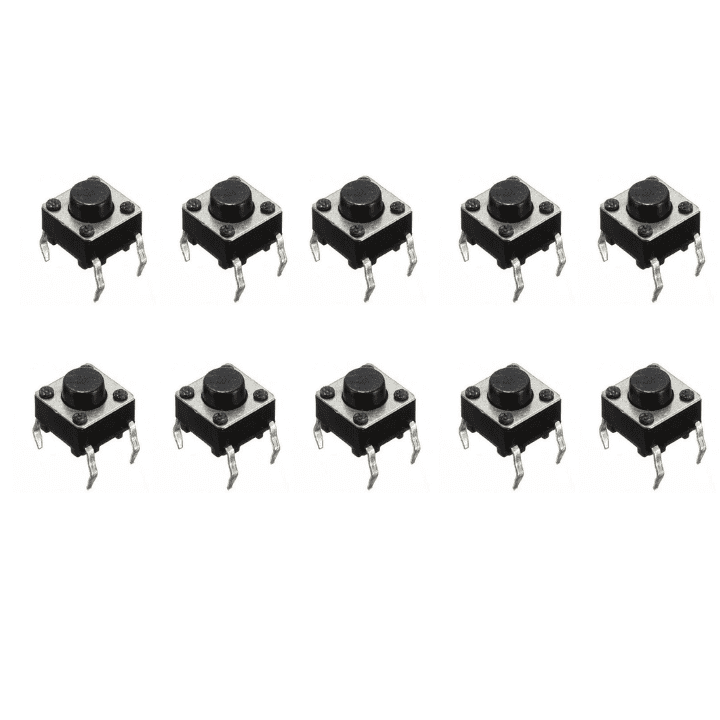

  • 10 x 4-Pins DIP Momentary Square Tactile Push Button Switch

Specifications:

Operating Voltage (VDC)

12

Max. Operating Current (mA)

50mA

On/Off Function

Push to ON

Switch Type

Momentary

Contact Type

Through-hole

Contact Material

Brass

Contact Resistance

50mΩ

Insulation Resistance (MΩ)

100

Operating Temperature Range (°C)

-20 to 70

Operation Force

1.56 +/- 0.5 N

Operation Stroke

0.25+0.2/-0.1mm

Body Material

Plastic

Mech. & Electrical Lifecycle

50000

Protection Standard

IP65

Dimensions (mm)

6x6x5

Weight (gm)

1 (approx) (each)
