4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm

4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm

Rs. 37
Rs. 44 Rs. 37
Sale Sold out 16% off Best Price Guaranteed
You save Rs. 7
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
  • Through-hole design.
  • High operating force (1.5N or 2.5N) suited to automotive equipment requirements
  • Used in the fields of electronic products, household appliances and more.
  • This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
  • Compact and lightweight, easy to carry and dismantling.
  • Good electrical conductivity.

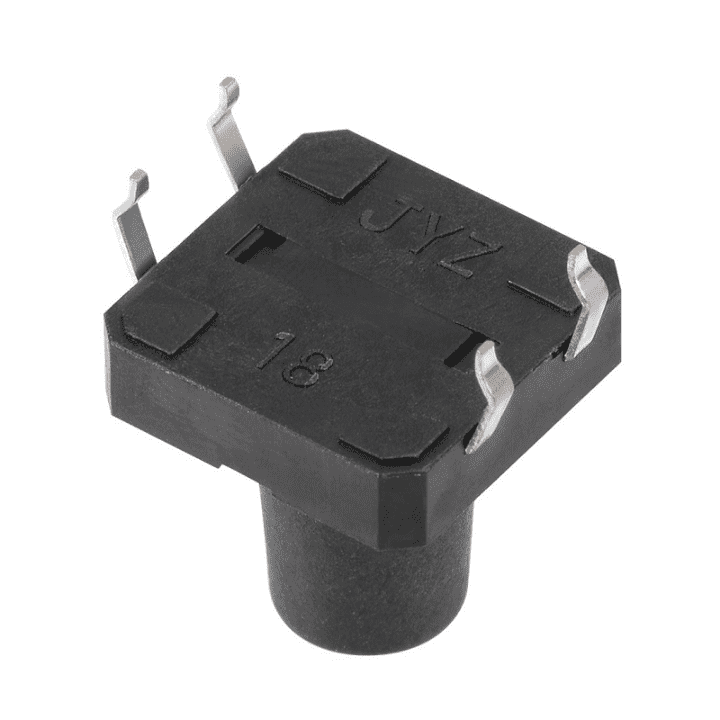

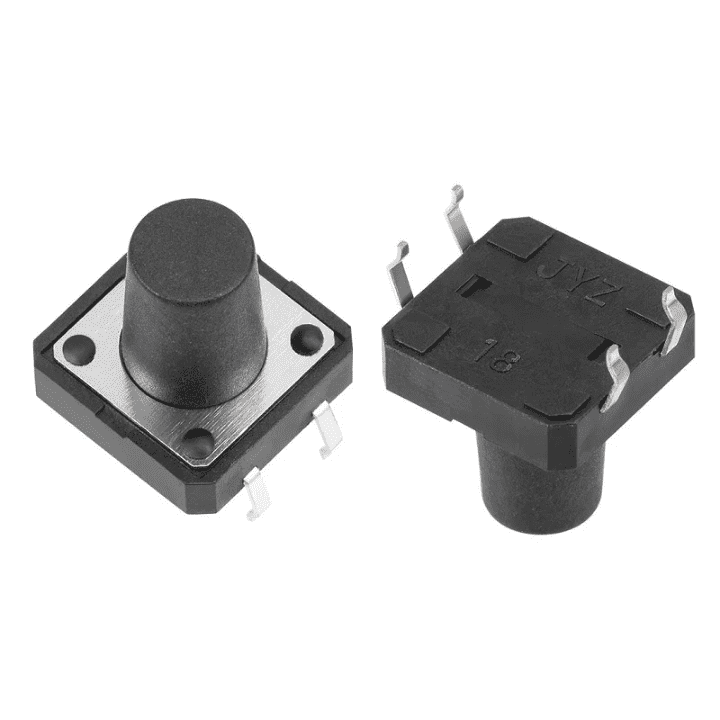

4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm

12x12x12mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Package Includes:

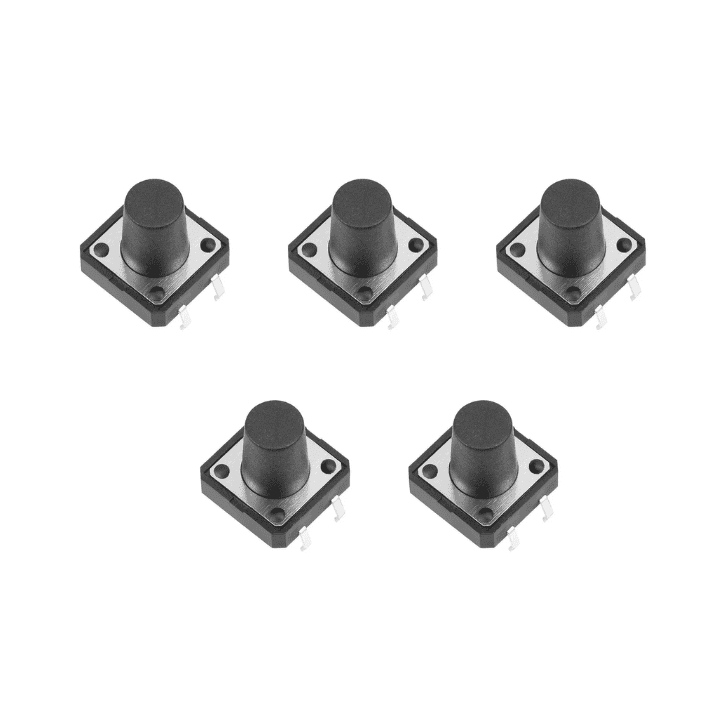

  • 5 x 4-Pins DIP Momentary Square Tactile Push Button Switch

Specifications:

Operating Voltage (VDC)

12
Max. Operating Current (mA)

50mA
On/Off Function

Push to ON
Switch Type

Momentary
Contact Type

Through-hole
Contact Material

Brass
Contact Resistance

50mΩ
Insulation Resistance (MΩ)

100
Operating Temperature Range (°C)

-20 to 70
Operation Force

1.56 +/- 0.5 N
Operation Stroke

0.25+0.2/-0.1mm
Body Material

Plastic
Mech. & Electrical Lifecycle

50000
Protection Standard

IP65
Dimensions (mm)

 12x12x12
Weight (gm)

1 (approx) (each)
