4.3in Serial Interface Electronic Paper Display
4.3in Serial Interface Electronic Paper Display
Low stock: 4 left
Regular price
Rs. 6,746
Regular price
Rs. 7,720
Sale price
Rs. 6746
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 18 people are actively viewing.
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC400
FLAT ₹ 400/- OFF
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 4.3in Serial Interface Electronic Paper Display
- The Display is Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images.
- This Display has Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts.
- This Display has Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash 4 grey level displaying.
- This Display has 800×600 resolution.
- Powered from 3.3V to 5V, compatible with logic level Ultra low power consumption, sleeping current lower than 5mA Comes with host computer software, control it directly on your computer.
4.3in Serial Interface Electronic Paper Display

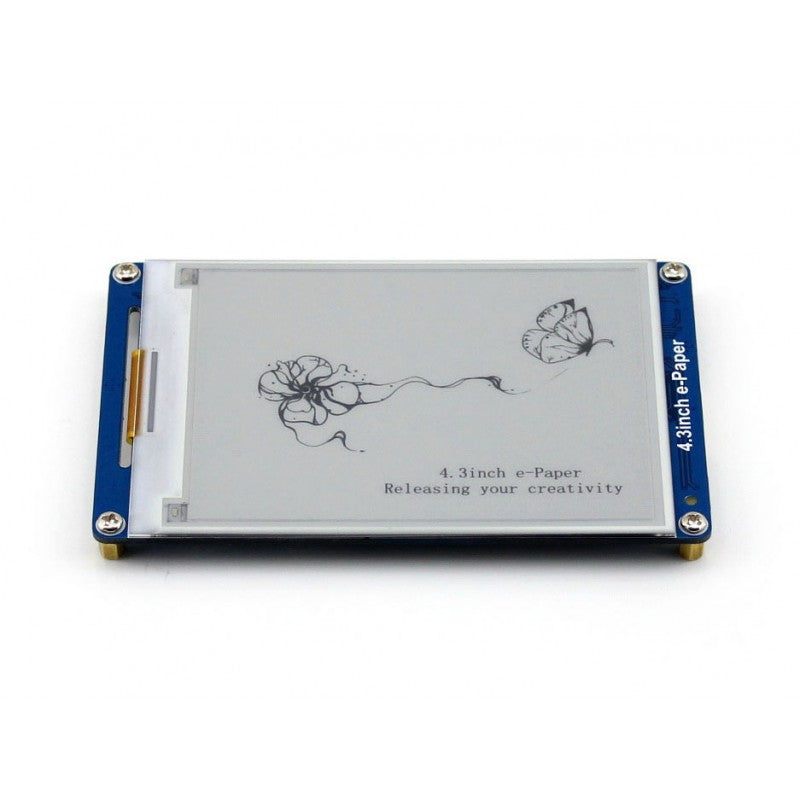

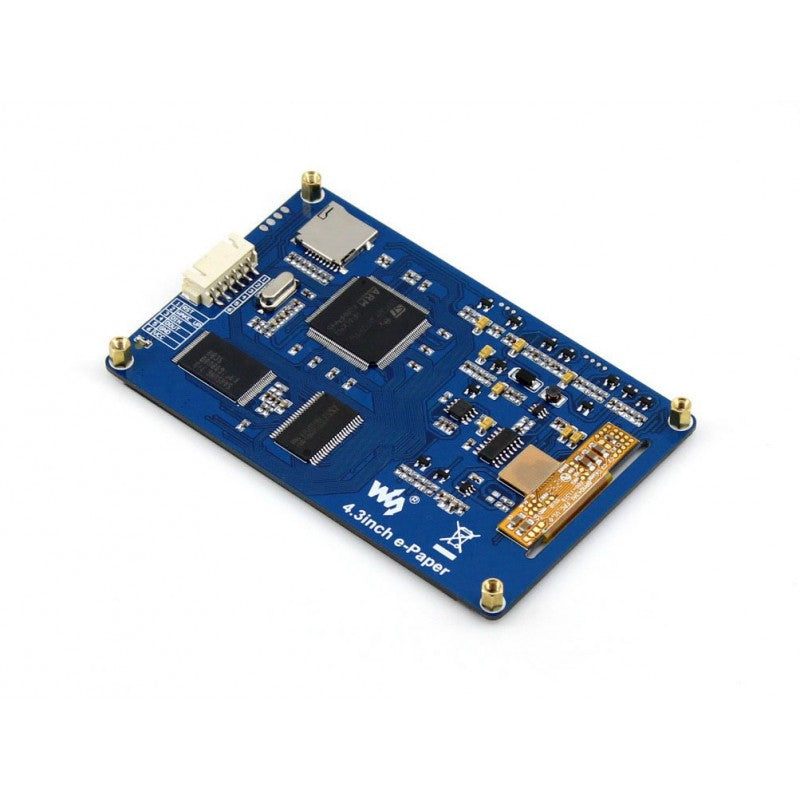

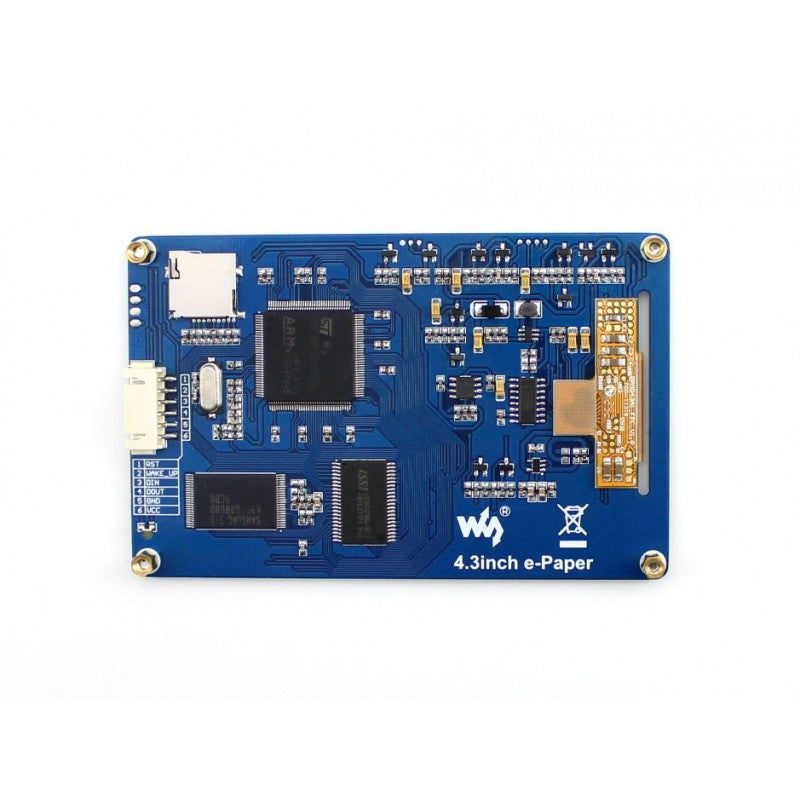

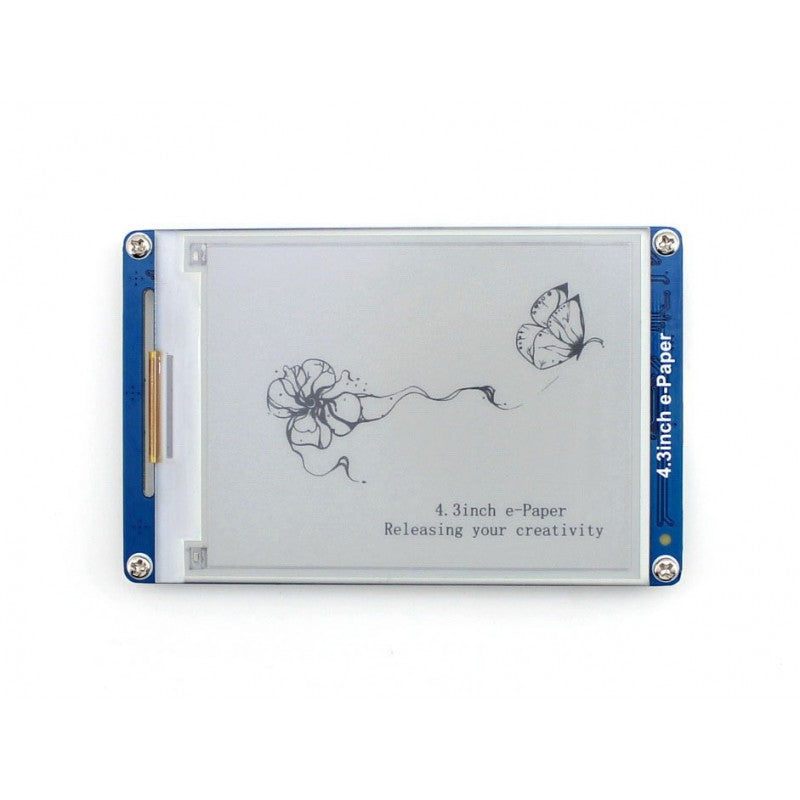

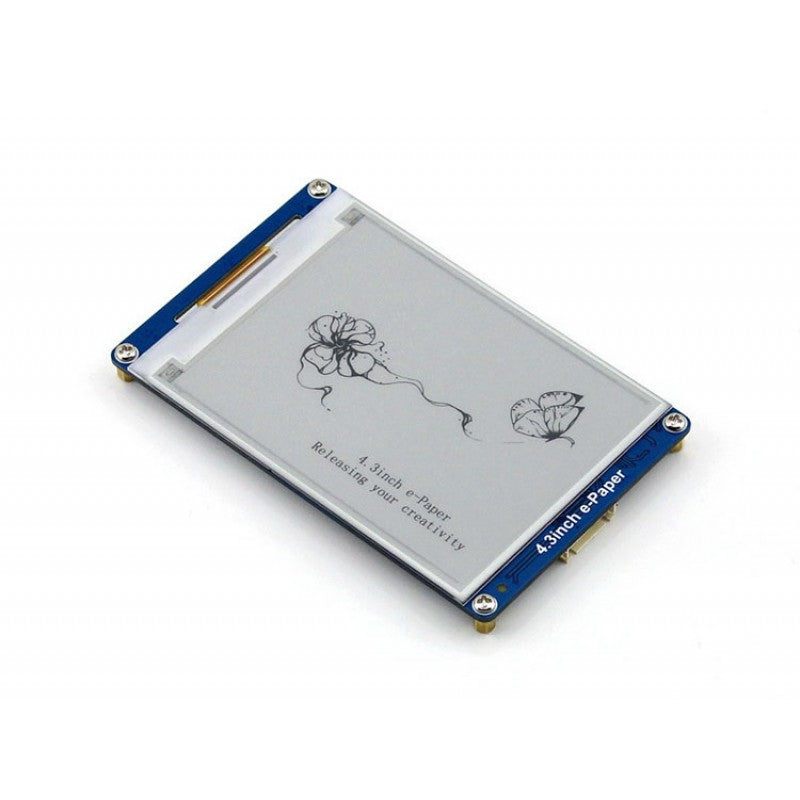

This E-Ink display module, 4.3inch, 800x600 resolution, with serial interface and embedded font libraries, is far more user friendly than its competitors. You don't need to understand the intricate underlying details of e-Paper or the specific algorithms for displaying graphics, texts, and images. All it requires is a serial interface, and all that matters is your imagination.
Features:
- Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
- Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
- Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
- 4 grey level displaying, 800×600 resolution
- Adjustable serial interface baud rate, 115200 by default when power up
- Powered from 3.3V to 5V, compatible with logic level
- Ultra low power consumption, sleeping current lower than 5mA
- Comes with host computer software, control it directly on your computer
Applications:
- e book
- Shopping mall POS
- Price label
- Industry instrument
Package Includes:
- 1 x 4.3in Serial Interface Electronic Paper Display
Display Specifications
| Interface | 4.3 inch |
| Display Type | E-Display |
| Display Size | 4.3 inch |
| VCC | 3.3V~5.5V |
| Resolution | 800×600 pixel |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Waveshare HDMI 7 inch Display
Regular price
Rs. 4,008
Regular price
Rs. 6,999
Sale price
Rs. 4008
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Original Waveshare 10.1 inch Raspberry Pi Touch Screen Display with Case
Regular price
Rs. 10,999
Regular price
Rs. 12,824
Sale price
Rs. 10999
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Example product title
Regular price
Rs. 6,746
Regular price
Rs. 7,720
Sale price
Rs. 6746
Unit price
per
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
1. What are e-paper displays?
- E-paper (also known as ePaper) is an electronic display technology that looks like paper. E-paper displays (EPDs) have tiny capsules filled with charged ink particles and use the same inks as the traditional printing industry.
2. What is e-paper display used for?
- E-paper displays are commonly found in electronic readers, real-time bus arrival information, electronic shelf label (ESL) segments, digital menu boards, traffic signs, and logistics monitoring devices.
3. How does the 4.3-inch E-Paper Display connect to a microcontroller?
- The display connects to a microcontroller via a serial interface. It uses UART (Universal Asynchronous Receiver/Transmitter) communication, making it easy to integrate with various microcontrollers
4. What are the power requirements for this E-Paper Display?
- The display operates from a power supply range of 3.3V to 5V. It is designed to be compatible with both 3.3V and 5V logic levels, making it versatile for different projects
5. How does the E-Paper Display handle power consumption?
- The E-Paper Display is known for its ultra-low power consumption. It consumes very little power when displaying static images and has a sleeping current lower than 5mA. This makes it highly efficient for battery-powered applications
