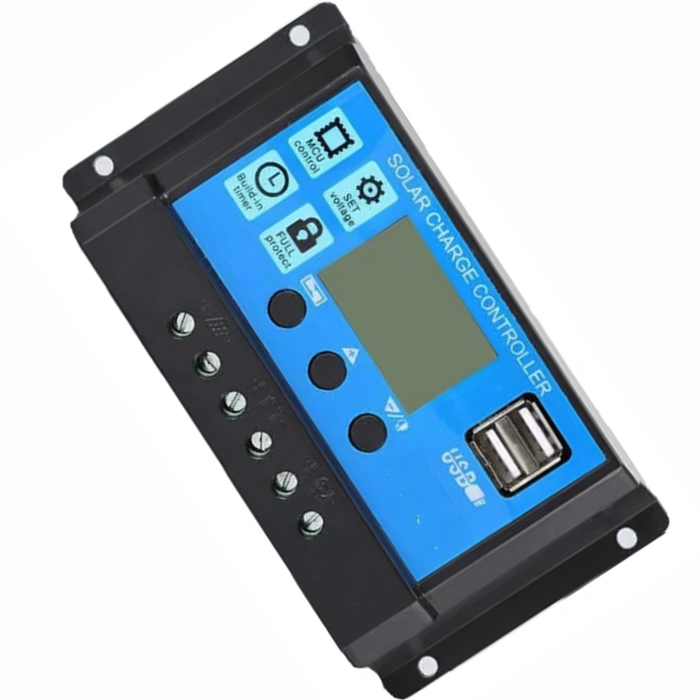

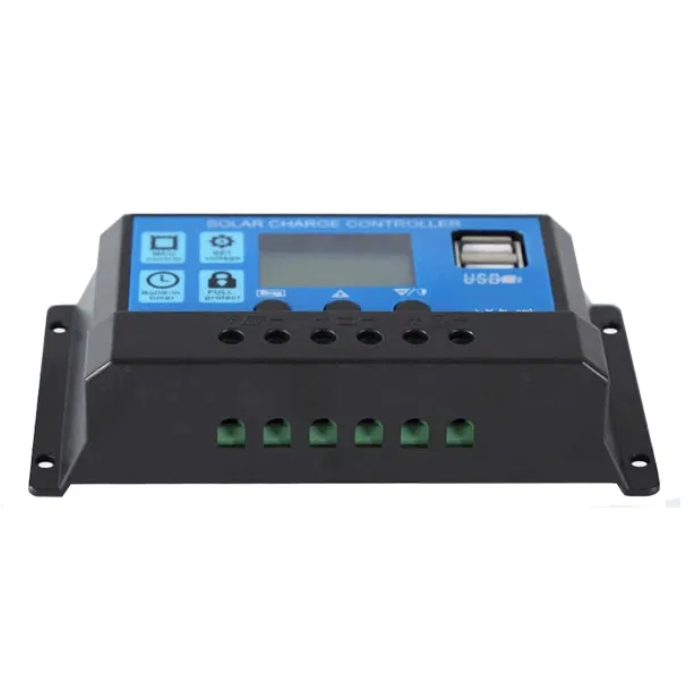

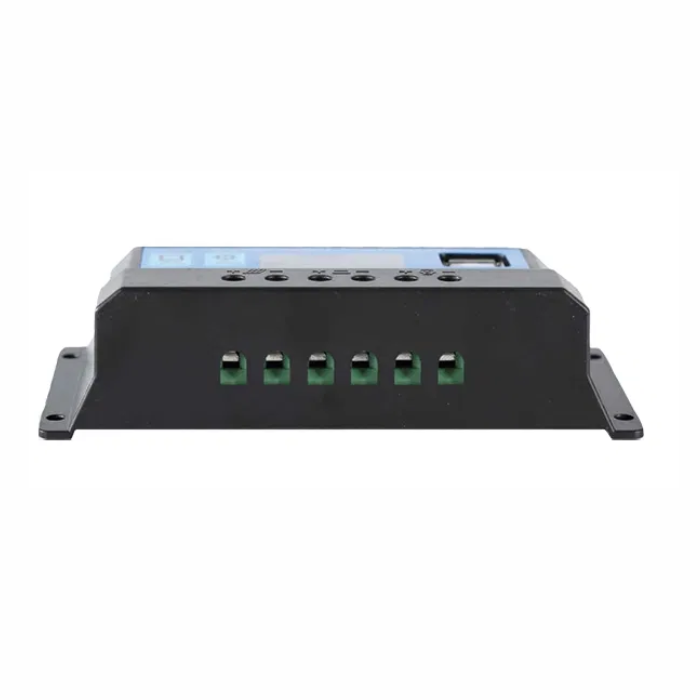

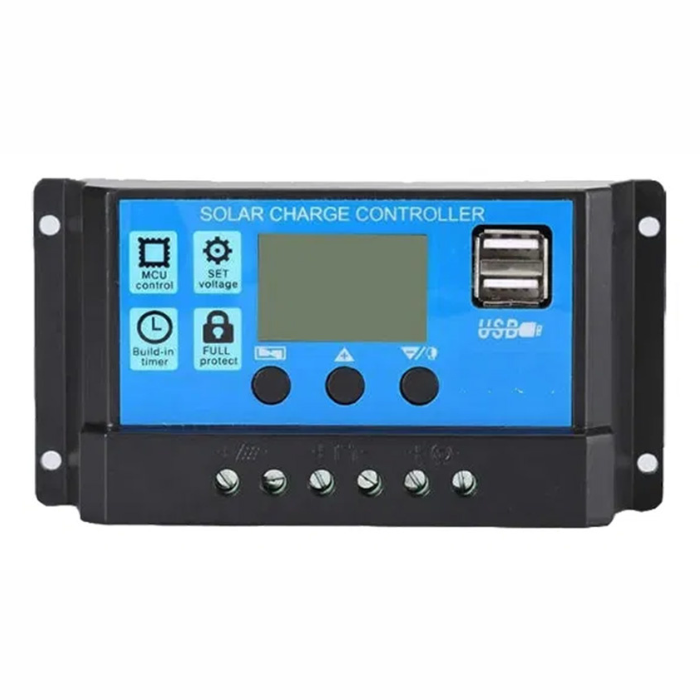

20A Digital PWM Solar Controller with LCD and USB Output Port
20A Digital PWM Solar Controller with LCD and USB Output Port
0
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 20A PWM solar controller for efficient charging.
- Auto-detects 12V/24V battery systems.
- Large LCD display for easy monitoring.
- USB output (3A@5V) for external devices.
- 4-stage PWM charge management for longer battery life.
- Dual MOSFET reverse current protection.
- Wide temperature range: -35°C to 60°C.
- Compact, low heat production design.
- Ideal for off-grid and grid-connected systems.
20A Digital PWM Solar Controller with LCD and USB Output Port
The 20A Digital PWM Solar Controller with LCD and USB Output Port is a smart and reliable device designed to manage solar power systems. It works with lead-acid batteries and uses PWM (Pulse Width Modulation) technology to make sure your batteries are charged efficiently and safely. This solar controller automatically detects your battery is 12V or 24V. The LCD screen shows important information like battery status and charging progress.
This PWM solar charge controller also has a USB output port, which allows you to charge other devices directly. It comes with safety features such as protection against short circuits, overloading, and reverse voltage. This charge controller provides the power and protection your solar system needs to run smoothly.
Features
- Industrial-grade microcontroller for efficient solar charging.
- Large LCD display for easy battery and system monitoring.
- 4-stage PWM charge management for better efficiency and battery life.
- Dual MOSFET reverse current protection to prevent energy loss.
- Low heat production for stable, long-lasting performance.
Package Includes
1 x 20A Digital PWM Solar Controller with LCD and USB Output Port
Specifications
| Specification | Details |
|---|---|
| Item Type | Solar Controller |
| Charging Current (A) | 20 |
| Battery Input | 12-24V Auto |
| Solar Input Voltage | <50V |
| USB | 3A@5V |
| Operating Temperature (°C) | -35 to 60 |
| Length (mm) | 150 |
| Width (mm) | 78 |
| Height (mm) | 35 |
| Weight (g) | 150 |
