18650 12V 10A Lithium Protection Board

18650 12V 10A Lithium Protection Board

Out of stock

Regular price Rs. 63
Regular price Rs. 79 Sale price Rs. 63
Sale Sold out 20% off Best Price Guaranteed
You save Rs. 16 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

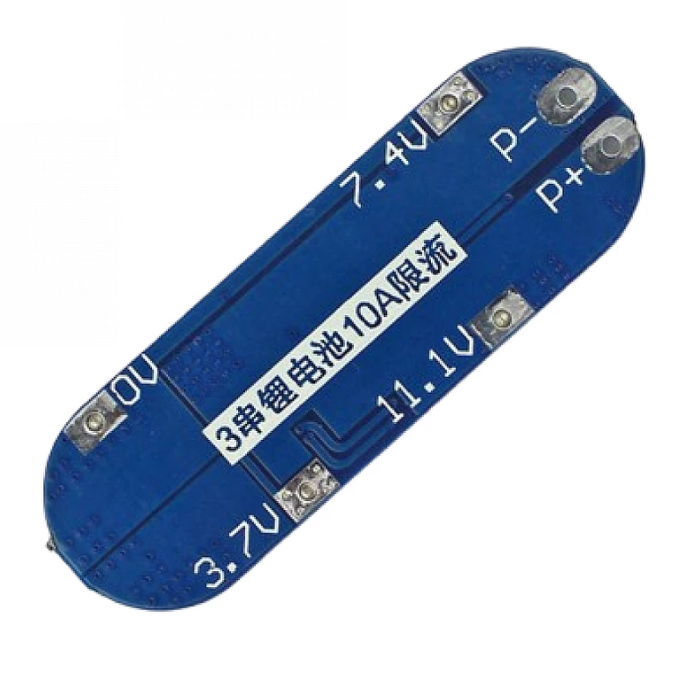

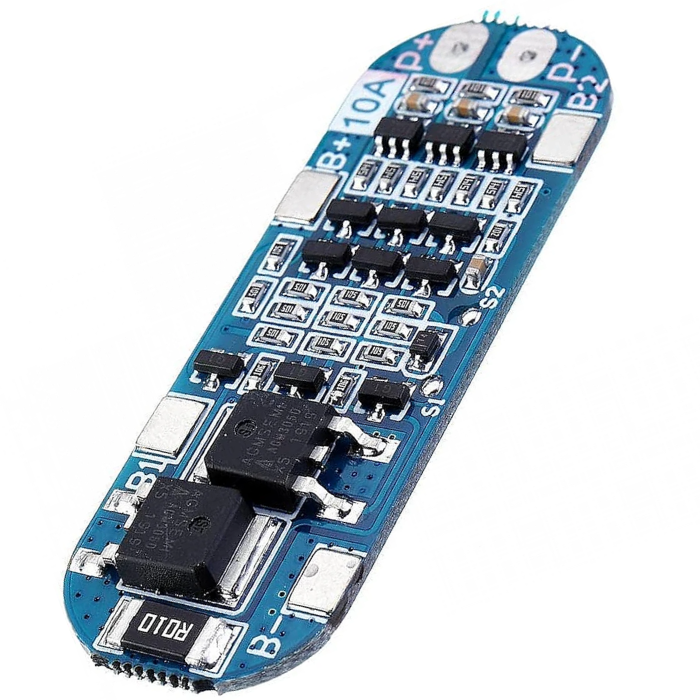

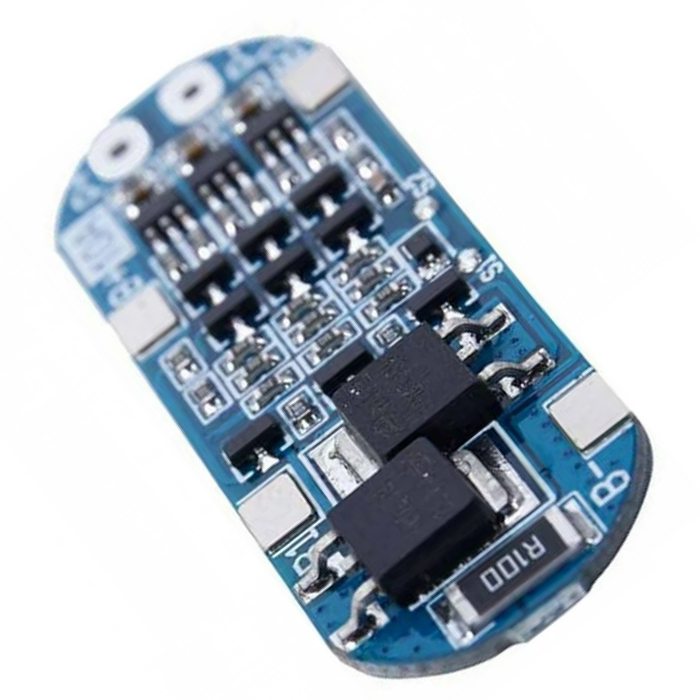

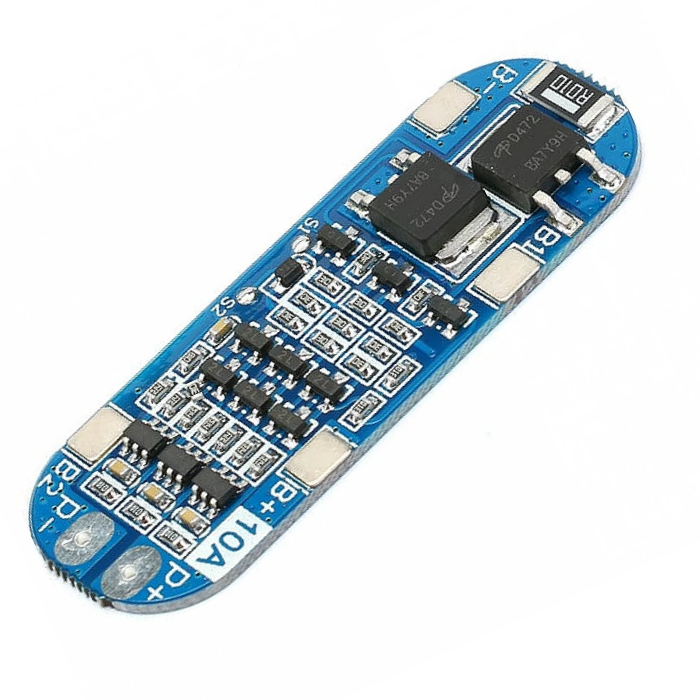

  • This is 18650 12V 10A Lithium Protection Board

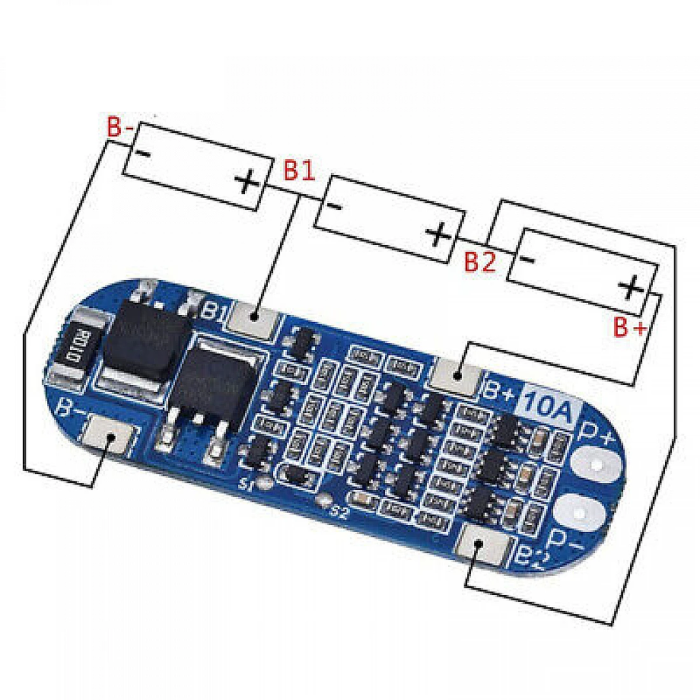

  • Three series lithium battery protection board for 11.1V, 12V, 12.6V lithium battery packs.
  • Functions include overcharge, over-discharge, short circuit, and over-current protection.
  • Automatically cancels protection after protection conditions restore.
  • Small in size and suitable for high integration and low cost applications.
  • Effective lifetime over 30,000 hours with internal resistance less than 100mΩ.
  • Self-recovery delay and low quiescent current less than 30uA for minimal power consumption.

18650 12V 10A Lithium Battery Protection Board

This protection board is three series of lithium battery protection board. The PCB protection board is suitable for lithium battery pack of 11.1V, 12V, 12.6V. Its quiescent current less 30uA, so the power consumption is small. The function of this PCB battery protection board includes overcharge protection, over discharge protection, short circuit protection, over-current protection. And after protection conditions restore, it will automatically cancel protection. The PCB protection board is small in size and suitable for many applications requiring high integration and low cost. It can meet various performance requirements and ensure the absolute safety and reliability of the battery pack.

Notes: If discharge product is higher than 3A current, the discharge rate of battery discharge is above 3C. Secondly, in the process of use, if the battery heat, the battery power is not applicable. This situation cannot be used for a long time. Otherwise, the battery will soon be damaged.

Buy Lithium Protection Board at Best Prices in India 11.1V (18650 or 3.7V lithium battery rated voltage) 12.6V (Lithium battery full charge voltage).

Features

  • Operating current : 6 – 8A.
  • Current limit : 10 – 13A.
  • Storage condition : -40 ~ +80 ℃.
  • Resting current: less than 30uA.
  • Effective lifetime: over 30,000 hours.
  • Internal resistance: less than 100mΩ.
  • Short-circuit protection: protection.
  • Self-recovery delay.

Package Includes:

  • 1 x 18650 12V 10A Lithium Protection Board

Specifications:

Full Charge Voltage (V) 12.6v – 13V.
Over-Current Protection (A) Yes
Under-Voltage Protection (V)  Yes
Dimensions  50 x 16 x 2 (mm)
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. How many 18650 batteries do I need for 12V?

If you want to create a 12V battery pack using 18650 batteries, you will need to link a minimum of three cells in a series connection. Each 18650 cell has the capacity to charge up to 4.2V, so connecting three cells in a series would provide a total of 12.6V output. Some other sources also recommend using three cells in a series connection to obtain a 12V output.

2. What is the charging voltage of 3S 10A BMS?

Typically, the charging voltage range for a 3S 10A BMS used for a lithium-ion battery is from 12.6V to 13V.

3. What is 18650 current protection?

18650 current protection is a set of safety measures incorporated into certain 18650 batteries that guard against potential hazards like overcharging, over-discharging, short circuits, overcurrent, and temperature-related issues. The protection features can involve a protection circuit board (PCB) that thwarts over-discharge, overcharge, and overcurrent, or a positive temperature coefficient (PTC) that restricts high current surges and shields against high-pressure and over-temperature situations. The use of protected 18650 batteries in devices is deemed safer and reduces the risk of causing harm to individuals or property.
