150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut

150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
  • 150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
  • 150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
  • 150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
  • 150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
  • 150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze
  • 150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut-Robocraze

150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut

Best Price Guaranteed

Best Price Guaranteed
Regular price
Rs. 139
Sale price
Rs. 139
Regular price
Rs. 170
You save Rs. 31
18% off
You save Rs. 31
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team

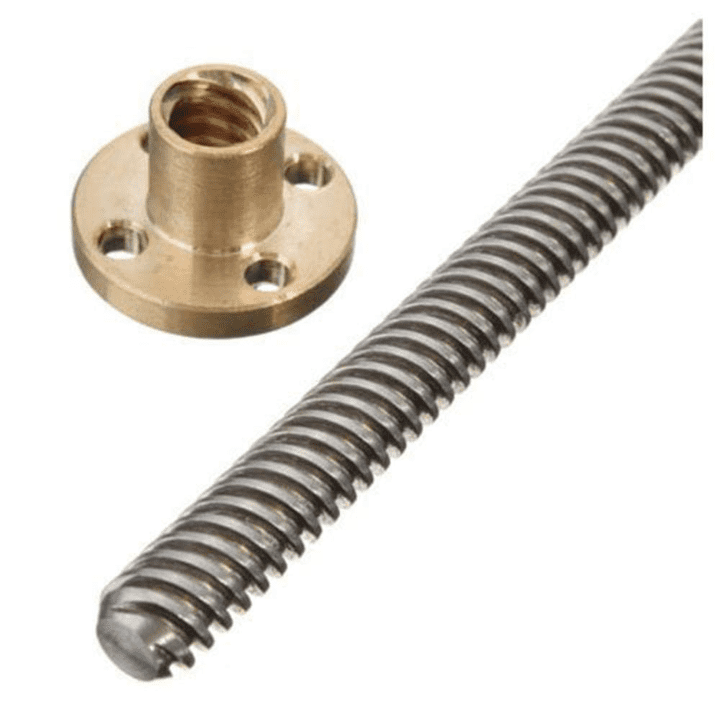

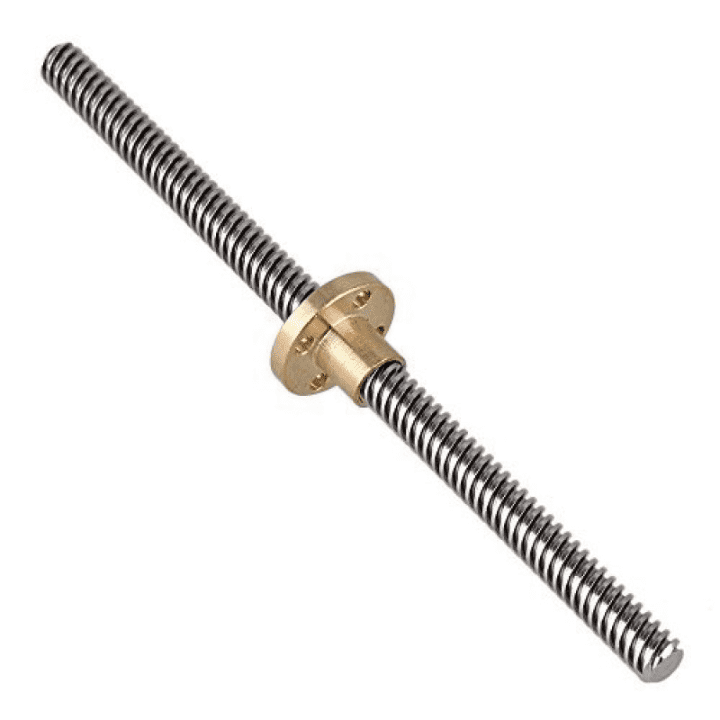

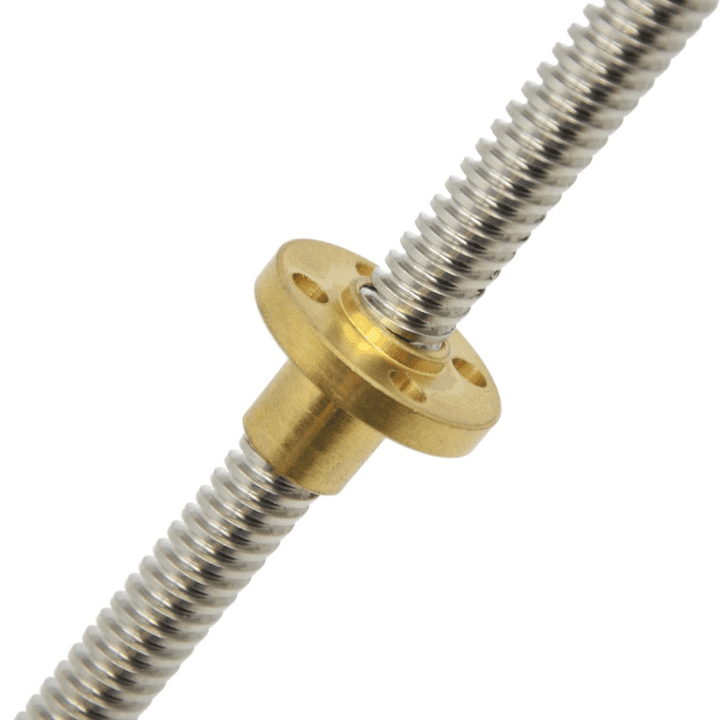

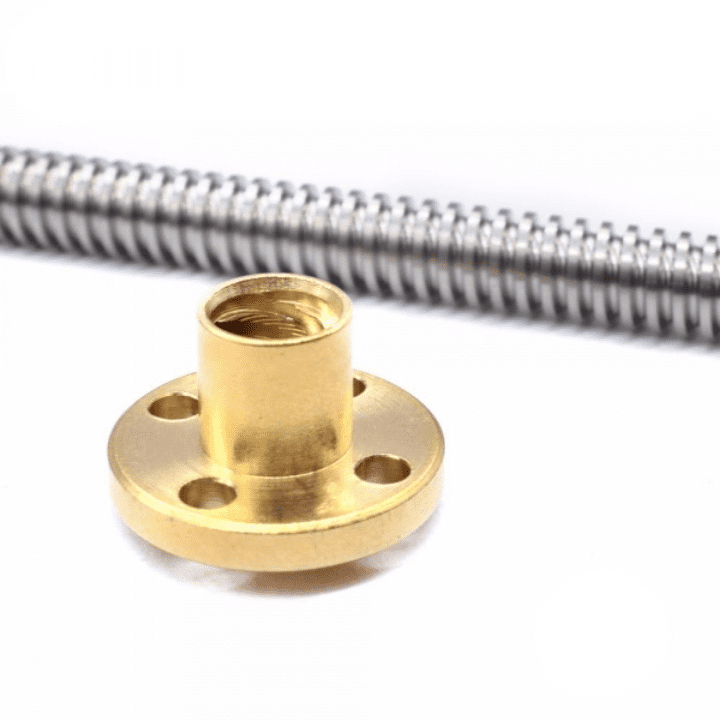

  • The Trapezoidal screw 150mm rod with the copper nut is designed in a T shape manner.
  • The rod is manufactured with high quality stainless steel.
  • The combination of the trapezoidal screw with copper nut provides great resistance against wear and tear due to their low friction coefficients.
  • Smooth, quiet, and low maintenance, very suitable for 3D printer z axis.
  • This trapezoidal rod is 150mm rod in length with 8mm diameter. The screws on the rod have a pitch thread of 2mm.
  • The 4 star lead screw 150 mm rod with copper nut is easy to install and convenient to use.

150mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut

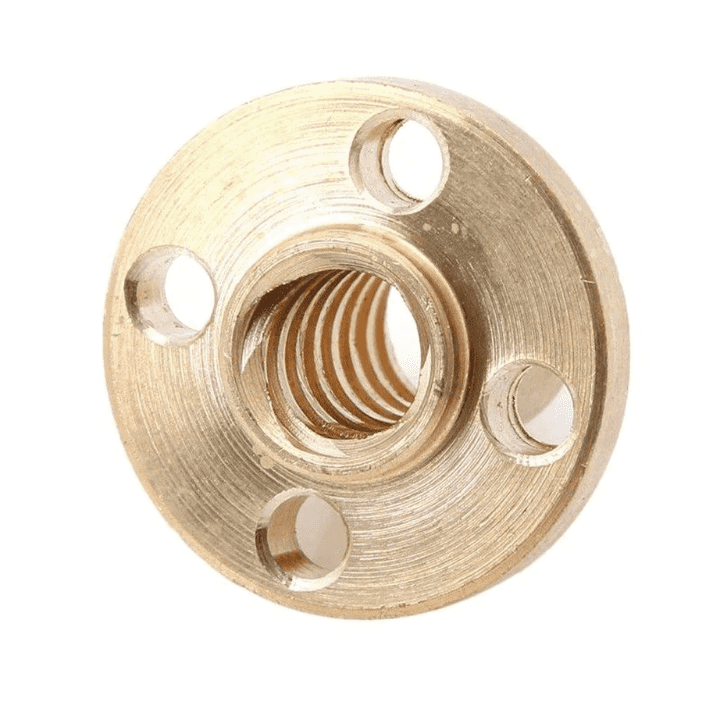

The Trapezoidal Screw Rod is a 150 mm screw rod and has a rod diameter of 8mm and thread screw pitch as 2mm. The 150 mm screw rod also comes with a copper nut. The copper nut is equipped with 4 holes for fixing the machine thread. They have great applications in 3D printing and are also used in stepper motor, machine tool rails and other machinery equipment.

It has good wear resistance and strength, high accuracy, hard to rust and has good performances due to low friction coefficients and long usage spans. This Trapezoidal Lead Screw with Copper Nut is a new type of screw which is mainly used in stepper motor, machine tool rails and other types of equipment.

Applications:

  • Can be used in 3D Printers
  • CNC Machines
  • Stepping motor driving guide rail
  • Engraving machine

Package Includes:

  • 1 x  150 mm Trapezoidal Screw Rod
  • 1x Copper Nut

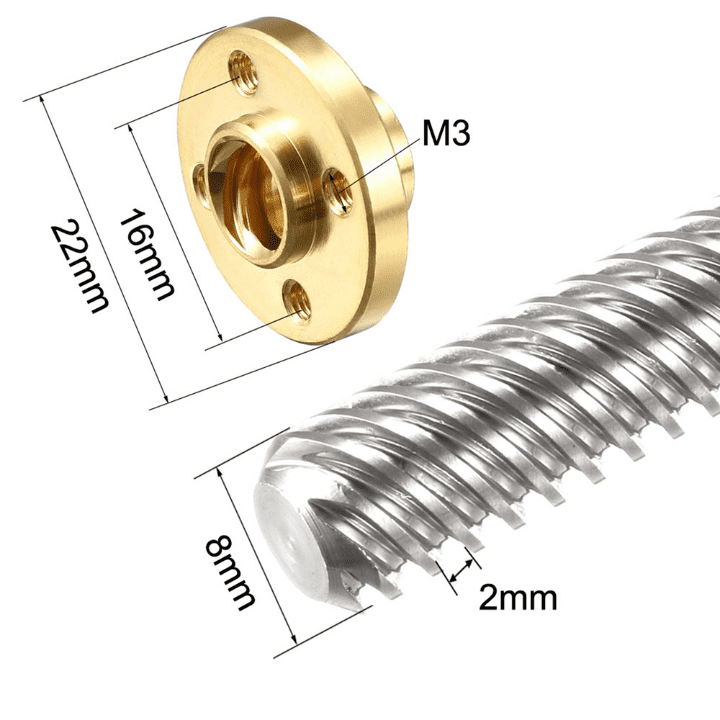

Specifications:

Model THSL-150-8D
Rod Length (mm) 150
Rod Width (mm) 8
Brass Nut Size - Diameter x Height (mm) 22 x 15
Weight (gm) 100
