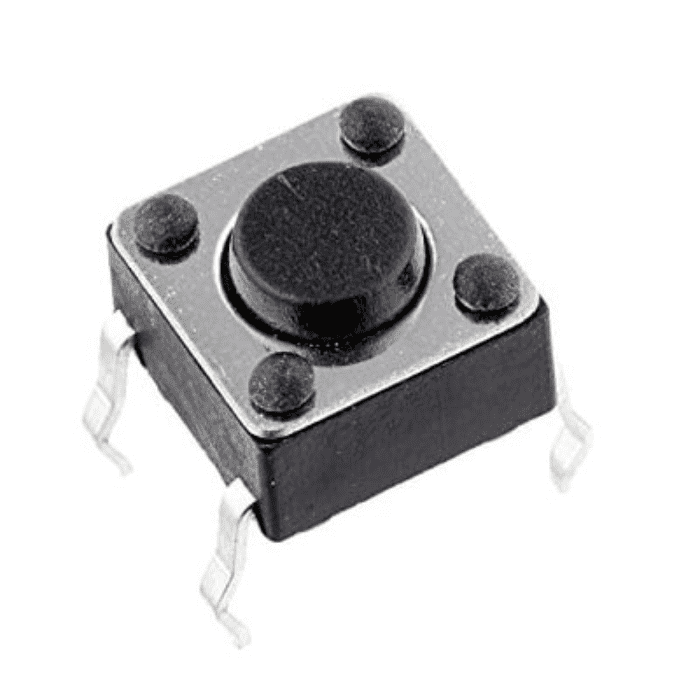

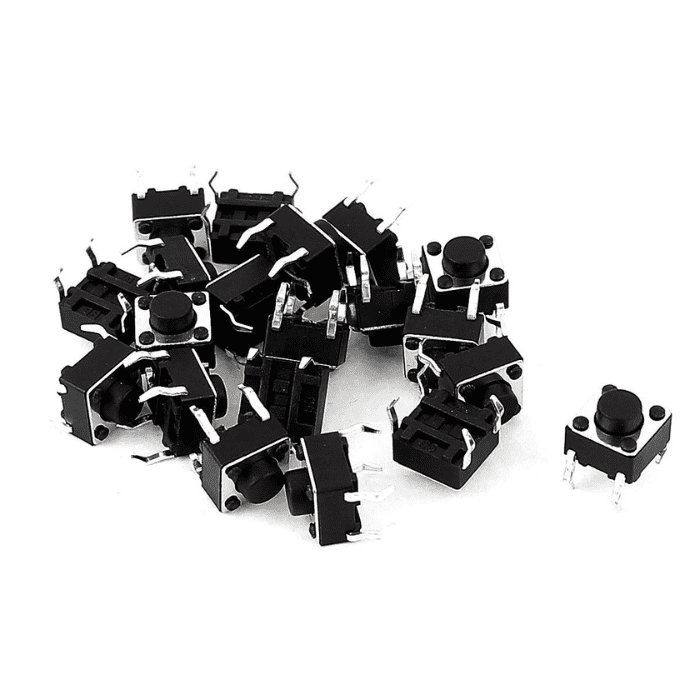

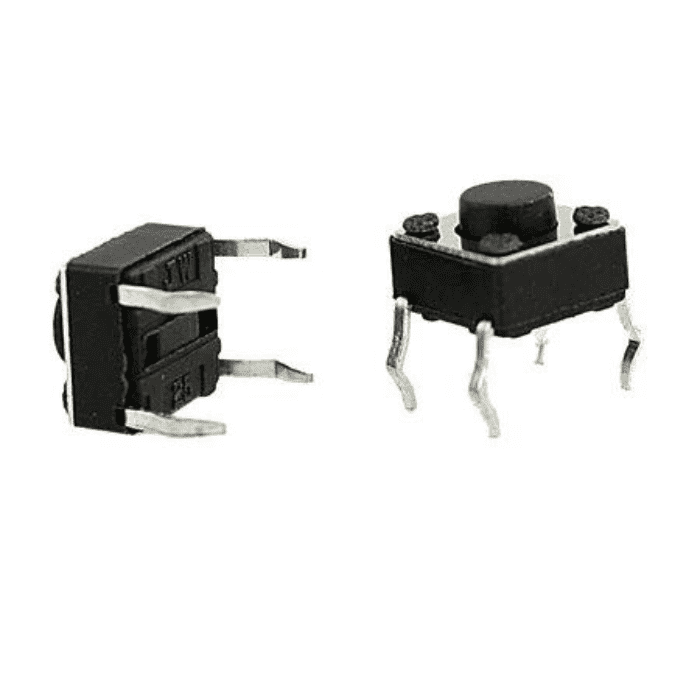

12x12x7.3mm Tactile Push Button Switch(Pack of 10)
12x12x7.3mm Tactile Push Button Switch(Pack of 10)
Out of stock
Regular price
Rs. 50
Regular price
Rs. 64
Sale price
Rs. 50
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Ideal for Through-hole applications.
- Shaft Shape: Round
- Used in the fields of electronic products, household appliances and more.
- This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
- High precision mechanism design offers acute operation and long service life.
- Compact and lightweight, easy to carry and dismantling.
- Good electrical conductivity.
12x12x7.3mm Tactile Push Button Switch
12x12x7.3mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.
This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. These mini push button switches uses in telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

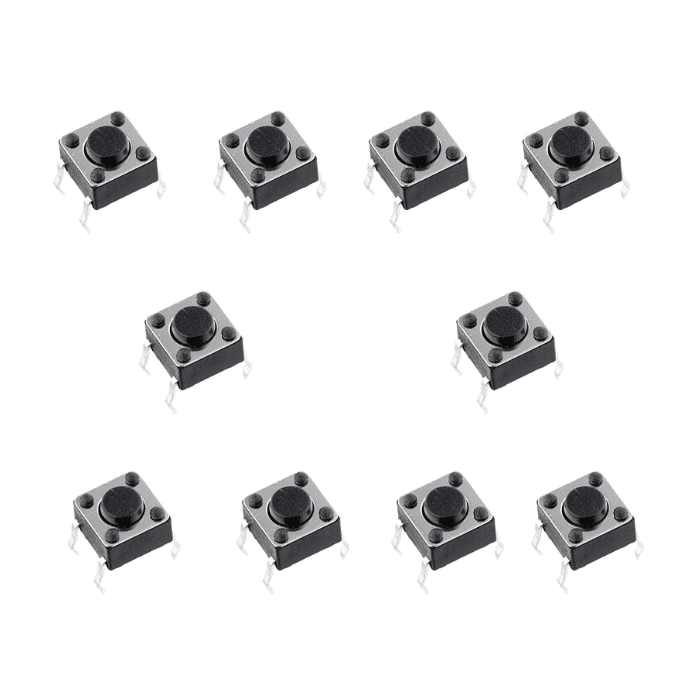

Package Includes:
- 10 x 12x12x7.3mm Tactile Push Button Switch
Specifications:
| Operating Voltage (VDC) |
12 |
| Max. Operating Current (mA) |
50mA |
| On/Off Function |
Push to ON |
| Switch Type |
Momentary |
| Contact Type |
Through-hole |
| Contact Material |
Brass |
| Contact Resistance |
50mΩ |
| Insulation Resistance (MΩ) |
100 |
| Operating Temperature Range (°C) |
-20 to 70 |
| Operation Force |
About 3-5N |
| Operation Stroke |
1.05mm |
| Body Material |
Plastic |
| Mech. & Electrical Lifecycle |
≈ 300,000 |
| Protection Standard |
IP65 |
| Dimensions |
12x12x7mm |
| Weight |
1g |
