Dual Digital Thermostat Temperature Humidity Control
Thermostats are used in any device or system that heats or cools to a setpoint temperature, examples include building heating, central heating, air conditioners, HVAC systems, water heaters, as well as kitchen equipment including ovens and refrigerators and medical and scientific incubators.
- Be able to control temperature and humidity at the same time.
- Be able to connect with humidifier and dehumidifier equipment at the same time.
- Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
- The heating/Cooling function could be set separately for refrigeration and heating to protect the temperature controller from violent change.
- Same as humidity Control. Supporting Temp and Humidity Calibration
- With Dual Display Window, be able to display measured temperature/humidity and set temp/humidity at the same time
- 1 x 12V STC-3028 Dual Digital Thermostat
Dual Digital Thermostat Specifications
|Power Supply||DC 12V|
|Temperature Control Range||0°C~+80°C|
|Humidity Control Range||00%RH~100%RH|
|Relay Capacity||10A/240V AC|
|Integrated sensor||Sense temperature and humidity|
|Heating||Start temperature<Stop temperature|
|Cooling||Start temperature>Stop temperature|
|Humidification||Start humidity<Stop humidity|
|Dehumidification||Start humidity >Stop humidity|

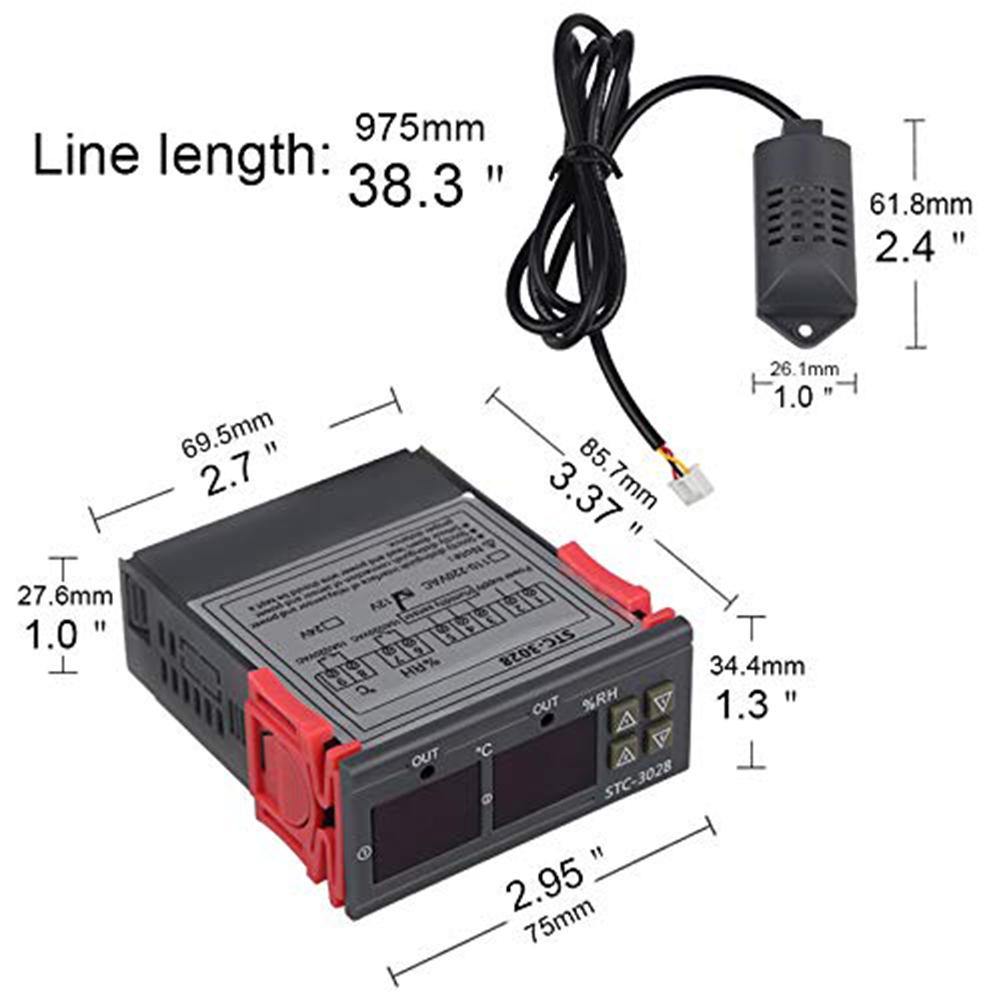

|Dimensions||7.5 x 7 x 3cms|
Frequently Asked Questions
1. What are Humidity controllers?
- Humidity controllers monitor and maintain proper humidity levels in environmental test applications, food storage areas, and electronic equipment rooms.
Mini digital humidity controller, can set a high or a low humidity limit, when the humidity is beyond the compass of limits, it will humidification or dehumidification automatically.
With humidity sensor, uses high precision capacitive chip, high accuracy and wide humidity measuring range. With large and clear LED display for better readability.
2. How to use the STC-3028 Dual Digital Thermostat?
- Long press UP 1 button for 3 seconds, ① display flashes, press UP or DOWN button to set the start temperature(20°C default)
Long press DOWN 1 button for 3 seconds, ① the display flashes, press UP or DOWN button to set the stop temperature (30°C default)
Long press UP 2 button for 3 seconds, ② display flashes, press UP or DOWN button to set the start humidity(40%RH default)
Long press DOWN 2 button for 3 seconds, ② the display flashes, press UP or DOWN button to set the stop humidity (60%RH default)
Long press DOWN 1 and DOWN 2 button for 3 seconds to reset the controller
Long press UP 1 and DOWN 1 to calibrate the temperature, -10~10 °C
Long press UP 2 and DOWN 2 to calibrate the humidity
