1. What voltage does the 12V Mini Police Siren require?
The 12V Mini Police Siren operates on a 12V DC power supply. It has a maximum current consumption of 110mA and should be connected to a suitable 12V source. Check the polarity and wiring before switching it on.
2. How loud is this 12V Police Siren?
The siren has a minimum sound level of 120dB, providing a loud audible warning for security and alarm applications. Because of its high sound output, avoid operating the siren close to the ears or for prolonged periods at close range.
3. Can I connect the siren directly to an Arduino or ESP32?
No. The siren requires 12V DC and should not be powered directly from an Arduino or ESP32 GPIO pin. Use a suitable relay, MOSFET or transistor switching circuit. The microcontroller controls the switching device while a separate 12V supply powers the siren.
4. Can this siren be used for DIY security projects?
Yes. It can be used in DIY home-security, vehicle-security, intruder-alert and door-alarm projects. It can also be combined with sensors such as PIR, magnetic reed switches or other detection devices to create an audible warning system.
5. What are the dimensions of the 12V Mini Police Siren?

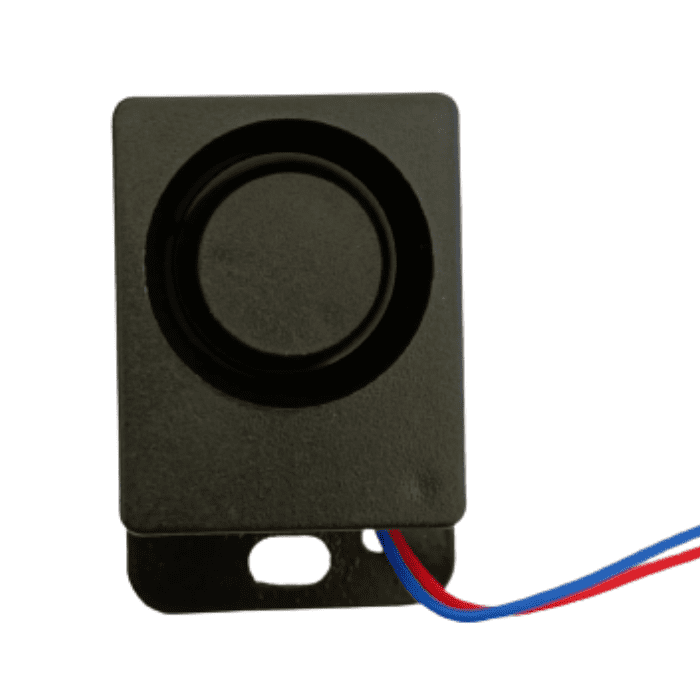

The siren has a 57mm height and 49mm diameter, making it suitable for compact installations. It also features clamp-type mounting and comes with a 150mm, 2-wire lead.
6. Can I use this siren with a NodeMCU or ESP32?
Yes, it can be incorporated into NodeMCU or ESP32 projects when an appropriate switching circuit is used. The ESP32 or NodeMCU should provide the control signal to a relay or suitable MOSFET, while the siren receives power from a separate 12V DC supply.
