- 12V 1000 RPM Johnson Geared DC Motor
- High torque and affordable.
- Operates 6V to 18V DC, 0.8 kg-cm torque.
- Durable with metal gearbox.
- Ideal for robotics and automation.

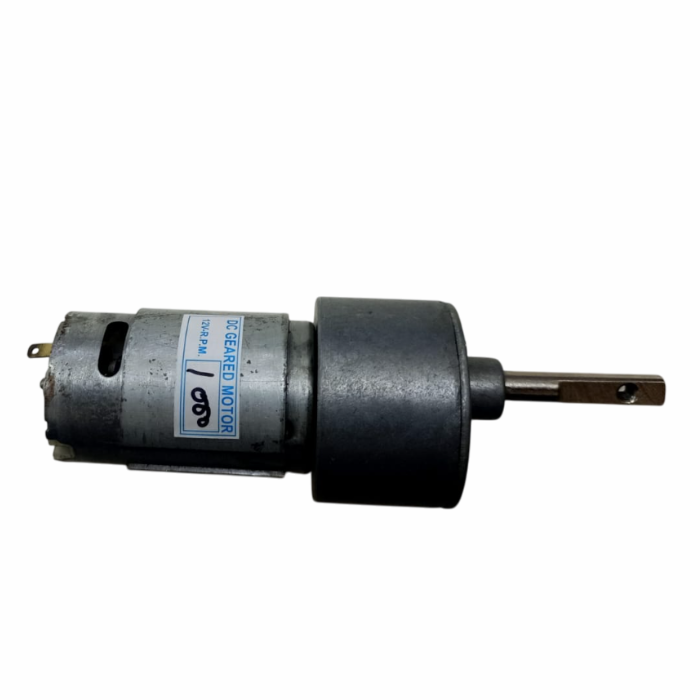

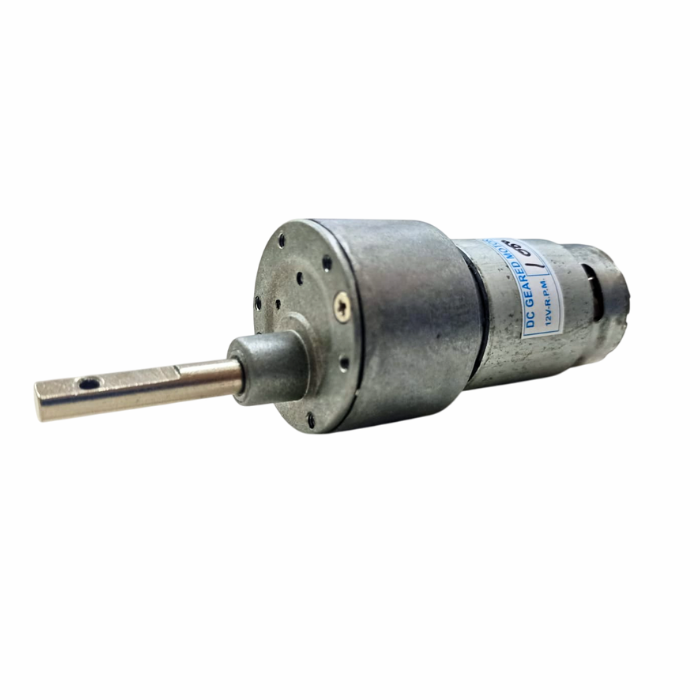

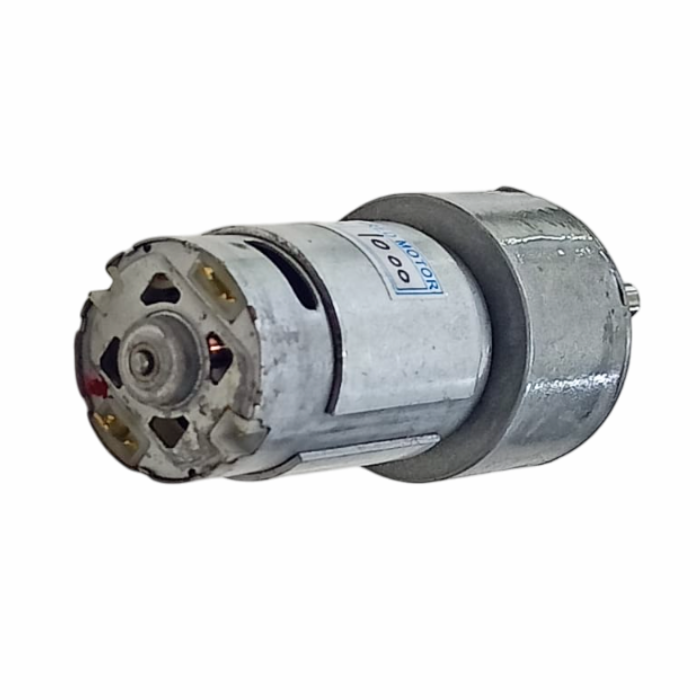

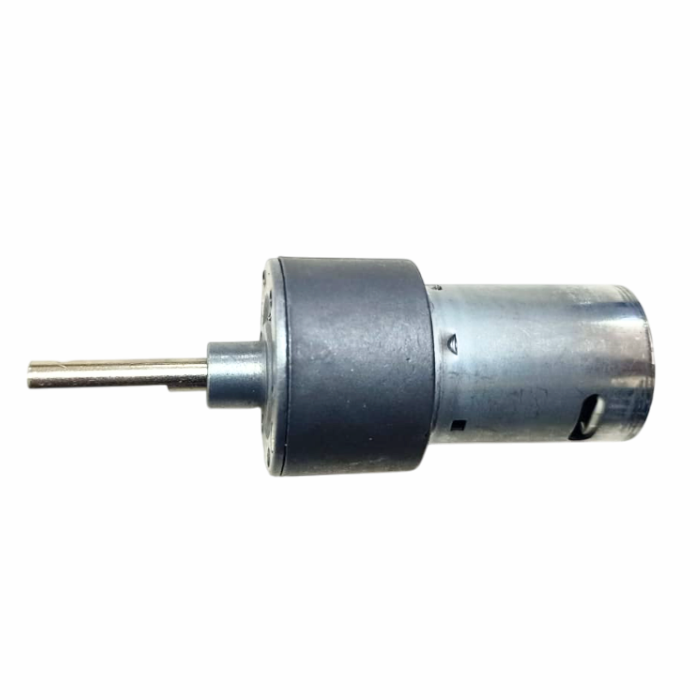

12V 1000 RPM Johnson Geared DC Motor - Grade B Quality
The 12V 1000 RPM Johnson Geared DC Motor - Grade B Quality is a great combination of power and affordability. It has a metal gearbox and side shaft that provide good torque, making it more efficient than other motors. It works with 6V to 18V DC and gives 1000 RPM at 12V, with 0.8 kg-cm torque.
This motor is compact and durable and features metal bushes to prevent wear. It is perfect for many uses, including robotics, automation, cameras, household items, and more. If you need a reliable motor this is the one to choose.
Please Note: This motor may have an RPM variation of +/- 20%.
Key Features
- Sturdy construction for durability.
- Metal bushes on the shaft for extended lifespan.
- High-quality gears for reliable performance.
- Shaft with a hole for improved coupling.
Package Includes
1 x 12V 1000 RPM Johnson Geared DC Motor
Specifications
| Specification | Value |
|---|---|
| Rated Torque (kg-cm) | 0.8 |
| Operating Voltage (VDC) | 6 ~ 18 |
| Rated Speed (RPM) | 1000 |
| Material | Metal |
| Nominal Voltage (V) | 12 |
| Base Motor Rated RPM | 18000 |
| Stall Torque (kg-cm) | 3.5 |
| No-Load Current (mA) | 300 |
| Load Current Max (mA) | 900 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 30 |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter (mm) | 27 |
| Motor Length (mm) | 64 |
| Dimension (LxHxW) | 10.5cmx3.5cmx3.5cm |
| Weight (g) | 260 |
