10K Preset Potentiometer - (Pack of 5)
10K Preset Potentiometer - (Pack of 5)
Low stock: 4 left
Regular price
Rs. 20
Regular price
Rs. 27
Sale price
Rs. 20
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This 10K Preset Potentiometer is PCB mountable and has 3 terminals.
- The voltage of the preset potentiometer between the terminal varies as the preset is rotated.
- ThePreset Potentiometer is used for variating voltage as per the need in a circuit.
10K Preset Potentiometer - (Pack of 5)

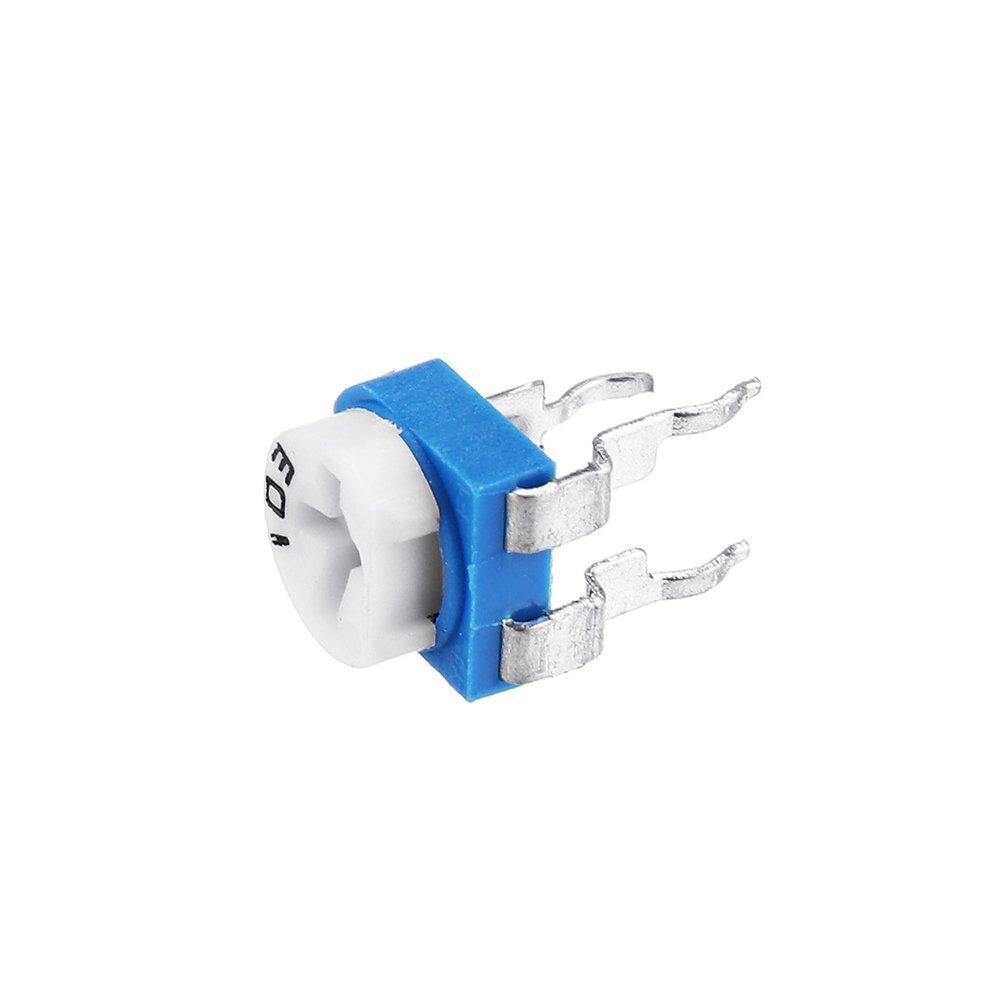

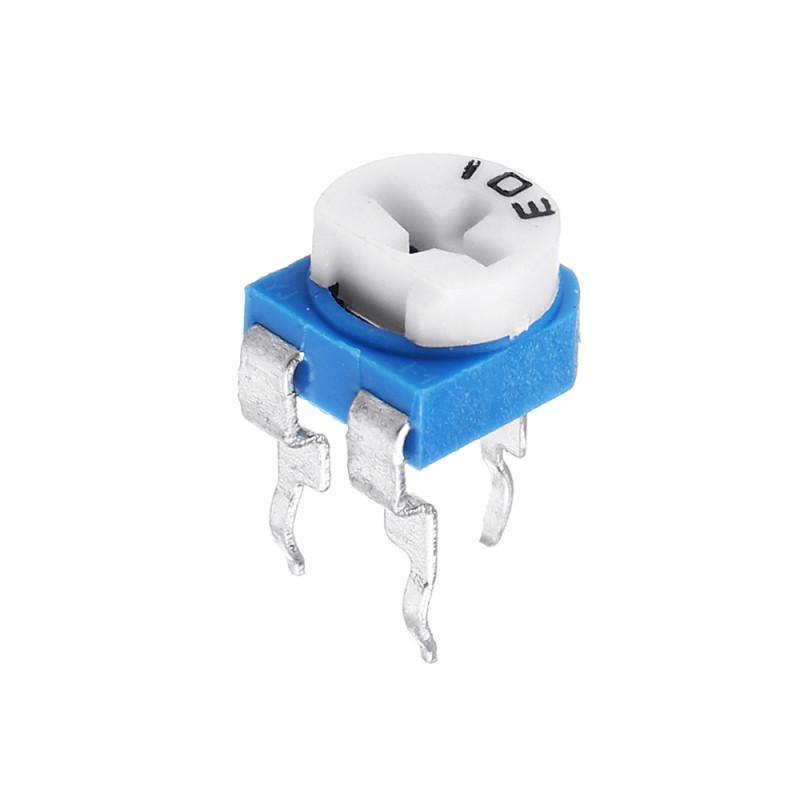

10K Preset Potentiometer is a compact variable resistor and PCB mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated. It is a type of variable resistor, It can be easily mounted on PCB and adjusted using a screwdriver.
Applications of Preset Potentiometer:
- Preset potentiometers are widely used throughout electronics wherever adjustments must be made during manufacturing or servicing. The Variable resistors are used for variating voltage as per the need in a circuit.
What are Potentiometers?
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider.
Package Includes:

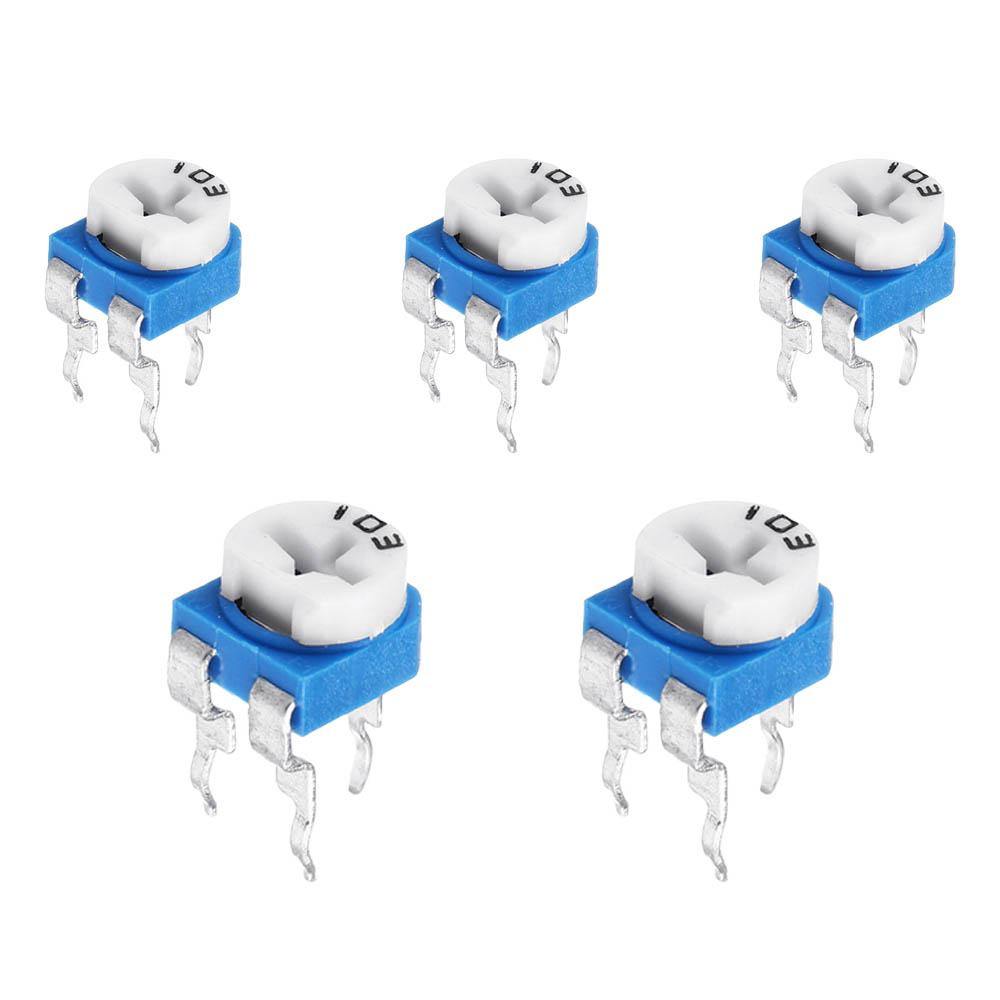

- 5 x 10K Preset Potentiometer
Potentiometer Specifications:
| Model Type | Preset Potentiometer |
| Resistance Value | 10k ohm |
| Resistance Tolerance | 5% |
| Potentiometer Mounting | Through Hole |
| Dimensions | 1 x 1 x 1cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1.What is 10K preset?
- The term "10K preset" could refer to a number of different things, as "10K" and "preset" are both somewhat ambiguous. A 10K resistor preset: This could refer to a type of adjustable resistor with a resistance of 10,000 ohms (10K ohms). The term "preset" could refer to the fact that the resistor has been factory-set to a specific resistance value. A preset temperature of 10,000 degrees: This could refer to a temperature setting or benchmark that has been predetermined and set in advance.
2.What is 10K potentiometer?
- A 10K potentiometer is a type of adjustable resistor with a resistance of 10,000 ohms (10K ohms). Potentiometers are often used to control the volume or other aspect of an electronic device, such as the brightness of a display or the speed of a motor. They work by allowing the user to adjust the resistance of the device by turning a knob or sliding a lever. Potentiometers are classified by their resistance value, which is measured in ohms. A 10K potentiometer has a resistance of 10,000 ohms, which is relatively high compared to other types of potentiometers. This means that it will have a greater impact on the overall resistance of a circuit in which it is used.
3.What is preset potentiometer?
- A preset potentiometer is a type of adjustable resistor that has been factory-set to a specific resistance value. Potentiometers are often used to control the volume or other aspect of an electronic device, such as the brightness of a display or the speed of a motor. They work by allowing the user to adjust the resistance of the device by turning a knob or sliding a lever. Preset potentiometers are similar to other types of potentiometers in that they can be used to adjust the resistance of a circuit, but they have the added feature of being factory-set to a specific resistance value. This can be useful in cases where the desired resistance value is known in advance and does not need to be adjusted by the user.
4.What is the cost of 10K potentiometer?
- A 10K potentiometer is a type of adjustable resistor with a 10,000 ohm resistance (10K ohms). A 10K potentiometer's price can vary depending on a number of factors. On robocraze, a 10K potentiometer will typically cost between 19 and 30 Rs/-.
5.How do I know what pin my potentiometer is?
- To determine which pin on a potentiometer is which, you will need to refer to the documentation or labeling provided with the potentiometer. Most potentiometers will have three pins, which are typically labeled as follows:
- The "common" or "center" pin: This pin is usually located in the middle of the potentiometer, and is typically connected to the sliding or turning mechanism that adjusts the resistance.
- The "clockwise" or "CW" pin: This pin is usually located on the right side of the potentiometer when viewed from the front. It is connected to the end of the resistance element that has a higher resistance value when the potentiometer is turned clockwise.
- The "counterclockwise" or "CCW" pin: This pin is usually located on the left side of the potentiometer when viewed from the front. It is connected to the end of the resistance element that has a higher resistance value when the potentiometer is turned counterclockwise.
