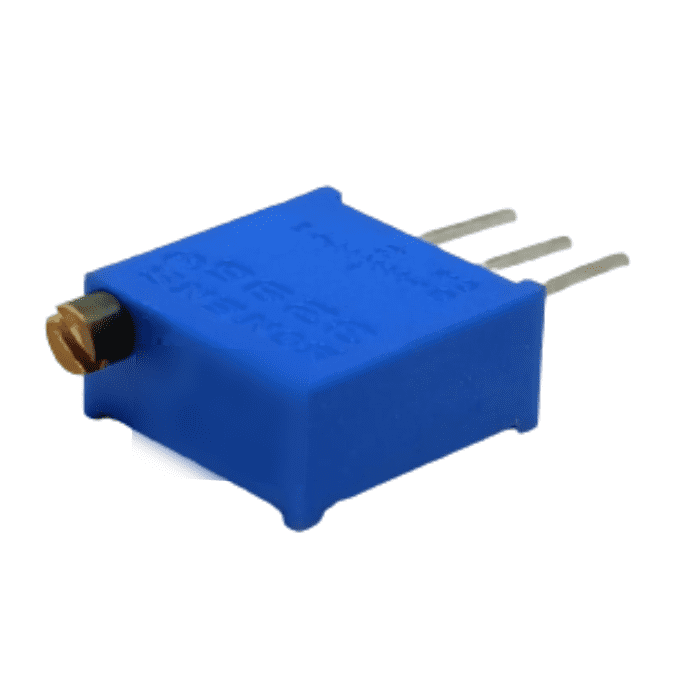

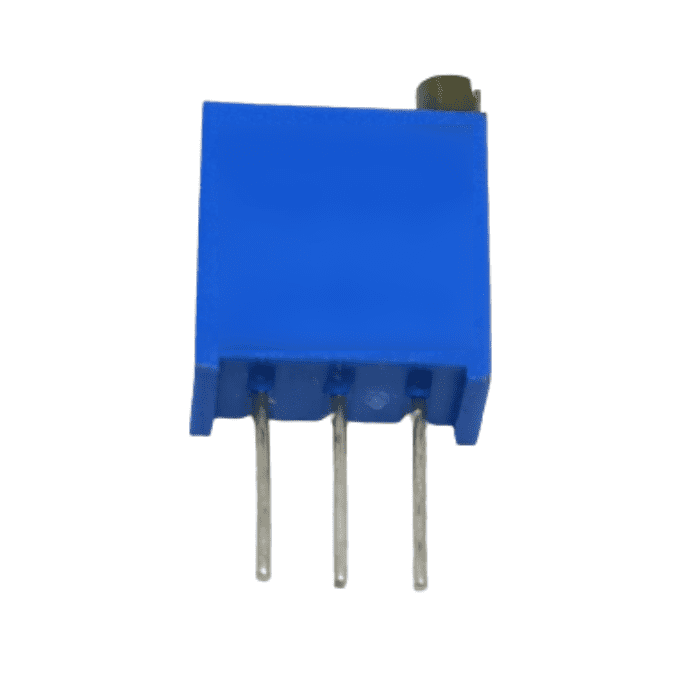

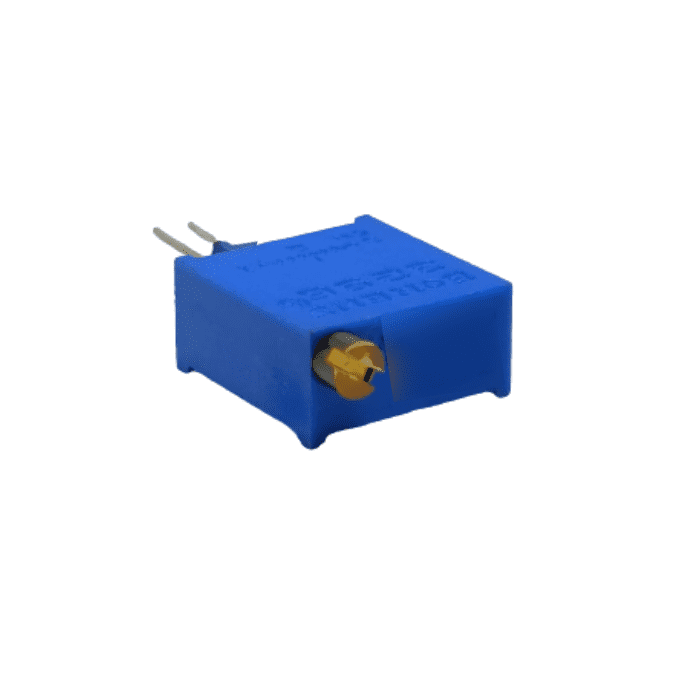

10E 3296W Trimpot(Pack of 5)

10E 3296W Trimpot(Pack of 5)

Regular price Rs. 68
Regular price Rs. 90 Sale price Rs. 68
Sale Sold out 24% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • The Maximum Resistance is 10E Ohm.
  • These Trimpots can be used to Adjust, Tune, and Calibrate Circuits.
  • The Variable resistors are used for variating voltage as per the need in a circuit.
  • The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.

10E 3296W Trimpot Trimmer Potentiometer (Pack of 5)

10E 3296W Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit.

The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.

Applications

  • Can be used to adjust the voltage drop in the circuit
  • Measurement and Test of electronic circuits
  • Can be used to control the intensity of led lights in DIY projects

Package Includes:

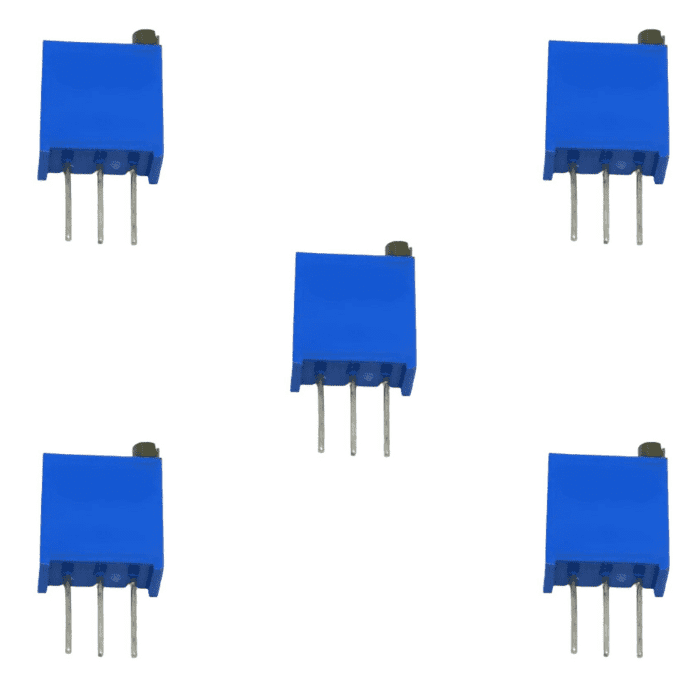

  • 5 x 10E 3296W Trimpot Trimmer Potentiometer

Specification:

Type

Trimmer Resistors - Through Hole

Series:

3296W

Mounting Style:

PCB Mount

Resistance:

10E Ohms
