- It is a non-invasive AC current sensor.
- It meets the UL94-V0 flame retardant properties
- The utput plug of the sensor is 3.5mm.
- The sensor has two forms of output; current and voltage.
- The AC current sensor is an ideal component for IOT science project.
100A YHDC Non-invasive AC Current Sensor
The YHDC SCT-013-000 is a non-invasive AC Current Sensor. This means that the non-invasive AC current sensor is a current transformer that can be used to measure AC current up to 100 amperes.

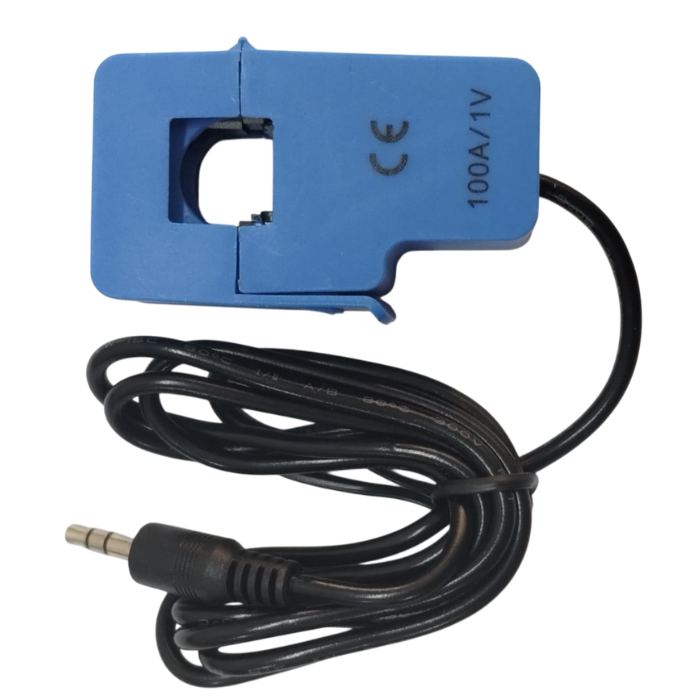

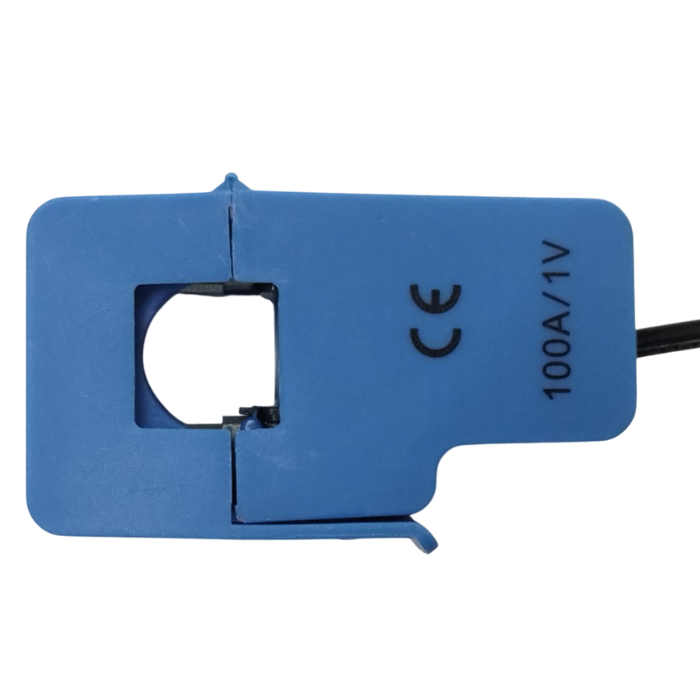

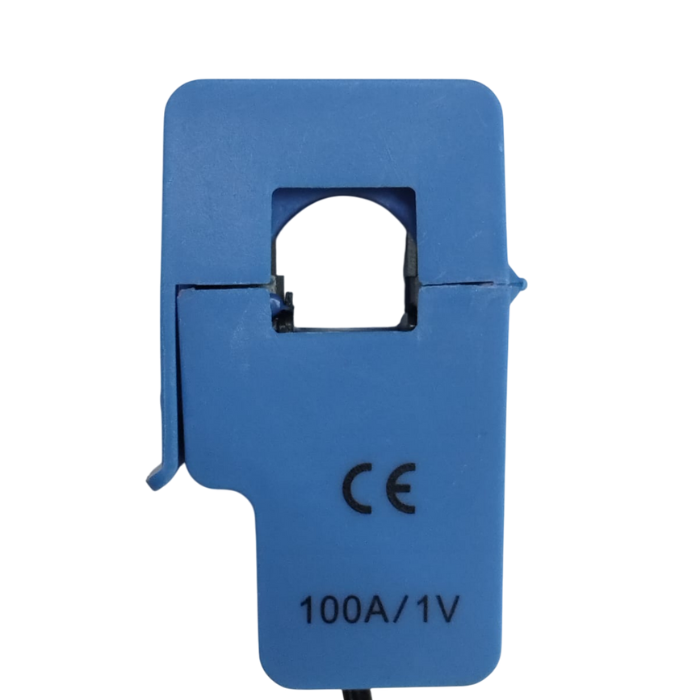

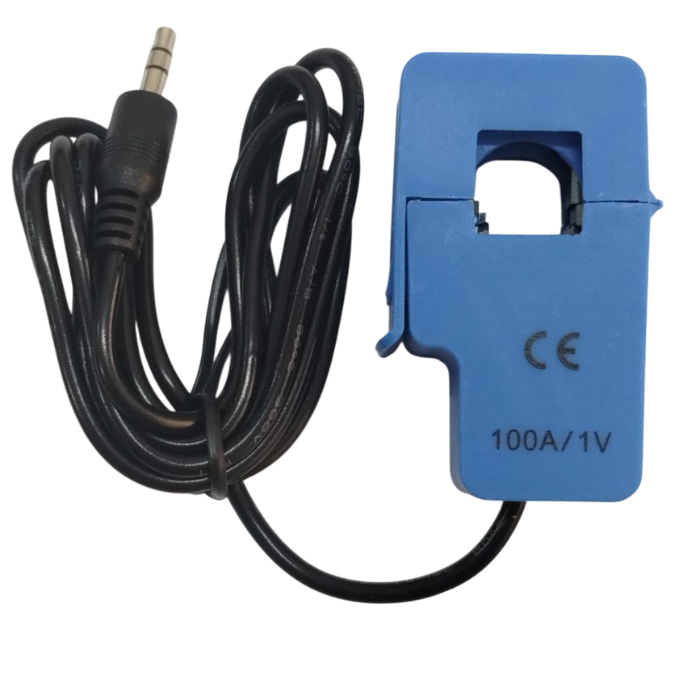

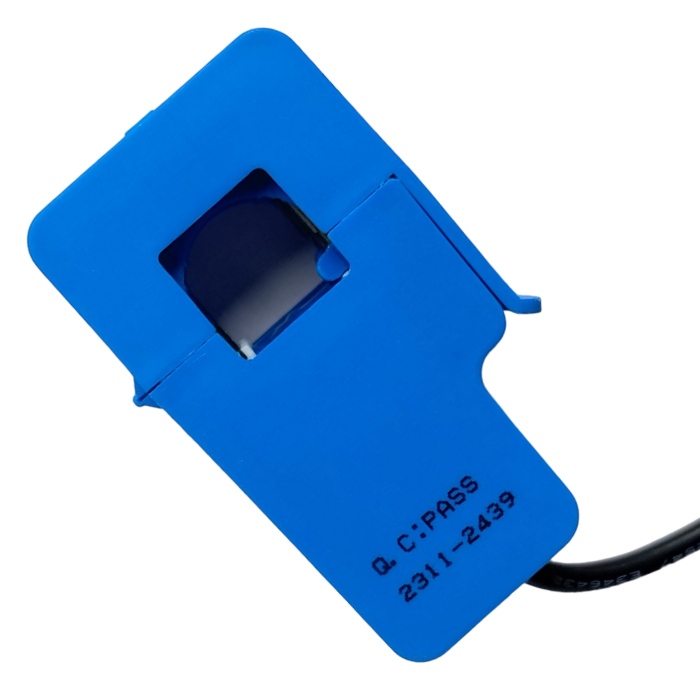

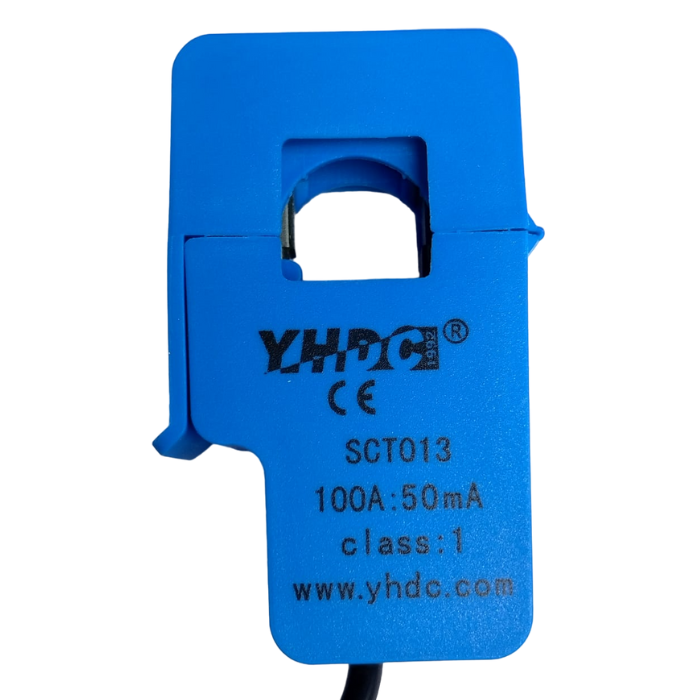

This is SCT 013 000 100A Non-invasive AC Current Sensor Split Core Type Clamp Meter Sensor. SCT-013-000 is a Non-Invasive AC sensor i.e., it is a current transformer that can be used to measure AC up to 100 amperes. This Current sensor comes with good quality Current transformers (CTs) are sensors for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The split-core type such as the SCT-013-000 CT in the picture is particularly suitable for DIY use. Clip this SCT 013 000 straight onto either the live or neutral wire coming into the building without having to do any high voltage electrical work.
Current Transformer sensors can be used to measure the building's electricity consumption. These transformers have a primary winding, magnetic core, and secondary winding. The secondary winding comprises many turns of fine wire housed within the casing of the transformer.
Features:
- Non-invasive Design: Split core type, allowing it to be clamped around a conductor without cutting or modifying it.
- Measurement Range: Can measure AC current up to 100 amperes.
- Output: Provides a small AC signal proportional to the current passing through the conductor.
- Compatibility: Can be used with processors like Arduino for monitoring and analysis.
- Accuracy: Non-linearity of ±3%.
- Safety: Provides isolated output for enhanced safety.
- Operating Temperature: Works in temperatures ranging from -25°C to +70°C.
- Dielectric Strength: 1000V AC/1min 5mA between shell and output.
- Ease of Use: Simple to install and use, just clamp around the target conductor.
- Compact and Lightweight: Convenient for handling and installation.
Applications:
- The AC current sensor is perfect for current measuring.
- It helps in monitoring and protecting Motors.
- It can be used in lighting equipment and air compressor.
Package Includes:
- 1 x 100A YHDC Non-invasive AC Current Sensor
Specifications:
| Max. Input (A) | 40 |
| Rated output (V) | 1 |
| Frequency range | 50Hz – 1KHz |
| Dimensions | 6 x 3.4 x 2cms |
| Weight | 50 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
