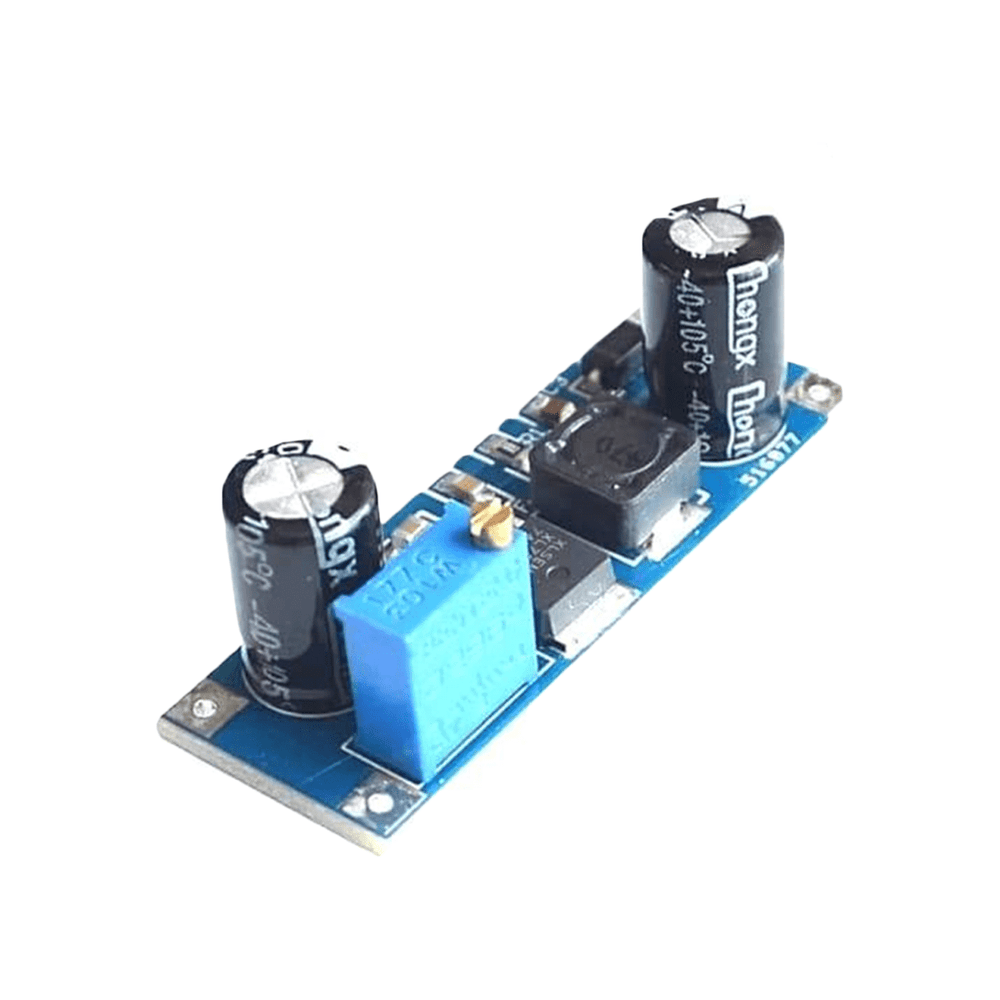

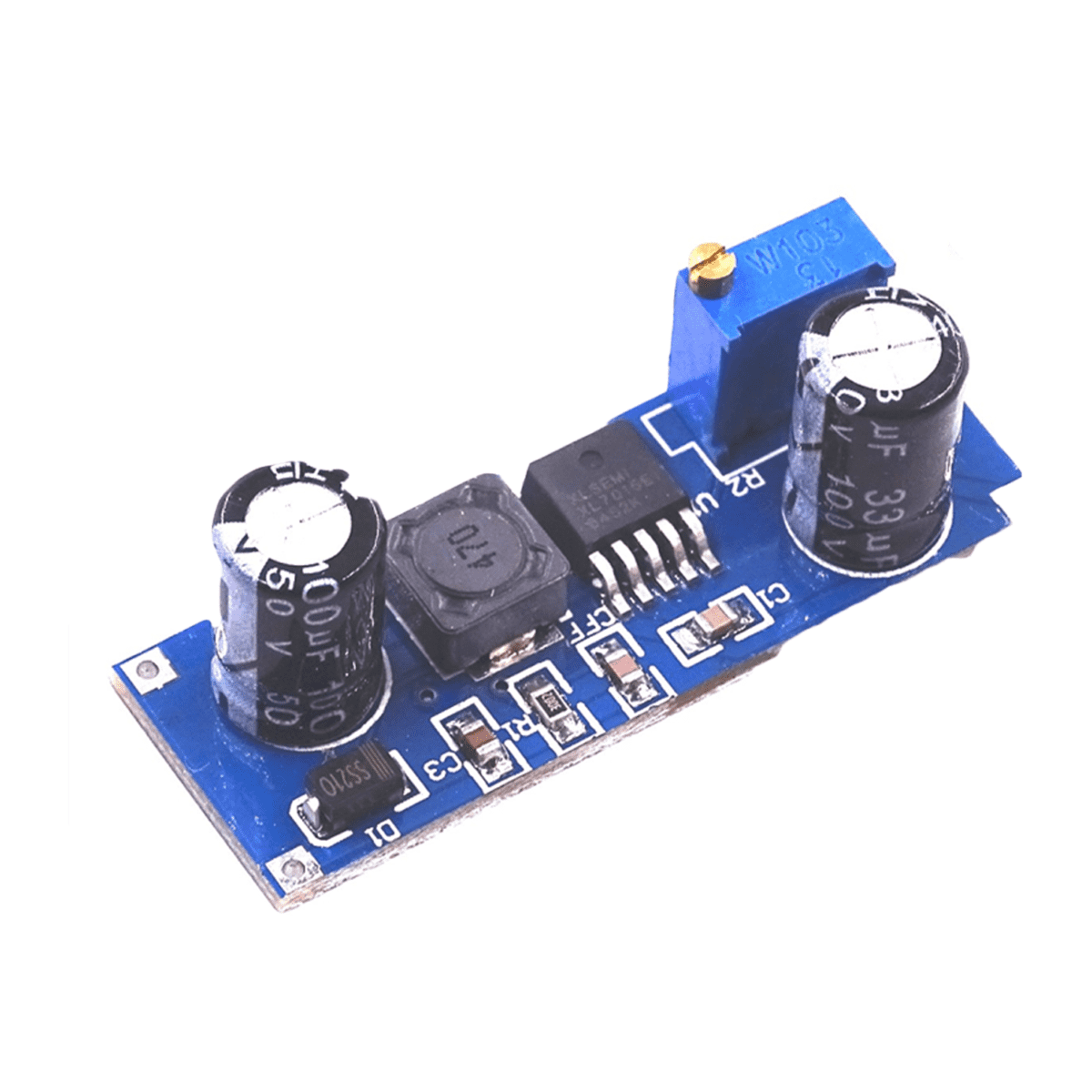

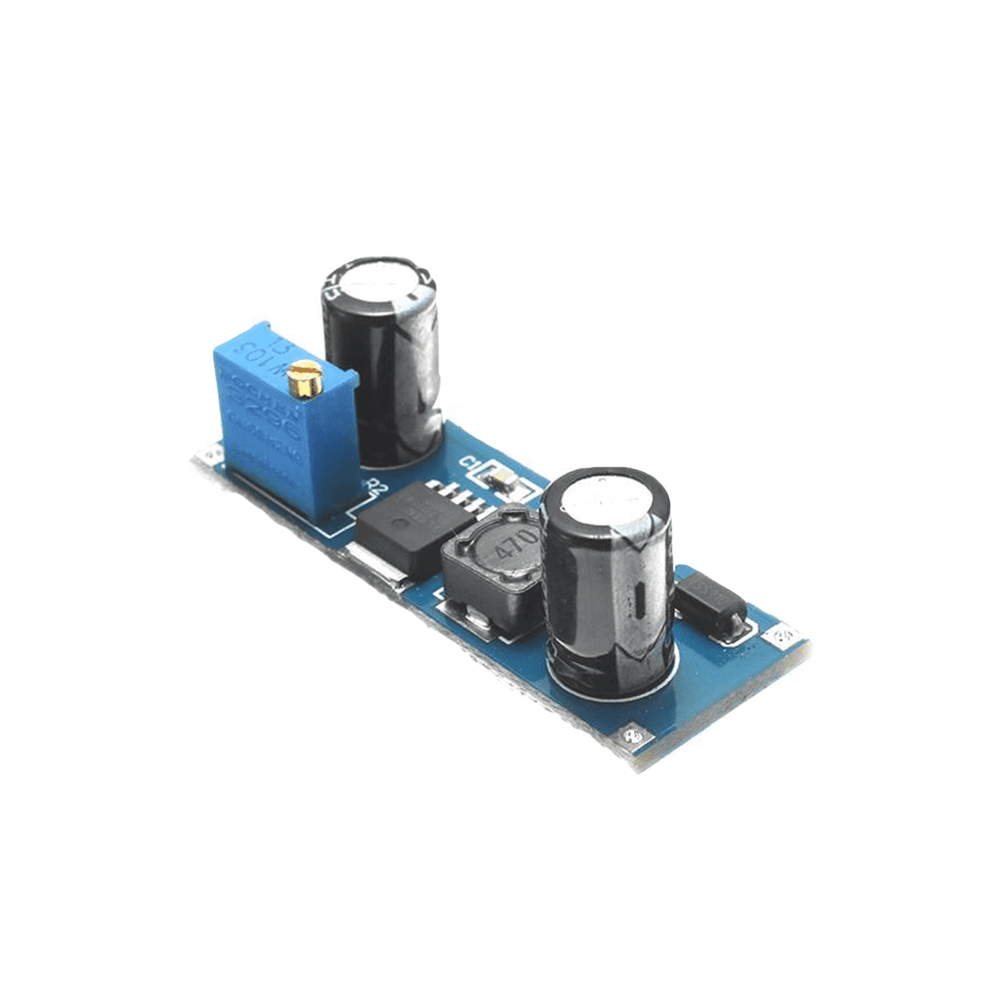

XL7015 Wide Range DC-DC Voltage Converter
Couldn't load pickup availability
The XL7015 is a DC-DC step-down power supply buck module that operates at a fixed frequency of 150 kHz using PWM (Pulse Width Modulation) technology. It can efficiently drive a load of up to 0.8A with minimal ripple and excellent regulation of both line and load. This product is suitable for applications where the input voltage is higher than the output voltage, including battery-powered devices, power transformers, adjustable regulated power supplies, portable instruments for LCD monitors and TVs, as well as power supplies for telecom/networking equipment, 24V vehicle notebooks, and industrial equipment.
| Model | XL7015 |
| Input Voltage | 5V~80Vdc |
| Output Voltage | 5~20V |
| Conversion efficiency | Up to 85% |
| Dimensions | 5 x 2 x 1 cms |
| Weight | 15 grams |
The XL7015 module functions as a DC-DC step-down converter, effectively converting high-voltage input (ranging from 5V to 80V) to a lower output voltage. This module is designed with a maximum output current capacity of 0.8A and is ideal for application in industrial equipment, measuring tools, and other power tools. Employing a fixed frequency PWM buck, the module demonstrates high efficiency, low ripple, and broad input voltage range while driving a load of up to 0.8A.
The XL7015 buck converter boasts an impressive input voltage range of 5V-80V, making it a highly efficient, high-pressure step-down DC-DC converter that can deliver up to 0.8A output current. Its output voltage is adjustable, ranging from 5V to 20V. Featuring a fixed frequency PWM buck, the module can drive a load of up to 0.8A with remarkable efficiency, low ripple, and exceptional line and load regulation.
The XL7015 buck converter is designed for output power levels less than 7W. This module features an adjustable output voltage range of 5V to 20V and can deliver up to 0.8A output current capacity. As a highly efficient, high-pressure step-down DC-DC converter, it is capable of accepting a wide input voltage supply range from 5V to 80V. The module incorporates a fixed frequency PWM buck, ensuring it can drive a load of up to 0.8A with exceptional efficiency, low ripple, and outstanding line and load regulation. Additionally, the module comes equipped with essential built-in safety features such as overheating protection, output short circuit protection, and overcurrent protection.
