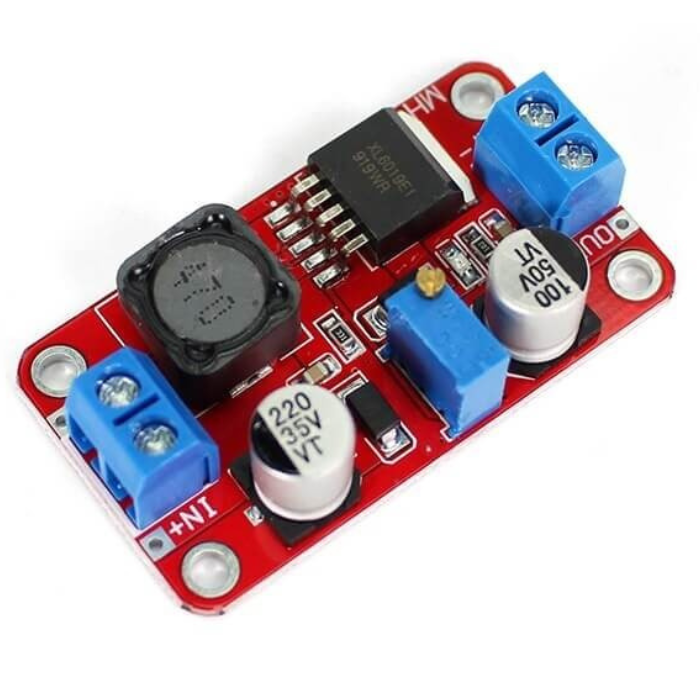

XL6019 DC-DC 5A Adjustable Boost Power Supply Module (RED)

XL6019 DC-DC 5A Adjustable Boost Power Supply Module (RED)

Out of stock

Regular price Rs. 144
Regular price Rs. 199 Sale price Rs. 144
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 55 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • This is XL6019 DC-DC 5A Adjustable Boost Power Supply Module
  • Up to 5A switching current and conversion efficiency of up to 97%
  • Two input pins for VCC and GND, two output pins for desired output voltage
  • Reverse connect protection, output 5V/12V/24V adjustable, and built-in thermal protection
  • Wide input voltage range of up to 35V and adjustable output voltage of up to 40V
  • Built-in over-current protection and high system conversion efficiency above 90%

XL6019 DC-DC 5A Adjustable Boost Power Supply Module(RED)

DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97%.

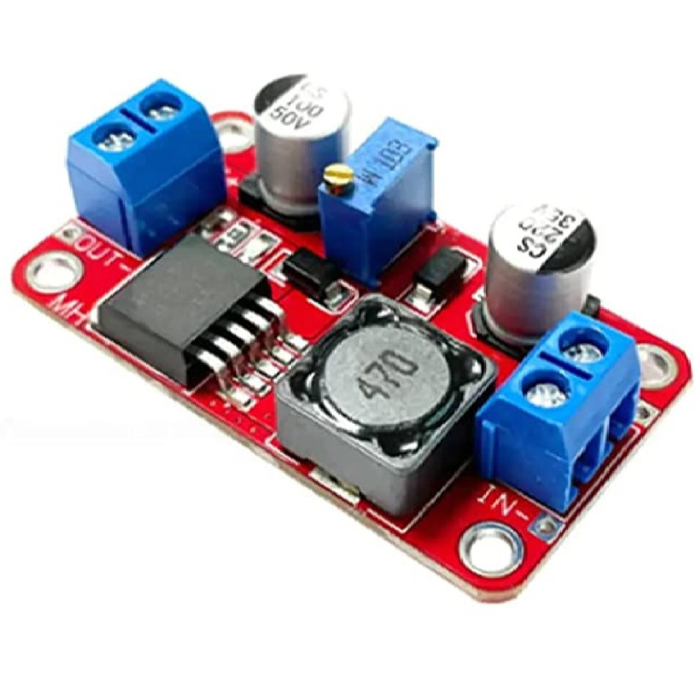

This XL6019 boost converter has two input pins for VCC and GND on the left side of the module. It has two output pins on the right side of the module. To get the desired output voltage you have to rotate the trimpot screw. It changes the feedback resistance value and thus the output voltage with respect to the input voltage. As this module is a step-up converter, therefore, the output current is always smaller than the input current. If the output power is greater than 10W then add the heat sink with the module otherwise it may damage the module.

Features

  • With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
  • Wide input voltage range, the input voltage up to 35V.
  • Adjustable output voltage, maximum support 40V.
  • The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
  • System conversion efficiency can achieve 90% above, convenient thermal design.
  • TO263-5 l standard packaging, suitable for booster application within 30W.

Also check the LM2596 Mini 360 Aircraft Power Supply Step-down Module. It is a non-isolated BUCK module with synchronous rectification. The module features an integrally molded power inductor and a synchronous rectifier control chip. It includes built-in 160°C thermal shutdown for safety and boasts low output ripple of 30mV (no-load).

Package Includes:

  • 1 x XL6019 DC-DC 5A Adjustable Boost Power Supply Module (RED)

Specifications:

 Output ripple 100mv (MAX)
 Working Temperature Industrial (-40 C to + 85 C)
Voltage regulation 0.5% MS + -> Positive; IN > Negative; OUT + -> Positive; OUT >
Negative Output Voltage DC 5-40V (Adjustable)
 Input Current 5A (MAX)
 Input Voltage DC 3-35 V Switching
 Frequency 220 kHZ
 Boost Module Size Approx 50 x 28 x 13mm (L x W x H)
 Load regulation 0.50%
 Conversion efficiency 94% (MAX)
