XL6019 DC-DC 5A Adjustable Boost Power Supply Module
People Also Buy
XL6019 DC-DC 5A Adjustable Boost Power Supply Module
DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97%.

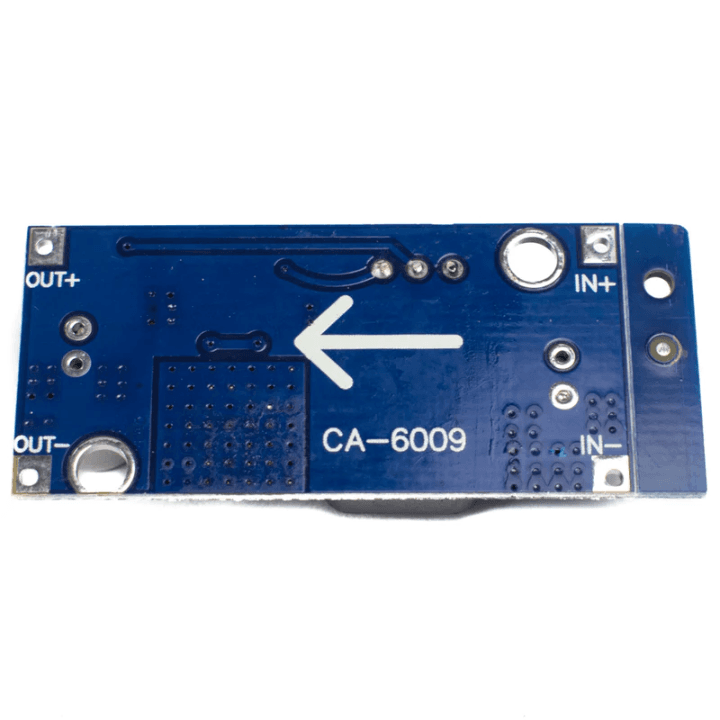

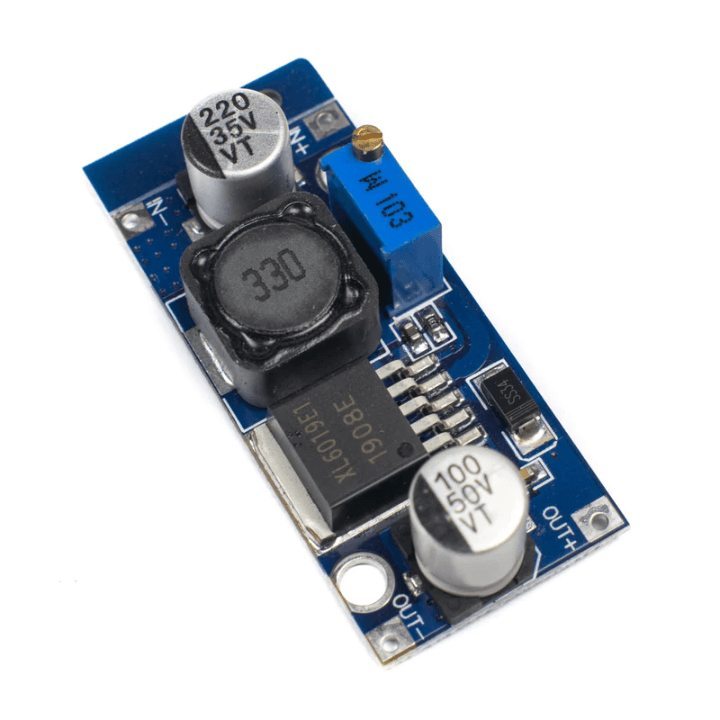

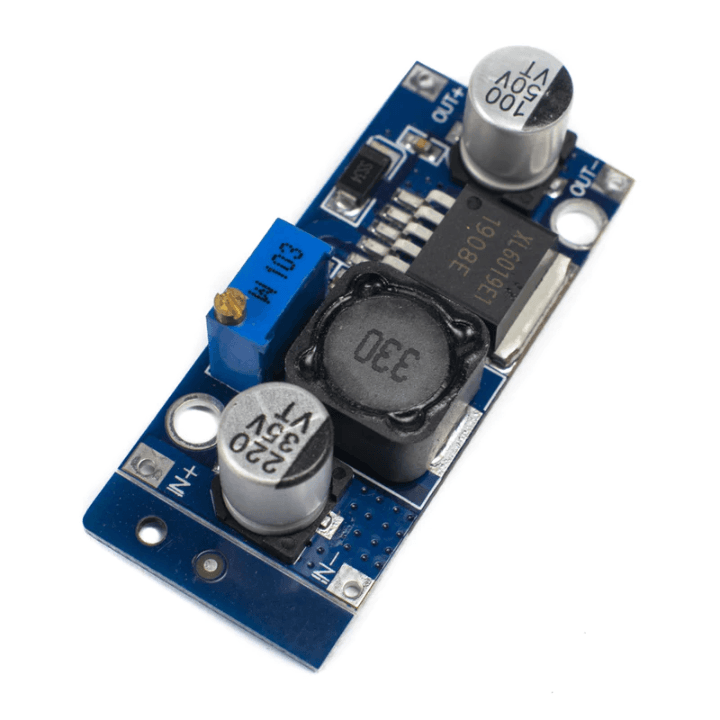

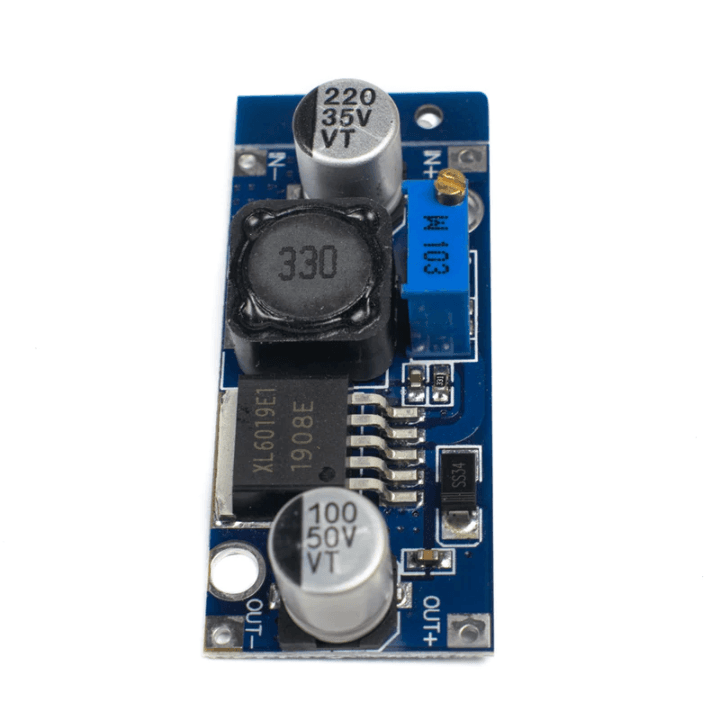

This XL6019 boost converter has two input pins for VCC and GND on the left side of the module. It has two output pins on the right side of the module. To get the desired output voltage you have to rotate the trimpot screw. It changes the feedback resistance value and thus the output voltage with respect to the input voltage. As this module is a step-up converter, therefore, the output current is always smaller than the input current. If the output power is greater than 10W then add the heat sink with the module otherwise it may damage the module.
Features
- With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
- Wide input voltage range, the input voltage up to 35V.
- Adjustable output voltage, maximum support 40V.
- The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
- System conversion efficiency can achieve 90% above, convenient thermal design.
- TO263-5 l standard packaging, suitable for booster application within 30W.
Package Includes:
- 1 x XL6019 DC-DC 5A Adjustable Boost Power Supply Module
Specifications:
| Output ripple | 100mv (MAX) |
| Working Temperature | Industrial (-40 C to + 85 C) |
| Voltage regulation | 0.5% MS + -> Positive; IN > Negative; OUT + -> Positive; OUT > |
| Negative Output Voltage | DC 5-40V (Adjustable) |
| Input Current | 5A (MAX) |
| Input Voltage | DC 3-35 V Switching |
| Frequency | 220 kHZ |
| Boost Module Size | Approx 50 x 28 x 13mm (L x W x H) |
| Load regulation | 0.50% |
| Conversion efficiency | 94% (MAX) |
1. What is the use of XL6009 boost converter?
The XL6009 boost converter is a DC-DC step-up voltage converter capable of transforming an input voltage range of 5-32V DC to an output voltage range of 4-38V DC. This non-isolated voltage converter offers an adjustable output voltage and high efficiency. The XL6009 boost converter is frequently utilized in applications that demand a higher voltage level, such as battery-powered devices, LED lighting, and other electronic circuits.
2. What is the maximum current of XL6009 boost converter?
The maximum current of the XL6009 boost converter is 4A
3. Can boost converter increase power?
Yes, a boost converter is capable of elevating power by increasing the input voltage to a level required by a load. Nevertheless, the output current is typically lower than the source current due to the conservation of power. Although the voltage gain of a boost converter has a natural limit, it can be surpassed by employing a switching regulator with a boost topology or incorporating a charge-pump doubler to a boost converter.
