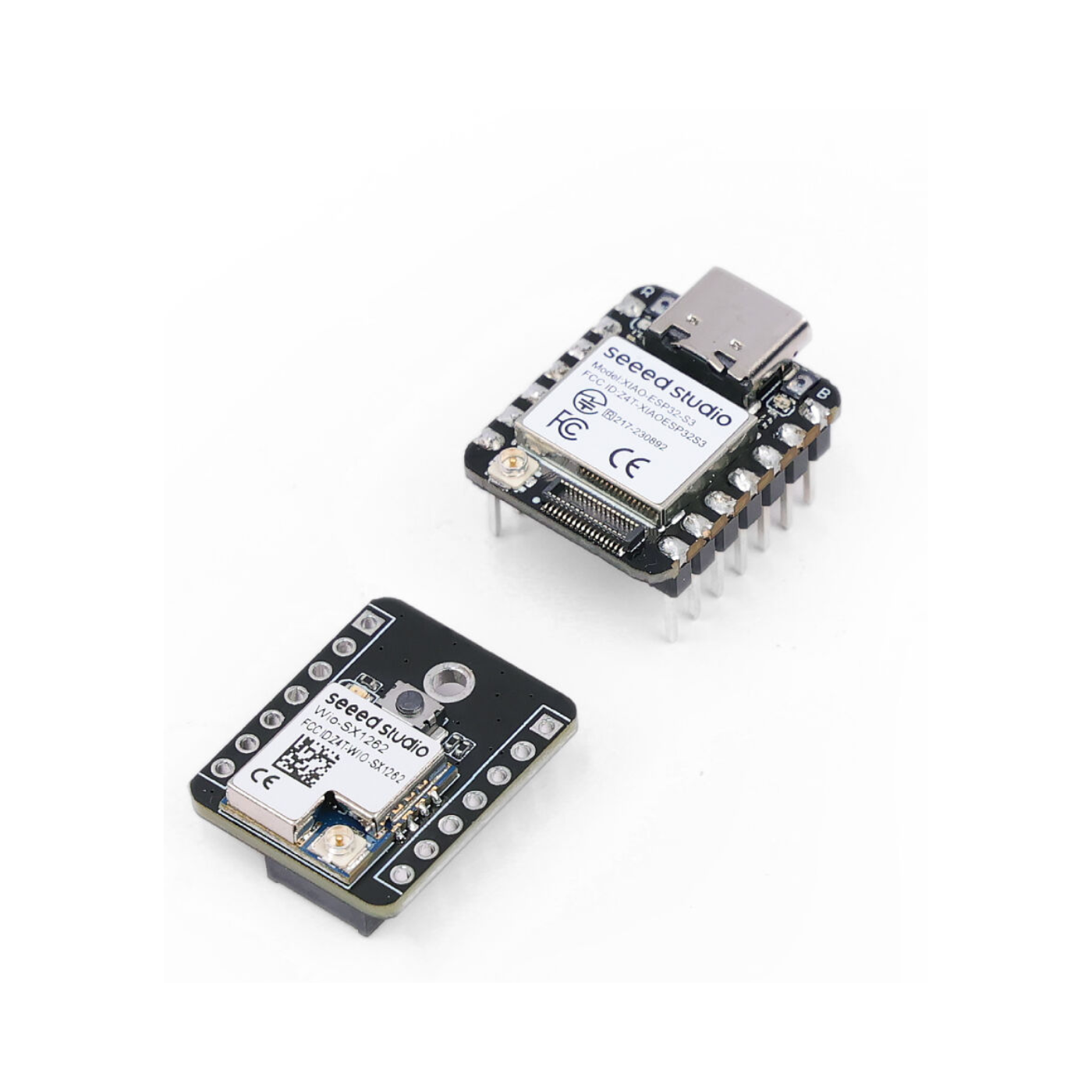

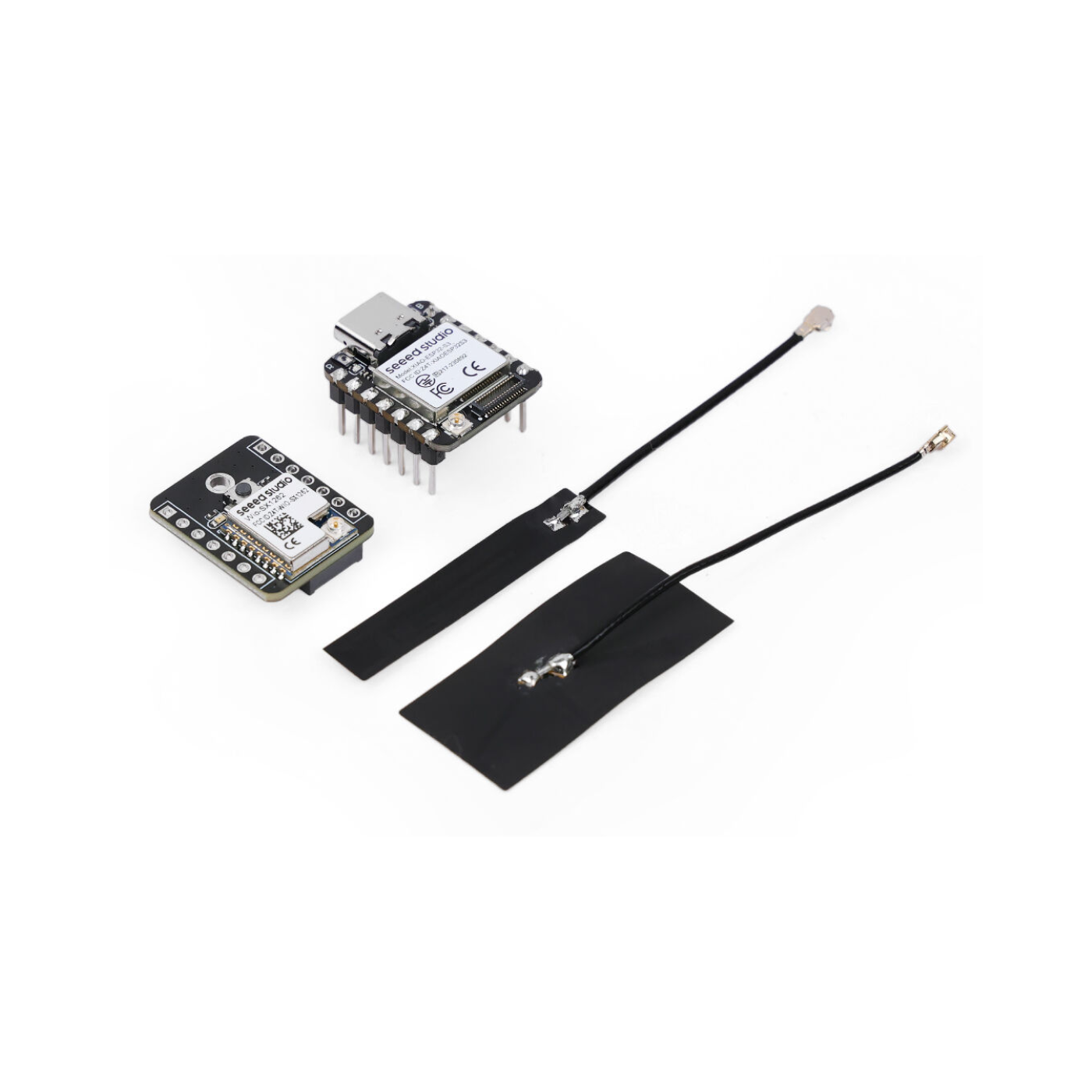

The XIAO ESP32S3 & Wio-SX1262 Kit is a compact and versatile development board designed for building low-power, long-range wireless networks.
Ideal for applications like Meshtastic, LoRaWAN, and sensor-based projects, this seeed studio xiao esp32s3 meshtastic solution combines the powerful ESP32-S3 microcontroller with the Semtech SX1262 LoRa module.
This xiao esp32s3 & wio-sx1262 kit enables seamless communication over distances up to 2.5 km using LoRa technology, along with Wi-Fi and Bluetooth connectivity for added flexibility.

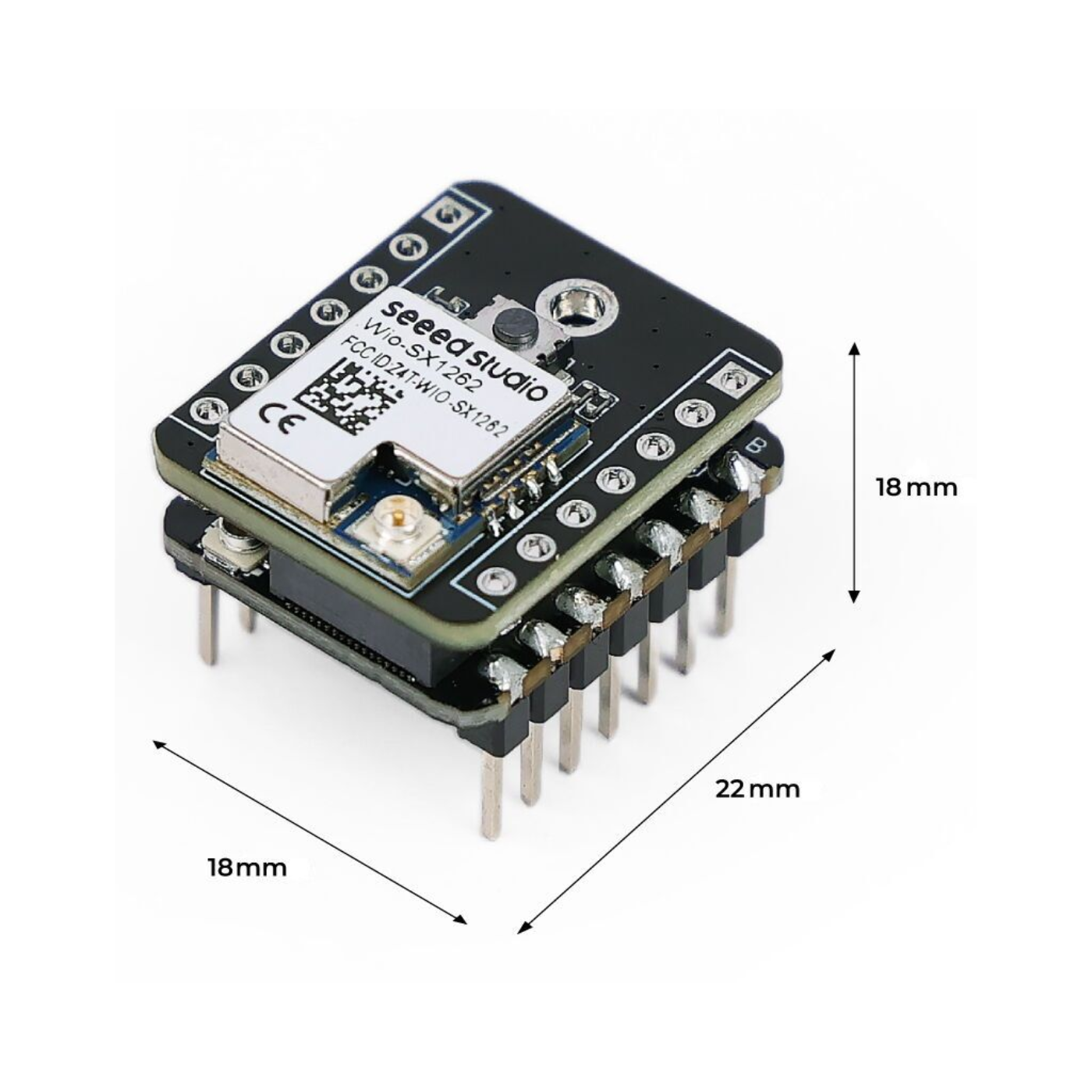

Measuring just 21 x 18 mm, the kit is perfect for space-constrained environments such as wearables or remote sensor nodes. It comes pre-flashed with Meshtastic firmware, allowing for immediate use in mesh networking applications.
Additionally, the seeed studio xiao esp32s3 & wio-sx1262 platform supports Arduino development, making it accessible for both beginners and experienced developers.
With its low power consumption and robust wireless capabilities, this kit is an excellent choice for creating reliable communication networks in remote or challenging environments.
Related Products
If you're looking for a reliable xiao esp32s3 & wio-sx1262 kit, this module stands out due to its compact size, low power consumption, and seamless Meshtastic compatibility. The integration of the wio-sx1262 LoRa module with ESP32S3 ensures efficient long-range communication while maintaining flexibility with Wi-Fi and BLE.
This seeed studio xiao esp32s3 meshtastic solution is especially suitable for developers building decentralized communication networks, IoT sensor nodes, or off-grid communication systems.
Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion Board.
Built around the reliable seeed studio xiao esp32s3 & wio-sx1262 architecture for stable long-range communication

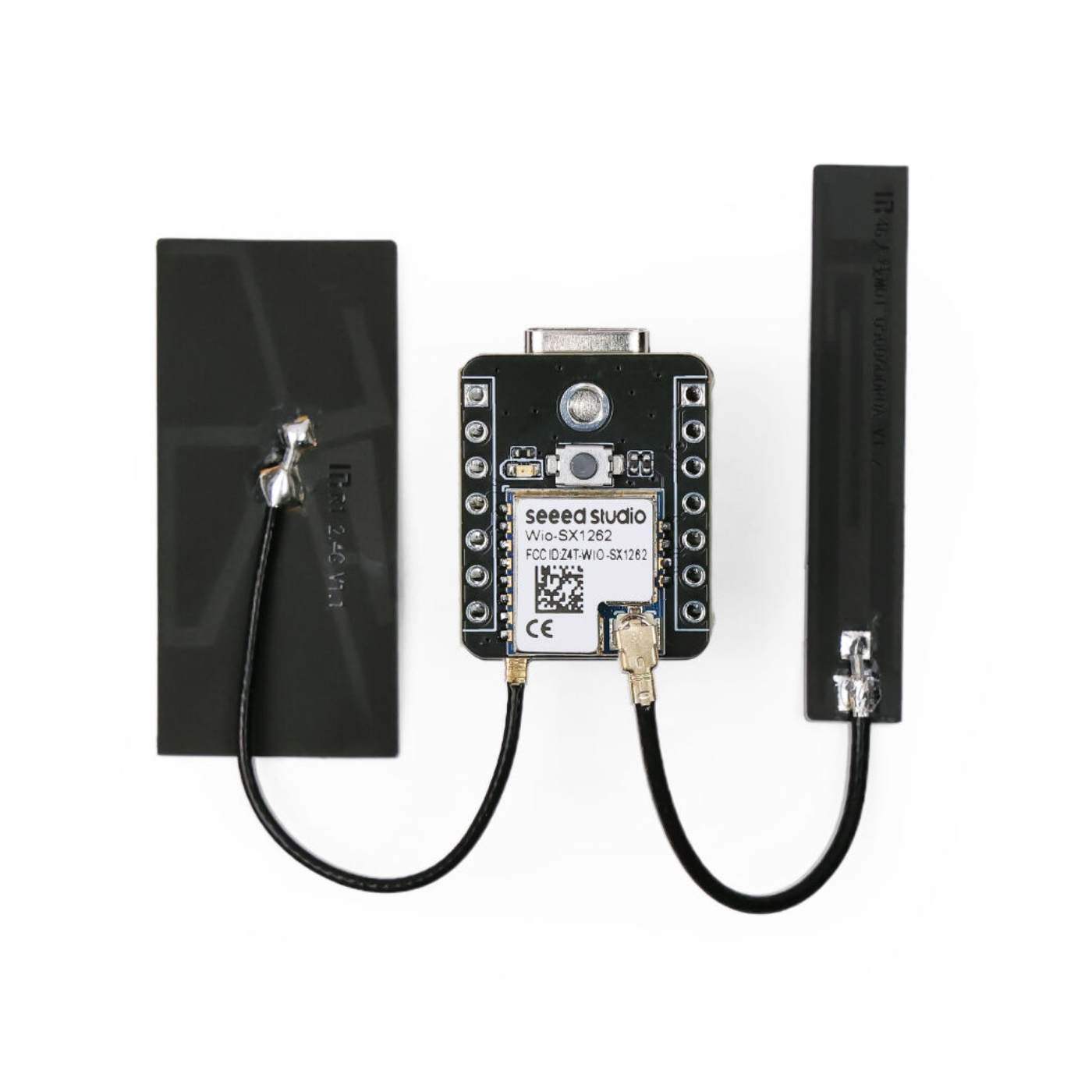

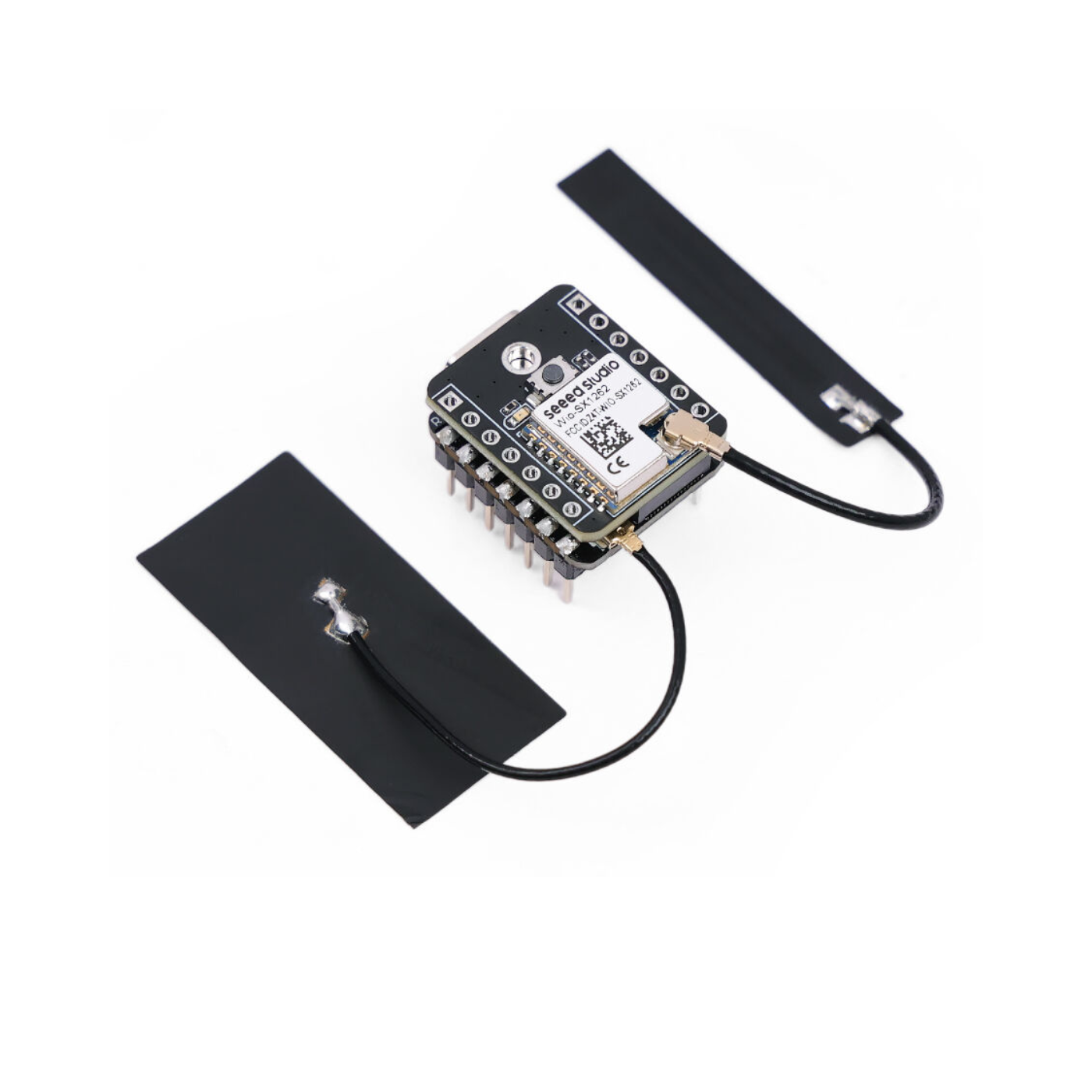

Support connecting an external high-performance LoRa antenna using an IPEX to SMA connector:
The XIAO ESP32S3 Wio SX1262 Kit delivers strong long-range performance in open outdoor conditions. During field testing with Meshtastic firmware, the module maintained stable communication across:
These ranges vary based on antenna type, height, obstacles, and transmission power settings.
Acts as an ultra-small node that can be used as a portable device or a fixed router to expand the Meshtastic network.
A mini LoRaWAN sensor, perfect for beginners exploring LoRa/LoRaWAN technology. Can be used with the XIAO extension board and Grove sensors for quick prototyping.
A cost-effective single-channel LoRaWAN gateway to connect multiple LoRaWAN sensors and send data to network servers like The Things Network and Chirpstack.
| Parameter | Description |
|---|---|
| ESP32S3 | ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz |
| LoRa | Based on Semtech SX1262, supports 862-930 MHz |
| BLE | Bluetooth 5.0, Bluetooth mesh |
| Wi-Fi | Complete 2.4GHz Wi-Fi subsystem |

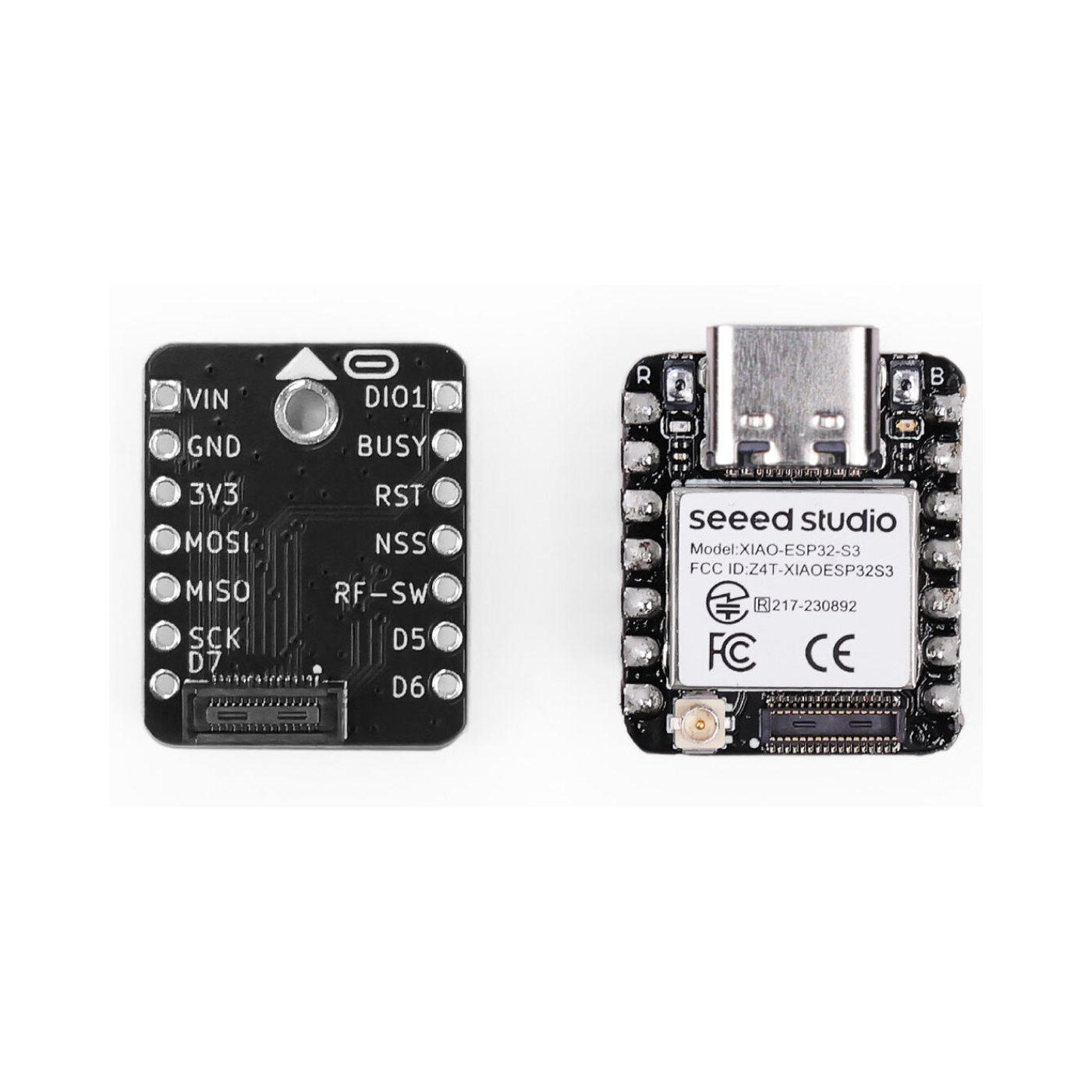

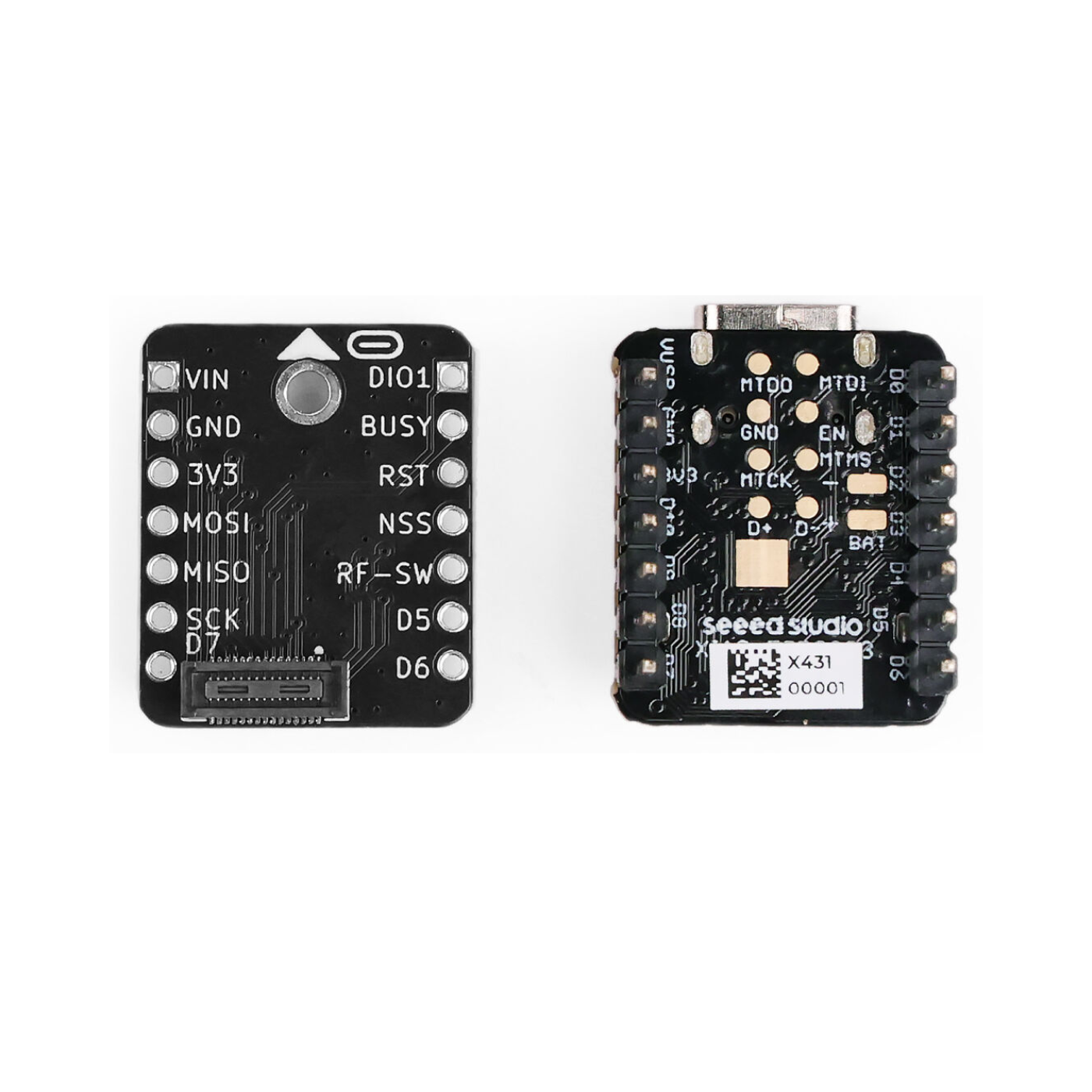

| Interface - ESP32S3 |
1x UART, 1x IIC, 1x IIS, 1x SPI (connect to SX1262), 11x GPIO (PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button |
| Interface - Wio-SX1262 | 1x User button, 1x SPI (connect to ESP32S3) |
| Power |
Input voltage (Type-C): 5V Input voltage (BAT): 4.2V Charging battery current: 100mA |
| Working Temperature | -40°C ~ 65°C |
| Dimensions | 21 x 17.8 mm |
Connect the XIAO ESP32S3 & Wio-SX1262 Kit to your computer via USB-C and install the latest Meshtastic firmware using the Meshtastic Flasher tool. Configure your node settings—such as name, channel, and region—using the Meshtastic app over USB or Bluetooth. This open-source mesh networking device will then join the network and begin relaying messages. Ensure the LoRa antenna is securely attached for optimal range.
Use the Arduino IDE to program the Arduino-compatible LoRa board by installing the ESP32 board package and selecting the XIAO ESP32S3. You can either modify existing Meshtastic code or write custom logic to extend functionality like GPS tracking or sensor integration. Upload the sketch via USB, and the board will run it alongside the mesh stack. This allows full control over node behavior in your Meshtastic projects.
Deploy several Meshtastic nodes across your target area, each built from the XIAO ESP32S3 & Wio-SX1262 Kit, and configure them with the same channel and encryption key via the Meshtastic app. The open-source mesh networking protocol enables nodes to automatically discover and relay messages through intermediate devices. This extends coverage far beyond line-of-sight, ideal for hiking, events, or rural monitoring.
Download the latest firmware from the official Meshtastic repository and use the Meshtastic Flasher tool to update your Arduino-compatible LoRa board. Connect the Meshtastic node via USB, select the correct target (XIAO ESP32S3), and flash the new firmware. Updating ensures improved stability, security, and access to new features in the open-source mesh networking ecosystem.
If your Meshtastic node isn’t connecting, verify that the Wio-SX1262 module is properly seated and the antenna is connected. Ensure the correct firmware is flashed and the node appears in the Meshtastic app. Check that other nodes are powered, within range, and configured with matching settings. Use serial logging in the Arduino IDE to debug communication issues on the Arduino-compatible LoRa board.
The Wio-SX1262 module uses LoRa modulation to enable long-range communication of several kilometers in open terrain. Program it through the Arduino-compatible LoRa board to send text, GPS coordinates, or alerts across the open-source mesh networking network. Adjust spreading factor and transmit power in firmware to balance range and battery life. Ideal for remote sensing or emergency messaging where cellular is unavailable.
Connect sensors like BME280, GPS, or PIR to the XIAO ESP32S3 via I2C, UART, or GPIO pins. Use custom firmware to read data and transmit it through the Meshtastic network as encrypted packets. This turns your Meshtastic node into a wireless sensor node for environmental monitoring or asset tracking. The open-source mesh networking system ensures data hops across nodes to reach a central gateway.
This powerful kit is designed to help you easily build your own Meshtastic node for secure, off-grid messaging. It is perfect for creating amazing long-range communication systems. You can use it for all kinds of creative open-source mesh networking projects and remote sensing applications.
Yes, it is fully compatible with the Arduino environment! This Arduino-compatible LoRa board makes it incredibly easy to program the XIAO ESP32S3. You can use the familiar Arduino IDE to write your own custom code and create unique wireless communication projects.
With this kit, you can build a wide range of impressive projects, from custom IoT devices that report data from remote locations to sophisticated wireless sensor networks. It is especially well-suited for building Meshtastic node applications that require efficient, low-power, long-range communication over a self-healing mesh network.
The Wio-SX1262 LoRa module is what gives this kit its incredible superpower: long-range, reliable wireless connectivity. This allows your open-source mesh networking projects to send messages and data over several kilometers. It achieves this impressive range with very minimal power consumption.
Absolutely! This kit is a fantastic starting point for anyone interested in mesh technology. It combines a powerful, Arduino-compatible LoRa board with excellent online tutorials and easy-to-use documentation. This makes it perfect for beginners and experienced users who want to explore Meshtastic node and mesh networking applications.
