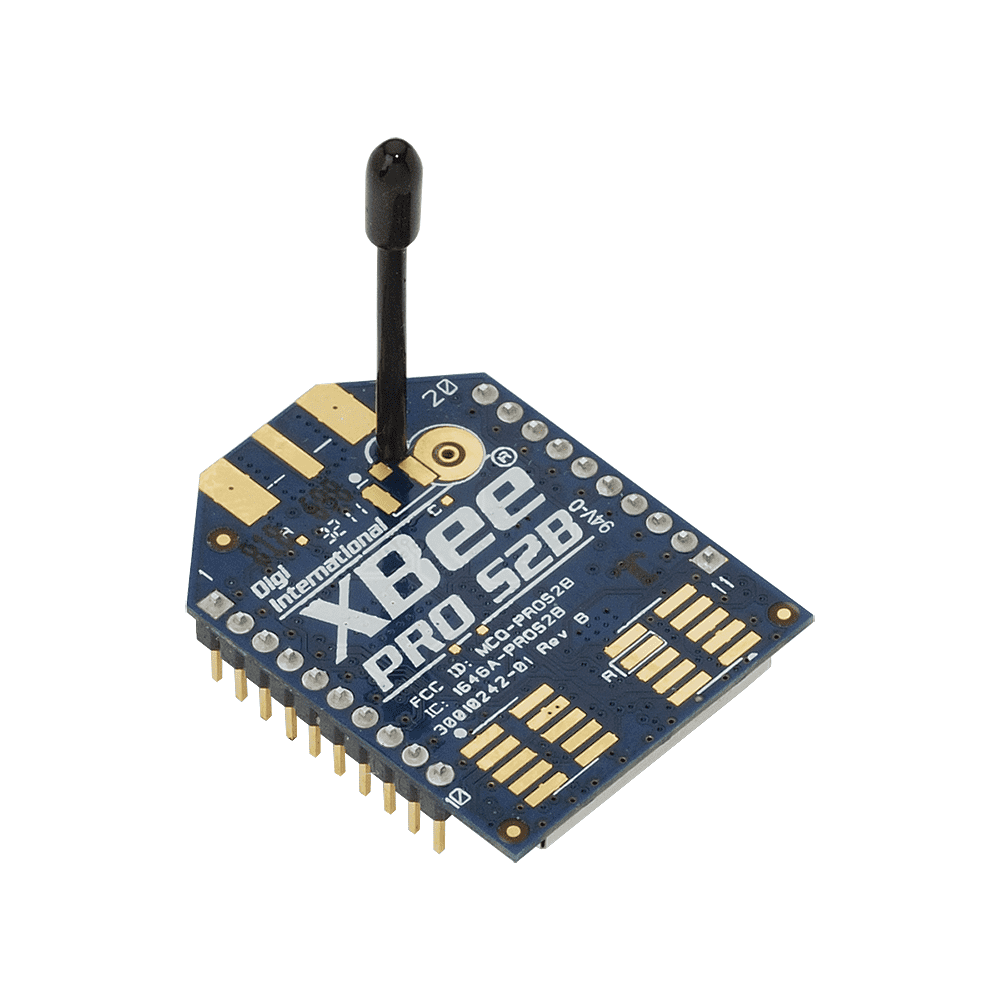

XBee-PRO ZB S2B Extended Range Module
XBee-PRO ZB S2B Extended Range Module
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is XBee-PRO ZB S2B Extended Range Module
- This is an Extended-range 63 mW model.
- The Outdoor range up to 2 miles (3.2 km) line of sight.
- Indoor range up to 300 feet (90 m).
- This has the Data rate up to 1 Mbps.
- 2.4 GHz frequency band (accepted world-wide.
XBee-PRO ZB S2B Extended Range Module
XBee ZB PRO(a.k.a. Series 2) module improves upon the power output and data protocol of the Pro Series2. Series 2B modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. Series 2 modules allow you to create complex mesh networks. this module has the lowest current draw of any Digi RF product.
The XBee-PRO ZB S2B Extended Range Module enables wireless communication for electronic devices at an affordable cost. It is a member of the Digi XBee and XBee-PRO Zigbee RF modules family, compatible with other Zigbee PRO feature set devices from different manufacturers.
This programmable module allows easy customization of applications. It comes equipped with an integrated wire antenna and an RPSMA connector. The module is highly suitable for energy and controls markets, where efficient manufacturing is essential.
To optimize integration with embedded microcontrollers and reduce development costs, the module features a high-speed Serial Peripheral Interface (SPI). Additionally, the XBee-PRO ZB S2B Extended Range Module uses separate communication protocols, which is characteristic of the Zigbee RF modules family.
Features:
- Improved power output and data protocol compared to the Pro Series 2
- Enables creation of complex mesh networks
- Range of up to several hundred feet in free-air terrain with limited sources of interference
- Programmable module with an integrated wire antenna
- Available in different versions with different connectors.
Package Includes:
- 1 x XBee-PRO ZB S2B Extended Range Module
Specifications
| Operating Frequency | ISM 2.4 GHz |
| Antenna type | Wire antenna |
| Indoor/Urban Range | 300 ft. (90 m) |
| Outdoor RF | (3200 m) |
| Dimensions | 5 x 4 x 3cms |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is XBee Pro?
The XBee Pro is a wireless communication module that offers cost-effective connectivity to electronic devices. It is compatible with other Zigbee Pro feature set devices and capable of long-range communication of up to 28 miles with a high-gain antenna.
These programmable modules are versatile and can be utilized for various applications such as remote monitoring, control, and sensing. They are designed to mount into a receptacle and do not require any soldering during installation.
The XBee Pro is widely used in the Internet of Things (IoT) and other wireless communication applications.
2. What is the difference between XBee and Zigbee?
XBee is a family of radio modules that can utilize various wireless communication protocols, including Zigbee. It is a registered trademark of Digi International.
On the other hand, Zigbee is a wireless communications protocol that operates as a mesh network. In a Zigbee system, each node can serve as a wireless data endpoint or repeater. It is a registered trademark of the Zigbee Alliance.
XBee modules are programmable and are suitable for various applications such as remote monitoring, control, and sensing. The main difference between XBee and Zigbee is that XBee is a hardware product, while Zigbee is a wireless communication protocol.
