- This is Wio Terminal Development Board
- All-in-one dev board: Screen + Input/Output Interface + Enclosure
- Equipped with 2.4" LCD screen, onboard IMU, microphone, buzzer, microSD card slot, light sensor, and infrared emitter
- Over 300 Groves for sensing/tagging real-world data
- 100% open-source hardware for pythonic development
- Compatible with Arduino and MicroPython, versatile for DIY IoT projects and education.
- Raspberry Pi 40-pin Compatible GPIO, Compatible with over 300 plug&play Grove modules to explore with IoTTELEC certificated
- It is TELEC certificated.
- This Support Arduino, CircuitPython, Micropython, ArduPy, AT Firmware.
Wio Terminal Development Board
Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects.
Wio Terminal is more of a complete system equipped with a Screen + Development Board + Input/Output Interface + Enclosure, making it an efficient and Product-Ready Product. The Wio Terminal itself is equipped with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm).
With Wio Terminal, you can:
- Sense and tag the Real-World data with over 300 Groves created by Seeed
- Use a 100% open-source Hardware in a pythonic way
- Build your program interpreter starting from 90% with LCD screen and compact enclosure
Features
- All-in-one development board
- Equipped with an ATSAMD51-based microcontroller
- Wireless connectivity supported by Realtek RTL8720DN
- Compatible with Arduino and MicroPython
- 2.4'' LCD screen
- Onboard IMU, microphone, buzzer, microSD card slot, light sensor, and built-in magnets
- It can be used for various projects and interfacing with the real world
- Works with the standard Arduino IDE to develop applications
- Versatile board for DIY IoT projects, education, and more

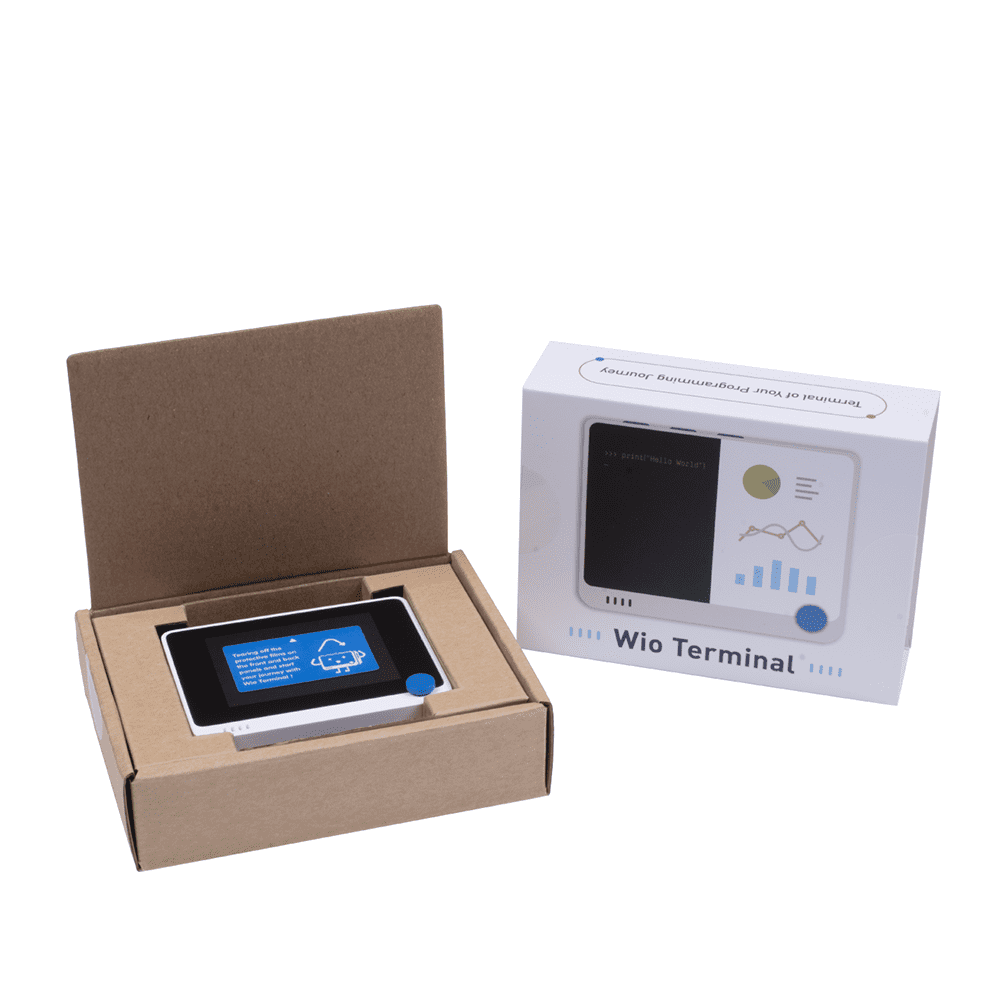

Package Includes:
- 1 x Wio Terminal Board
- 1 x User Manual
- 1 x USB Cable
Wio Terminal Board Specifications
| Core Processor | ARM® Cortex®-M4F |
| Maximum Speed | 200MHz |
| Resolution | 320x240 |
| Display Size | 2.4inch |
| Wi-Fi | 802.11 a/b/g/n 1x1, 2.4GHz & 5GHz |
| Bluetooth | Support BLE5.0 |
| Accelerometer | LIS3DHTR |
| Light Sensor | 400-1050nm |
| Infrared Emitter | 940nm |
| MicroSD Card Slot | 16GB Max |
| GPIO | 40-PIN (Raspberry Pi Compatible) |
| Grove | 2 (Multifunction) |
| FPC | 20 pins |
| Dimension |
72mm*57mm*12mm |
| Weight | 100 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
ESP8285 Wi-Fi SoC Module
Seeed Studio Wio Link Wireless Development Board
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the Wio Terminal compatible with?
The Wio Terminal is compatible with Arduino and MicroPython
2. What are the features of the Wio Terminal?
The Wio Terminal is equipped with a 2.4'' LCD screen, onboard IMU, microphone, buzzer, microSD card slot, light sensor, and built-in magnets.
It has both Wi-Fi and Bluetooth connectivity, making it perfect for a range of applications including IoT
3. How can I program the Wio Terminal?
The Wio Terminal can be programmed through an Arduino sketch, ArduPy, or MicroPython
ArduPy is a combination of Arduino and MicroPython, while MicroPython uses the universal Arduino API to control the hardware.
