Original WCS2720 Hall Effect based Linear Current Sensor (0-20A)
Original WCS2720 Hall Effect based Linear Current Sensor (0-20A)
Regular price
Rs. 449
Regular price
Rs. 520
Sale price
Rs. 449
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 13 people are actively viewing.
Same Day Shipping
If Ordered within 1 Hours and 54 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Low noise analog signal path
- 0.5 mΩ internal conductor resistance
- Output voltage proportional to AC and DC current
- Min. sensing current 0~20A at 5V voltage supply
- High Sensitivity 65 mV/A
- Nearly zero magnetic hystereses.
WCS2720 Hall Effect based Linear Current Sensor (0-20A)
The Winson WCS2720 Hall Effect Current Sensor provides an economical and precise solution for both DC and AC current sensing in industrial, commercial, and communications systems. The unique package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system, etc.
The WCS2720 sensor consists of a precise, low-temperature drift linear hall sensor IC with a temperature compensation circuit and a current path with 0.5 mΩ typical internal conductor resistance. This extremely low resistance can effectively reduce power loss, and operating temperature and increase reliability greatly. Applied current flowing through this conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. The terminals of the conductive path are electrically isolated from the sensor leads. This allows the WCS2720 current sensor to be used in applications requiring electrical isolation without the use of optoisolators or other costly isolation techniques and makes the system more competitive in cost.
Pinout:

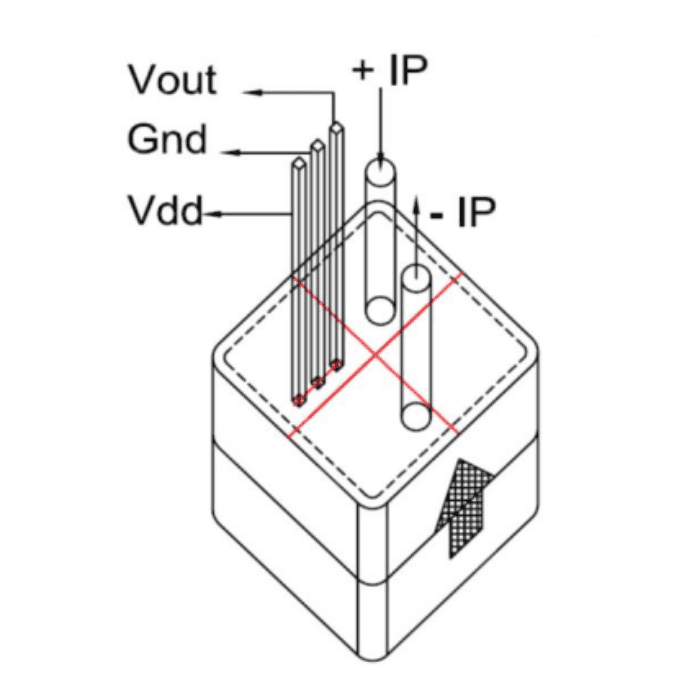

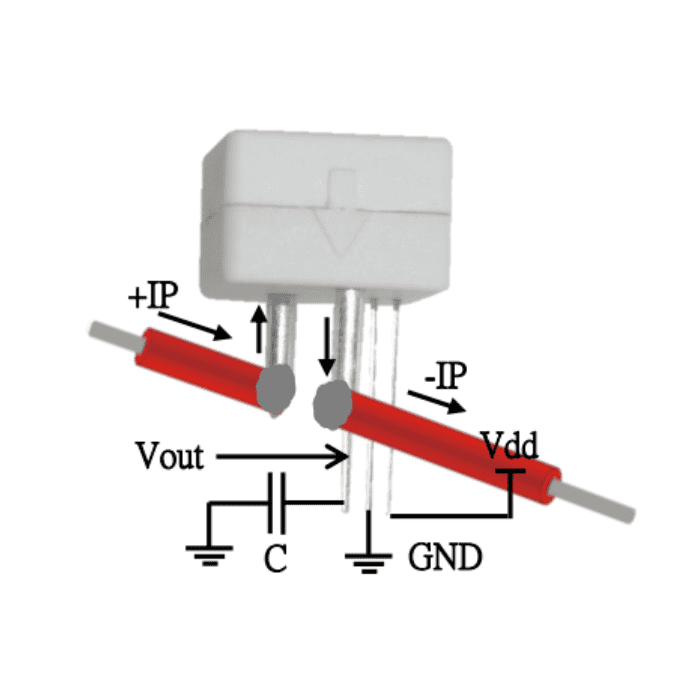

Pinout of WCS2720 Hall Effect based Linear Current Sensor
Package Includes:
- 1 x WCS2720 Hall Effect based Linear Current Sensor (0-20A)
Specifications:
| Supply Voltage | 3.0~12 V |
| Supply Current | 3.5~6.0 mA |
| Operating Temp | -20ºC to +125ºC |
| Bandwidth | 23K Hz |
| Sensitivity | 65 mV/A |
