Original WCS2702 Hall Effect based Linear Current Sensor (0-2.0A)

Original WCS2702 Hall Effect based Linear Current Sensor (0-2.0A)

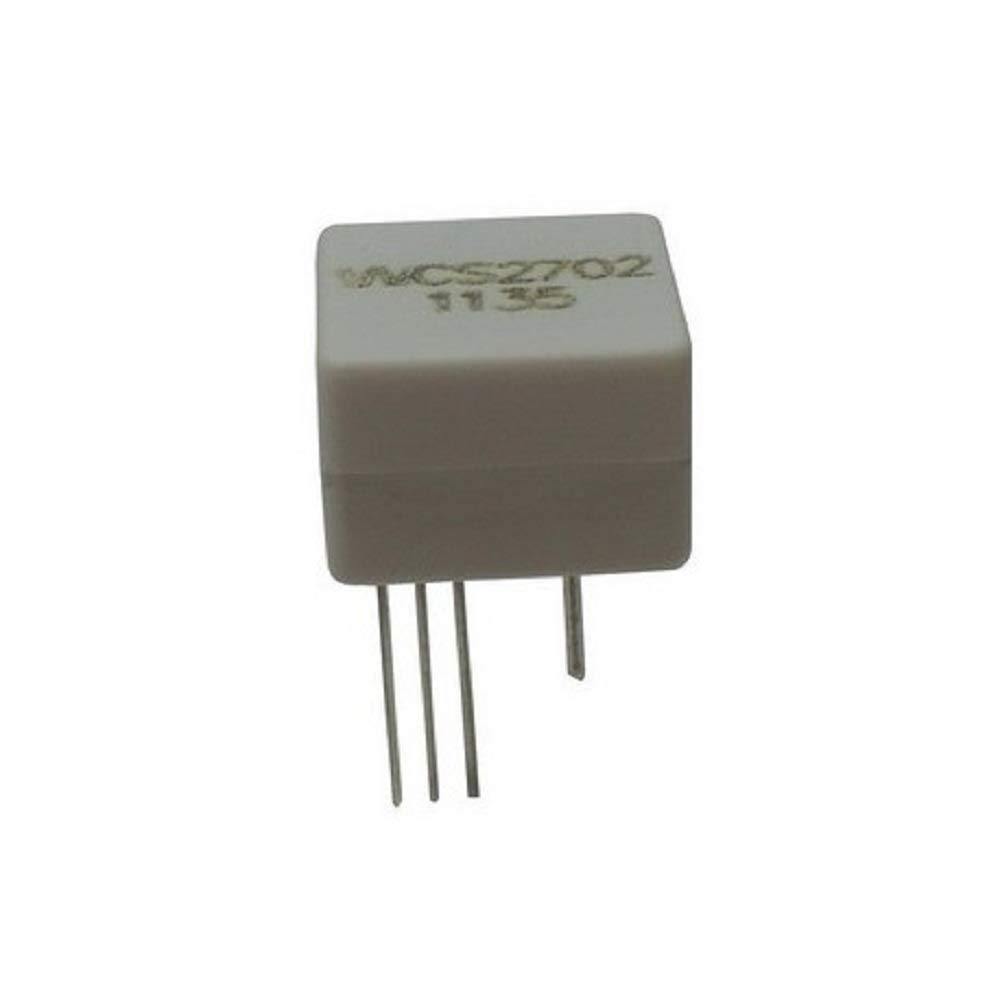

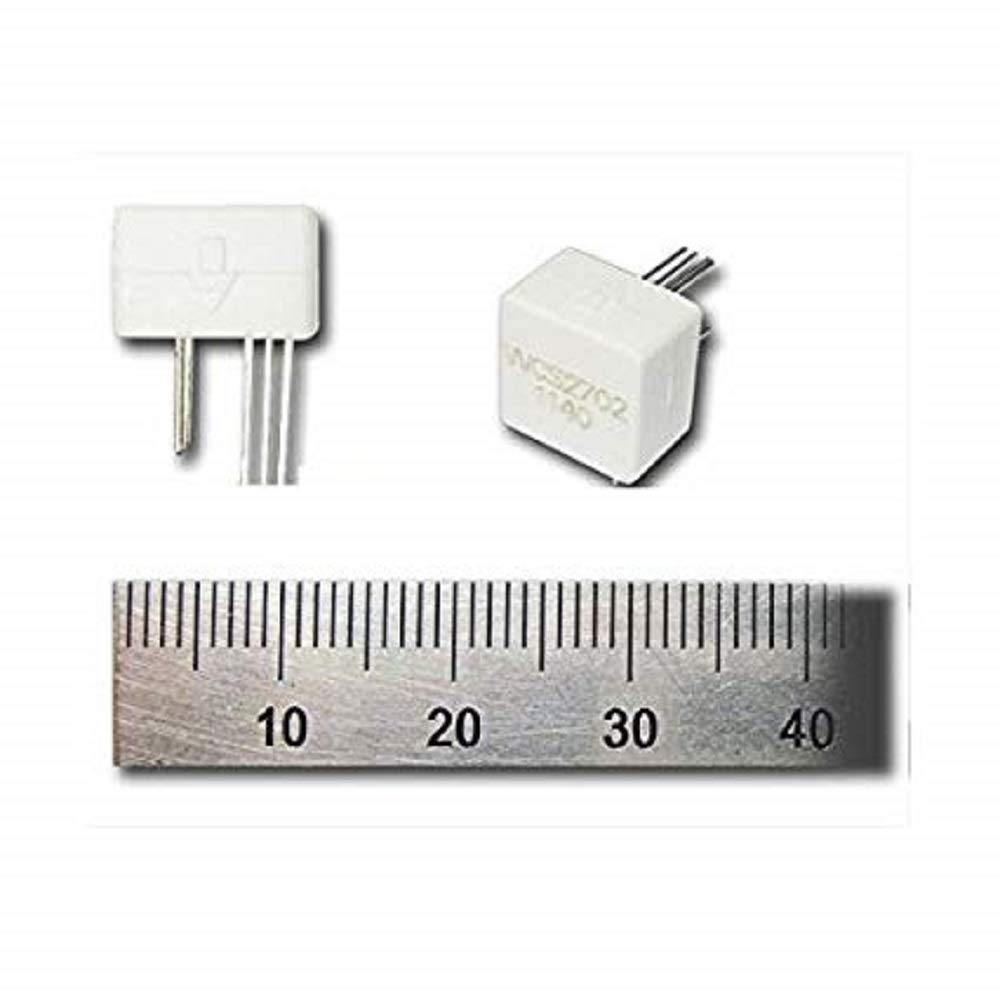

The Original WCS2702 Hall Effect based Linear Current Sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems. The unique package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc

The WCS2702 sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a current path with 98 mΩ typical internal conductor resistance. This Hall Effect sensor extremely low resistance can effectively reduce power loss, operating temperature and increase the reliability greatly. Applied current flowing through this conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. The terminals of the conductive path are electrically isolated from the sensor leads. This allow the WCS2702 current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.

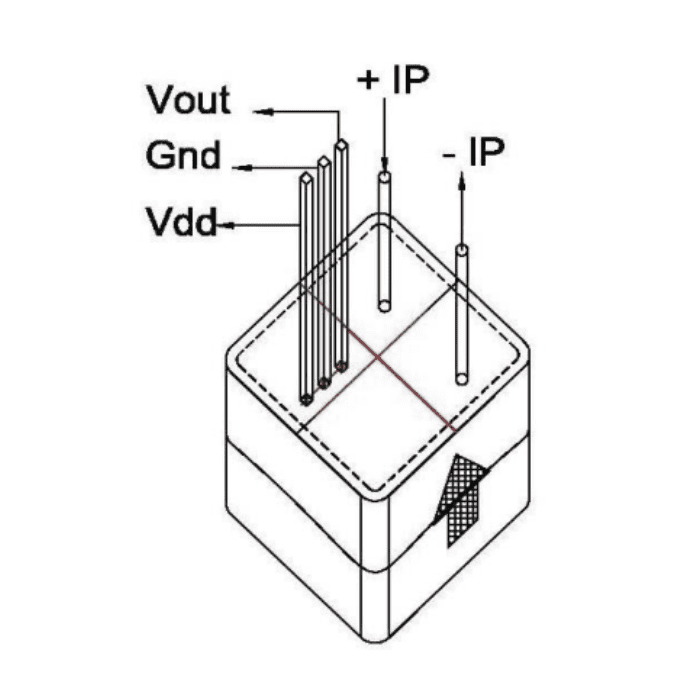

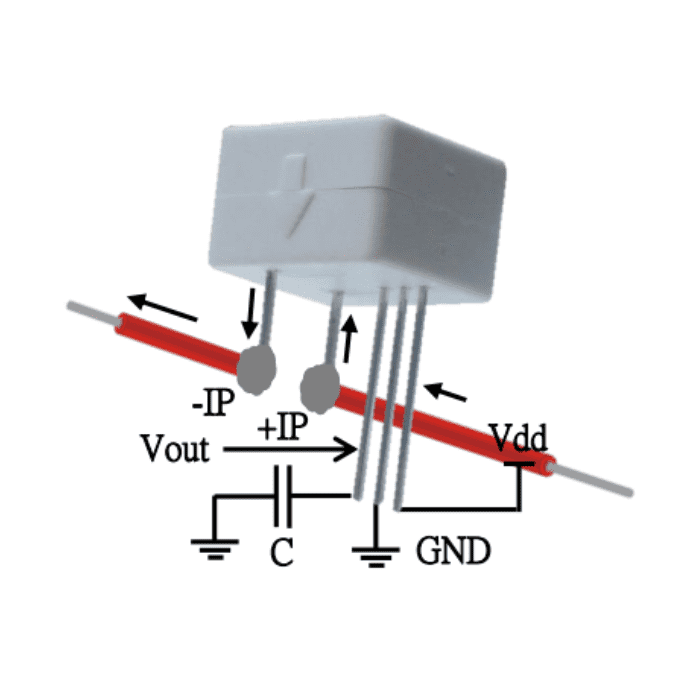

Pinout:

Package Includes:

• 1 x Original WCS2702 Hall Effect based Linear Current Sensor (0-2.0A)

Specifications:

ADDITIONAL RESOURCES

• Datasheet

Related Blogs
